AYZ15L-AWXLBV (2014)

Toyota Lexus Nx Series

Production Jul 2014 - Sep 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1407- )

Click highlighted areas on diagram

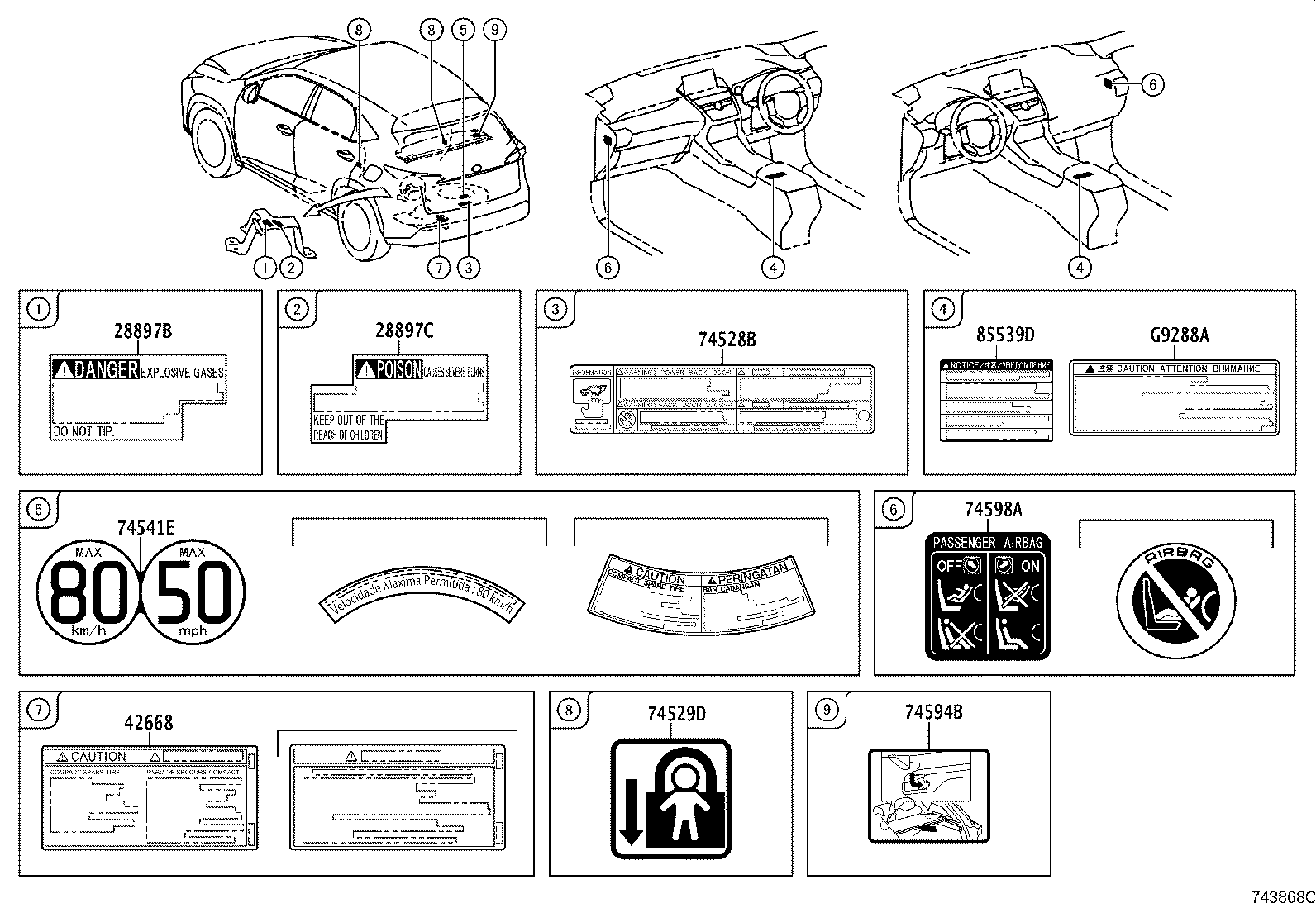

INTERIOR

diagram 28897B 28897C 42668 74528B 74529D 74541E 74594B 74598A 85539D G9288A
Part # Description Qty Price
28897B - LABEL, BATTERY CAUTION, NO.1
28897-36010

2ARFXE..AYZ1#

 1
28897C - LABEL, BATTERY CAUTION, NO.2
28897-36020

2ARFXE..AYZ1#

 1
42668 - LABEL, COMPACT SPARE TIRE CAUTION
42668-78020

AGZ1#,AYZ15..GCC

 1
42668-78020

AGZ15,AYZ15..GCC

LEBANON SPEC

 1
42668-78020

AYZ15..GCC

SYRIA SPEC

 1
74528B - LABEL, BACK DOOR CAUTION
74528-42011

AGZ1#,AYZ15..GCC

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
74528-48120

AGZ1#,AYZ15..GCC

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
74529D - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-33040

AGZ1#,AYZ1#,ZGZ1#

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-42010

AGZ15,AYZ15..GCC

LEBANON SPEC

 1
42668-42010

AGZ1#,AYZ1#,ZGZ1#

 1
42668-42010

AYZ15..GCC

SYRIA SPEC

 1
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

AGZ1#,AYZ1#,ZGZ1#

 1
85539D - LABEL, POWER OUTLET NOTICE
85539-48070

AGZ1#,AYZ1#,ZGZ1#

 1
G9288A - LABEL, BATTERY CARGING NOTICE
861C8-78020

AGZ1#,AYZ1#

WIRELESS CHARGER-WITH

 1
861C8-78010

AGZ1#,AYZ1#

WIRELESS CHARGER-WITH

 1

ILLUST NO. 1 OF 3(1407- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 11285A 11293D 11298B 16793B 16793B 77A55 88723E G9275 G92A1
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-37060

2ARFXE,3ZRFAE..AYZ1#,ZGZ1#

 1
11293D - LABEL, ENGINE CAUTION
11293-36070

2ARFXE..AYZ1#

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-36050

2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#

 1
16793-31040

2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#

 1
16793-37050

2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-36050

2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#

 1
16793-31040

2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#

 1
16793-37050

2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-30240

AYZ1#..ARL,GCC,GEN

 1
G9275 - LABEL, BATTERY CAUTION, NO.1
G9275-48050

AYZ1#

 1
G92A1 - LABEL, HYBRID COOLANT SYSTEM INFORMATION
G92A1-76010

AYZ1#

 1

ILLUST NO. 2 OF 3(1407- )

Click highlighted areas on diagram

EXTERIOR

diagram 41992 74511F 74559B 74561A 74571 74596A 74751 89356A
Part # Description Qty Price
41992 - LABEL, DIFFERENTIAL NOTICE
41992-48020

AYZ15..GCC,GEN

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74514-42051

AYZ15..GCC

*111

 1
74511-2B300

AYZ15..GCC

*111

 1
74559B - LABEL, FUEL INFORMATION
74559-14050

AYZ1#

 1
74559-20140

AYZ1#..ARL,GCC,GEN

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-53012

AGZ1#,AYZ1#,ZGZ1#

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-78241

AGZ1#,AYZ1#..ARL,GCC,GEN

 1
42661-78430

AGZ1#,AYZ15..GCC,GEN

AVS-WITH

 1
