AYZ15L-AWXLB (2014)

Toyota Lexus Nx Series

Production Jul 2014 - Sep 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )

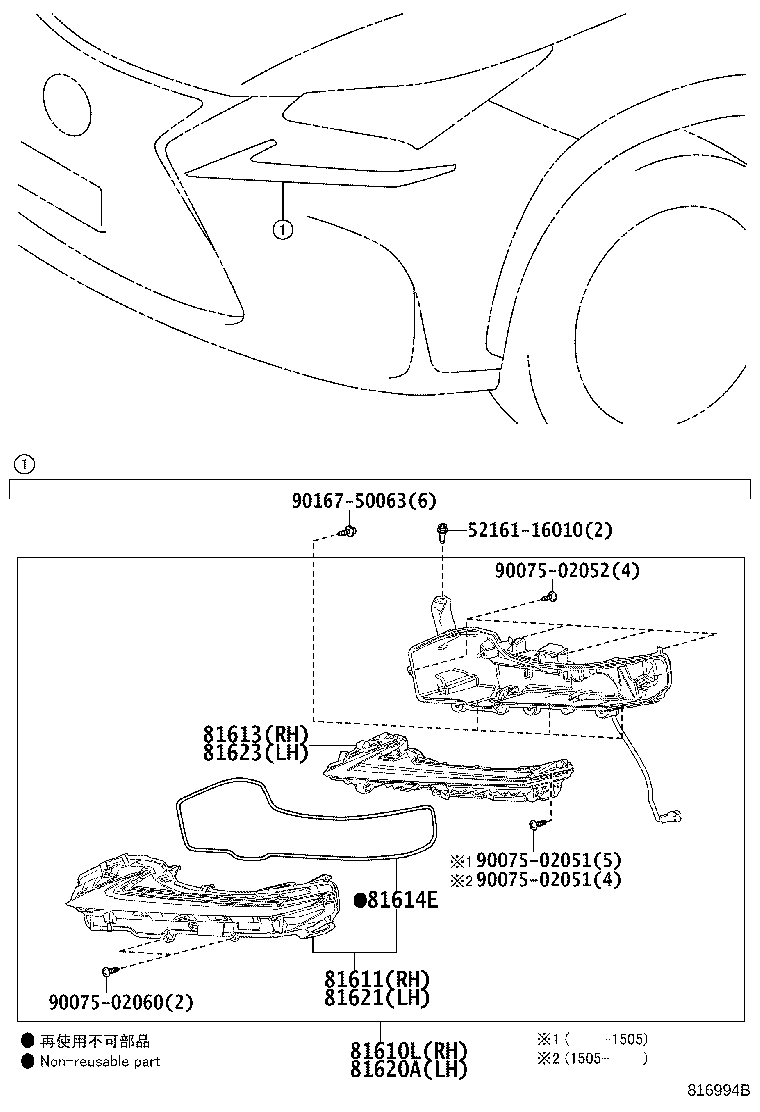

Click highlighted areas on diagram

diagram 5216116010 81610L 81611 81613 81614E 81620A 81621 81623 9007502051 9007502051 9007502052 9007502060 9016750063
Part # Description Qty Price
81610L - LAMP ASSY, CLEARANCE, RH
81610-78040

AGZ1#,AYZ1#,ZGZ1#

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-78040

AGZ1#,AYZ1#,ZGZ1#

 1
81613 - UNIT ASSY, CLEARANCE LAMP LED, RH
81613-78040

AGZ1#,AYZ1#,ZGZ1#

 1
81613-78060

AGZ1#,AYZ1#,ZGZ1#

 1
81614E - GASKET, CLEARANCE LAMP
81132-30E40

AGZ1#,AYZ1#,ZGZ1#

 2
81620A - LAMP ASSY, CLEARANCE, LH
81620-78040

AGZ1#,AYZ1#,ZGZ1#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-78040

AGZ1#,AYZ1#,ZGZ1#

 1
81623 - UNIT ASSY, CLEARANCE LAMP LED, LH
81623-78040

AGZ1#,AYZ1#,ZGZ1#

 1
81623-78060

AGZ1#,AYZ1#,ZGZ1#

 1
Common parts
52161-16010
90075-02051
90075-02052
90075-02060
90167-50063
