AYZ15L-AWXLB (2014)
Toyota Lexus Nx Series
ILLUST NO. 2 OF 2(1407-1709)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-78010C2 |
AGZ1#,AYZ15..GCC,GEN BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9# |
1 | ||
| 55402-78010A2 |
AGZ1#,AYZ1#,ZGZ15..LHD WHITE OCHRE,TRIM00,01,02,03,25,26,27,28 |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-78010A2 |
AGZ1#,AYZ1#,ZGZ15..LHD WHITE OCHRE/BEIGE,TRIM00,01,02,03,25,26,27,28 |
1 | ||
| 55403-78010C5 |
AGZ1#,AYZ15..GCC,GEN BLACK/LT.GRAY,TRIM04,05,06,07,1#,2#,3#,4#,5# |
1 | ||
| 55403-78011A2 |
AGZ1#,AYZ1#,ZGZ15..LHD WHITE OCHRE/BEIGE,TRIM00,01,02,03,25,26,27,28 |
1 | ||
| 55403-78030C6 |
AGZ1#..LHD;AYZ15..GCC,GEN F SPORT*(F),BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55403-78030C5 |
AGZ1#..LHD;AYZ15..GCC,GEN F SPORT*(F),BLACK/LT.GRAY,TRIM90,92 |
1 | ||
| 55403-78031C6 |
AGZ1#..LHD;AYZ15..GCC,GEN F SPORT*(F),BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55403-78031C5 |
AGZ1#..LHD;AYZ15..GCC,GEN F SPORT*(F),BLACK/LT.GRAY,TRIM90,92 |
1 | ||
| 55403-78011C5 |
AGZ1#,AYZ15..GCC,GEN BLACK/LT.GRAY,TRIM04,05,06,07,1#,2#,3#,4#,5# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55404-78011 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-78030C0 |
AGZ1#,AYZ15..GCC,GEN AUDIO-EMVN & 14SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55408-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55409-78030C0 |
AYZ15..LHD;AGZ1#..GCC,GEN AUDIO-EMVN & 14SPEAKER,BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55420-78011 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55432-78011C0 |
AGZ1#,AYZ15..GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-78010C0 |
AGZ1#,AYZ15..GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-78010A2 |
AGZ1#,AYZ1#,ZGZ15..LHD WHITE OCHRE,TRIM00,01,02,03,25,26,27,28 |
1 | ||
| 55446-78010C2 |
AGZ1#,AYZ15..GCC,GEN BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-78010C0 |
AGZ1#,AYZ1# REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55447-78010C0 |
AGZ1#,AYZ1# VERSION L*(L),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55447-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-78070F0 |
AYZ1#..LHD;AGZ1#..GCC,GEN ORNAMENT PANEL-WOOD,NATURAL BROWN,TRIM01,05,21,26,31,41,51 |
1 | ||
| 55475-78030B1 |
AGZ1#,AYZ15..GCC,GEN ORNAMENT PANEL-FILM,F SPORT FILM,TRIM9# |
1 | ||
| 55475-78010C2 |
ZGZ1#;AGZ1#,AYZ15..GCC,GEN BLACK METALLIC,TRIM1#,2#,3# |
1 | ||
| 55475-78030B0 |
AGZ1#,AYZ15..GCC,GEN ORNAMENT PANEL-FILM,SILVER FILM,TRIM02,06,10,22,27,32,42,52 |
1 | ||
| 55475-78030E0 |
AGZ1#,AYZ15..GCC,GEN ORNAMENT PANEL-FILM,DARK FILM,TRIM03,07,11,23,28,33,43,53 |
1 | ||
| 55475-78070C1 |
AGZ1#,AYZ15..GCC,GEN ORNAMENT PANEL-WOOD,STEEL WOOD,TRIM00,04,20,25,30,40,50,9# |
1 | ||
| 55475-78071C1 |
AYZ15..LHD;AGZ1#..GCC,GEN ORNAMENT PANEL-WOOD,STEEL WOOD,TRIM00,04,20,25,30,40,50,9# |
1 | ||
| 55475-78071F0 |
AYZ1#..LHD;AGZ1#..GCC,GEN ORNAMENT PANEL-WOOD,NATURAL BROWN,TRIM01,05,21,26,31,41,51 |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-78030C0 |
AGZ1#,AYZ1#..LHD AUDIO-EMVN & 10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55510-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55510-78060C0 |
AGZ1#,AYZ15..GCC,GEN AUDIO-EMVN & 14SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-HIGH BEAM(LED & AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-HIGH BEAM(LED & AUTOMATIC HIGH BEAM),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN HEADLAMP-HIGH BEAM(LED & AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN HEADLAMP-HIGH BEAM(LED & AUTOMATIC HIGH BEAM),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&BLIND SPOT MONITOR-WITH & WITH(REARCROSS TRAFFIC ALERT),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-78020C0 |
AGZ10,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78020C0 |
AGZ10,AYZ1# BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78020C0 |
AGZ10,AYZ1# STEERING WHEEL-LEATHER,W(HEATER&PADDLE SWITCH),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78020C0 |
AGZ10,AYZ1# STEERING WHEEL-LEATHER,W(HEATER&PADDLE SWITCH)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-78030C0 |
AYZ1#..ARL,GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55539-78030C0 |
AYZ1#..ARL,GCC,GEN ACTIVE SOUND CONTROL-WITH,BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55539-78030C0 |
AYZ1#..ARL,GCC,GEN VEHICLE APPROACH NOTICE-WITHOUT & WITH(ACTIVE SOUND CONTROL),BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55550-78011C0 |
AGZ1#,AYZ15..GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-78011 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55606-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-78011 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55607-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07117 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 93560-14012 | ||||
| 93560-15012 | ||||

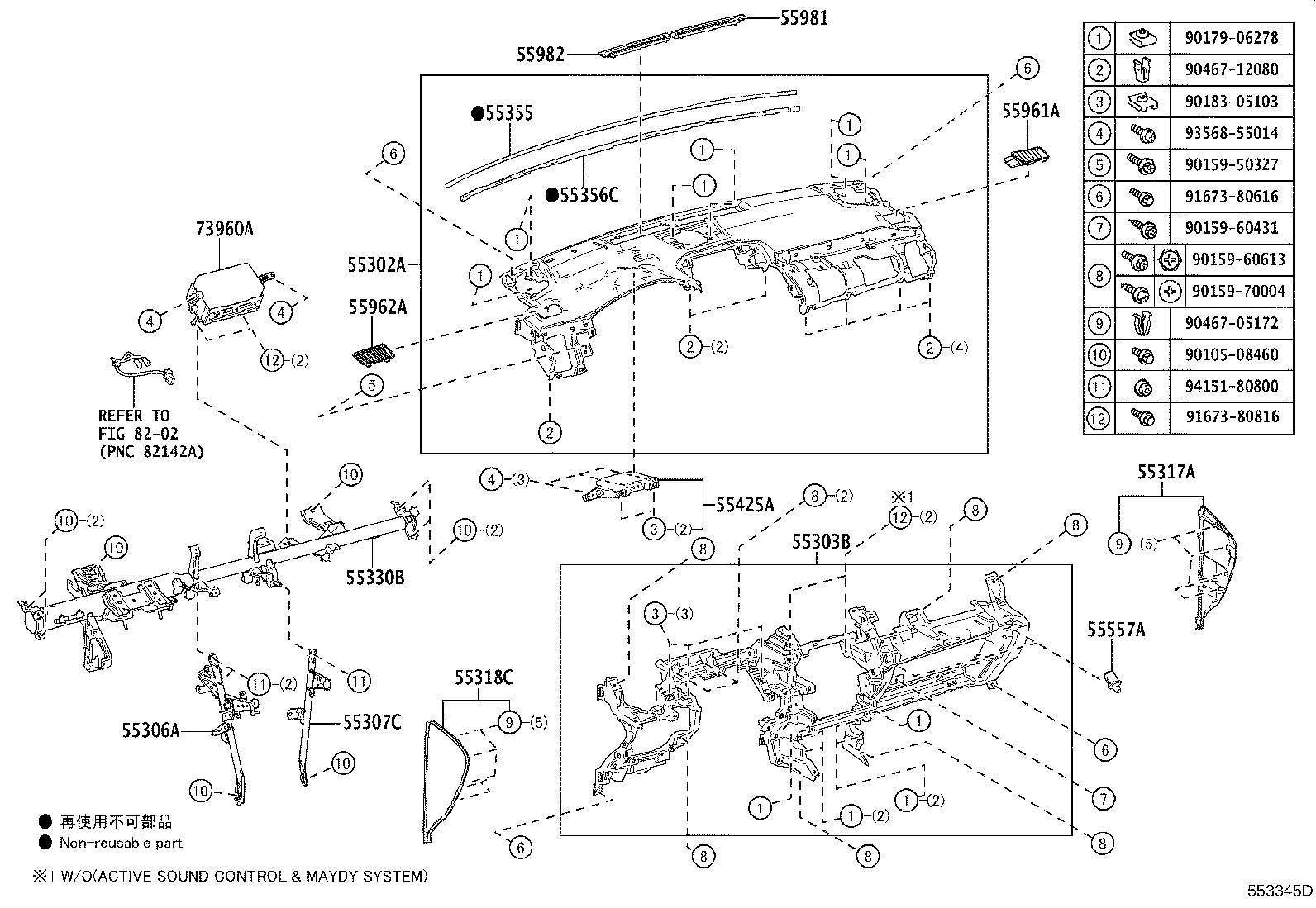

ILLUST NO. 1 OF 2(1407-1709)LHD
W(HEAD UP DISPLAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55305-78010C1 |
AGZ1#..LHD;AYZ15..GCC,GEN BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92 |
1 | ||
| 55305-78010C2 |
AGZ1#..LHD;AYZ15..GCC,GEN BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55305-78010C1 |
AGZ1#,AYZ15..GCC,GEN BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55303-78011C0 |
AGZ1#,AYZ15..GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-78011C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55317-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55318-78011C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-78021 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-78010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 55557-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55962-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55961-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-78050 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50327 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 1 OF 2(1407- )LHD
W/O(HEAD UP DISPLAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55305-78010C1 |
AGZ1#..LHD;AYZ15..GCC,GEN BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92 |
1 | ||
| 55305-78010C2 |
AGZ1#..LHD;AYZ15..GCC,GEN BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55305-78010C1 |
AGZ1#,AYZ15..GCC,GEN BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55303-78011C0 |
AGZ1#,AYZ15..GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-78011C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55317-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55318-78011C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-78021 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-78010 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-78010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 55557-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55962-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55961-78010C0 |
AGZ1#,AYZ1#..LHD BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-78050 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50327 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
