AGZ15R-AWTLTQ (2014)
Toyota Lexus Nx Series
Production
Dec 2014
-
Sep 2017
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1412- )AGZ1#..ARL

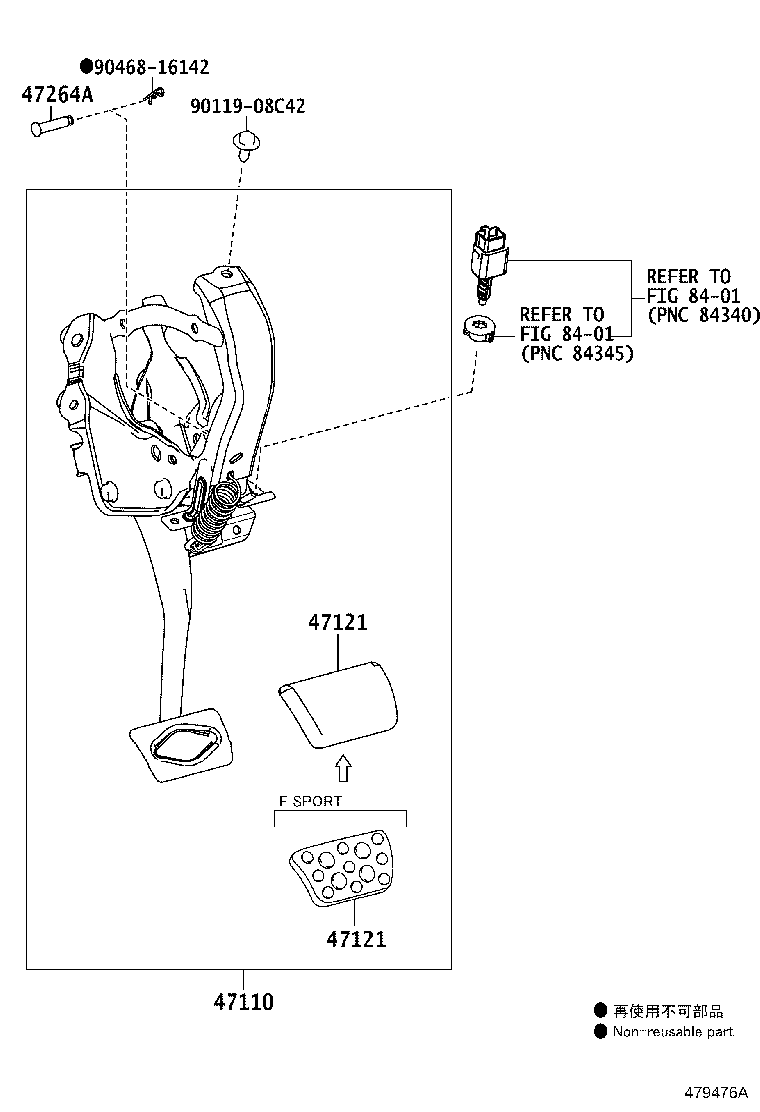

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-42210 |
AGZ1#..ARL |
1 | ||
| 47110-78010 |
AGZ1#..ARL F SPORT*(F) |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 47121-78010 |
AGZ1#;AYZ1#..ARL,GCC,GEN F SPORT*(F) |
1 | ||
| 47121-42010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 47121-78010 |
AGZ1#;AYZ1#..ARL,GCC,GEN F SPORT*(F) |
1 | ||
| 47121-42010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08256 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
