AGZ15L-AWTLT (2014)
Toyota Lexus Nx Series
(1407-1709)

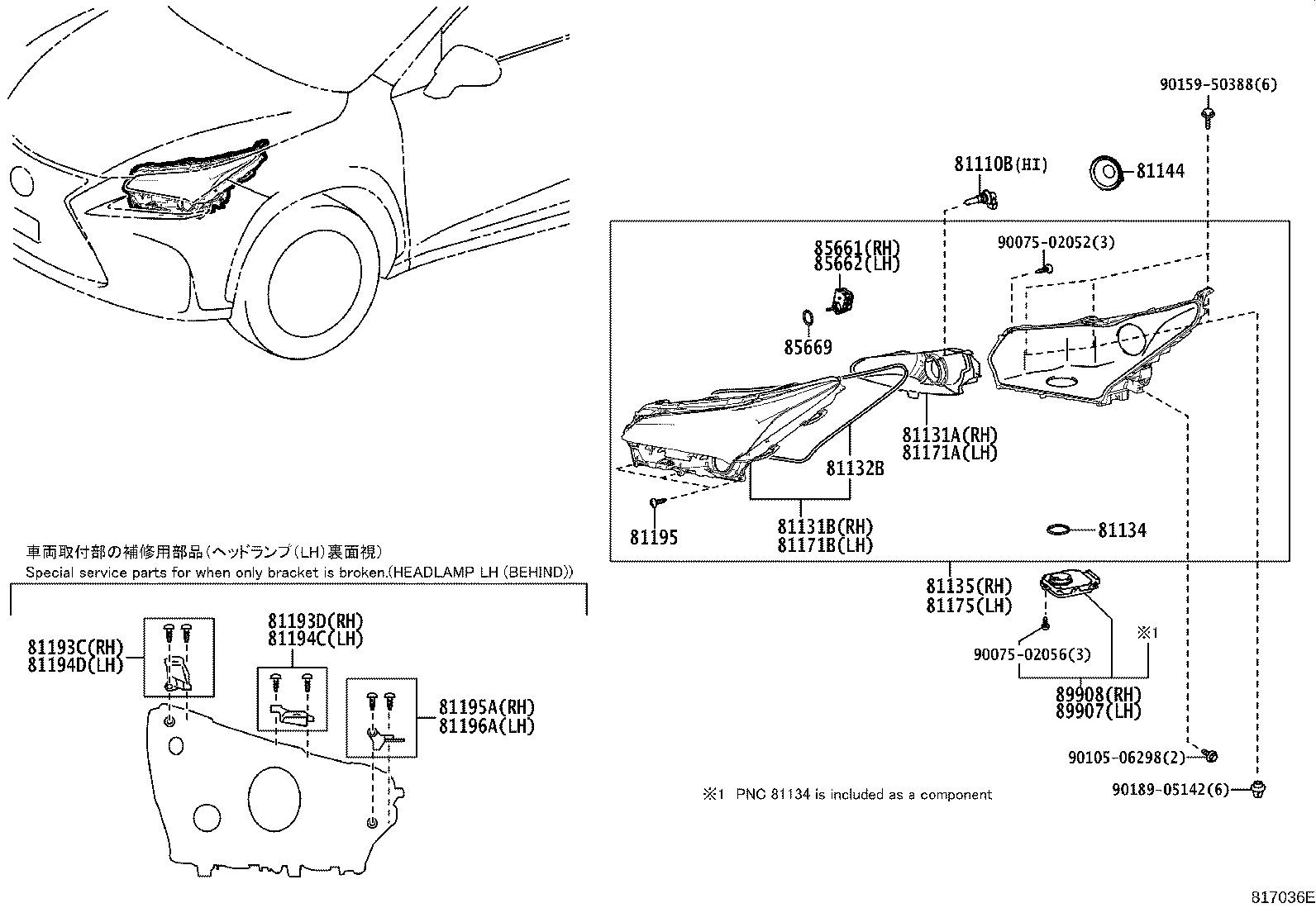

HIGH BEAM(HALOGEN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
AGZ1#,AYZ1#,ZGZ1# 12V65W(SAE),60W(ECE) |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-78020 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 81140-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-78020 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 81131-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-78020 |
AGZ15,AYZ1#,ZGZ1#..CHI,GEN |
1 | ||
| 81145-78050 |
AGZ15,AYZ1#,ZGZ1#..CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81145-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-3A150 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81160-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81170-78020 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-78020 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 81171-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-78050 |
AGZ15,AYZ1#,ZGZ1#..CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81185-78020 |
AGZ15,AYZ1#,ZGZ1#..CHI,GEN |
1 | ||
| 81185-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81193-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81194C - RETAINER, LH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81194-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81195 - SCREW, HEADLAMP | ||||
| 90075-02060 |
AGZ1#,AYZ1#,ZGZ1# |
6 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 89907 - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 89907-78080 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 89907-78060 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89907-78050 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89907-78051 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERINGLAMP) |
1 | ||
| 89907-78081 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 89907-78061 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89908 - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 89908-78051 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERINGLAMP) |
1 | ||
| 89908-78050 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89908-78060 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89908-78080 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 89908-78081 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 89908-78061 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02056 | ||||
| 90105-06298 | ||||
| 90159-50388 | ||||
| 90189-05142 | ||||
(1407-1709)

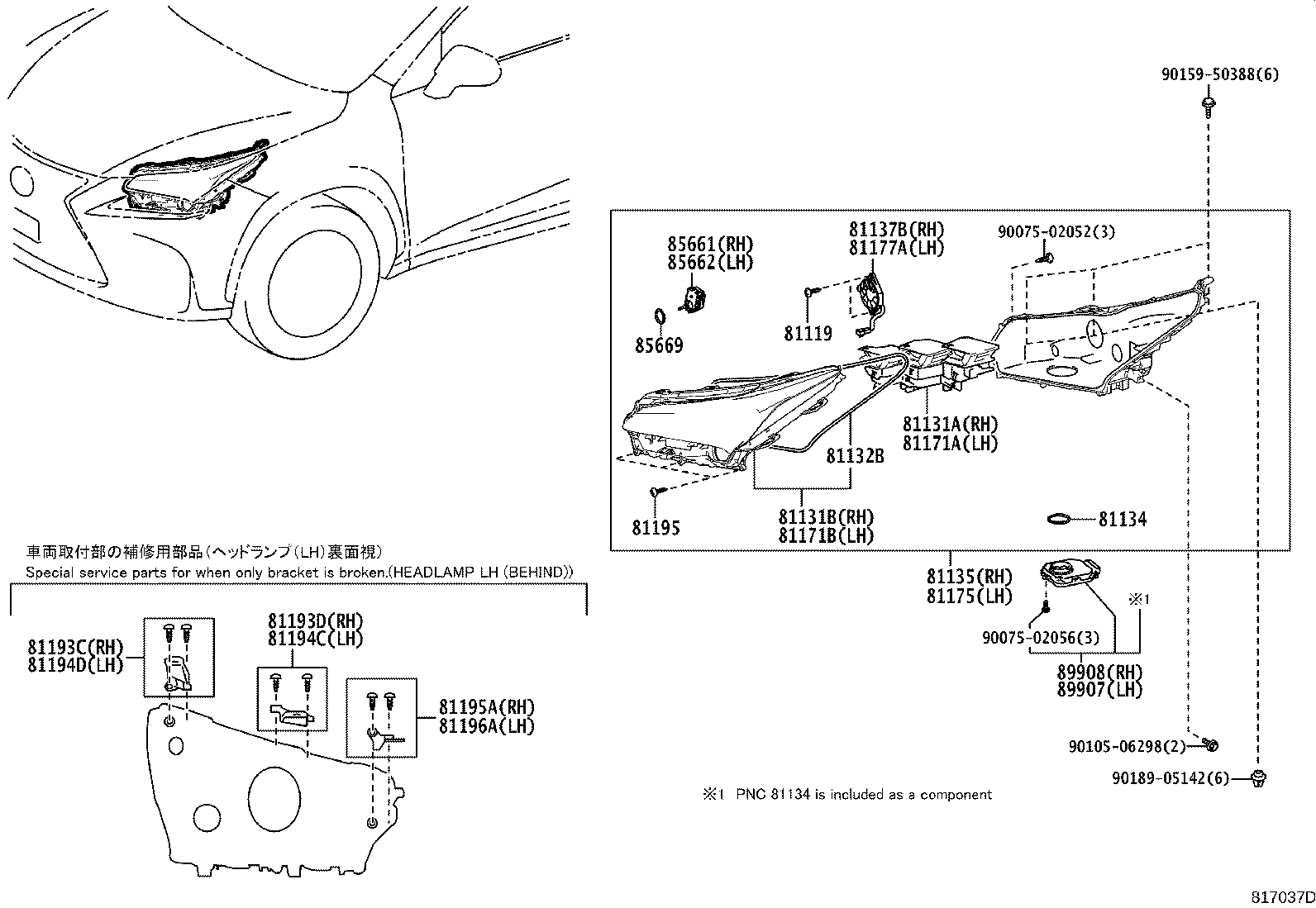

HIGH BEAM(LED)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81119 - SCREW, HEADLAMP | ||||
| 90075-02062 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
4 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-78020 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 81140-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-78020 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 81131-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-78020 |
AGZ15,AYZ1#,ZGZ1#..CHI,GEN |
1 | ||
| 81145-78050 |
AGZ15,AYZ1#,ZGZ1#..CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81145-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81137B - FAN, HEADLAMP, RH | ||||
| 81137-78090 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81160-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81170-78020 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-78020 |
AGZ1#,AYZ1#,ZGZ1#..LHD |
1 | ||
| 81171-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-78050 |
AGZ15,AYZ1#,ZGZ1#..CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81185-78020 |
AGZ15,AYZ1#,ZGZ1#..CHI,GEN |
1 | ||
| 81185-78080 |
AGZ15,AYZ15..GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81177A - FAN, HEADLAMP, LH | ||||
| 81137-78090 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81193-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81194C - RETAINER, LH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81194-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81195 - SCREW, HEADLAMP | ||||
| 90075-02060 |
AGZ1#,AYZ1#,ZGZ1# |
6 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 89907 - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 89907-78080 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 89907-78060 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89907-78050 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89907-78051 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERINGLAMP) |
1 | ||
| 89907-78081 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 89907-78061 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89908 - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 89908-78050 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89908-78060 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 89908-78051 |
AGZ1#,AYZ1#..ARL,GEN HEADLAMP-HIGH BEAM(LED)&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERINGLAMP) |
1 | ||
| 89908-78080 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 89908-78081 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 89908-78061 |
AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02056 | ||||
| 90105-06298 | ||||
| 90159-50388 | ||||
| 90189-05142 | ||||
