AGZ15L-AWTLT (2014)
Toyota Lexus Nx Series
Production
Dec 2014
-
Sep 2017
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

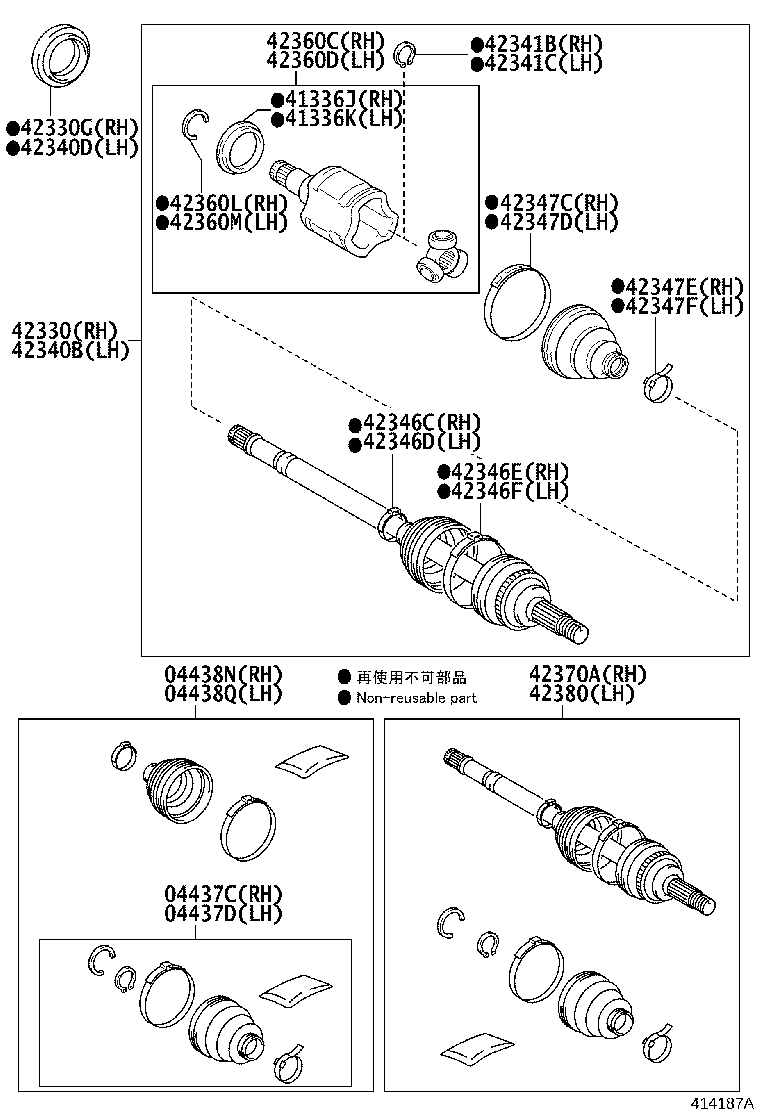

ILLUST NO. 2 OF 2(1412- )AGZ15,ZGZ15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04439-12020 |
AGZ15,ZGZ15 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04439-12020 |
AGZ15,ZGZ15 |
1 | ||
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-12030 |
AGZ15,ZGZ15 |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-12030 |
AGZ15,ZGZ15 |
1 | ||
| 41336J - COVER, REAR DRIVE SHAFT DUST, RH | ||||
| 41336-28050 |
AGZ15,ZGZ15 |
1 | ||
| 41336K - COVER, REAR DRIVE SHAFT DUST, LH | ||||
| 41336-28050 |
AGZ15,ZGZ15 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-42060 |
AGZ15,ZGZ15 |
1 | ||
| 42330G - OIL SEAL, REAR DRIVE SHAFT, RH | ||||
| 90311-37004 |
AGZ15,ZGZ15 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42330-42060 |
AGZ15,ZGZ15 |
1 | ||
| 42340D - OIL SEAL, REAR DRIVE SHAFT, LH | ||||
| 90311-37004 |
AGZ15,ZGZ15 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 43425-12150 |
AGZ15,ZGZ15 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 43425-12150 |
AGZ15,ZGZ15 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-52270 |
AGZ15,AYZ15,ZGZ15 ID=24.3 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-52270 |
AGZ15,AYZ15,ZGZ15 ID=24.3 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-12280 |
AGZ15,AYZ15,ZGZ15 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-12280 |
AGZ15,AYZ15,ZGZ15 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-42070 |
AGZ15,ZGZ15 ID=69.3 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-42070 |
AGZ15,ZGZ15 ID=69.3 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-12290 |
AGZ15,ZGZ15 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-12290 |
AGZ15,ZGZ15 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-12010 |
AGZ15,ZGZ15 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-12010 |
AGZ15,ZGZ15 |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 90520-19018 |
AGZ15,ZGZ15 |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 90520-19018 |
AGZ15,ZGZ15 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-49295 |
AGZ15,ZGZ15 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-49295 |
AGZ15,ZGZ15 |
1 | ||
