AGZ10R-AWTLTQ (2014)

Toyota Lexus Nx Series

Production Dec 2014 - Sep 2017
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

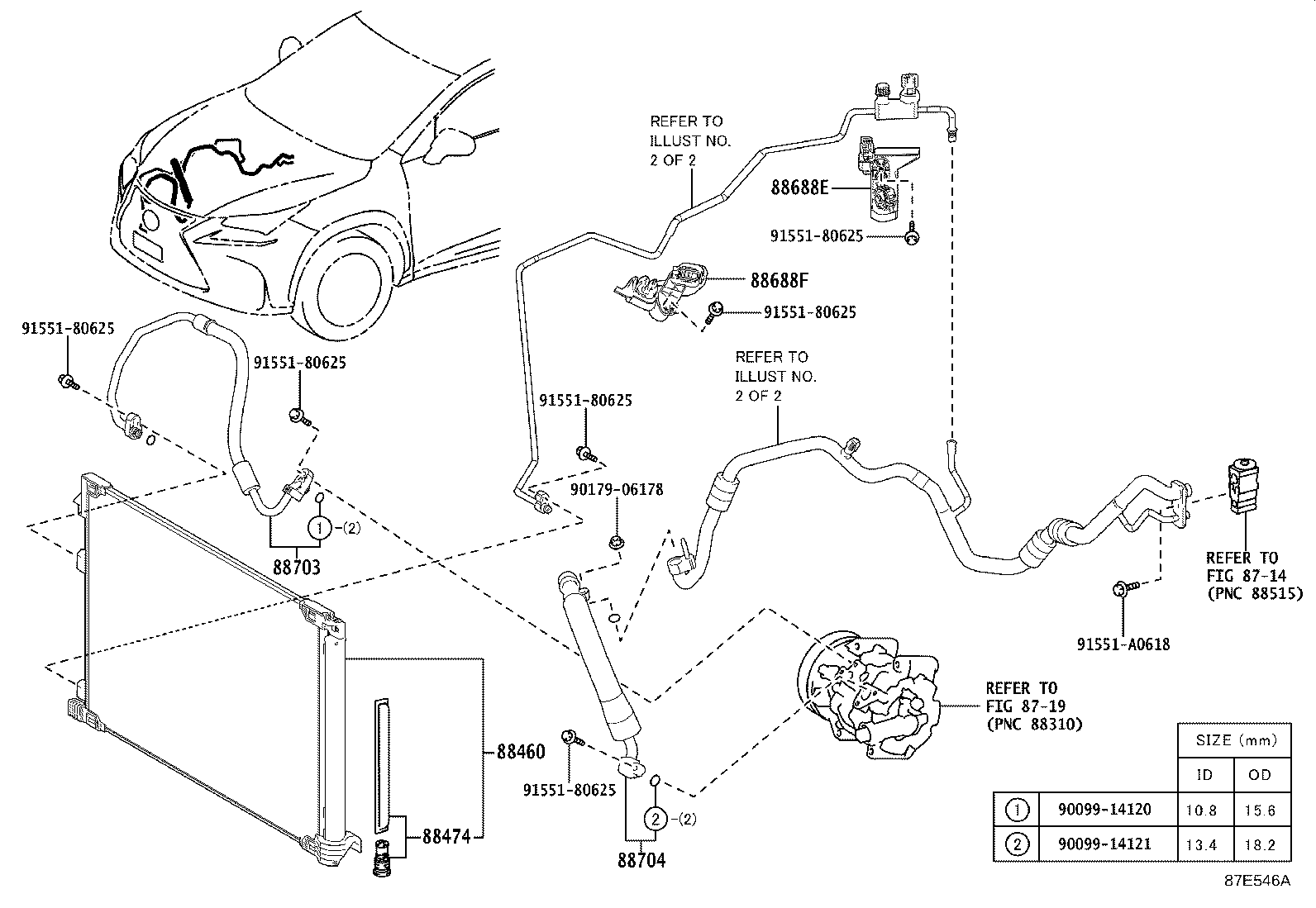

ILLUST NO. 1 OF 2(1412- )AGZ1#

Click highlighted areas on diagram

diagram 8714 8719 88460 88474 88688E 88688F 88703 88704 9009914120 9009914121 9017906178 9155180625 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-78010

AGZ1#

 1
88474 - DRYER, COOLER
88474-12010

AGZ1#,ZGZ1#

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-42510

AYZ1#..LHD;AGZ1#,ZGZ1#

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-42520

AGZ1#,AYZ1#,ZGZ1#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-78010

AGZ1#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-78010

AGZ1#

 1
Common parts
90099-14120
90099-14121
90179-06178
91551-80625
91551-A0618
Linked diagrams
8714
8719

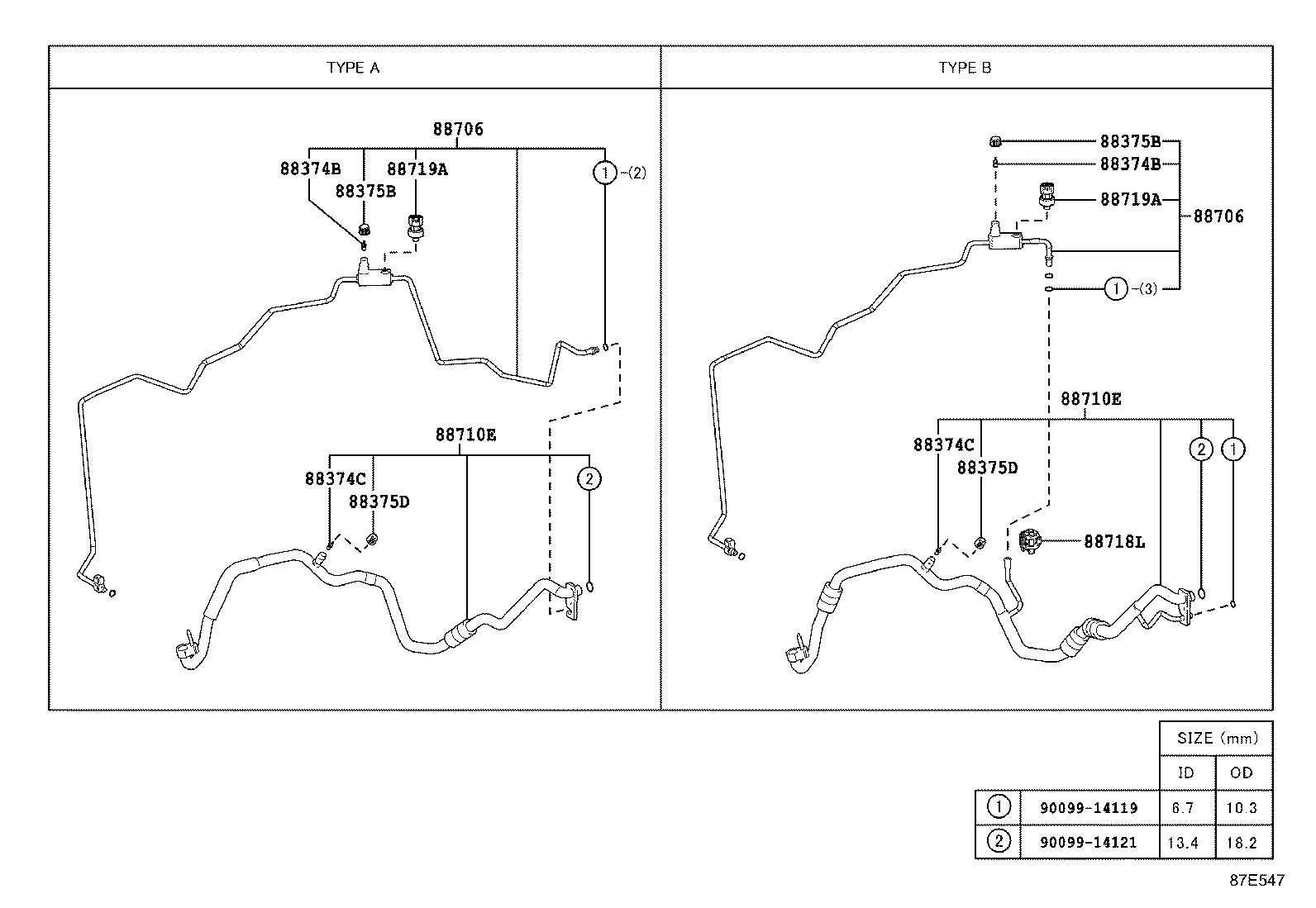

ILLUST NO. 2 OF 2(1412- )AGZ1#

Click highlighted areas on diagram

diagram 88374B 88374B 88374C 88374C 88375B 88375B 88375D 88375D 88706 88706 88710E 88710E 88718L 88719A 88719A 9009914119 9009914121
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AGZ1#,AYZ1#,ZGZ1#

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

AGZ1#,AYZ1#,ZGZ1#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AGZ1#,AYZ1#,ZGZ1#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AGZ1#,AYZ1#,ZGZ1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AGZ1#,AYZ1#,ZGZ1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AGZ1#,AYZ1#,ZGZ1#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AGZ1#,AYZ1#,ZGZ1#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AGZ1#,AYZ1#,ZGZ1#

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-78030

AGZ1#..ARL,CHI,GCC

TYPE B:REFER ILLUST.

 1
88706-78040

AGZ10..ARL

INDONESIA SPEC,TYPE A:REFER ILLUST.

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-78030

AGZ1#..ARL,CHI,GCC

TYPE B:REFER ILLUST.

 1
88706-78040

AGZ10..ARL

INDONESIA SPEC,TYPE A:REFER ILLUST.

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-78021

AGZ1#..ARL,CHI,GCC

TYPE B:REFER ILLUST.

 1
88707-78020

AGZ10..ARL

INDONESIA SPEC,TYPE A:REFER ILLUST.

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-78021

AGZ1#..ARL,CHI,GCC

TYPE B:REFER ILLUST.

 1
88707-78020

AGZ10..ARL

INDONESIA SPEC,TYPE A:REFER ILLUST.

 1
88718L - CLAMP, PIPING
88718-2D150

AGZ1#,ZGZ1#..ARL,CHI,GCC

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

AGZ1#,AYZ1#,ZGZ1#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

AGZ1#,AYZ1#,ZGZ1#

 1
Common parts
90099-14119
90099-14121
