UZJ100R-GNPGKQ (1998)

Toyota Lexus Lx470

Production Jan 1998 - Aug 2002
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

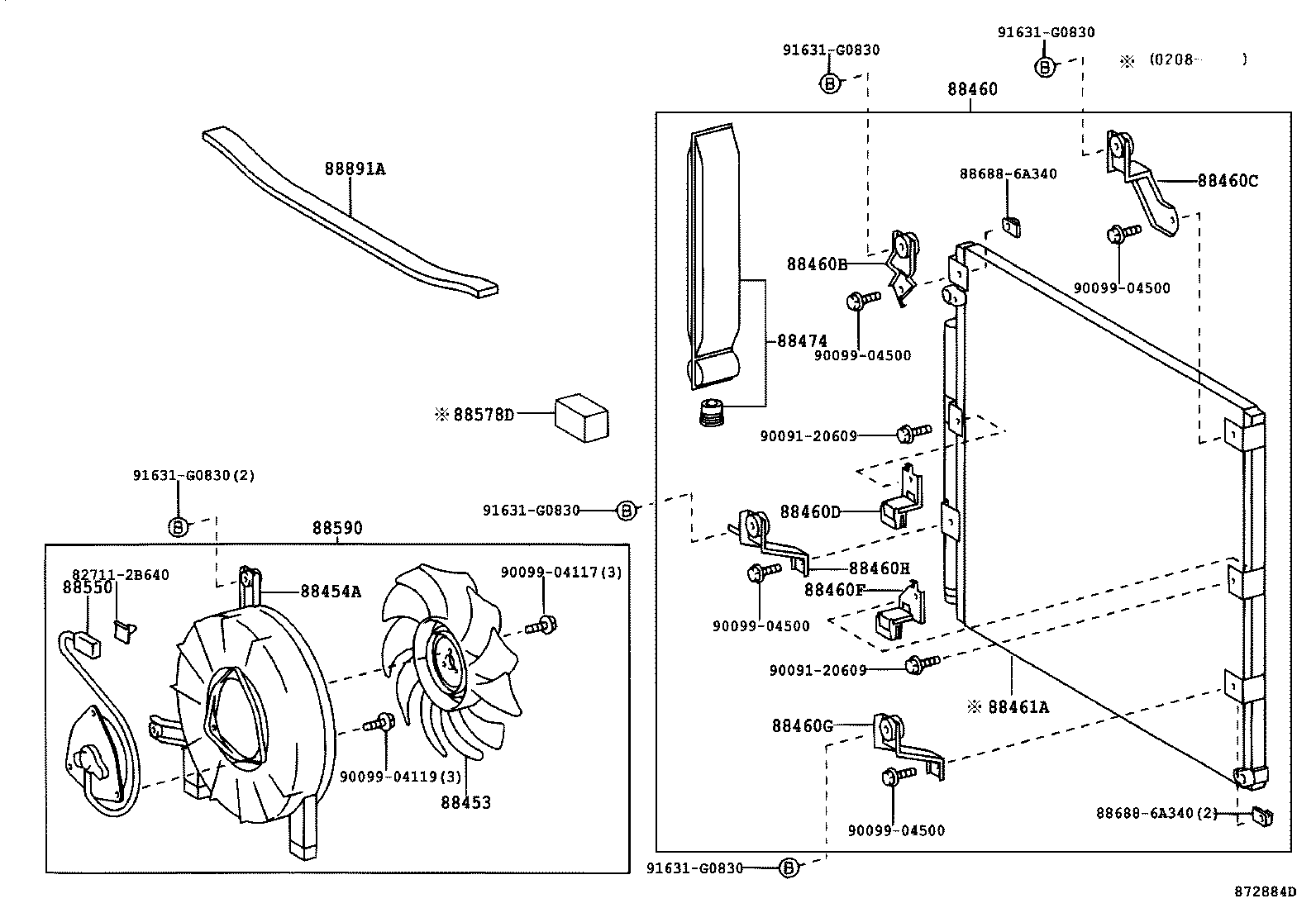

ILLUST NO. 1 OF 4(9801- )

Click highlighted areas on diagram

CONDENSER

diagram 827112B640 88453 88454A 88460 88460B 88460C 88460D 88460F 88460G 88460H 88461A 88474 88550 88578D 88590 886886A340 886886A340 88891A 9009120609 9009120609 9009904117 9009904119 9009904500 9009904500 9009904500 9009904500 91631G0830 91631G0830 91631G0830 91631G0830 91631G0830
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-60010

UZJ100

 1
88454A - SHROUD, FAN
88454-60020

UZJ100

 1
88460 - CONDENSER ASSY, COOLER
88460-60271

UZJ100

 1
88460-60270

UZJ100

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60770

UZJ100

 1
88688-6A420

UZJ100

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-60851

UZJ100

 1
88688-60850

UZJ100

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-60790

UZJ100

 1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-6A190

UZJ100

 1
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-6A180

UZJ100

 1
88460H - BRACKET, COOLER CONDENSER, NO.6
88688-60870

UZJ100

 1
88474 - DRYER, COOLER
88474-22010

UZJ100

 1
88474-47010

UZJ100

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-64080

UZJ100

 1
88590 - BLOWER ASSY, W/SHROUD
88590-60030

UZJ100

 1
88891A - PACKING A (FOR COOLER)
88578-60100

UZJ100

 1
Common parts
82711-2B640
88688-6A340
90091-20609
90099-04117
90099-04119
90099-04500
91631-G0830

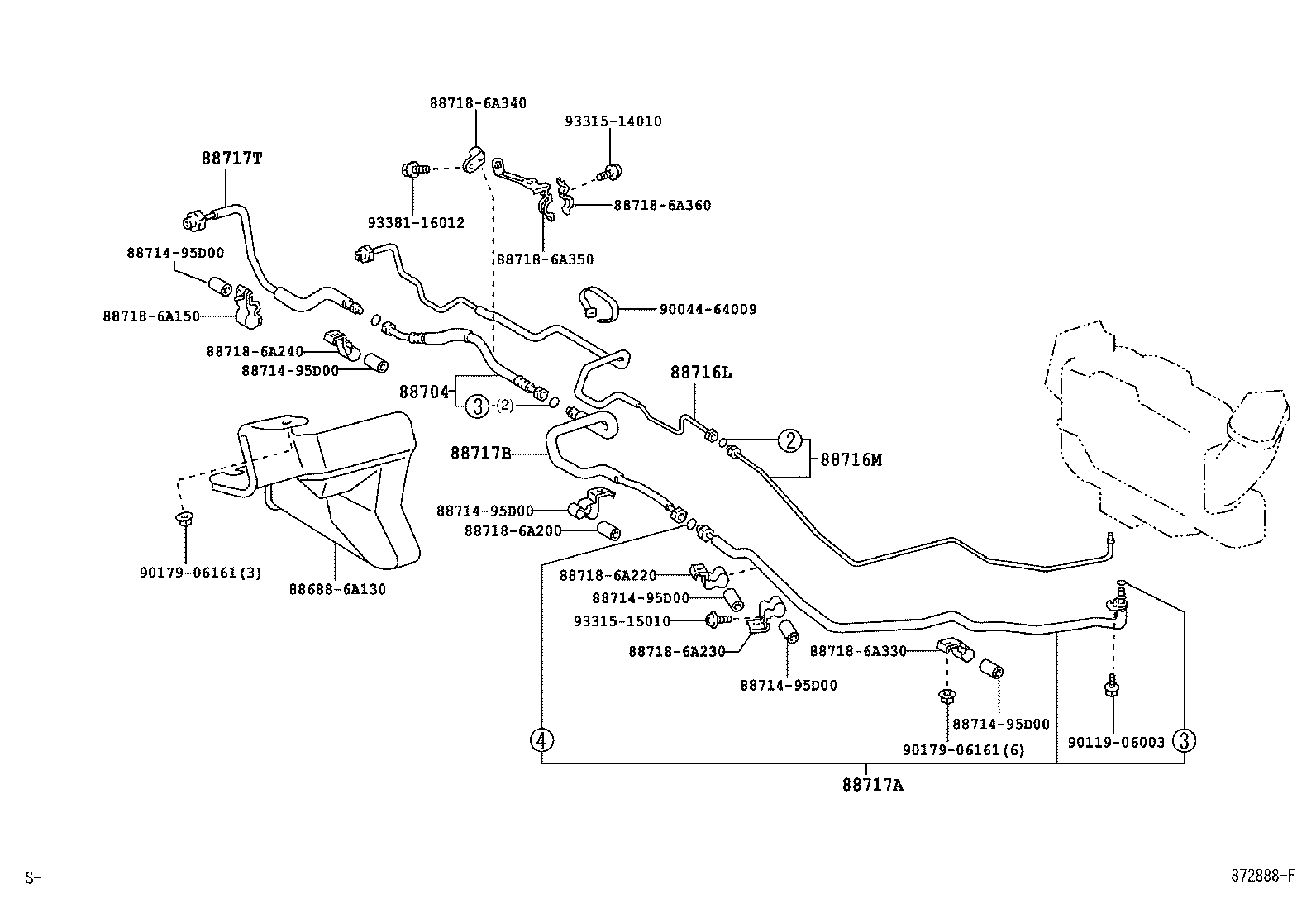

ILLUST NO. 3 OF 4(9801- )

Click highlighted areas on diagram

REAR

diagram 886886A130 88704 8871495D00 8871495D00 8871495D00 8871495D00 8871495D00 8871495D00 88716L 88716M 88717A 88717B 88717T 887186A150 887186A200 887186A220 887186A230 887186A240 887186A330 887186A340 887186A350 887186A360 9004464009 9011906003 9017906161 9017906161 9331514010 9331515010 9338116012
Part # Description Qty Price
88704 - HOSE SUB-ASSY, SUCTION
88704-60230

UZJ100

 1
88716L - PIPE, COOLER REFRIGERANT LIQUID, L
88726-60630

UZJ100

 1
88726-60640

UZJ100

W(COOL BOX)

 1
88716M - PIPE, COOLER REFRIGERANT LIQUID, M
88726-60650

UZJ100

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6A220

UZJ100

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6A210

UZJ100

W(COOL BOX)

 1
88717-6A200

UZJ100

 1
88717T - PIPE, COOLER REFRIGERANT SUCTION, T
88717-6A270

UZJ100

 1
Common parts
88688-6A130
88714-95D00
88718-6A150
88718-6A200
88718-6A220
88718-6A230
88718-6A240
88718-6A330
88718-6A340
88718-6A350
88718-6A360
90044-64009
90119-06003
90179-06161
93315-14010
93315-15010
93381-16012

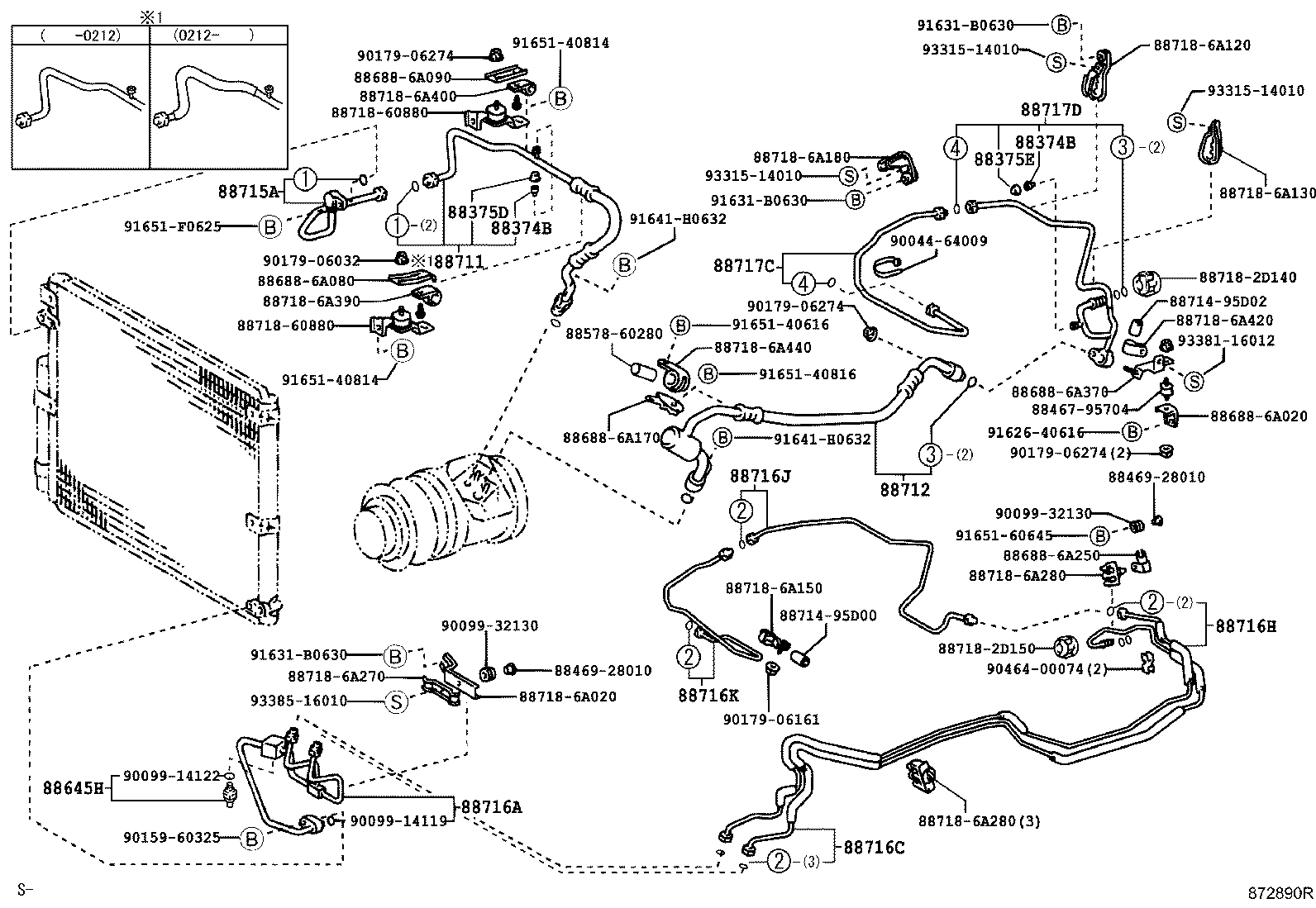

ILLUST NO. 2 OF 4(9801- )RHD

Click highlighted areas on diagram

FRONT

diagram 88374B 88374B 88375D 88375E 8846795704 8846928010 8846928010 8857860280 88645H 886886A020 886886A080 886886A090 886886A170 886886A250 886886A370 88711 88712 8871495D00 8871495D02 88715A 88716A 88716C 88716H 88716J 88716K 88717C 88717D 887182D140 887182D150 8871860880 8871860880 887186A020 887186A120 887186A130 887186A150 887186A180 887186A270 887186A280 887186A280 887186A390 887186A400 887186A420 887186A440 9004464009 9009914119 9009914122 9009932130 9009932130 9015960325 9017906032 9017906161 9017906274 9017906274 9017906274 9046400074 9162640616 91631B0630 91631B0630 91631B0630 91641H0632 91641H0632 9165140616 9165140814 9165140814 9165140816 9165160645 91651F0625 9331514010 9331514010 9331514010 9338116012 9338516010
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

UZJ100

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

UZJ100

 2
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

UZJ100

 1
88375E - PLUG
88375-30290

UZJ100

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

UZJ100

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60470

UZJ100

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60810

UZJ100..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60110

UZJ100

 1
88715-60111

UZJ100

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-60461

UZJ100

 1
88726-60460

UZJ100

 1
88726-60462

UZJ100

 1
88726-60671

UZJ100

W(COOL BOX)

 1
88726-60670

UZJ100

W(COOL BOX)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60500

UZJ100..RHD

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88726-60510

UZJ100..RHD

 1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88726-60560

UZJ100..RHD

 1
88716K - PIPE, COOLER REFRIGERANT LIQUID, K
88726-60610

UZJ100..RHD

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-6A180

UZJ100..RHD

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-6A130

UZJ100..RHD

 1
Common parts
88467-95704
88469-28010
88578-60280
88688-6A020
88688-6A080
88688-6A090
88688-6A170
88688-6A250
88688-6A370
88714-95D00
88714-95D02
88718-2D140
88718-2D150
88718-60880
88718-6A020
88718-6A120
88718-6A130
88718-6A150
88718-6A180
88718-6A270
88718-6A280
88718-6A390
88718-6A400
88718-6A420
88718-6A440
90044-64009
90099-14119
90099-14122
90099-32130
90159-60325
90179-06032
90179-06161
90179-06274
90464-00074
91626-40616
91631-B0630
91641-H0632
91651-40616
91651-40814
91651-40816
91651-60645
91651-F0625
93315-14010
93381-16012
93385-16010

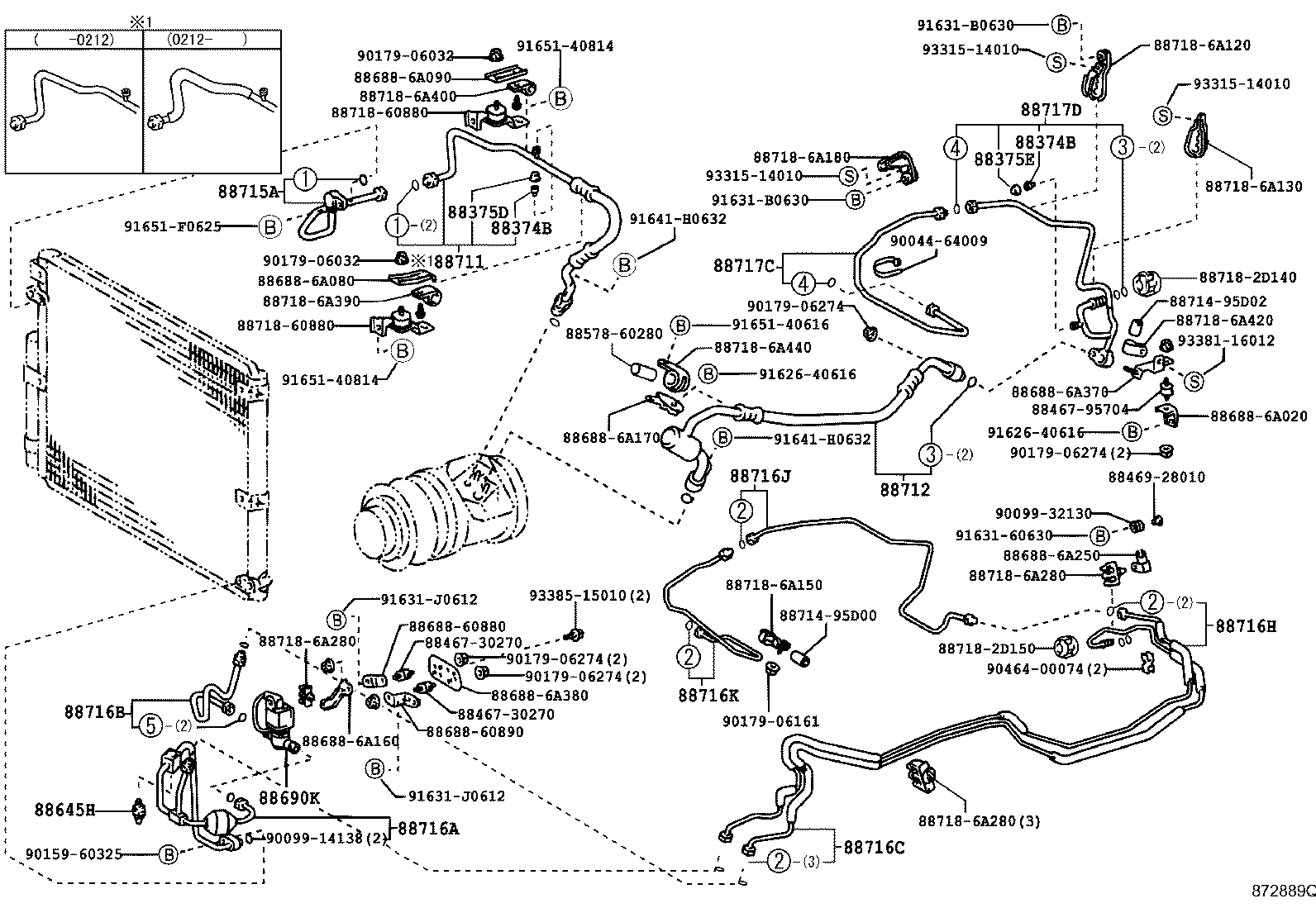

ILLUST NO. 2 OF 4(9801- )RHD

Click highlighted areas on diagram

FRONT,W(COOL BOX)

diagram 88374B 88374B 88375D 88375E 8846730270 8846730270 8846795704 8846928010 8857860280 88645H 8868860880 8868860890 886886A020 886886A080 886886A090 886886A160 886886A170 886886A250 886886A370 886886A380 88690K 88711 88712 8871495D00 8871495D02 88715A 88716A 88716B 88716C 88716H 88716J 88716K 88717C 88717D 887182D140 887182D150 8871860880 8871860880 887186A120 887186A130 887186A150 887186A180 887186A280 887186A280 887186A280 887186A390 887186A400 887186A420 887186A440 9004464009 9009914138 9009932130 9015960325 9017906032 9017906032 9017906161 9017906274 9017906274 9017906274 9017906274 9046400074 9162640616 9162640616 9163160630 91631B0630 91631B0630 91631J0612 91631J0612 91641H0632 91641H0632 9165140616 9165140814 9165140814 91651F0625 9331514010 9331514010 9331514010 9338116012 9338515010
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

UZJ100

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

UZJ100

 2
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

UZJ100

 1
88375E - PLUG
88375-30290

UZJ100

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

UZJ100

 1
88690K - VALVE ASSY, MAGNET
88690-60230

UZJ100

 1
88690-60210

UZJ100

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60470

UZJ100

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60810

UZJ100..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60110

UZJ100

 1
88715-60111

UZJ100

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-60461

UZJ100

 1
88726-60460

UZJ100

 1
88726-60462

UZJ100

 1
88726-60671

UZJ100

W(COOL BOX)

 1
88726-60670

UZJ100

W(COOL BOX)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-60680

UZJ100

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60500

UZJ100..RHD

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88726-60510

UZJ100..RHD

 1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88726-60560

UZJ100..RHD

 1
88716K - PIPE, COOLER REFRIGERANT LIQUID, K
88726-60610

UZJ100..RHD

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-6A180

UZJ100..RHD

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-6A130

UZJ100..RHD

 1
Common parts
88467-30270
88467-95704
88469-28010
88578-60280
88688-60880
88688-60890
88688-6A020
88688-6A080
88688-6A090
88688-6A160
88688-6A170
88688-6A250
88688-6A370
88688-6A380
88714-95D00
88714-95D02
88718-2D140
88718-2D150
88718-60880
88718-6A120
88718-6A130
88718-6A150
88718-6A180
88718-6A280
88718-6A390
88718-6A400
88718-6A420
88718-6A440
90044-64009
90099-14138
90099-32130
90159-60325
90179-06032
90179-06161
90179-06274
90464-00074
91626-40616
91631-60630
91631-B0630
91631-J0612
91641-H0632
91651-40616
91651-40814
91651-F0625
93315-14010
93381-16012
93385-15010

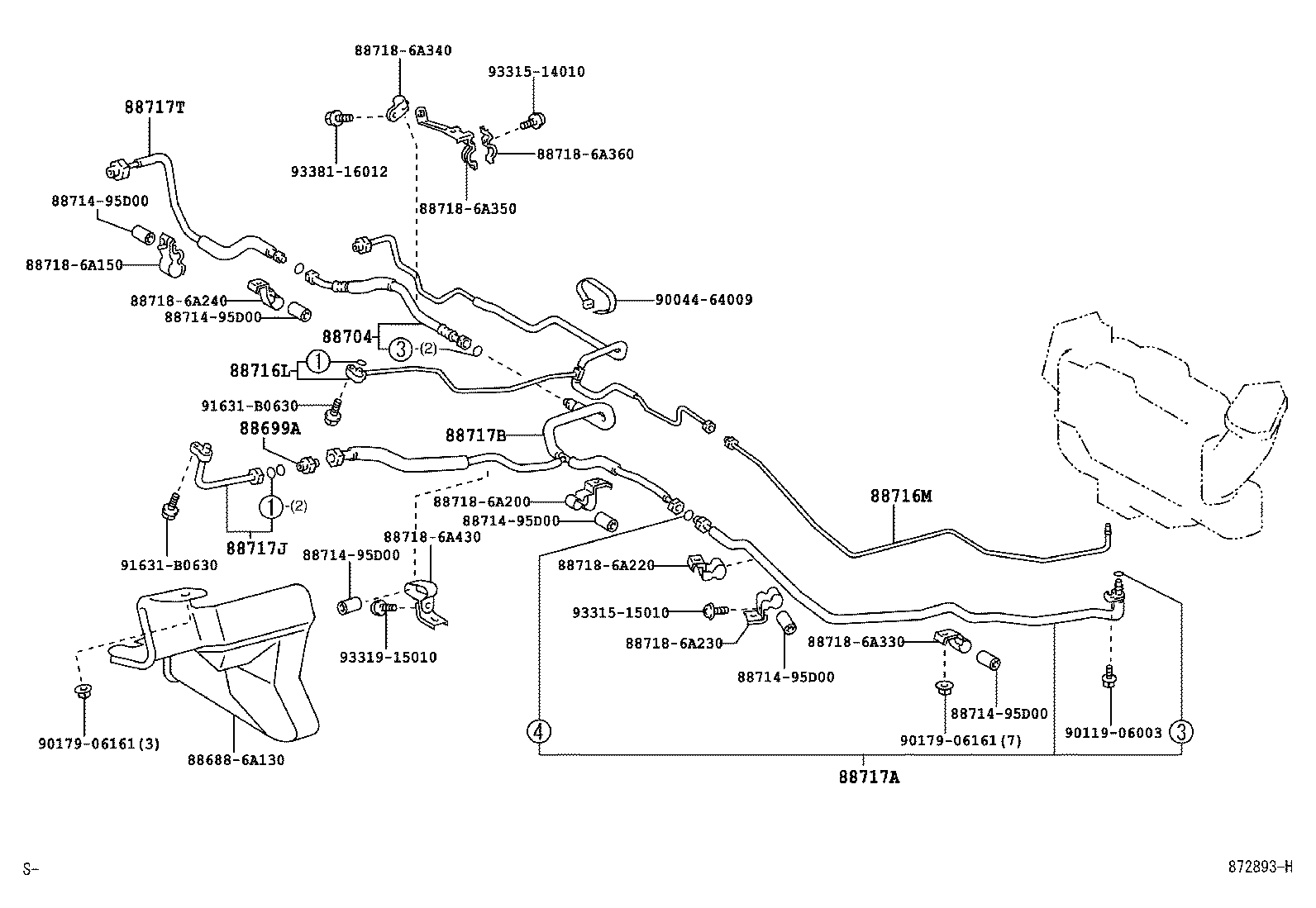

ILLUST NO. 3 OF 4(9801- )

Click highlighted areas on diagram

REAR,W(COOL BOX)

diagram 886886A130 88699A 88704 8871495D00 8871495D00 8871495D00 8871495D00 8871495D00 8871495D00 88716L 88716M 88717A 88717B 88717J 88717T 887186A150 887186A200 887186A220 887186A230 887186A240 887186A330 887186A340 887186A350 887186A360 887186A430 9004464009 9011906003 9017906161 9017906161 91631B0630 91631B0630 9331514010 9331515010 9331915010 9338116012
Part # Description Qty Price
88699A - VALVE, AIR
88699-60010

UZJ100

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-60230

UZJ100

 1
88716L - PIPE, COOLER REFRIGERANT LIQUID, L
88726-60630

UZJ100

 1
88726-60640

UZJ100

W(COOL BOX)

 1
88716M - PIPE, COOLER REFRIGERANT LIQUID, M
88726-60650

UZJ100

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6A220

UZJ100

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6A210

UZJ100

W(COOL BOX)

 1
88717-6A200

UZJ100

 1
88717J - PIPE, COOLER REFRIGERANT SUCTION, J
88717-6A240

UZJ100

 1
88717T - PIPE, COOLER REFRIGERANT SUCTION, T
88717-6A270

UZJ100

 1
Common parts
88688-6A130
88714-95D00
88718-6A150
88718-6A200
88718-6A220
88718-6A230
88718-6A240
88718-6A330
88718-6A340
88718-6A350
88718-6A360
88718-6A430
90044-64009
90119-06003
90179-06161
91631-B0630
93315-14010
93315-15010
93319-15010
93381-16012
