UZJ100R-GNPGKQ (1998)
Toyota Lexus Lx470
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)RHD

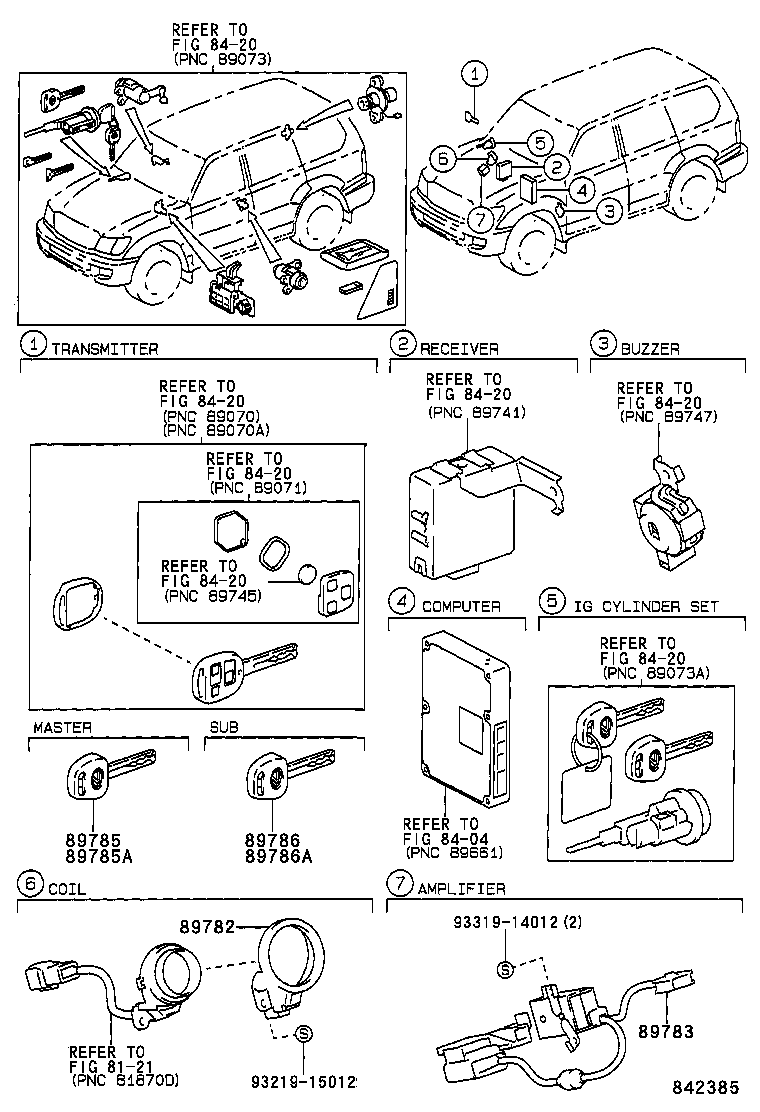

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89782 - COIL, TRANSPONDER KEY | ||||
| 89782-33020 |
UZJ100 |
1 | ||
| 89783 - AMPLIFIER, TRANSPONDER KEY | ||||
| 89783-60030 |
UZJ100..RHD |
1 | ||
| 89785 - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-50030 |
UZJ100 |
1 | ||
| 89785-30020 |
UZJ100 |
1 | ||
| 89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER | ||||
| 89785-50040 |
UZJ100 |
1 | ||
| 89785-50010 |
UZJ100 |
1 | ||
| 89786 - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-30020 |
UZJ100 |
1 | ||
| 89786-50030 |
UZJ100 |
1 | ||
| 89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB | ||||
| 89786-50010 |
UZJ100 |
1 | ||
| 89786-50040 |
UZJ100 |
1 | ||
| Common parts | ||||
| 93219-15012 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8404 | ||||
| 8420 | ||||
