UZJ100R-GNPGKQ (1998)
Toyota Lexus Lx470
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )

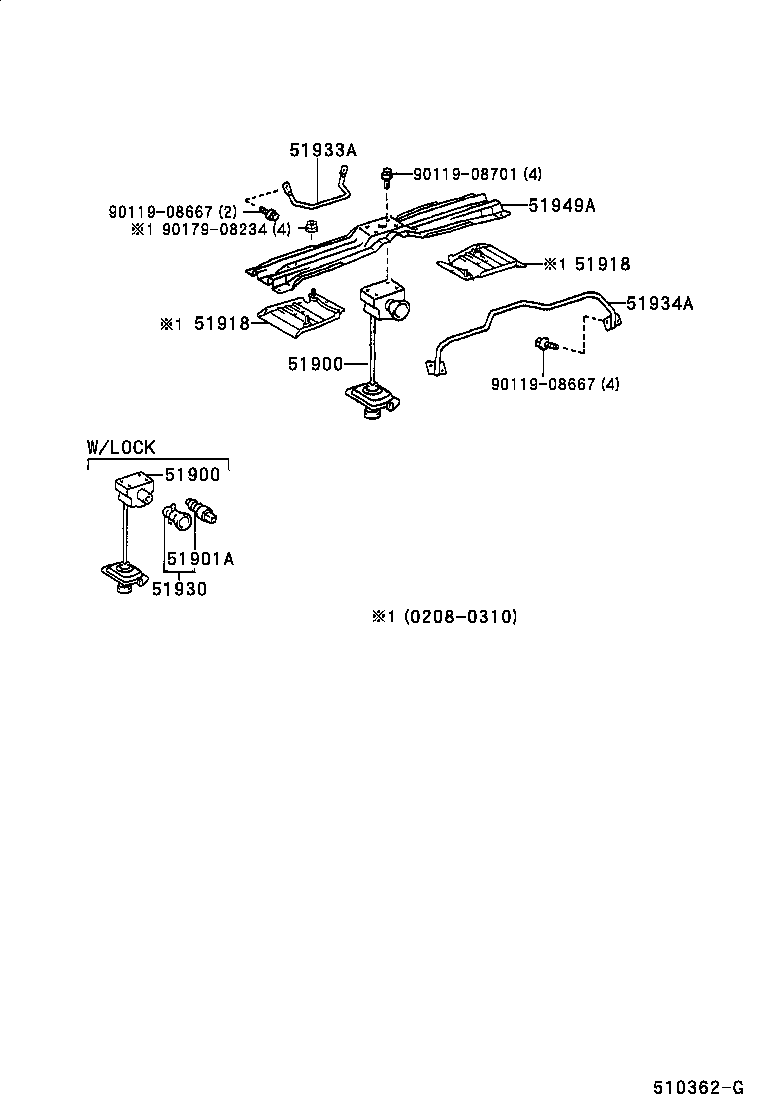

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-60241 |
UZJ100 W(LOCK) |
1 | ||
| 51900-60240 |
UZJ100 W(LOCK) |
1 | ||
| 51900-60270 |
UZJ100 W(LOCK) |
1 | ||
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-60241 |
UZJ100 W(LOCK) |
1 | ||
| 51900-60240 |
UZJ100 W(LOCK) |
1 | ||
| 51900-60270 |
UZJ100 W(LOCK) |
1 | ||
| 51901A - KEY SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51901-0W010 |
UZJ100 |
2 | ||
| 51930 - LOCK ASSY, SPARE WHEEL CARRIER | ||||
| 51930-0W010 |
UZJ100 |
1 | ||
| 51933A - STOPPER, SPARE WHEEL, NO.1 | ||||
| 51933-60110 |
UZJ100 |
1 | ||
| 51903-60150 |
UZJ100 |
1 | ||
| 51934A - STOPPER, SPARE WHEEL, NO.2 | ||||
| 51904-60041 |
UZJ100 |
1 | ||
| 51904-60040 |
UZJ100 |
1 | ||
| 51949A - CROSSMEMBER, SPARE WHEEL CARRIER | ||||
| 51281-60110 |
UZJ100 |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-08701 | ||||
| 90179-08234 | ||||
