UZJ100R-GNPGKQ (1998)
Toyota Lexus Lx470
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)RHD

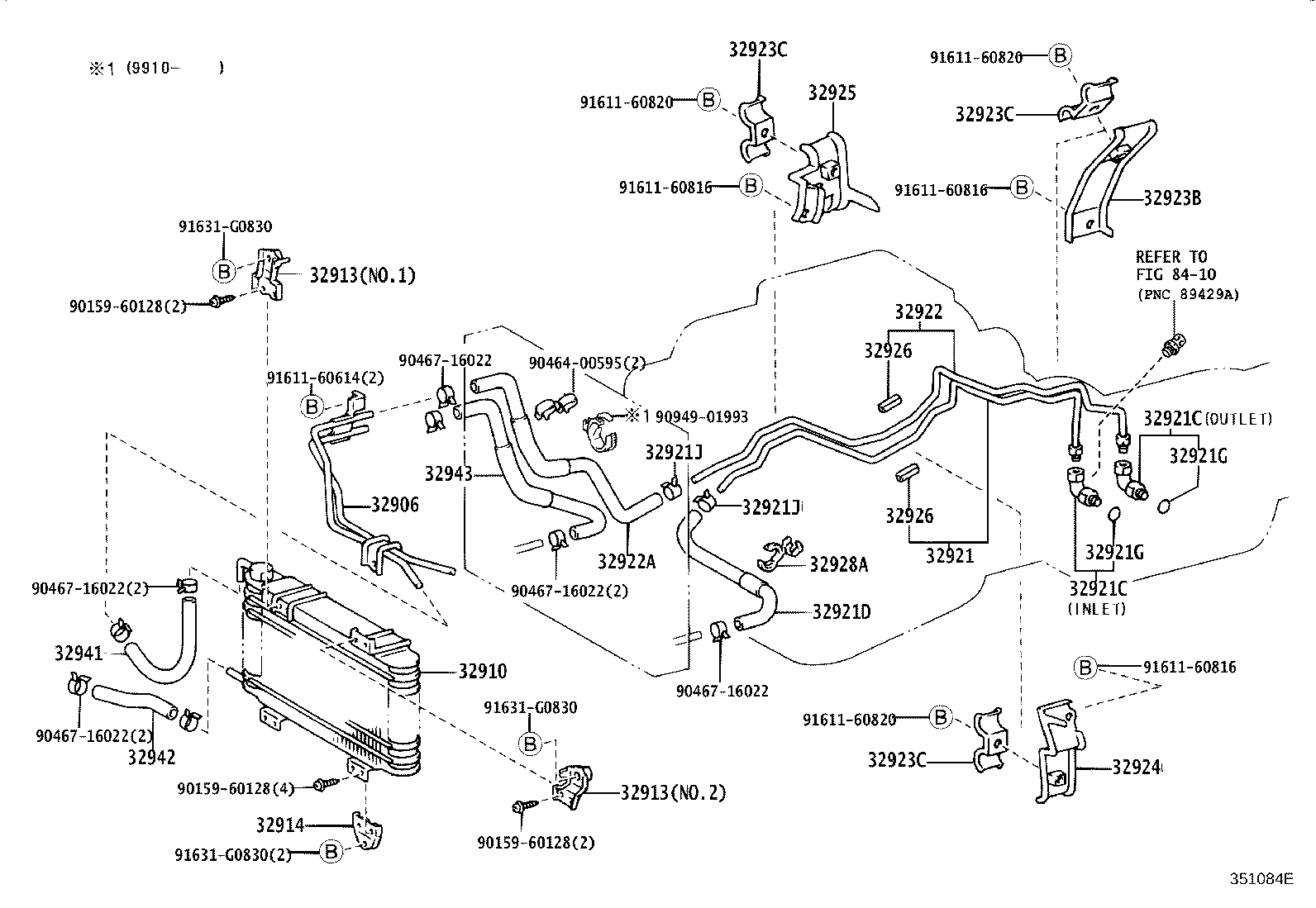

Click highlighted areas on diagram
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906 - TUBE SUB-ASSY, OIL COOLER | ||||
| 32906-60150 |
UZJ100..RHD |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-60130 |
UZJ100..RHD |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60220 |
UZJ100..RHD NO.1 |
1 | ||
| 32913-60230 |
UZJ100..RHD NO.2 |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60220 |
UZJ100..RHD NO.1 |
1 | ||
| 32913-60230 |
UZJ100..RHD NO.2 |
1 | ||
| 32914 - STAY, OIL COOLER | ||||
| 32914-60060 |
UZJ100..RHD |
2 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60110 |
UZJ100 |
1 | ||
| 32921-60111 |
UZJ100 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
UZJ100 OUTLET |
1 | ||
| 90407-20007 |
UZJ100 INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
UZJ100 OUTLET |
1 | ||
| 90407-20007 |
UZJ100 INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-60190 |
UZJ100 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
UZJ100 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
UZJ100 |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
UZJ100 |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
UZJ100 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60180 |
UZJ100 |
1 | ||
| 32922-60181 |
UZJ100 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-60290 |
UZJ100..RHD |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60050 |
UZJ100 |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
UZJ100 |
3 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
UZJ100 |
3 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
UZJ100 |
3 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-60070 |
UZJ100 |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-60120 |
UZJ100 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
UZJ100 L=45,ID=12 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
UZJ100 L=45,ID=12 |
6 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90949-01B51 |
UZJ100 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 90445-17097 |
UZJ100..RHD |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 90445-17103 |
UZJ100..RHD |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-60210 |
UZJ100..RHD |
1 | ||
| Common parts | ||||
| 90159-60128 | ||||
| 90464-00595 | ||||
| 90467-16022 | ||||
| 90949-01993 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91631-G0830 | ||||
| Linked diagrams | ||||
| 8410 | ||||
