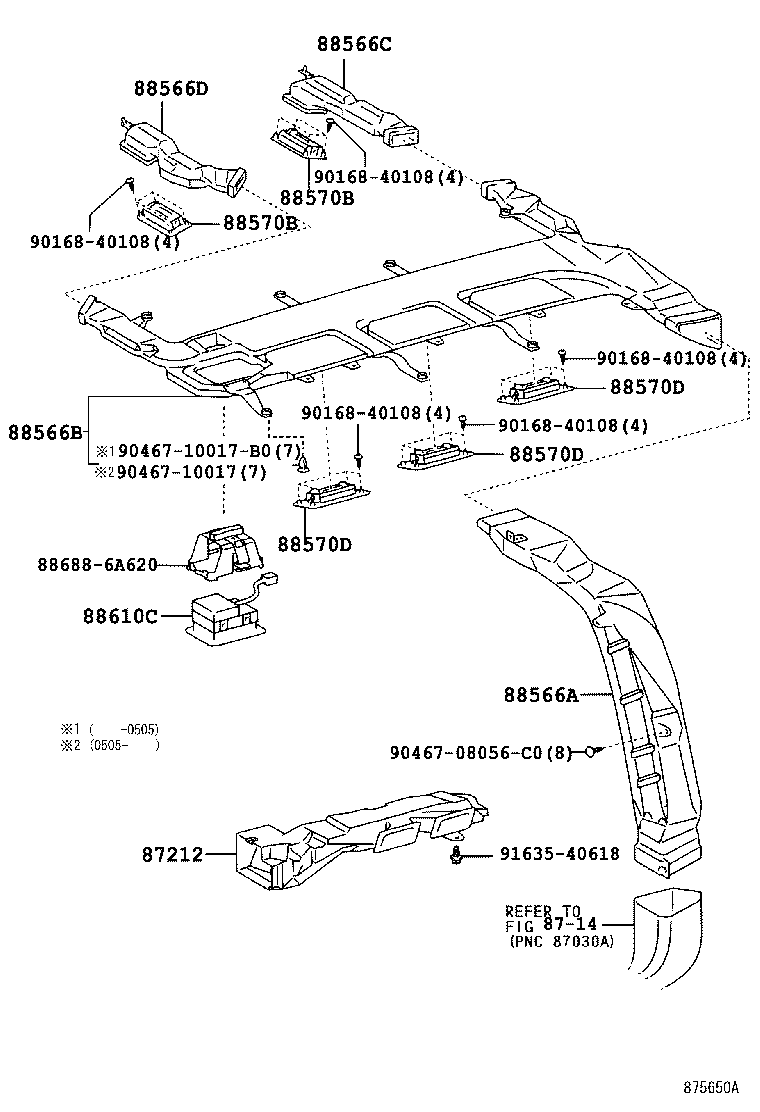

Toyota Lexus lx470 UZJ100 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Part #	Description	Period	Qty
87212 - DUCT, AIR, REAR NO.1
87212-60122	UZJ100..RHD	05/2005 - 12/2999	1
87212-60120	UZJ100..RHD	01/1998 - 07/1998	1
87212-60121	UZJ100..RHD	08/2002 - 07/2003	1
87212-60122	UZJ100..RHD	07/2003 - 05/2005	1
88566A - DUCT, COOLER AIR, NO.1
88566-60120	UZJ100	01/1998 - 08/2000	1
88566-60230	UZJ100	08/2002 - 05/2005	1
88566-60230	UZJ100	05/2005 - 12/2999	1
88566B - DUCT, COOLER AIR, NO.2
88566-60240	UZJ100	08/2002 - 05/2005	1
88566-60110	UZJ100	01/1998 - 08/2000	1
88566-60240	UZJ100	05/2005 - 12/2999	1
88566C - DUCT, COOLER AIR, NO.3
88566-60130	UZJ100 W(MOON ROOF)	01/1998 - 08/2002	1
88566-60250	UZJ100	08/2002 - 05/2005	1
88566-60250	UZJ100	05/2005 - 12/2999	1
88566-60150	UZJ100	01/1998 - 08/2000	1
88566D - DUCT, COOLER AIR, NO.4
88566-60160	UZJ100	01/1998 - 08/2000	1
88566-60260	UZJ100	08/2002 - 05/2005	1
88566-60140	UZJ100 W(MOON ROOF)	01/1998 - 08/2002	1
88566-60260	UZJ100	05/2005 - 12/2999	1
88570B - GRILLE ASSY, AIR OUTLET, NO.1
88570-60080A0	UZJ100 W(MOON ROOF),IVORY,TRIM4#,LH	01/1998 - 08/2002	1
88570-60130A0	UZJ100 IVORY,TRIM0#	08/2002 - 05/2005	2
88570-60070B0	UZJ100 W(MOON ROOF),MD.GRAY,TRIM1#,RH	01/1998 - 08/2002	1
88570-60130B0	UZJ100 STONE,TRIM1#	08/2002 - 05/2005	2
88570-60100A0	UZJ100 IVORY,TRIM4#	01/1998 - 08/2000	2
88570-60100B0	UZJ100 MD.GRAY,TRIM1#	01/1998 - 08/2000	2
88570-60080B0	UZJ100 W(MOON ROOF),MD. GRAY,TRIM1#,LH	01/1998 - 08/2002	1
88570-60130B0	UZJ100 STONE,TRIM1#	05/2005 - 08/2007	2
88570-60070A0	UZJ100 W(MOON ROOF),IVORY,TRIM4#,RH	01/1998 - 08/2002	1
88570-60130A0	UZJ100 IVORY,TRIM0#	05/2005 - 08/2007	2
88570B - GRILLE ASSY, AIR OUTLET, NO.1
88570-60080A0	UZJ100 W(MOON ROOF),IVORY,TRIM4#,LH	01/1998 - 08/2002	1
88570-60130A0	UZJ100 IVORY,TRIM0#	08/2002 - 05/2005	2
88570-60070B0	UZJ100 W(MOON ROOF),MD.GRAY,TRIM1#,RH	01/1998 - 08/2002	1
88570-60130B0	UZJ100 STONE,TRIM1#	08/2002 - 05/2005	2
88570-60100A0	UZJ100 IVORY,TRIM4#	01/1998 - 08/2000	2
88570-60100B0	UZJ100 MD.GRAY,TRIM1#	01/1998 - 08/2000	2
88570-60080B0	UZJ100 W(MOON ROOF),MD. GRAY,TRIM1#,LH	01/1998 - 08/2002	1
88570-60130B0	UZJ100 STONE,TRIM1#	05/2005 - 08/2007	2
88570-60070A0	UZJ100 W(MOON ROOF),IVORY,TRIM4#,RH	01/1998 - 08/2002	1
88570-60130A0	UZJ100 IVORY,TRIM0#	05/2005 - 08/2007	2
88570D - GRILLE ASSY, AIR OUTLET, NO.2
88570-60090B0	UZJ100 MD.GRAY,TRIM1#	01/1998 - 08/2002	3
88570-60090A1	UZJ100 IVORY,TRIM0#	05/2005 - 08/2007	3
88570-60090A0	UZJ100 IVORY,TRIM4#	01/1998 - 08/2002	3
88570-60090B1	UZJ100 STONE,TRIM1#	05/2005 - 08/2007	3
88570-60090A1	UZJ100 IVORY,TRIM0#	08/2002 - 05/2005	3
88570-60090B1	UZJ100 STONE,TRIM1#	08/2002 - 05/2005	3
88570D - GRILLE ASSY, AIR OUTLET, NO.2
88570-60090B0	UZJ100 MD.GRAY,TRIM1#	01/1998 - 08/2002	3
88570-60090A1	UZJ100 IVORY,TRIM0#	05/2005 - 08/2007	3
88570-60090A0	UZJ100 IVORY,TRIM4#	01/1998 - 08/2002	3
88570-60090B1	UZJ100 STONE,TRIM1#	05/2005 - 08/2007	3
88570-60090A1	UZJ100 IVORY,TRIM0#	08/2002 - 05/2005	3
88570-60090B1	UZJ100 STONE,TRIM1#	08/2002 - 05/2005	3
88570D - GRILLE ASSY, AIR OUTLET, NO.2
88570-60090B0	UZJ100 MD.GRAY,TRIM1#	01/1998 - 08/2002	3
88570-60090A1	UZJ100 IVORY,TRIM0#	05/2005 - 08/2007	3
88570-60090A0	UZJ100 IVORY,TRIM4#	01/1998 - 08/2002	3
88570-60090B1	UZJ100 STONE,TRIM1#	05/2005 - 08/2007	3
88570-60090A1	UZJ100 IVORY,TRIM0#	08/2002 - 05/2005	3
88570-60090B1	UZJ100 STONE,TRIM1#	08/2002 - 05/2005	3
88610C - SWITCH ASSY, COOLER CONTROL
88610-60120B0	UZJ100..RHD MD.GRAY,TRIM1#	01/1998 - 07/1999	1
88610-60121B1	UZJ100..RHD STONE,TRIM1#	08/2002 - 05/2005	1
88610-60120A0	UZJ100..RHD IVORY,TRIM4#	01/1998 - 07/1999	1
88610-60121A1	UZJ100..RHD IVORY,TRIM0#	08/2002 - 05/2005	1
88610-60121B1	UZJ100..RHD STONE,TRIM1#	05/2005 - 08/2007	1
88610-60121A1	UZJ100..RHD IVORY,TRIM0#	05/2005 - 08/2007	1
Common parts
88688-6A620
90168-40108
90467-08056C0
90467-10017
90467-10017B0
91635-40618
Linked diagrams
8714

UZJ100R-GNAGKQ (2002)

ILLUST NO. 4 OF 5(0208- )

ILLUST NO. 1 OF 5(0208- )
