UZJ100L-GNPGKV (1998)
Toyota Lexus Lx470
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)

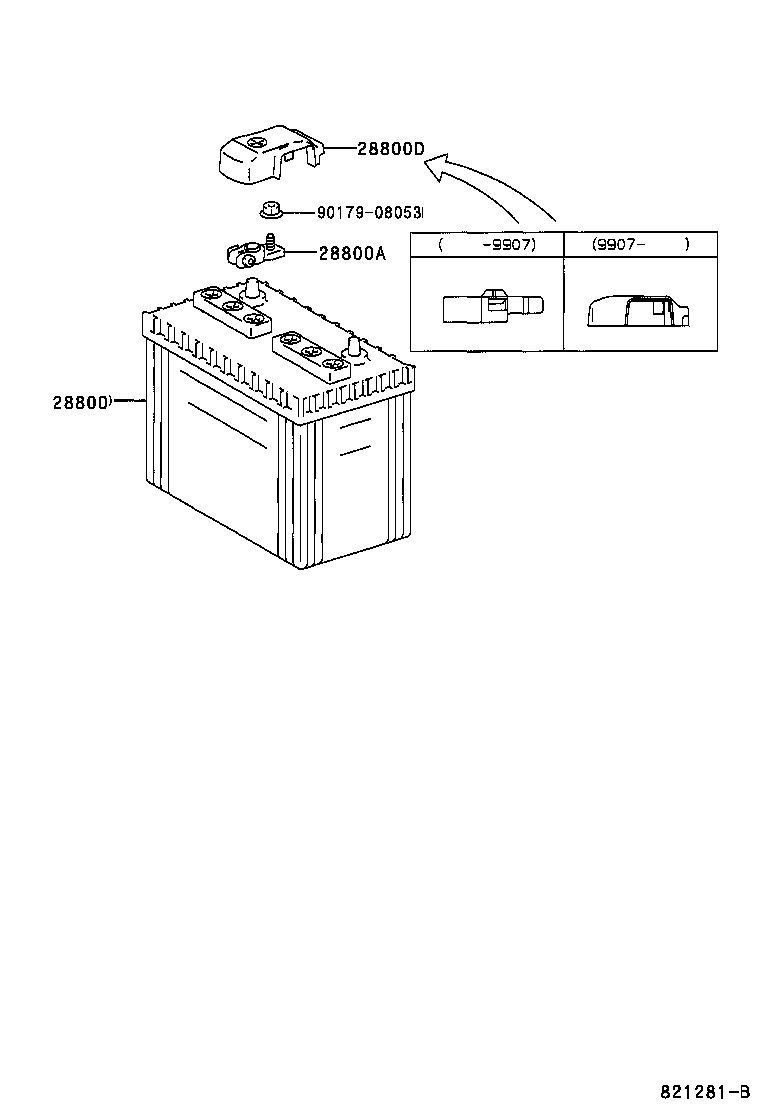

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-64131 |
2UZFE..UZJ100 80D26L,YUASA |
1 | ||
| 28800-64151 |
2UZFE..UZJ100 80D26L,MATSUSHITA |
1 | ||
| 28800-17120 |
2UZFE..UZJ100 80D26L,FURUKAWA |
1 | ||
| 28800-64122 |
2UZFE..UZJ100 80D26L,GS |
1 | ||
| 28800-17121 |
2UZFE..UZJ100 80D26L,FURUKAWA |
1 | ||
| 28800-76080 |
2UZFE..UZJ100 80D26L,MATSUSHITA |
1 | ||
| 28800-64132 |
2UZFE..UZJ100 80D26L,YUASA |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05035 |
2UZFE..UZJ100 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-60041 |
2UZFE..UZJ100 |
1 | ||
| 82821-60040 |
2UZFE..UZJ100 |
1 | ||
| Common parts | ||||
| 90179-08053 | ||||
