UZJ100L-GNPGKV (1998)
Toyota Lexus Lx470
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)

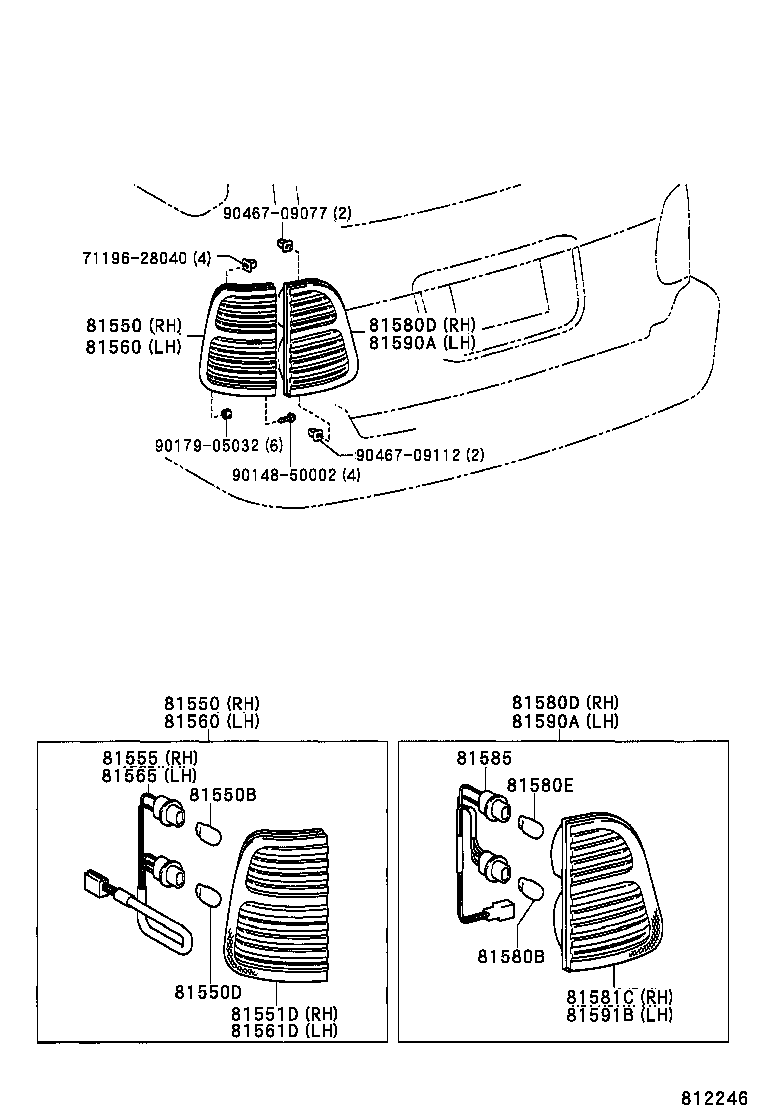

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-60580 |
UZJ100 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-60580 |
UZJ100 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13043 |
UZJ100 12V 21W |
2 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
UZJ100 12V 21/5W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-60580 |
UZJ100 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-60590 |
UZJ100 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-60500 |
UZJ100 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-60500 |
UZJ100 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-60500 |
UZJ100 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-60590 |
UZJ100 |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13044 |
UZJ100 12V 21/5W |
2 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-60040 |
UZJ100 |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-60040 |
UZJ100 |
1 | ||
| 81580E - BULB | ||||
| 90981-13043 |
UZJ100 |
2 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-60040 |
UZJ100 |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-60040 |
UZJ100 |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-60070 |
UZJ100 |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-60070 |
UZJ100 |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-60070 |
UZJ100 |
1 | ||
| Common parts | ||||
| 71196-28040 | ||||
| 90148-50002 | ||||
| 90179-05032 | ||||
| 90467-09077 | ||||
| 90467-09112 | ||||
