UZJ100L-GNPGKV (1998)

Toyota Lexus Lx470

Production Jan 1998 - Aug 2002
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

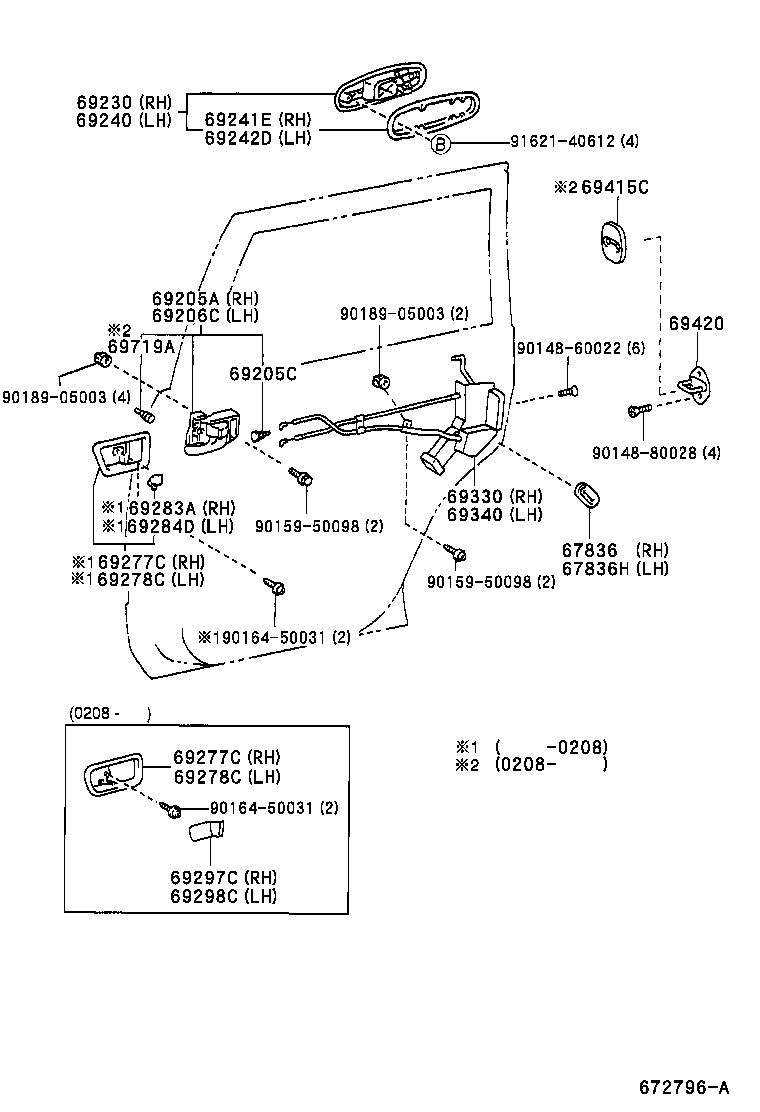

Click highlighted areas on diagram

diagram 67836 67836H 69205A 69205C 69206C 69230 69240 69241E 69242D 69277C 69277C 69278C 69278C 69283A 69284D 69297C 69298C 69330 69340 69415C 69420 69719A 9014860022 9014880028 9015950098 9015950098 9016450031 9016450031 9018905003 9018905003 9162140612
Part # Description Qty Price
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

UZJ100

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

UZJ100

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-47010A0

UZJ100

IVORY,TRIM4#

 1
69205-47010B1

UZJ100

MD.GRAY,TRIM1#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

UZJ100

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-47010B1

UZJ100

MD.GRAY,TRIM1#

 1
69206-47010A0

UZJ100

IVORY,TRIM4#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-60080E1

UZJ100

BEIGE ME.,4M9

 1
69230-60080C0

UZJ100..LHD

BLACK,202

 1
69230-60080A1

UZJ100

WHITE PM.,057

 1
69230-60081J1

UZJ100

GRAYISH BLUE ME.,8P6

 1
69230-60081C0

UZJ100

BLACK,202

 1
69230-60081G2

UZJ100

GREEN M.M.,6S5

 1
69230-60080G1

UZJ100

GREEN MC.,6R1

 1
69230-60081E1

UZJ100

BEIGE ME.,4M9

 1
69230-60081A1

UZJ100

WHITE PM.,057

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-60080A1

UZJ100

WHITE PM.,057

 1
69240-60080E1

UZJ100

BEIGE ME.,4M9

 1
69240-60081J1

UZJ100

GRAYISH BLUE ME.,8P6

 1
69240-60081E1

UZJ100

BEIGE ME.,4M9

 1
69240-60081G2

UZJ100

GREEN M.M.,6S5

 1
69240-60081A1

UZJ100

WHITE PM.,057

 1
69240-60081C0

UZJ100

BLACK,202

 1
69240-60080C0

UZJ100..LHD

BLACK,202

 1
69240-60080G1

UZJ100

GREEN MC.,6R1

 1
69241E - PAD, REAR DOOR OUTSIDE HANDLE, RH
69241-60021

UZJ100

 1
69241-60020

UZJ100

 1
69242D - PAD, REAR DOOR OUTSIDE HANDLE, LH
69241-60021

UZJ100

 1
69241-60020

UZJ100

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-22090A0

UZJ100

IVORY,TRIM4#

 1
69277-22090B2

UZJ100

MD.GRAY,TRIM1#

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-22090A0

UZJ100

IVORY,TRIM4#

 1
69277-22090B2

UZJ100

MD.GRAY,TRIM1#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-22050B2

UZJ100

MD.GRAY,TRIM1#

 1
69278-22050A0

UZJ100

IVORY,TRIM4#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-22050B2

UZJ100

MD.GRAY,TRIM1#

 1
69278-22050A0

UZJ100

IVORY,TRIM4#

 1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-30040A0

UZJ100

IVORY,TRIM4#

 1
69283-30040B6

UZJ100

MD.GRAY,TRIM1#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-30040A0

UZJ100

IVORY,TRIM4#

 1
69284-30040B6

UZJ100

MD.GRAY,TRIM1#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69050-60061

UZJ100

 1
69050-60060

UZJ100

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-60060

UZJ100

 1
69060-60061

UZJ100

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20110

UZJ100

 2
Common parts
90148-60022
90148-80028
90159-50098
90164-50031
90189-05003
91621-40612
