UZJ100L-GNPGKV (1998)

Toyota Lexus Lx470

Production Jan 1998 - Aug 2002
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

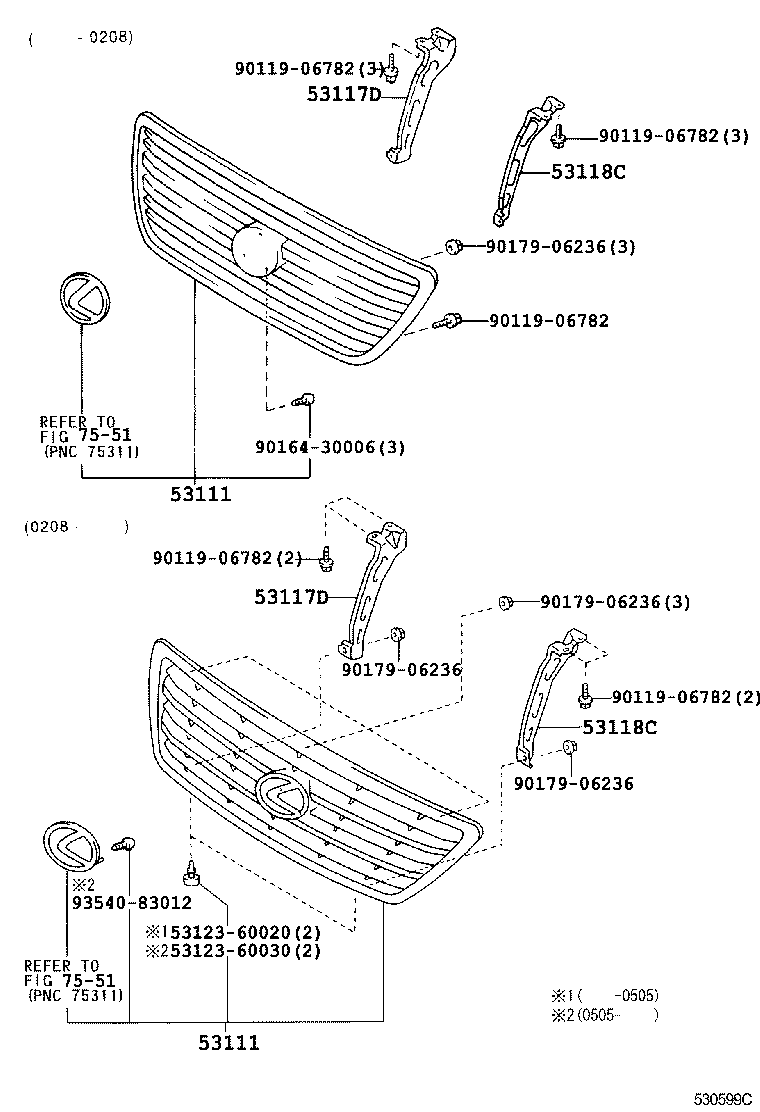

Click highlighted areas on diagram

diagram 53111 53111 53117D 53117D 53118C 53118C 5312360020 5312360030 7551 7551 9011906782 9011906782 9011906782 9011906782 9011906782 9016430006 9017906236 9017906236 9017906236 9017906236 9354083012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-60210

UZJ100

 1
53111 - GRILLE, RADIATOR
53101-60210

UZJ100

 1
53117D - BRACKET, RADIATOR GRILLE, LOWER RH
53117-60020

UZJ100

 1
53117D - BRACKET, RADIATOR GRILLE, LOWER RH
53117-60020

UZJ100

 1
53118C - BRACKET, RADIATOR GRILLE, LOWER LH
53118-60010

UZJ100

 1
53118C - BRACKET, RADIATOR GRILLE, LOWER LH
53118-60010

UZJ100

 1
Common parts
53123-60020
53123-60030
90119-06782
90164-30006
90179-06236
93540-83012
Linked diagrams
7551
