UZJ100L-GNAGKV (2002)
Toyota Lexus Lx470
(0208- )LHD

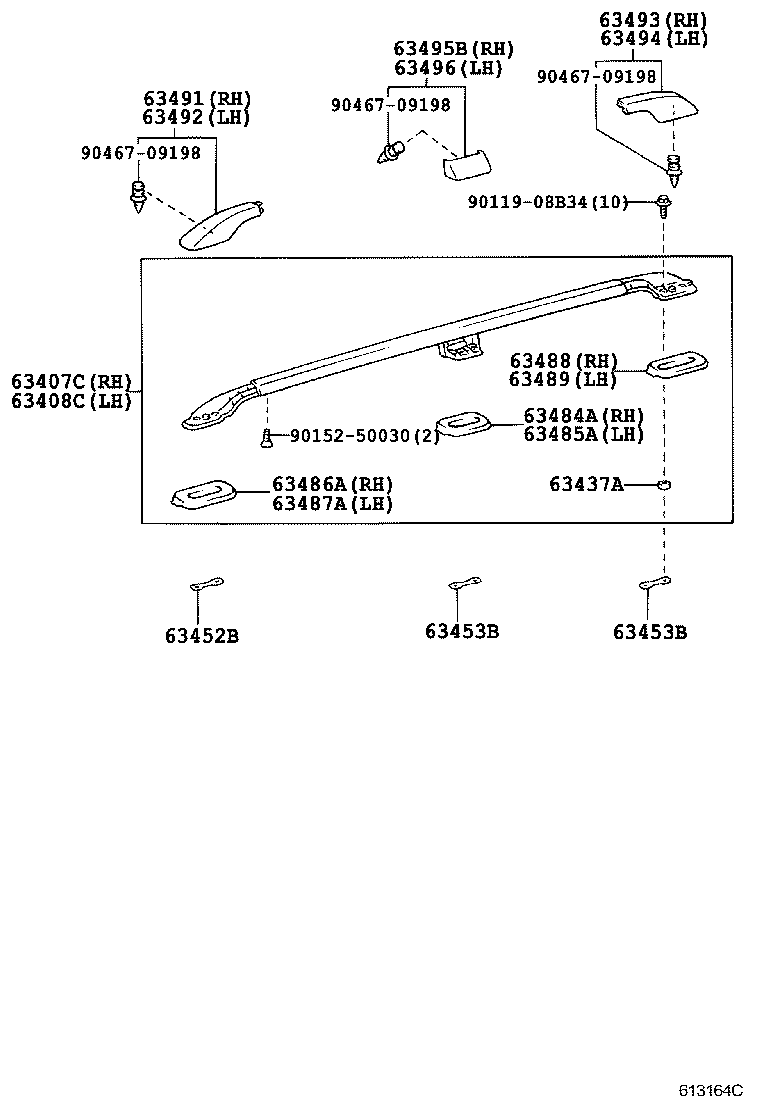

W(ROOF RAIL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-60060 |
UZJ100..LHD |
1 | ||
| 63407-60060 |
UZJ100..LHD |
1 | ||
| 63407-60061 |
UZJ100..LHD |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-60050 |
UZJ100..LHD |
1 | ||
| 63408-60050 |
UZJ100..LHD |
1 | ||
| 63408-60051 |
UZJ100..LHD |
1 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-60010 |
UZJ100..LHD |
2 | ||
| 63437-60010 |
UZJ100..LHD |
2 | ||
| 63437-60010 |
UZJ100..LHD |
2 | ||
| 63452B - REINFORCEMENT, ROOF RACK, NO.2 | ||||
| 63452-60021 |
UZJ100..LHD |
2 | ||
| 63452-60021 |
UZJ100..LHD |
2 | ||
| 63453B - REINFORCEMENT, ROOF RACK, NO.3 | ||||
| 63451-60031 |
UZJ100 |
4 | ||
| 63451-60031 |
UZJ100..LHD |
4 | ||
| 63453B - REINFORCEMENT, ROOF RACK, NO.3 | ||||
| 63451-60031 |
UZJ100 |
4 | ||
| 63451-60031 |
UZJ100..LHD |
4 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-60040 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63484-60050 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63484-60050 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63484-60040 |
UZJ100..LHD |
1 | ||
| 63484-60040 |
UZJ100..LHD |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63485-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63485-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63485-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63485-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63486-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63486-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63486-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63486-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63487-60040 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63487-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63487-60040 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63487-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63486-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63486-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63488-60040 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63488-60040 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63488-60040 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63487-60040 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63489-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63487-60040 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63489-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63489-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-60041 |
UZJ100..LHD |
1 | ||
| 63491-60041 |
UZJ100..LHD |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-60021 |
UZJ100..LHD |
1 | ||
| 63492-60021 |
UZJ100..LHD |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-60041 |
UZJ100..LHD |
1 | ||
| 63493-60041 |
UZJ100..LHD |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-60031 |
UZJ100..LHD |
1 | ||
| 63494-60031 |
UZJ100..LHD |
1 | ||
| 63495B - COVER, ROOF RACK LEG, CENTER RH | ||||
| 63495-60021 |
UZJ100..LHD |
1 | ||
| 63495-60021 |
UZJ100..LHD |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-60021 |
UZJ100..LHD |
1 | ||
| 63496-60021 |
UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90119-08B34 | ||||
| 90152-50030 | ||||
| 90467-09198 | ||||
(9801-0505)
W(ROOF RACK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63468-60050 |
UZJ100..LHD |
1 | ||
| 63468-60050 |
UZJ100..LHD |
1 | ||
| 63079 - FRAME SUB-ASSY, ROOF RACK, UPPER FRONT | ||||
| 63745-60010 |
UZJ100..LHD |
1 | ||
| 63745-60010 |
UZJ100..LHD |
1 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63185-60030 |
UZJ100..LHD |
1 | ||
| 63185-60030 |
UZJ100..LHD |
1 | ||
| 63435F - SEAL, ROOF CARRIER, NO.1 | ||||
| 63437-60010 |
UZJ100..LHD |
14 | ||
| 63435F - SEAL, ROOF CARRIER, NO.1 | ||||
| 63437-60010 |
UZJ100..LHD |
14 | ||
| 63435F - SEAL, ROOF CARRIER, NO.1 | ||||
| 63437-60010 |
UZJ100..LHD |
14 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-60020 |
UZJ100..LHD |
4 | ||
| 63438-60020 |
UZJ100..LHD |
4 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-60020 |
UZJ100..LHD |
4 | ||
| 63438-60020 |
UZJ100..LHD |
4 | ||
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-60010 |
UZJ100..LHD |
3 | ||
| 63441-60010 |
UZJ100..LHD |
3 | ||
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-60010 |
UZJ100..LHD |
3 | ||
| 63441-60010 |
UZJ100..LHD |
3 | ||
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-60010 |
UZJ100..LHD |
3 | ||
| 63441-60010 |
UZJ100..LHD |
3 | ||
| 63461 - FRAME, ROOF RACK SIDE RAIL, LOWER | ||||
| 63461-60030 |
UZJ100..LHD RH |
1 | ||
| 63461-60030 |
UZJ100..LHD RH |
1 | ||
| 63462-60030 |
UZJ100..LHD LH |
1 | ||
| 63462-60030 |
UZJ100..LHD LH |
1 | ||
| 63465A - SUPPORT, ROOF RACK SIDE FLAME | ||||
| 63465-60020 |
UZJ100..LHD |
4 | ||
| 63465-60020 |
UZJ100..LHD |
4 | ||
| 63465A - SUPPORT, ROOF RACK SIDE FLAME | ||||
| 63465-60020 |
UZJ100..LHD |
4 | ||
| 63465-60020 |
UZJ100..LHD |
4 | ||
| 63466A - FRAME, ROOF RACK SIDE RAIL, UPPER NO.1 | ||||
| 63466-60030 |
UZJ100..LHD |
2 | ||
| 63466-60030 |
UZJ100..LHD |
2 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-60020 |
UZJ100..LHD |
4 | ||
| 63469-60020 |
UZJ100..LHD |
4 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-60020 |
UZJ100..LHD |
4 | ||
| 63469-60020 |
UZJ100..LHD |
4 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-60030 |
UZJ100..LHD |
1 | ||
| 63471-60030 |
UZJ100..LHD |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-60030 |
UZJ100..LHD |
1 | ||
| 63472-60030 |
UZJ100..LHD |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-60030 |
UZJ100..LHD |
1 | ||
| 63473-60030 |
UZJ100..LHD |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-60030 |
UZJ100..LHD |
1 | ||
| 63474-60030 |
UZJ100..LHD |
1 | ||
| 63477A - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-60060 |
UZJ100..LHD |
1 | ||
| 63477-60060 |
UZJ100..LHD |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-60030 |
UZJ100..LHD |
1 | ||
| 63478-60030 |
UZJ100..LHD |
1 | ||
| 63479C - PLATE, ROOF RACK LEG | ||||
| 63479-60010 |
UZJ100..LHD |
14 | ||
| 63479-60010 |
UZJ100..LHD |
14 | ||
| 63479C - PLATE, ROOF RACK LEG | ||||
| 63479-60010 |
UZJ100..LHD |
14 | ||
| 63479-60010 |
UZJ100..LHD |
14 | ||
| 63479C - PLATE, ROOF RACK LEG | ||||
| 63479-60010 |
UZJ100..LHD |
14 | ||
| 63479-60010 |
UZJ100..LHD |
14 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63481-60030 |
UZJ100..LHD |
5 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-60040 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63484-60050 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63484-60050 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63484-60040 |
UZJ100..LHD |
1 | ||
| 63484-60040 |
UZJ100..LHD |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63485-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63485-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63485-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63485-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63486-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63486-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63486-60050 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63486-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63487-60040 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63487-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63487-60040 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63487-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63486-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63486-60060 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63488-60040 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63488-60040 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63488-60040 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63487-60040 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63489-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63487-60040 |
UZJ100..LHD W(ROOF RACK) |
1 | ||
| 63489-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63489-60030 |
UZJ100..LHD W(ROOF CARRIER) |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63464-60030 |
UZJ100..LHD FRONT |
1 | ||
| 63463-60030 |
UZJ100..LHD REAR |
1 | ||
| 63464-60030 |
UZJ100..LHD FRONT |
1 | ||
| 63463-60030 |
UZJ100..LHD REAR |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63464-60030 |
UZJ100..LHD FRONT |
1 | ||
| 63463-60030 |
UZJ100..LHD REAR |
1 | ||
| 63464-60030 |
UZJ100..LHD FRONT |
1 | ||
| 63463-60030 |
UZJ100..LHD REAR |
1 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-60010 |
UZJ100..LHD |
1 | ||
| 63773-60010 |
UZJ100..LHD |
1 | ||
| 63774 - GUSSET, ROOF RACK CENTER FRAME, LH | ||||
| 63773-60010 |
UZJ100..LHD |
1 | ||
| 63773-60010 |
UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90119-08835 | ||||
| 90167-45006 | ||||
| 90179-06143 | ||||
| 91651-B0616 | ||||
| 91651-B0625 | ||||

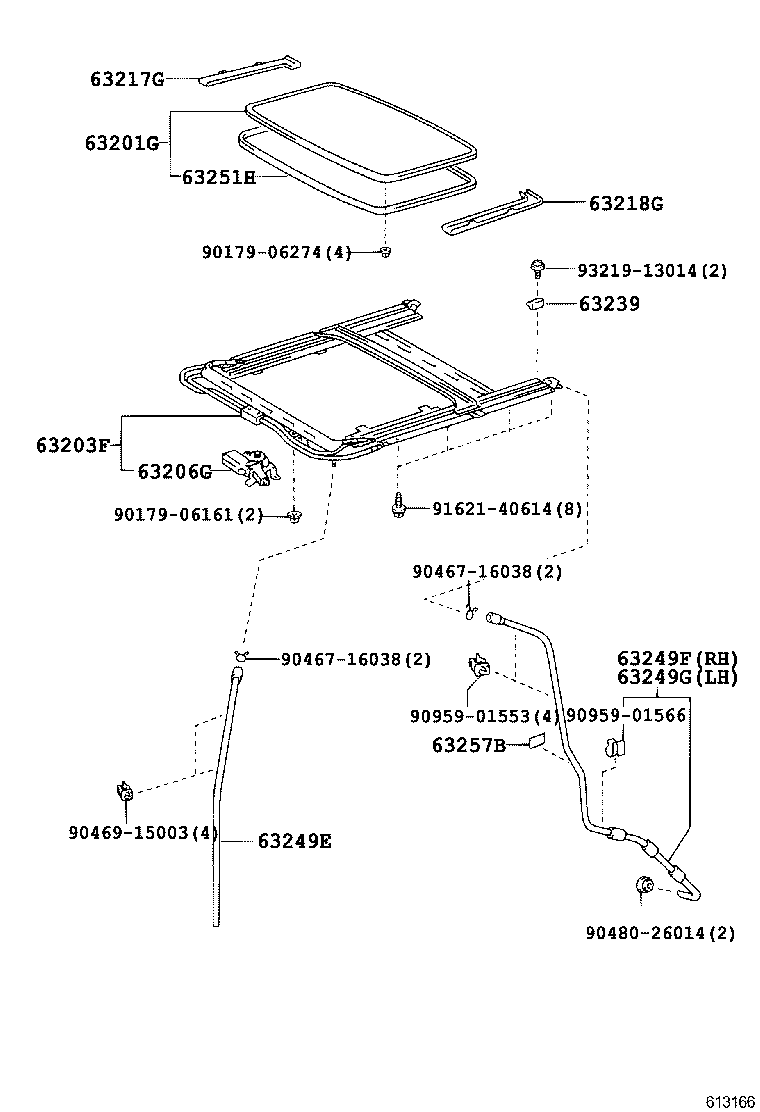

ILLUST NO. 2 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63204-60030 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63201-60073 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63201-60071 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63201-60072 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63201-60070 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63200-60140 |
UZJ100 |
1 | ||
| 63200-60141 |
UZJ100 |
1 | ||
| 63200-60141 |
UZJ100 |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-60100 |
UZJ100 |
1 | ||
| 63260-60060 |
UZJ100..LHD |
1 | ||
| 63260-60100 |
UZJ100 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-60040 |
UZJ100 |
1 | ||
| 63217-60040 |
UZJ100 |
1 | ||
| 63217-60040 |
UZJ100 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-60040 |
UZJ100 |
1 | ||
| 63218-60040 |
UZJ100 |
1 | ||
| 63218-60040 |
UZJ100 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-60010 |
UZJ100 |
2 | ||
| 63239-60010 |
UZJ100 |
2 | ||
| 63239-60010 |
UZJ100 |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60120 |
UZJ100 |
2 | ||
| 63249-60120 |
UZJ100 RH |
1 | ||
| 63249-60122 |
UZJ100 RH |
1 | ||
| 63249-60150 |
UZJ100 LH |
1 | ||
| 63249-60152 |
UZJ100 LH |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60170 |
UZJ100 L=1415 |
1 | ||
| 63249-60172 |
UZJ100 L=1415 |
1 | ||
| 63249-60130 |
UZJ100 L=1840 |
1 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60182 |
UZJ100 L=1525 |
1 | ||
| 63249-60180 |
UZJ100 L=1525 |
1 | ||
| 63249-60140 |
UZJ100 L=1930 |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-60062 |
UZJ100 |
1 | ||
| 63251-60061 |
UZJ100 |
1 | ||
| 63251-60060 |
UZJ100 |
1 | ||
| 63251-60062 |
UZJ100 |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-60020 |
UZJ100 |
2 | ||
| 63257-60020 |
UZJ100 |
2 | ||
| 63257-60020 |
UZJ100 |
2 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06274 | ||||
| 90467-16038 | ||||
| 90469-15003 | ||||
| 90480-26014 | ||||
| 90959-01553 | ||||
| 90959-01566 | ||||
| 91621-40614 | ||||
| 93219-13014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
