VDJ201R-GMTGZQ (2015)

Toyota Lexus Lx450d/460/570

Production Sep 2015 - Sep 9999
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )

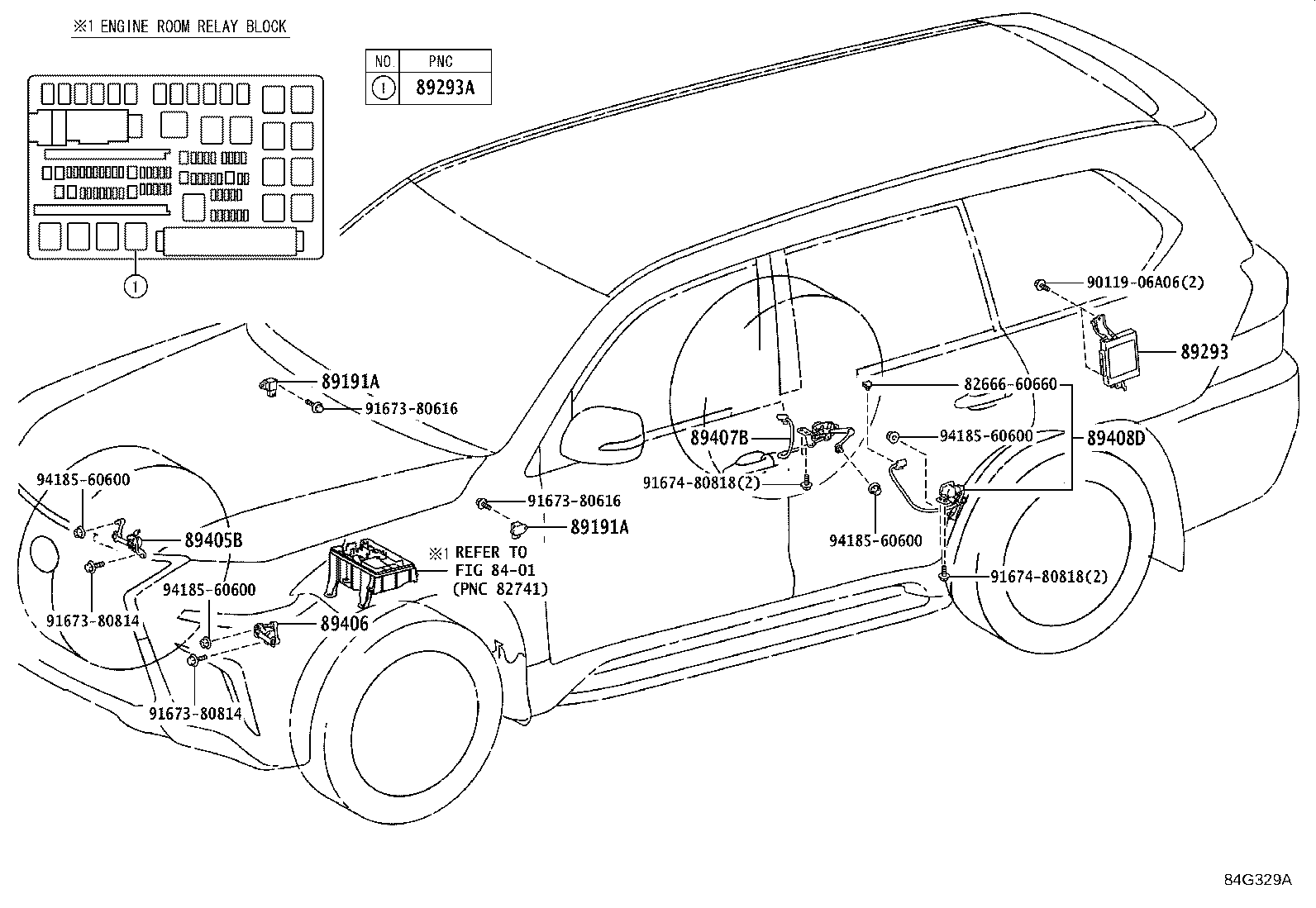

Click highlighted areas on diagram

diagram 8266660660 8401 89191A 89191A 89293 89293A 89405B 89406 89407B 89408D 9011906A06 9167380616 9167380616 9167380814 9167380814 9167480818 9167480818 9418560600 9418560600 9418560600 9418560600
Part # Description Qty Price
89191A - SENSOR, ACCELERATION
89191-22020

URJ201,VDJ201

 2
89191A - SENSOR, ACCELERATION
89191-22020

URJ201,VDJ201

 2
89293 - COMPUTER, SUSPENSION CONTROL
89293-60083

URJ201,VDJ201..ARL,GCC

 1
89293A - RELAY, SUSPENSION CONTROL
88263-21010

URJ201,VDJ201

 1
89405B - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH
89405-60020

URJ201,VDJ201

 1
89406 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH
89406-60030

URJ201,VDJ201

 1
89407B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH
89407-60031

URJ201,VDJ201

 1
89408D - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH
89408-60040

URJ201,VDJ201

 1
Common parts
82666-60660
90119-06A06
91673-80616
91673-80814
91674-80818
94185-60600
Linked diagrams
8401
