VDJ201L-GMTGZV (2015)
Toyota Lexus Lx450d/460/570
(1509- )

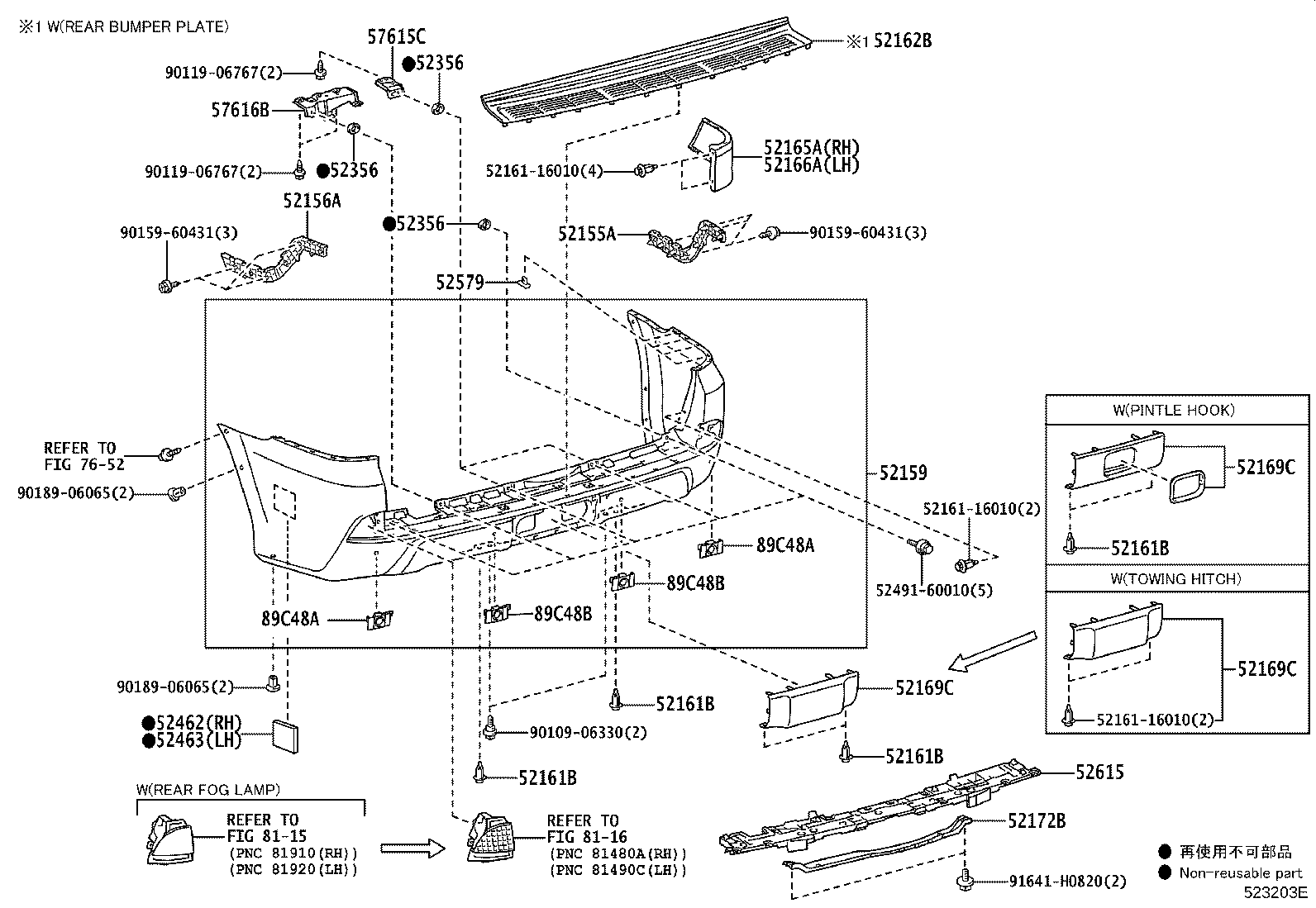

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-60120 |
URJ201,VDJ201 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-60120 |
URJ201,VDJ201 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-6A950 |
URJ201,VDJ201..GCC PAINT REQ. |
1 | ||
| 52159-6A950 |
URJ201,VDJ201..GCC PAINT REQ.,SAUDI ARABIA SPEC |
1 | ||
| 52159-6A950 |
VDJ201..GCC GCC SPEC(UAE,BAHRAIN) |
1 | ||
| 52159-6A950 |
VDJ201..GCC YEMEN SPEC |
1 | ||
| 52159-6A950 |
VDJ201..GCC QATAR, OMAN, BAHRAIN SPEC |
1 | ||
| 52159-6A950 |
VDJ201..GCC KUWAIT SPEC |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
URJ201,VDJ201..LHD |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
URJ201,VDJ201..LHD |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
URJ201,VDJ201..LHD |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
URJ201,VDJ201..LHD |
4 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-60110 |
URJ201,VDJ201 |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-60900 |
URJ201,VDJ201..GCC PAINT REQ.,SAUDI ARABIA SPEC |
1 | ||
| 52165-60900 |
URJ201,VDJ201..GCC PAINT REQ. |
1 | ||
| 52165-60900 |
VDJ201..GCC KUWAIT SPEC |
1 | ||
| 52165-60900 |
VDJ201..GCC GCC SPEC(UAE,BAHRAIN) |
1 | ||
| 52165-60900 |
VDJ201..GCC YEMEN SPEC |
1 | ||
| 52165-60900 |
VDJ201..GCC QATAR, OMAN, BAHRAIN SPEC |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-60900 |
URJ201,VDJ201..GCC PAINT REQ.,SAUDI ARABIA SPEC |
1 | ||
| 52166-60900 |
URJ201,VDJ201..GCC PAINT REQ. |
1 | ||
| 52166-60900 |
VDJ201..GCC YEMEN SPEC |
1 | ||
| 52166-60900 |
VDJ201..GCC KUWAIT SPEC |
1 | ||
| 52166-60900 |
VDJ201..GCC GCC SPEC(UAE,BAHRAIN) |
1 | ||
| 52166-60900 |
VDJ201..GCC QATAR, OMAN, BAHRAIN SPEC |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-60200A0 |
URJ201,VDJ201..LHD WHITE PEARL CS.,077 |
1 | ||
| 52169-60200E0 |
URJ201,VDJ201..LHD SLEEK ECRU ME.,4U7 |
1 | ||
| 52169-60200B0 |
URJ201,VDJ201..LHD MERCURY GRAY MC.,1H9 |
1 | ||
| 52169-60200J0 |
URJ201,VDJ201..LHD DEEP BLUE MC.,8X5 |
1 | ||
| 52169-60200C1 |
URJ201,VDJ201..LHD STARLIGHT BLACK GF.,217 |
1 | ||
| 52169-60200B1 |
URJ201,VDJ201..LHD SONIC TITANIUM,1J7 |
1 | ||
| 52169-60200C0 |
URJ201,VDJ201..LHD BLACK,202 |
1 | ||
| 52169-60200A1 |
URJ201,VDJ201..LHD SONIC QUARTZ,085 |
1 | ||
| 52169-60200G0 |
URJ201,VDJ201..GCC TERRANE KHAKI M.M.,6X4 |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-60200A0 |
URJ201,VDJ201..LHD WHITE PEARL CS.,077 |
1 | ||
| 52169-60200E0 |
URJ201,VDJ201..LHD SLEEK ECRU ME.,4U7 |
1 | ||
| 52169-60200B0 |
URJ201,VDJ201..LHD MERCURY GRAY MC.,1H9 |
1 | ||
| 52169-60200J0 |
URJ201,VDJ201..LHD DEEP BLUE MC.,8X5 |
1 | ||
| 52169-60200C1 |
URJ201,VDJ201..LHD STARLIGHT BLACK GF.,217 |
1 | ||
| 52169-60200B1 |
URJ201,VDJ201..LHD SONIC TITANIUM,1J7 |
1 | ||
| 52169-60200C0 |
URJ201,VDJ201..LHD BLACK,202 |
1 | ||
| 52169-60200A1 |
URJ201,VDJ201..LHD SONIC QUARTZ,085 |
1 | ||
| 52169-60200G0 |
URJ201,VDJ201..GCC TERRANE KHAKI M.M.,6X4 |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-60200A0 |
URJ201,VDJ201..LHD WHITE PEARL CS.,077 |
1 | ||
| 52169-60200E0 |
URJ201,VDJ201..LHD SLEEK ECRU ME.,4U7 |
1 | ||
| 52169-60200B0 |
URJ201,VDJ201..LHD MERCURY GRAY MC.,1H9 |
1 | ||
| 52169-60200J0 |
URJ201,VDJ201..LHD DEEP BLUE MC.,8X5 |
1 | ||
| 52169-60200C1 |
URJ201,VDJ201..LHD STARLIGHT BLACK GF.,217 |
1 | ||
| 52169-60200B1 |
URJ201,VDJ201..LHD SONIC TITANIUM,1J7 |
1 | ||
| 52169-60200C0 |
URJ201,VDJ201..LHD BLACK,202 |
1 | ||
| 52169-60200A1 |
URJ201,VDJ201..LHD SONIC QUARTZ,085 |
1 | ||
| 52169-60200G0 |
URJ201,VDJ201..GCC TERRANE KHAKI M.M.,6X4 |
1 | ||
| 52172B - REINFORCEMENT, REAR BUMPER, NO.2 | ||||
| 52172-60050 |
URJ201,VDJ201 |
1 | ||
| 52356 - CUSHION, REAR BUMPER STEP | ||||
| 52356-60050 |
URJ201,VDJ201 |
5 | ||
| 52356 - CUSHION, REAR BUMPER STEP | ||||
| 52356-60050 |
URJ201,VDJ201 |
5 | ||
| 52356 - CUSHION, REAR BUMPER STEP | ||||
| 52356-60050 |
URJ201,VDJ201 |
5 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-60100 |
URJ201,VDJ201 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-60100 |
URJ201,VDJ201 |
1 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-60010 |
URJ201,VDJ201 |
8 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-60081 |
URJ201,VDJ201 |
1 | ||
| 57615C - BRACKET, REAR BUMPER ARM | ||||
| 58357-60020 |
URJ201,VDJ201 |
2 | ||
| 57616B - BRACKET, REAR BUMPER ARM | ||||
| 58356-60030 |
URJ201,VDJ201 |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-60010 |
URJ201,VDJ201 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-60010 |
URJ201,VDJ201 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-60010 |
URJ201,VDJ201 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-60010 |
URJ201,VDJ201 |
2 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 52491-60010 | ||||
| 90109-06330 | ||||
| 90119-06767 | ||||
| 90159-60431 | ||||
| 90189-06065 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 7652 | ||||
| 8115 | ||||
| 8116 | ||||
