URJ202R-GNTGKQ (2012)

Toyota Lexus Lx450d/460/570

Production Jan 2012 - Sep 2015
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

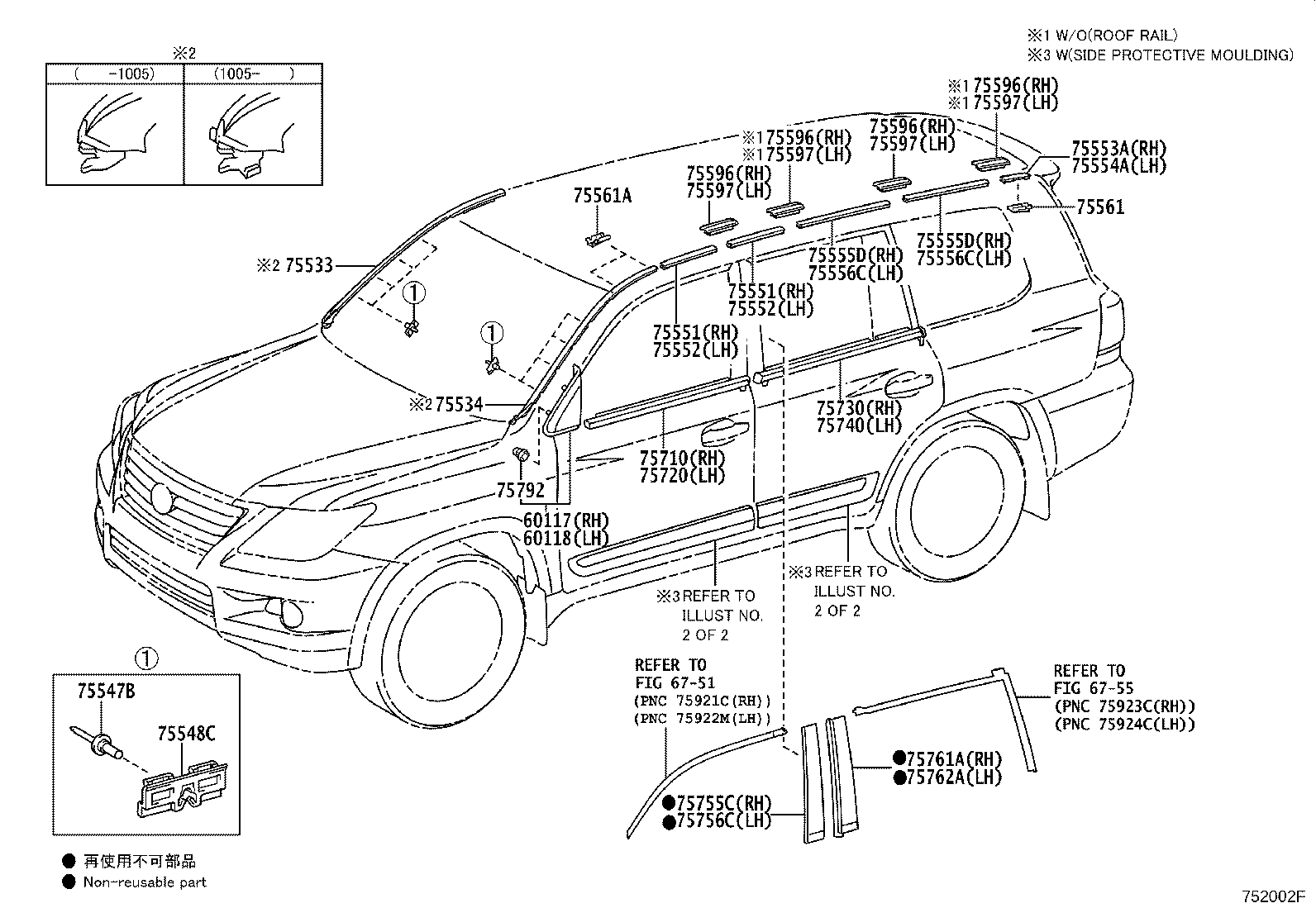

ILLUST NO. 1 OF 2(0711-1509)

Click highlighted areas on diagram

diagram 60117 60118 6751 6755 75533 75534 75547B 75548C 75551 75551 75552 75552 75553A 75554A 75555D 75555D 75556C 75556C 75561 75561A 75596 75596 75596 75596 75597 75597 75597 75597 75710 75720 75730 75740 75755C 75756C 75761A 75762A 75792
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-60010

URJ20#

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-60010

URJ20#

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-60082

URJ20#

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-60072

URJ20#

 1
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-51021

URJ20#

 8
75548C - PAD, WINDSHIELD MOULDING, NO.4
75548-60021

URJ20#

 8
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-60110

URJ20#

NO PAINT REQ.

 2
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-60110

URJ20#

NO PAINT REQ.

 2
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75551-60110

URJ20#

NO PAINT REQ.

 2
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75551-60110

URJ20#

NO PAINT REQ.

 2
75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-60040

URJ20#

 1
75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-60040

URJ20#

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-60020

URJ20#

 2
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-60020

URJ20#

 2
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75555-60020

URJ20#

 2
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75555-60020

URJ20#

 2
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-60030

URJ20#

 2
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-60030

URJ20#

 4
75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75596-35030

URJ20#..ARL,GCC

 4
75596-35030

URJ20#..ARL,GCC

ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)

 2
75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75596-35030

URJ20#..ARL,GCC

 4
75596-35030

URJ20#..ARL,GCC

ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)

 2
75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75596-35030

URJ20#..ARL,GCC

 4
75596-35030

URJ20#..ARL,GCC

ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)

 2
75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75596-35030

URJ20#..ARL,GCC

 4
75596-35030

URJ20#..ARL,GCC

ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)

 2
75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75596-35030

URJ20#..ARL,GCC

ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)

 2
75596-35030

URJ20#..ARL,GCC

 4
75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75596-35030

URJ20#..ARL,GCC

ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)

 2
75596-35030

URJ20#..ARL,GCC

 4
75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75596-35030

URJ20#..ARL,GCC

ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)

 2
75596-35030

URJ20#..ARL,GCC

 4
75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75596-35030

URJ20#..ARL,GCC

ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)

 2
75596-35030

URJ20#..ARL,GCC

 4
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-60080

URJ20#

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-60080

URJ20#

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-60070

URJ20#

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-60070

URJ20#

 1
75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-60040

URJ20#

 1
75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-60040

URJ20#

 1
75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75761-60040

URJ20#

NO PAINT REQ.

 1
75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75762-60040

URJ20#

NO PAINT REQ.

 1
75792 - CLIP, DOOR WINDOW FRAME MOULDING
90044-67440

URJ20#

 2
Linked diagrams
6751
6755

ILLUST NO. 2 OF 2(1201-1509)

Click highlighted areas on diagram

diagram 6339512150 75071A 75072A 75075 75076 75787A 75788A 75793 75797C 75798B 8963935010 93540A4010
Part # Description Qty Price
75071A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75071-60100D0

URJ20#

DK.RED MC.CS.,3R7

 1
75071-60100E0

URJ20#

SLEEK ECRU ME.,4U7

 1
75071-60100B0

URJ20#

PREMIUM SILVER,1F2

 1
75071-60100A0

URJ20#

WHITE PEARL CS.,077

 1
75071-60100B2

URJ20#

PLATINUM SILVER ME.,1J4

 1
75071-60100C0

URJ20#

BLACK,202

 1
75071-60100C1

URJ20#

STARLIGHT BLACK GF.,217

 1
75071-60100B1

URJ20#

MERCURY GRAY MC.,1H9

 1
75071-60100D1

URJ20#

GARNET RED MC.,3S0

 1
75072A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75072-60090B0

URJ20#

PREMIUM SILVER,1F2

 1
75072-60090C0

URJ20#

BLACK,202

 1
75072-60090B1

URJ20#

MERCURY GRAY MC.,1H9

 1
75072-60090E0

URJ20#

SLEEK ECRU ME.,4U7

 1
75072-60090D1

URJ20#

GARNET RED MC.,3S0

 1
75072-60090D0

URJ20#

DK.RED MC.CS.,3R7

 1
75072-60090C1

URJ20#

STARLIGHT BLACK GF.,217

 1
75072-60090A0

URJ20#

WHITE PEARL CS.,077

 1
75072-60090B2

URJ20#

PLATINUM SILVER ME.,1J4

 1
75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75075-60100A0

URJ20#

WHITE PEARL CS.,077

 1
75075-60100D1

URJ20#

GARNET RED MC.,3S0

 1
75075-60100D0

URJ20#

DK.RED MC.CS.,3R7

 1
75075-60100E0

URJ20#

SLEEK ECRU ME.,4U7

 1
75075-60100B0

URJ20#

PREMIUM SILVER,1F2

 1
75075-60100C0

URJ20#

BLACK,202

 1
75075-60100B2

URJ20#

PLATINUM SILVER ME.,1J4

 1
75075-60100B1

URJ20#

MERCURY GRAY MC.,1H9

 1
75075-60100C1

URJ20#

STARLIGHT BLACK GF.,217

 1
75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75076-60100D0

URJ20#

DK.RED MC.CS.,3R7

 1
75076-60100A0

URJ20#

WHITE PEARL CS.,077

 1
75076-60100B0

URJ20#

PREMIUM SILVER,1F2

 1
75076-60100D1

URJ20#

GARNET RED MC.,3S0

 1
75076-60100C0

URJ20#

BLACK,202

 1
75076-60100B1

URJ20#

MERCURY GRAY MC.,1H9

 1
75076-60100C1

URJ20#

STARLIGHT BLACK GF.,217

 1
75076-60100B2

URJ20#

PLATINUM SILVER ME.,1J4

 1
75076-60100E0

URJ20#

SLEEK ECRU ME.,4U7

 1
75787A - PAD, FRONT DOOR OUTSIDE MOULDING, RH
75794-60020

URJ20#

 1
75788A - PAD, FRONT DOOR OUTSIDE MOULDING, LH
75798-60030

URJ20#

 1
75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75793-60030

URJ20#

 2
75797C - PAD, REAR DOOR OUTSIDE MOULDING, UPPER
75797-60010

URJ20#

 2
75798B - PAD, REAR DOOR OUTSIDE MOULDING, REAR
75794-60020

URJ20#

LH

 1
75798-60030

URJ20#

RH

 1
Common parts
63395-12150
89639-35010
93540-A4010
