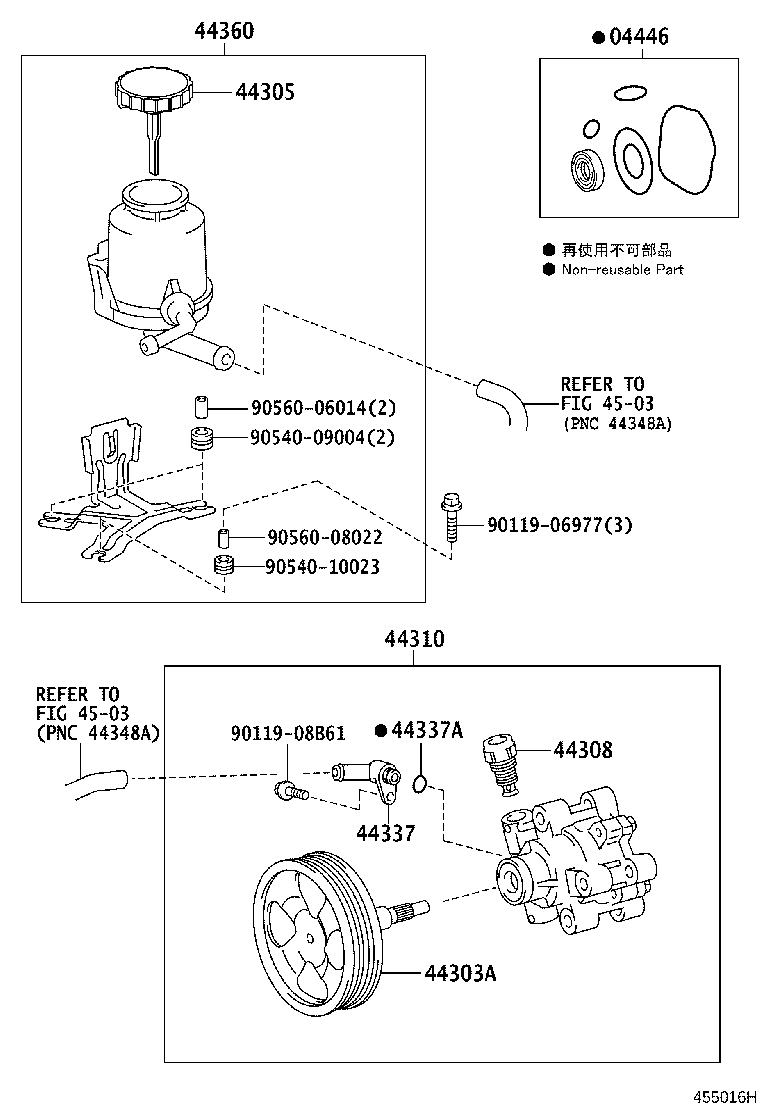

Toyota Lexus lx450d/460/570 URJ202 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-60260	URJ20#	01/2012 - 09/2015	1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-60030	URJ20#	01/2012 - 09/2015	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-37031	URJ20#	06/2012 - 09/2015	1
44305-37030	URJ20#	01/2012 - 05/2012	1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-60220	URJ20#	01/2012 - 09/2015	1
44310 - PUMP ASSY, VANE
44310-60490	URJ20#..ARL,CHI	01/2012 - 09/2015	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-60220	URJ20#	01/2012 - 09/2015	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-15025	URJ20#	01/2012 - 09/2015	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-60291	URJ20#	06/2012 - 09/2015	1
44360-60290	URJ20#	01/2012 - 05/2012	1
Common parts
90119-06977
90119-08B61
90540-09004
90540-10023
90560-06014
90560-08022
Linked diagrams
4503

URJ202R-GNTGKQ (2012)
