URJ202R-GNTGKQ (2012)

Toyota Lexus Lx450d/460/570

Production Jan 2012 - Sep 2015
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )1URFE,3URFE

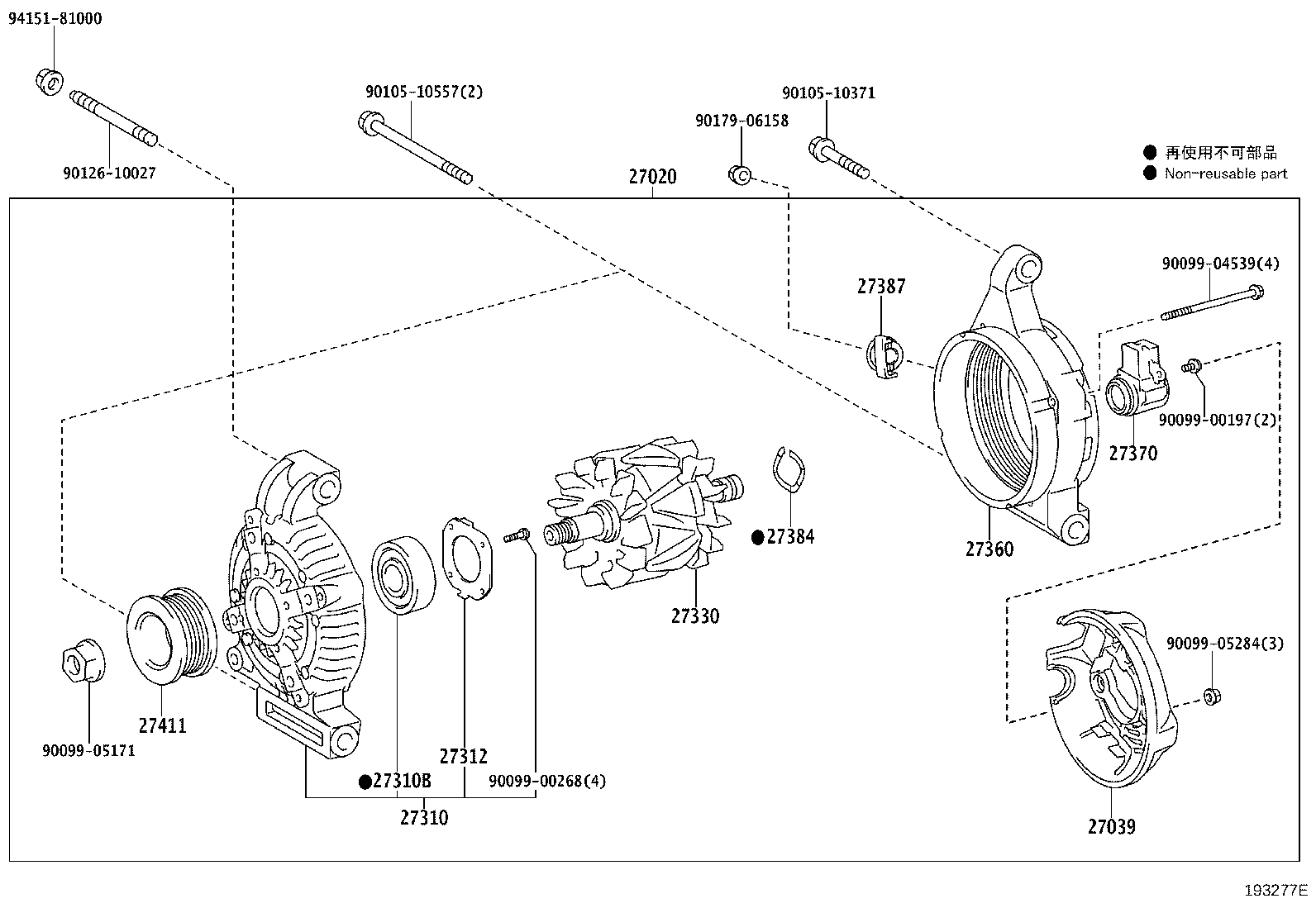

Click highlighted areas on diagram

12V 150A

diagram 27020 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27411 9009900197 9009900268 9009904539 9009905171 9009905284 9010510371 9010510557 9012610027 9017906158 9415181000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-38110

1URFE,3URFE..URJ20#

12V 150A

 1
27060-38090

1URFE,3URFE..URJ20#

12V 150A

 1
27039 - COVER, ALTERNATOR REAR END
27039-31390

1URFE,3URFE..URJ20#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-38170

1URFE,3URFE..URJ20#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

1URFE,3URFE..URJ20#

 1
27312 - PLATE, RETAINER
27312-72100

1URFE,3URFE..URJ20#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-58460

1URFE,3URFE..URJ20#

 1
27360 - COIL ASSY, ALTERNATOR
27360-38170

1URFE,3URFE..URJ20#

 1
27360-38180

1URFE,3URFE..URJ20#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-27060

1URFE,3URFE..URJ20#

 1
27384 - WASHER
27384-50030

1URFE,3URFE..URJ20#

 1
27387 - INSULATOR, TERMINAL
27387-20130

1URFE,3URFE..URJ20#

 1
27411 - PULLEY, ALTERNATOR
27411-38170

1URFE,3URFE..URJ20#

 1
27411-38090

1URFE,3URFE..URJ20#

 1
Common parts
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
90105-10371
90105-10557
90126-10027
90179-06158
94151-81000
