UVF46R-AEXGHW (2007)
Toyota Lexus Ls600h/600hl

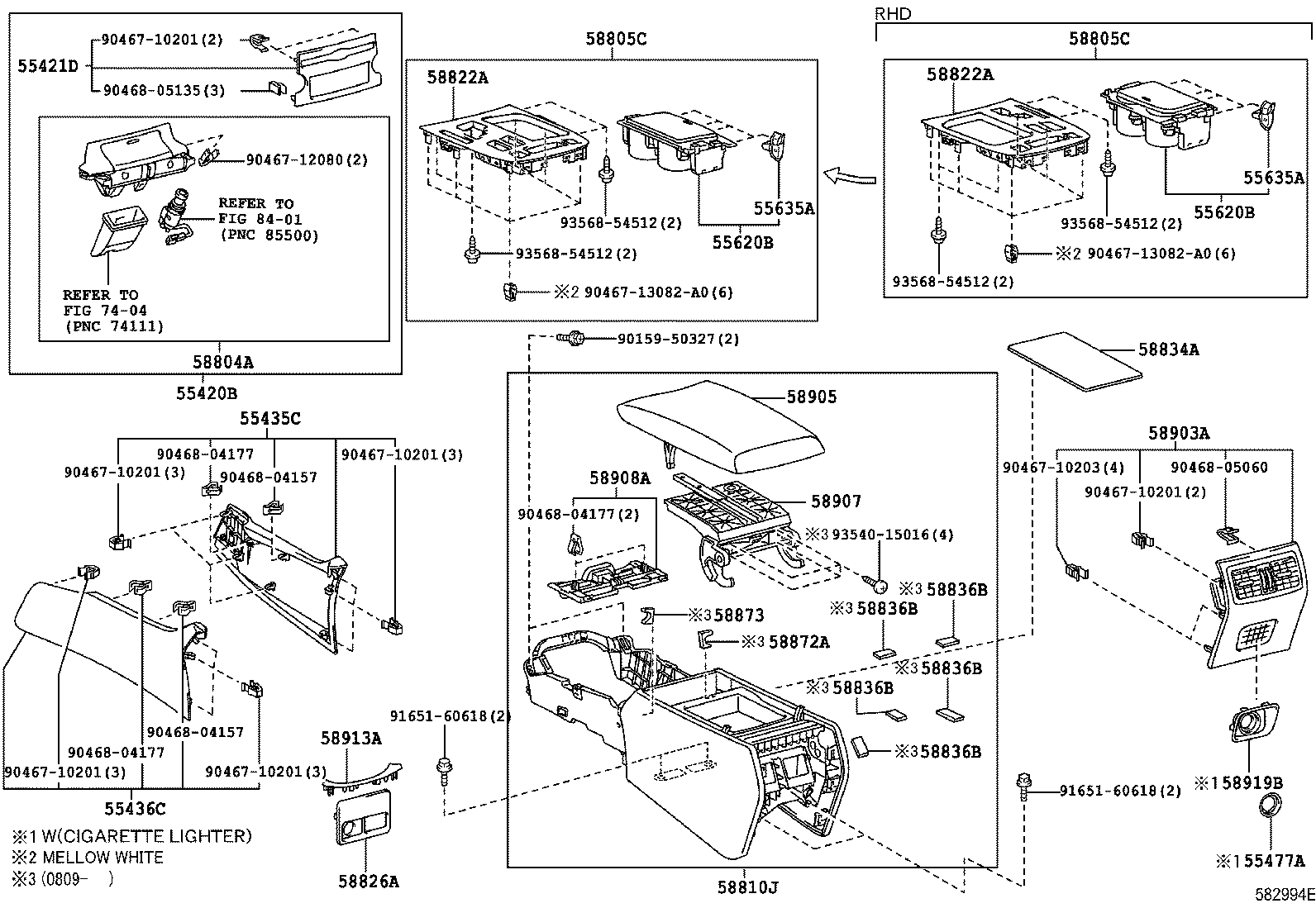

ILLUST NO. 1 OF 3(0704-0911)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55420B - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55410-50490B0 |
UVF4# GRAY,TRIM1# |
1 | ||
| 55410-50490E1 |
UVF4# BROWN,TRIM00,2# |
1 | ||
| 55410-50490E0 |
UVF4# DK.BROWN,TRIM01,05 |
1 | ||
| 55421D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55422-50080E0 |
UVF4# DK.BROWN,TRIM01,05 |
1 | ||
| 55422-50080B0 |
UVF4# GRAY,TRIM1# |
1 | ||
| 55422-50080E1 |
UVF4# BROWN,TRIM00,2# |
1 | ||
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-50060B1 |
UVF4# INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 55435-50060C1 |
UVF4# INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 55435-50050C1 |
UVF4# BLACK,TRIM2# |
1 | ||
| 55435-50050A2 |
UVF4# IVORY,TRIM00 |
1 | ||
| 55435-50060A3 |
UVF4# INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 55435-50060A2 |
UVF4# INTERIOR PACKAGE,NEW IVORY,TRIM00 |
1 | ||
| 55435-50050A3 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 55435-50050B1 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-50010A3 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 55436-50010A2 |
UVF4# IVORY,TRIM00 |
1 | ||
| 55436-50010B1 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 55436-50020A3 |
UVF4# INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 55436-50020A2 |
UVF4# INTERIOR PACKAGE,NEW IVORY,TRIM00 |
1 | ||
| 55436-50020B1 |
UVF4# INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 55436-50020C1 |
UVF4# INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 55436-50010C1 |
UVF4# BLACK,TRIM2# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-26030 |
UVF4# |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-50040E0 |
UVF4# DK.BROWN,TRIM01,05 |
1 | ||
| 55620-50040E1 |
UVF4# BROWN,TRIM00,2# |
1 | ||
| 55620-50040B0 |
UVF4# GRAY,TRIM1# |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-50040E0 |
UVF4# DK.BROWN,TRIM01,05 |
1 | ||
| 55620-50040E1 |
UVF4# BROWN,TRIM00,2# |
1 | ||
| 55620-50040B0 |
UVF4# GRAY,TRIM1# |
1 | ||
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
UVF4# |
4 | ||
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
UVF4# |
4 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-50310B0 |
UVF4# GRAY,TRIM1# |
1 | ||
| 58804-50310E0 |
UVF4# DK.BROWN,TRIM01,05 |
1 | ||
| 58804-50310E1 |
UVF4# BROWN,TRIM00,2# |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-50140E1 |
UVF46..RHD BROWN,TRIM00,2# |
1 | ||
| 58805-50140B0 |
UVF46..RHD GRAY,TRIM1# |
1 | ||
| 58805-50140E0 |
UVF46..RHD DK.BROWN,TRIM01,05 |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-50140E1 |
UVF46..RHD BROWN,TRIM00,2# |
1 | ||
| 58805-50140B0 |
UVF46..RHD GRAY,TRIM1# |
1 | ||
| 58805-50140E0 |
UVF46..RHD DK.BROWN,TRIM01,05 |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-50140C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 58810-50150A0 |
UVF4# INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 58810-50140A0 |
UVF4# IVORY,TRIM00 |
1 | ||
| 58810-50140A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 58810-50150A1 |
UVF4# INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 58810-50150C0 |
UVF4# INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 58810-50150B0 |
UVF4# INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58810-50140B0 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-50160E0 |
UVF46..RHD DK.BROWN,TRIM01,05 |
1 | ||
| 58822-50160E1 |
UVF46..RHD BROWN,TRIM00,2# |
1 | ||
| 58822-50160B0 |
UVF46..RHD MD.GRAY,TRIM1# |
1 | ||
| 58826A - POCKET, CONSOLE BOX, LOWER | ||||
| 58826-50040 |
UVF4# |
1 | ||
| 58826-50020 |
UVF4# |
1 | ||
| 58826-50030 |
UVF46 W(REAR DISPLAY) |
1 | ||
| 58826-50010 |
UVF46 W(REAR DISPLAY) |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-50040 |
UVF4# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-50060B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58903-50050E1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 58903-50060E3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 58903-50050B1 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 58903-50050E5 |
UVF4# BLACK,TRIM2# |
1 | ||
| 58903-50060E2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,NEW IVORY,TRIM00 |
1 | ||
| 58903-50070E2 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 58903-50070E1 |
UVF46 INTERIOR PACKAGE,NEW IVORY,TRIM00 |
1 | ||
| 58903-50050E4 |
UVF4# IVORY,TRIM00 |
1 | ||
| 58903-50070B0 |
UVF46 INTERIOR PACKAGE,GRAY,TRIM1# |
1 | ||
| 58903-50060E0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 58903-50070E0 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-50270A0 |
UVF4# NEW IVORY,TRIM00 |
1 | ||
| 58905-50270A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 58905-50270B0 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 58905-50280A1 |
UVF4# INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 58905-50280C0 |
UVF4# INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 58905-50270C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 58905-50280A0 |
UVF4# INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 58905-50280B0 |
UVF4# INTERIOR PACKAGE,LIGHT GRAY,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-50040 |
UVF4# |
1 | ||
| 58907-50050 |
UVF4# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50050A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 58908-50050C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 58908-50050B0 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 58908-50050A0 |
UVF4# IVORY,TRIM00 |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-50030A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 58913-50030B0 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 58913-50030C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 58913-50030A0 |
UVF4# IVORY,TRIM00 |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-50020A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 58919-50020B0 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 58919-50020A0 |
UVF4# IVORY,TRIM00 |
1 | ||
| 58919-50020C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 90468-04157 | ||||
| 90468-04177 | ||||
| 90468-05060 | ||||
| 90468-05135 | ||||
| 91651-60618 | ||||
| 93540-15016 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(0704-0911)UVF46
W(REAR SEAT CONSOLE BOX & OTTOMAN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-50070 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 55539-50070 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
UVF4# |
4 | ||
| 58623F - SILENCER, CENTER CONSOLE | ||||
| 58623-50010 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58623-50010 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58623-50010 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-50030 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58812-50030 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58812-50030 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58813-50030 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58813-50030 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58813-50030 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-50050 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58901-50050 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 58901-50050 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589A0 - TABLE ASSY, REAR SEAT CONSOLE | ||||
| 589A0-50010A0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589A0-50010A0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589A0-50010B0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589A0-50010A1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589A0-50010C0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589A0-50010B0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589A0-50010A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589A0-50010B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589A0-50010C0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589A0-50010A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589A0-50010A1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589A0-50010C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589AC - PLUG, REAR SEAT CONSOLE TABLE, NO.3 | ||||
| 589AC-50010 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
2 | ||
| 589AC-50010 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
2 | ||
| 589AC-50010 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
2 | ||
| 589E0 - ARMREST ASSY, REAR SEAT CONSOLE | ||||
| 589E0-50010A0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E0-50010C0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E0-50010A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E0-50010A1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E0-50010B0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E0-50010A0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E0-50010B0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E0-50010A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E0-50010B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E0-50010A1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E0-50010C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E0-50010C0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E1 - COVER, REAR SEAT CONSOLE ARMREST TRAY | ||||
| 589E1-50010 |
UVF46 REAR ARMREST-W/OTTOMAN CIGARETTE) |
1 | ||
| 589E3 - BASE, REAR SEAT CONSOLE ARMREST | ||||
| 589E3-50010 |
UVF46 REAR ARMREST-WITH(W/OTTOMAN 12V) |
1 | ||
| 589E3-50020 |
UVF46 REAR ARMREST-W/OTTOMAN CIGARETTE) |
1 | ||
| 589E3 - BASE, REAR SEAT CONSOLE ARMREST | ||||
| 589E3-50010 |
UVF46 REAR ARMREST-WITH(W/OTTOMAN 12V) |
1 | ||
| 589E3-50020 |
UVF46 REAR ARMREST-W/OTTOMAN CIGARETTE) |
1 | ||
| 589E4 - COVER, REAR SEAT CONSOLE ARMREST | ||||
| 589E4-50010 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589E4-50010 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589E4-50010 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589E5 - GARNISH, REAR SEAT CONSOLE ARMREST, RH | ||||
| 589E5-50010A2 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E5-50010A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E5-50010A2 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E5-50010A3 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E5-50010C1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E5-50010A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E5-50010B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E5-50010B1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E5-50010B1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E5-50010A3 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E5-50010C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E5-50010C1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E6 - GARNISH, REAR SEAT CONSOLE ARMREST, LH | ||||
| 589E6-50010A2 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E6-50010A2 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E6-50010A3 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E6-50010A3 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E6-50010B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E6-50010A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E6-50010C1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E6-50010B1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E6-50010C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E6-50010B1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E6-50010C1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E6-50010A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E9 - COVER, REAR SEAT CONSOLE TABLE, FR | ||||
| 589E9-50010A0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E9-50010A0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E9-50010A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589E9-50010A1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E9-50010B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E9-50010A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E9-50010C0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E9-50010B0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E9-50010C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589E9-50010A1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589E9-50010B0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589E9-50010C0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F0 - BOX ASSY, REAR SEAT CONSOLE | ||||
| 589F0-50010A0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589F0-50010A1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589F0-50010B0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589F0-50010B0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589F0-50010A0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589F0-50010C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F0-50010A1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589F0-50010A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589F0-50010C0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F0-50010B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589F0-50010A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589F0-50010C0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F4 - PANEL, REAR SEAT CONSOLE BOX, RR | ||||
| 589F4-50010A0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589F4-50010A1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589F4-50010A1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589F4-50010A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589F4-50010B0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589F4-50010C0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F4-50010A0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),NEW IVORY,TRIM00 |
1 | ||
| 589F4-50010A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589F4-50010C0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F4-50010B0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589F4-50010C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F4-50010B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589F5 - BRACKET, REAR SEAT CONSOLE BOX, UPR | ||||
| 589F5-50010 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589F5-50010 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589F5-50010 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589F6 - BRACKET, REAR SEAT CONSOLE BOX, LWR | ||||
| 589F6-50020 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589F6-50020 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589F6-50020 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589F7 - COVER, REAR SEAT CONSOLE BOX, RH | ||||
| 589F7-50010A0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 589F7-50010B0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589F7-50010A1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589F7-50010B0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589F7-50010A1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589F7-50010A1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 589F7-50010A0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 589F7-50010C0 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F7-50010A0 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 589F7-50010C0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F7-50010C0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 589F7-50010B0 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 589F9 - COVER, REAR SEAT CONSOLE BOX, LWR | ||||
| 589F9-50010 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589F9-50010 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589F9-50010 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589FA - BOX, REAR SEAT CONSOLE | ||||
| 589FA-50010 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589FA-50010 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 589G0 - PANEL ASSY, REAR SEAT CONSOLE | ||||
| 589G0-50010B0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 589G0-50010B0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 589G0-50010E0 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 589G0-50010E0 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 589G0-50010E0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 589G0-50010B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 589G0-50010E1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 589G0-50010E1 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 589G0-50010E1 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 86274L - BRACKET, DISC PLAYER, NO.1 | ||||
| 86274-50260 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 86274-50260 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 86274M - BRACKET, DISC PLAYER, NO.2 | ||||
| 86274-50270 |
UVF46..RHD NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 86274-50270 |
UVF46..RHD AUSTRALIA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-08328 | ||||
| 90119-06018 | ||||
| 90119-06833 | ||||
| 90159-50322 | ||||
| 90179-06274 | ||||
| 91626-40618 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(1209- )UVF46
W(REAR DISPLAY:CONSOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10203 | ||||
| 91553-80612 | ||||
| 91631-60816 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8606 | ||||
ILLUST NO. 4 OF 4(1209- )
W/O(REAR SEAT CONSOLE BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06018 | ||||
| 90119-06833 | ||||
ILLUST NO. 4 OF 4(1209- )UVF46
W(REAR SEAT CONSOLE BOX & OTTOMAN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08253 | ||||
| 90105-08328 | ||||
| 90119-06018 | ||||
| 90119-06833 | ||||
| 90159-50322 | ||||
| 90179-06274 | ||||
| 90467-12080 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(1209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90468-04177 | ||||
| 90468-05060 | ||||
| 90468-05138 | ||||
| 91651-60618 | ||||
| 93540-15016 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(1209- )UVF46 ; (1209- )UVF45..EUR
W(REAR DISPLAY:CONSOLE OR ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06833 | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90468-05138 | ||||
| 91651-60618 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 4(1209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-43020 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 93540-55012 | ||||
| 93568-54512 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
