UVF46R-AEXGHW (2007)
Toyota Lexus Ls600h/600hl
Production
Apr 2007
-
Sep 2008
Engine
2URFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

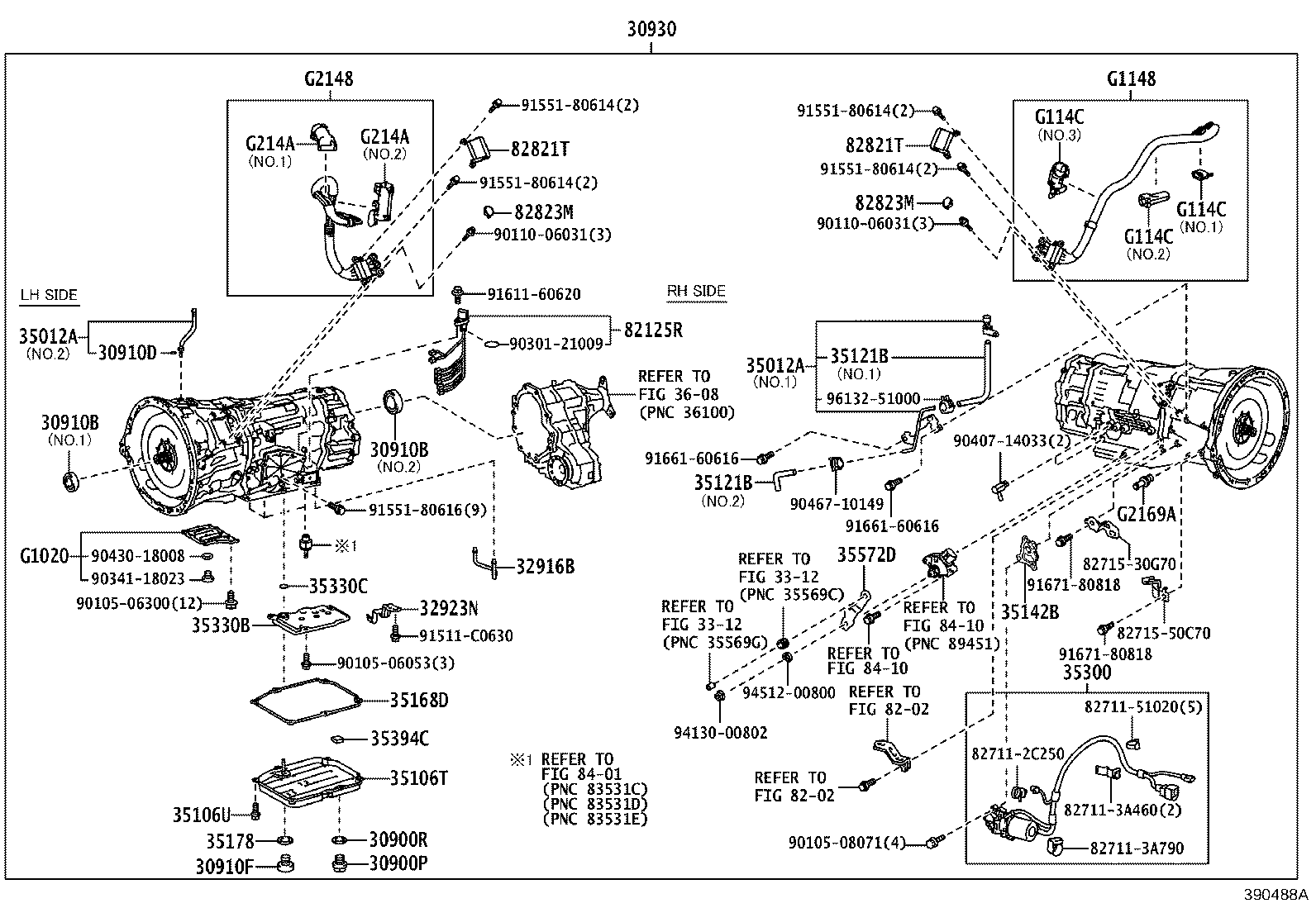

ILLUST NO. 1 OF 2(0704- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31290 - COVER ASSY, TRANSMISSION INPUT DAMPER | ||||
| 31290-50010 |
UVF4# |
1 | ||
| 35198G - BRACKET, WIRE HARNESS CLAMP NO.1 | ||||
| 35198-50050 |
UVF4#..RHD |
1 | ||
| 35198H - BRACKET, WIRE HARNESS CLAMP, NO.2 | ||||
| 35198-50020 |
UVF4# |
1 | ||
| 35198J - BRACKET, WIRE HARNESS CLAMP, NO.3 | ||||
| 35198-50030 |
UVF4#..RHD |
2 | ||
| 35198J - BRACKET, WIRE HARNESS CLAMP, NO.3 | ||||
| 35198-50030 |
UVF4#..RHD |
2 | ||
| 35198K - BRACKET, WIRE HARNESS CLAMP, NO.4 | ||||
| 35198-50060 |
UVF4#..RHD |
1 | ||
| G113B - COVER, MOTOR CABLE, LH | ||||
| G113A-50010 |
UVF4#..RHD |
1 | ||
| G1240 - BRACKET ASSY, INVERTER MOTOR CABLE | ||||
| G1240-50010 |
UVF4#..RHD |
1 | ||
| G1241 - BRACKET, INVERTER MOTOR CABLE CLAMP | ||||
| G1241-50010 |
UVF4# |
1 | ||
| G1242 - BRACKET, ENGINE MOTOR CABLE CLAMP | ||||
| G1242-50020 |
UVF4#..RHD |
1 | ||
| G1242B - BRACKET, ENGINE MOTOR CABLE CLAMP | ||||
| G1242-50010 |
UVF4# |
1 | ||
| G1243 - BRACKET, TRANSMISSION MOTOR CABLE CLAMP | ||||
| G1243-50010 |
UVF4# |
1 | ||
| Common parts | ||||
| 90119-10260 | ||||
| 90467-07211 | ||||
| 91552-81020 | ||||
| 91619-61250 | ||||
| 91642-81065 | ||||
| 91671-80614 | ||||
| 91673-80614 | ||||
| 91673-80618 | ||||
| 91673-80820 | ||||
ILLUST NO. 2 OF 2(0704- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900P - PLUG, DRAIN(HV) | ||||
| 90341-10011 |
UVF4# |
1 | ||
| 30900R - GASKET, DRAIN PLUG(HV) | ||||
| 35178-30010 |
UVF4# |
1 | ||
| 30910B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSMISSION ASSY) | ||||
| 90311-31001 |
UVF4# NO.1 |
1 | ||
| 90311-48028 |
UVF4# NO.2 |
1 | ||
| 30910B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSMISSION ASSY) | ||||
| 90311-31001 |
UVF4# NO.1 |
1 | ||
| 90311-48028 |
UVF4# NO.2 |
1 | ||
| 30910D - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06010 |
UVF4# |
1 | ||
| 30910F - PLUG(FOR HYBRID VEHICLE TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
UVF4# |
1 | ||
| 30930 - TRANSMISSION ASSY, HYBRID VEHICLE W/TRANSFER & CABLE | ||||
| 30930-50010 |
UVF4#..RHD |
1 | ||
| 32916B - TUBE, TRANSMISSION OIL COOLER | ||||
| 32916-30020 |
UVF4# |
1 | ||
| 32923N - CLAMP, OIL COOLER TUBE | ||||
| 32923-30230 |
UVF4# |
1 | ||
| 35012A - HOSE SUB-ASSY, TRANSMISSION BREATHER | ||||
| 35012-50020 |
UVF4# NO.2 |
1 | ||
| 35012-50010 |
UVF4# NO.1 |
1 | ||
| 35012A - HOSE SUB-ASSY, TRANSMISSION BREATHER | ||||
| 35012-50020 |
UVF4# NO.2 |
1 | ||
| 35012-50010 |
UVF4# NO.1 |
1 | ||
| 35106T - PAN SUB-ASSY, TRANSMISSION OIL | ||||
| 35106-30280 |
UVF4# |
1 | ||
| 35106U - BOLT (FOR TRANSMISSION OIL PAN) | ||||
| 90119-06974 |
UVF4# |
6 | ||
| 35121B - HOSE, TRANSMISSION BREATHER | ||||
| 35121-30010 |
UVF4# NO.2 |
1 | ||
| 35121-50010 |
UVF4# NO.1 |
1 | ||
| 35121B - HOSE, TRANSMISSION BREATHER | ||||
| 35121-30010 |
UVF4# NO.2 |
1 | ||
| 35121-50010 |
UVF4# NO.1 |
1 | ||
| 35142B - GASKET, TRANSMISSION CASE(HV) | ||||
| 35142-30010 |
UVF4# |
1 | ||
| 35168D - GASKET, TRANSMISSION OIL PAN | ||||
| 35168-30020 |
UVF4# |
1 | ||
| 35178 - GASKET, TRANSMISSION DRAIN PLUG | ||||
| 35178-30010 |
UVF4# |
1 | ||
| 35300 - PUMP ASSY, OIL W/MOTOR | ||||
| 35300-50010 |
UVF4# |
1 | ||
| 35330B - STRAINER ASSY, OIL | ||||
| 35330-30100 |
UVF4# |
1 | ||
| 35330C - RING, O (FOR OIL STRAINER) | ||||
| 90301-26014 |
UVF4# |
1 | ||
| 35394C - MAGNET, OIL CLEANER | ||||
| 35394-48010 |
UVF4# |
2 | ||
| 35572D - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-50050 |
UVF4# |
1 | ||
| 82125R - WIRE, TRANSMISSION | ||||
| 82125-50100 |
UVF4# |
1 | ||
| 82821T - COVER, CONNECTOR | ||||
| 82821-30710 |
UVF4# |
2 | ||
| 82821T - COVER, CONNECTOR | ||||
| 82821-30710 |
UVF4# |
2 | ||
| 82823M - CAP, TERMINAL | ||||
| 82823-30140 |
UVF4# |
6 | ||
| 82823M - CAP, TERMINAL | ||||
| 82823-30140 |
UVF4# |
6 | ||
| G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 | ||||
| G1020-30012 |
UVF4# |
1 | ||
| G1148 - CABLE, MOTOR | ||||
| G1148-50010 |
UVF4#..RHD |
1 | ||
| G114C - PROTECTOR, MOTOR CABLE | ||||
| G114C-50010 |
UVF4#..RHD NO.2 |
1 | ||
| G114C-50030 |
UVF4# NO.1 |
1 | ||
| G114C-50020 |
UVF4#..RHD NO.3 |
1 | ||
| G114C - PROTECTOR, MOTOR CABLE | ||||
| G114C-50010 |
UVF4#..RHD NO.2 |
1 | ||
| G114C-50030 |
UVF4# NO.1 |
1 | ||
| G114C-50020 |
UVF4#..RHD NO.3 |
1 | ||
| G114C - PROTECTOR, MOTOR CABLE | ||||
| G114C-50010 |
UVF4#..RHD NO.2 |
1 | ||
| G114C-50030 |
UVF4# NO.1 |
1 | ||
| G114C-50020 |
UVF4#..RHD NO.3 |
1 | ||
| G2148 - CABLE, GENERATOR | ||||
| G2148-50010 |
UVF4#..RHD |
1 | ||
| G214A - PROTECTOR, GENERATOR CABLE | ||||
| G214A-50010 |
UVF4#..RHD NO.1 |
1 | ||
| G214A-50020 |
UVF4#..RHD NO.2 |
1 | ||
| G214A - PROTECTOR, GENERATOR CABLE | ||||
| G214A-50010 |
UVF4#..RHD NO.1 |
1 | ||
| G214A-50020 |
UVF4#..RHD NO.2 |
1 | ||
| G2169A - UNION, GENERATOR WATERJACKET | ||||
| G2169-30010 |
UVF4# |
1 | ||
| Common parts | ||||
| 82711-2C250 | ||||
| 82711-3A460 | ||||
| 82711-3A790 | ||||
| 82711-51020 | ||||
| 82715-30G70 | ||||
| 82715-50C70 | ||||
| 90105-06053 | ||||
| 90105-06300 | ||||
| 90105-08071 | ||||
| 90110-06031 | ||||
| 90301-21009 | ||||
| 90341-18023 | ||||
| 90407-14033 | ||||
| 90430-18008 | ||||
| 90467-10149 | ||||
| 91511-C0630 | ||||
| 91551-80614 | ||||
| 91551-80616 | ||||
| 91611-60620 | ||||
| 91661-60616 | ||||
| 91671-80818 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3608 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||
ILLUST NO. 1 OF 2(1209- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10260 | ||||
| 90467-07217 | ||||
| 91552-81020 | ||||
| 91619-61250 | ||||
| 91642-81065 | ||||
| 91671-80614 | ||||
| 91673-80614 | ||||
| 91673-80618 | ||||
| 91673-80820 | ||||
ILLUST NO. 2 OF 2(1209- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2C250 | ||||
| 82711-3A460 | ||||
| 82711-3A790 | ||||
| 82711-51020 | ||||
| 82715-30G70 | ||||
| 82715-50C70 | ||||
| 90105-06053 | ||||
| 90105-06300 | ||||
| 90105-08071 | ||||
| 90110-06031 | ||||
| 90341-18023 | ||||
| 90407-14033 | ||||
| 90430-18008 | ||||
| 90467-10149 | ||||
| 91511-C0630 | ||||
| 91551-80614 | ||||
| 91551-80616 | ||||
| 91611-60620 | ||||
| 91661-60616 | ||||
| 91671-80818 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3608 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
