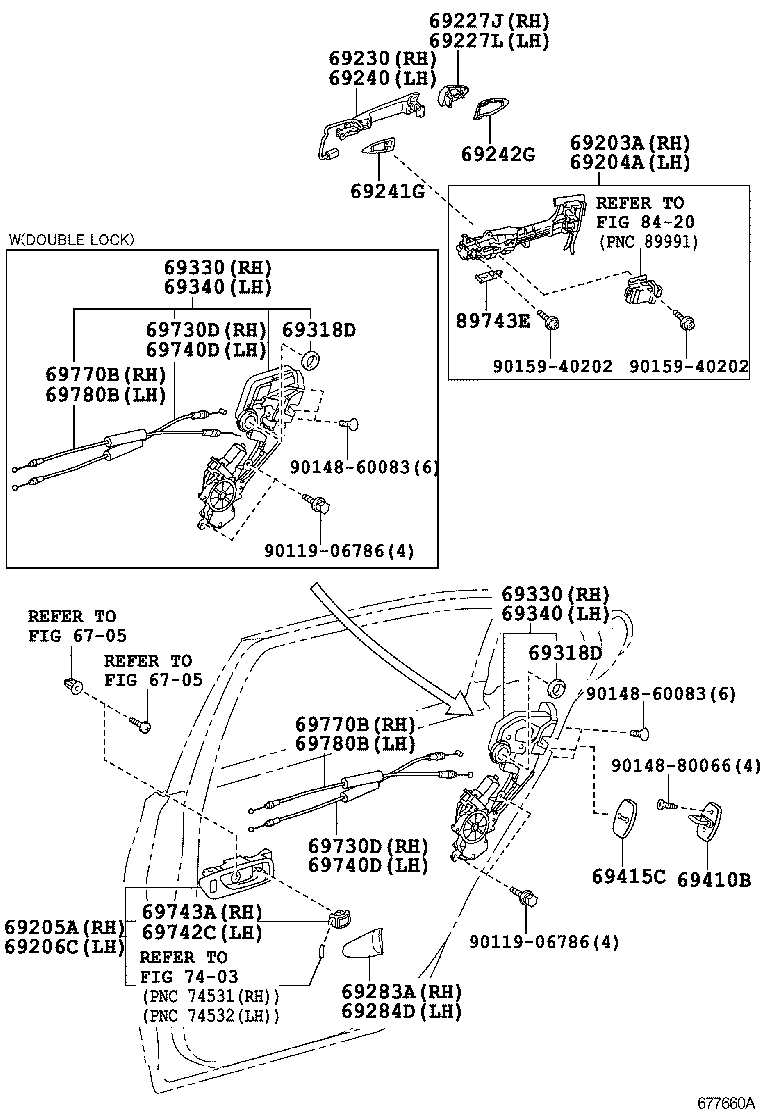

UVF46L-AEXGHW (2012)
Toyota Lexus Ls600h/600hl
(0704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06786 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| Linked diagrams | ||||
| 6705 | ||||
| 7403 | ||||
| 8420 | ||||
(1209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-50040 |
UVF4# |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-50040 |
UVF4# |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 67607-50230A2 |
UVF46..CHI,EUR IVORY,TRIM01 |
1 | ||
| 67607-50230C0 |
UVF46..EUR BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 67607-50230A1 |
UVF46..EUR MELLOW WHITE,TRIM00,02 |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 67608-50230A2 |
UVF46..CHI,EUR IVORY,TRIM01 |
1 | ||
| 67608-50230C0 |
UVF46..EUR BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 67608-50230A1 |
UVF46..EUR MELLOW WHITE,TRIM00,02 |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-50050 |
UVF4#..LHD..EUR *CR,RUSSIA SPEC |
1 | ||
| 69227-50051 |
UVF46..LHD..EUR *CR,RUSSIA SPEC |
1 | ||
| 69227-33060 |
UVF4# *CR |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69228-33040 |
UVF4# *CR |
1 | ||
| 69228-50031 |
UVF46..LHD..EUR *CR,RUSSIA SPEC |
1 | ||
| 69228-50030 |
UVF4#..LHD..EUR *CR,RUSSIA SPEC |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-33090 |
UVF4# PLATED |
1 | ||
| 69210-50080 |
UVF4#..LHD..EUR PLATED,RUSSIA SPEC |
1 | ||
| 69210-50081 |
UVF46..LHD..EUR PLATED,RUSSIA SPEC |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-50050 |
UVF4#..LHD..EUR PLATED,RUSSIA SPEC |
1 | ||
| 69220-33060 |
UVF4# PLATED |
1 | ||
| 69220-50051 |
UVF46..LHD..EUR PLATED,RUSSIA SPEC |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-53010 |
UVF4# RH |
1 | ||
| 69242-53010 |
UVF4# LH |
1 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-50030 |
UVF4# LH |
1 | ||
| 69241-50030 |
UVF4# RH |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30050C0 |
UVF4#..EUR BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 69283-30050A2 |
UVF4#..CHI,EUR IVORY,TRIM01 |
1 | ||
| 69283-30050A1 |
UVF4#..EUR MELLOW WHITE,TRIM00,02 |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30050A2 |
UVF4#..CHI,EUR IVORY,TRIM01 |
1 | ||
| 69284-30050A1 |
UVF4#..EUR MELLOW WHITE,TRIM00,02 |
1 | ||
| 69284-30050C0 |
UVF4#..EUR BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
UVF4# |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
UVF4# |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-50110 |
UVF4#..LHD..EUR TAIWAN SPEC |
1 | ||
| 69050-50130 |
UVF46..EUR |
1 | ||
| 69050-50110 |
UVF4#..LHD..EUR SOUTH AMERICA SPEC |
1 | ||
| 69050-50110 |
UVF46..LHD..EUR PHILIPPINES SPEC |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-50110 |
UVF4#..LHD..EUR TAIWAN SPEC |
1 | ||
| 69050-50130 |
UVF46..EUR |
1 | ||
| 69050-50110 |
UVF4#..LHD..EUR SOUTH AMERICA SPEC |
1 | ||
| 69050-50110 |
UVF46..LHD..EUR PHILIPPINES SPEC |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-50110 |
UVF46..LHD..EUR PHILIPPINES SPEC |
1 | ||
| 69060-50130 |
UVF46..EUR |
1 | ||
| 69060-50110 |
UVF4#..LHD..EUR TAIWAN SPEC |
1 | ||
| 69060-50110 |
UVF4#..LHD..EUR SOUTH AMERICA SPEC |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-50110 |
UVF46..LHD..EUR PHILIPPINES SPEC |
1 | ||
| 69060-50130 |
UVF46..EUR |
1 | ||
| 69060-50110 |
UVF4#..LHD..EUR TAIWAN SPEC |
1 | ||
| 69060-50110 |
UVF4#..LHD..EUR SOUTH AMERICA SPEC |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-30060 |
UVF4# |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-33010 |
UVF4# |
2 | ||
| 69415-60020 |
UVF4# |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-50040 |
UVF46 |
1 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-50040 |
UVF46 |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-50040 |
UVF46 |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-50040 |
UVF46 |
1 | ||
| 69742C - KNOB, FRONT DOOR LOCK CONTROL, LH | ||||
| 69742-50020A1 |
UVF4#..EUR MELLOW WHITE,TRIM00,02 |
1 | ||
| 69742-50020A2 |
UVF4#..CHI,EUR IVORY,TRIM01 |
1 | ||
| 69742-50020C0 |
UVF4#..EUR BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 69743A - KNOB, REAR DOOR LOCK CONTROL, RH | ||||
| 69741-50020A2 |
UVF4#..CHI,EUR IVORY,TRIM01 |
1 | ||
| 69741-50020A1 |
UVF4#..EUR MELLOW WHITE,TRIM00,02 |
1 | ||
| 69741-50020C0 |
UVF4#..EUR BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-50060 |
UVF46..EUR |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR SOUTH AMERICA SPEC |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR PHILIPPINES SPEC |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR TAIWAN SPEC |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-50060 |
UVF46..EUR |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR SOUTH AMERICA SPEC |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR PHILIPPINES SPEC |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR TAIWAN SPEC |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-50060 |
UVF46..EUR |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR PHILIPPINES SPEC |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR SOUTH AMERICA SPEC |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR TAIWAN SPEC |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-50060 |
UVF46..EUR |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR PHILIPPINES SPEC |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR SOUTH AMERICA SPEC |
1 | ||
| 69770-50080 |
UVF46..LHD..EUR TAIWAN SPEC |
1 | ||
| 89743E - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-53020 |
UVF4# LH |
1 | ||
| 89743-53010 |
UVF4# RH |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| Linked diagrams | ||||
| 6705 | ||||
| 7403 | ||||
| 8420 | ||||
