UVF46L-AEXGHW (2012)

Toyota Lexus Ls600h/600hl

Production Sep 2012 - Aug 2017
Engine 2URFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )

Click highlighted areas on diagram

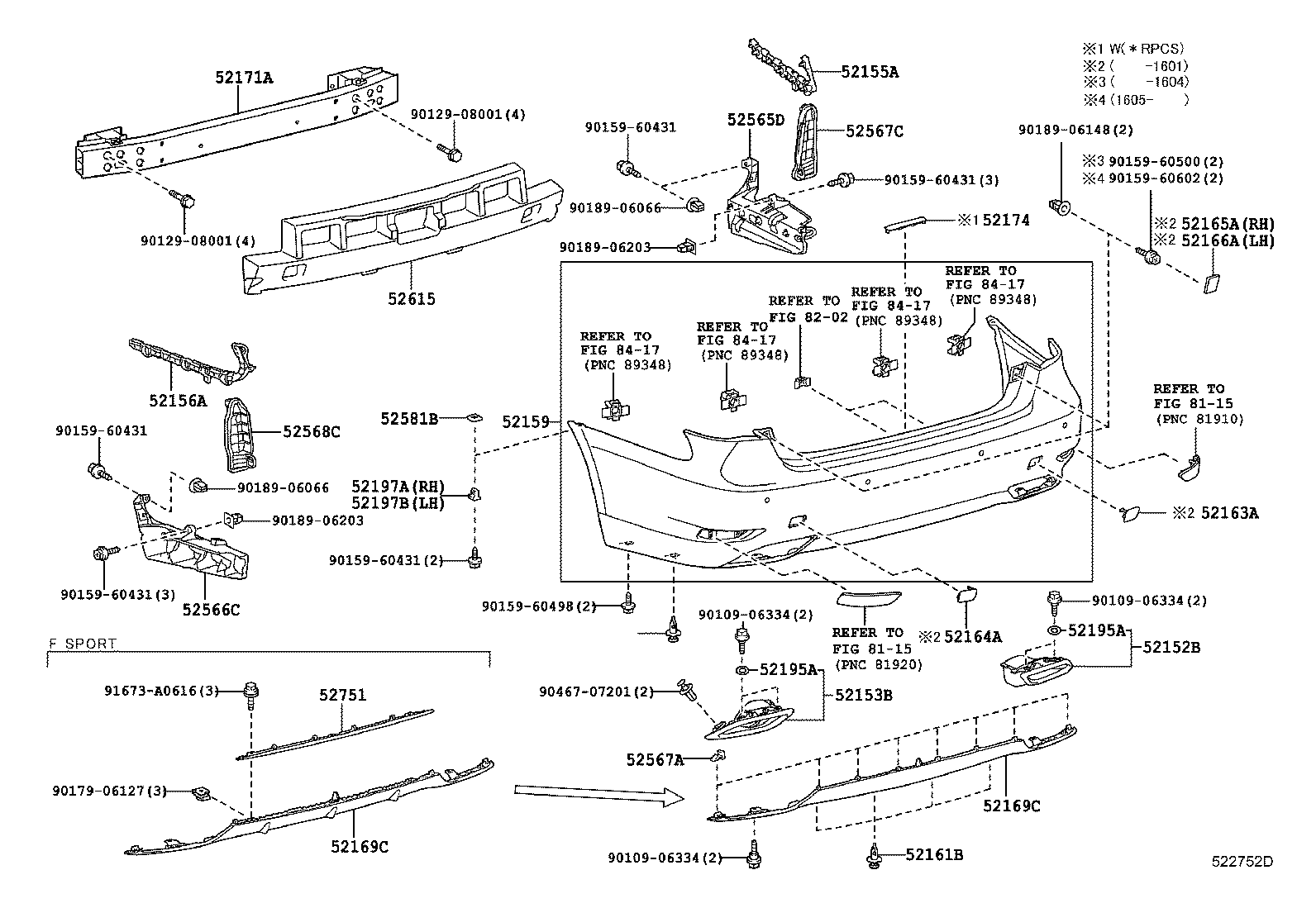

diagram 52152B 52153B 52155A 52156A 52159 52161B 52163A 52164A 52165A 52166A 52169C 52169C 52171A 52174 52195A 52195A 52197A 52197B 52565D 52566C 52567A 52567C 52568C 52581B 52615 52751 8115 8115 8202 8417 8417 8417 8417 9010906334 9010906334 9010906334 9012908001 9012908001 9015960431 9015960431 9015960431 9015960431 9015960431 9015960498 9015960500 9015960602 9017906127 9018906066 9018906066 9018906148 9018906203 9018906203 9046707201 91673A0616
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52106-50040

UVF4#

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-50040

UVF4#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-50070

UVF4#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-50060

UVF4#

 1
52159 - COVER, REAR BUMPER
52159-50934

UVF46..EUR

PAINT REQ.,PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)

 1
52159-50932

UVF4#..EUR,GCC

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

UVF4#

 6
52163A - PLATE, REAR BUMPER, RH
52161-50905

UVF4#

 1
52164A - PLATE, REAR BUMPER, LH
52162-50905

UVF4#

 1
52165A - COVER, REAR BUMPER, UPR RH
52165-50901

UVF4#

PAINT REQ.

 1
52166A - COVER, REAR BUMPER, UPR LH
52166-50901

UVF4#

PAINT REQ.

 1
52169C - COVER, REAR BUMPER, LOWER
52169-50050

UVF46;UVF45..LHD..EUR

NO PAINT REQ.

 1
52169C - COVER, REAR BUMPER, LOWER
52169-50050

UVF46;UVF45..LHD..EUR

NO PAINT REQ.

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-50090

UVF4#

 1
52174 - PLATE, REAR BUMPER, CENTER
52198-50900

UVF46..EUR

PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)

 1
52195A - SPACER, REAR BUMPER EXTENSION
52195-53010

UVF4#

 4
52195A - SPACER, REAR BUMPER EXTENSION
52195-53010

UVF4#

 4
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-30040

UVF4#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-30040

UVF4#

 1
52565D - RETAINER, REAR BUMPER, LOWER RH
52565-50070

UVF4#

 1
52566C - RETAINER, REAR BUMPER, LOWER LH
52566-50050

UVF4#

 1
52567A - RETAINER, REAR BUMPER, LOWER SIDE
52535-28020

UVF4#

 8
52567C - RETAINER, REAR BUMPER LOWER SIDE, RH
52567-50040

UVF4#

 1
52568C - RETAINER, REAR BUMPER LOWER SIDE, LH
52568-50040

UVF4#

 1
52581B - PROTECTOR, REAR BUMPER
52581-30060

UVF4#

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-50080

UVF4#

 1
Common parts
90109-06334
90129-08001
90159-60431
90159-60498
90159-60500
90159-60602
90179-06127
90189-06066
90189-06148
90189-06203
90467-07201
91673-A0616
