UVF46L-AEXGHV (2009)
Toyota Lexus Ls600h/600hl
ILLUST NO. 3 OF 3(0704- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 3(0704- )LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-50020 |
UVF4#..LHD |
1 | ||
| 82212-50020 |
UVF4#..LHD |
1 | ||
| 87020A - DAMPER ASSY, HEATER AIR | ||||
| 87020-50020 |
UVF4#..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-50210 |
UVF4#..LHD |
1 | ||
| 87050-50212 |
UVF4#..LHD |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-50100 |
UVF4#..LHD |
1 | ||
| 87103-50101 |
UVF4#..LHD |
1 | ||
| 87103-50100 |
UVF4#..LHD |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-50400 |
UVF4#..LHD |
1 | ||
| 87106-50400 |
UVF4#..LHD |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-50420 |
UVF4#..LHD |
1 | ||
| 87106-50420 |
UVF4#..LHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-50370 |
UVF4# |
4 | ||
| 87106-50370 |
UVF4# |
4 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-50370 |
UVF4# |
4 | ||
| 87106-50370 |
UVF4# |
4 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-50370 |
UVF4# |
4 | ||
| 87106-50370 |
UVF4# |
4 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-50370 |
UVF4# |
4 | ||
| 87106-50370 |
UVF4# |
4 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50390 |
UVF4# NO.2 |
2 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87106-50380 |
UVF4# NO.1 |
9 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-50060 |
UVF4# |
1 | ||
| 87107-50060 |
UVF4# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-50101 |
UVF4#..LHD |
1 | ||
| 87130-50102 |
UVF4#..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50060 |
UVF4# |
1 | ||
| 87139-50100 |
UVF4# |
1 | ||
| 87139-50060 |
UVF4# |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-50020 |
UVF4# |
1 | ||
| 87710-50020 |
UVF4# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-50252 |
UVF4# |
1 | ||
| 88501-50250 |
UVF4# |
1 | ||
| 88501-50253 |
UVF4# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50180 |
UVF4# |
1 | ||
| 88515-50210 |
UVF4# |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
UVF4# |
2 | ||
| 90480-26029 |
UVF4# |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
UVF4# |
2 | ||
| 90480-26029 |
UVF4# |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-50090 |
UVF4#..LHD DRIVER SIDE |
1 | ||
| 88539-50101 |
UVF4#..LHD PASSENGER SIDE |
1 | ||
| 88539-50101 |
UVF4#..LHD PASSENGER SIDE |
1 | ||
| 88539-50090 |
UVF4#..LHD DRIVER SIDE |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-50090 |
UVF4#..LHD DRIVER SIDE |
1 | ||
| 88539-50101 |
UVF4#..LHD PASSENGER SIDE |
1 | ||
| 88539-50101 |
UVF4#..LHD PASSENGER SIDE |
1 | ||
| 88539-50090 |
UVF4#..LHD DRIVER SIDE |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-50260 |
UVF4# |
4 | ||
| 88578-50260 |
UVF4# |
4 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-50260 |
UVF4# |
4 | ||
| 88578-50260 |
UVF4# |
4 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-50260 |
UVF4# |
4 | ||
| 88578-50260 |
UVF4# |
4 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-50260 |
UVF4# |
4 | ||
| 88578-50260 |
UVF4# |
4 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-30830 |
UVF4# |
1 | ||
| 88578-30830 |
UVF4#..LHD |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-30840 |
UVF4#..LHD |
1 | ||
| 88578-30840 |
UVF4# |
1 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-3A170 |
UVF4# |
1 | ||
| 88608-3A170 |
UVF4# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-50010 |
UVF4#..LHD |
1 | ||
| 88620-50010 |
UVF4#..LHD |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-50671 |
UVF4#..LHD WINDSHIELD DEICER-WITH&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 88650-50661 |
UVF4#..LHD MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 88650-50651 |
UVF4#..LHD |
1 | ||
| 88650-50671 |
UVF4#..LHD WINDSHIELD DEICER-WITH |
1 | ||
| 88650-50E40 |
UVF46..LHD |
1 | ||
| 88650-50E41 |
UVF46..LHD |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50820 |
UVF4# |
1 | ||
| 88710-50820 |
UVF4#..LHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-35030 |
UVF4# |
1 | ||
| 88897-35030 |
UVF4# |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-3A080 |
UVF4# |
1 | ||
| 88899-3A080 |
UVF4# |
1 | ||
| Common parts | ||||
| 88569-21010 | ||||
| 88718-30190 | ||||
| 88899-44050 | ||||
| 90099-00149 | ||||
| 90099-00968 | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-60195 | ||||
| 90179-06282 | ||||

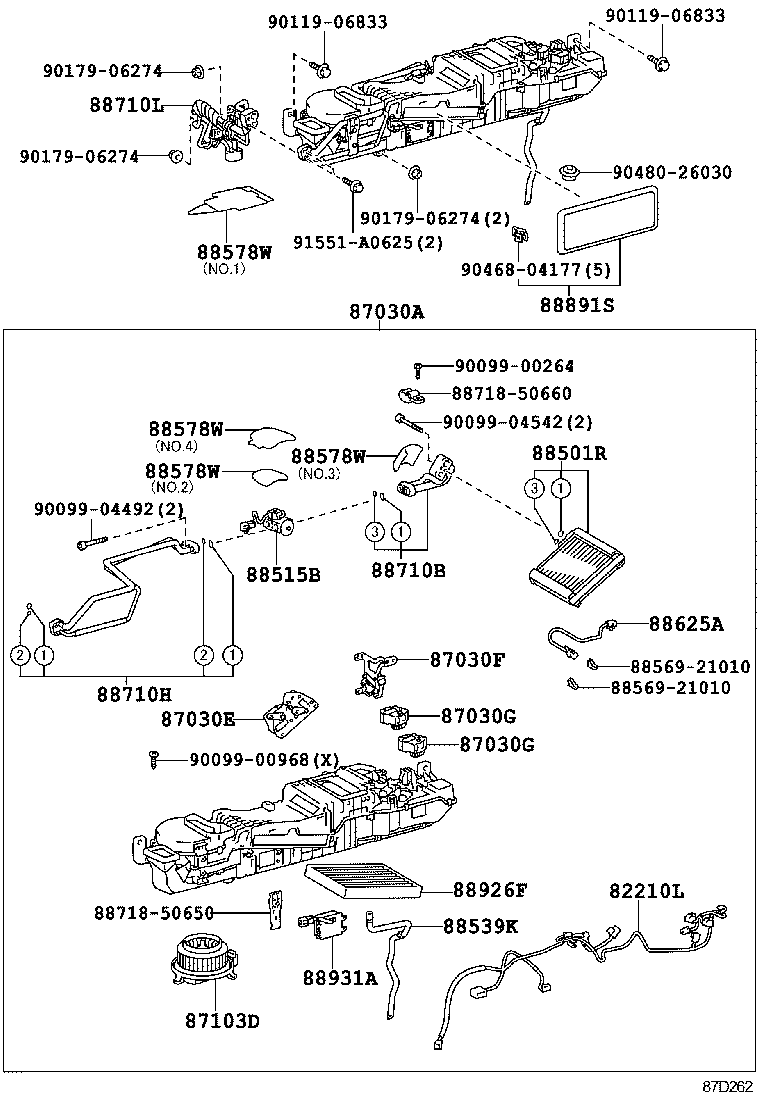

ILLUST NO. 2 OF 3(0911- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-50100 |
UVF4# WITH(REAR COOLER) |
1 | ||
| 82212-50150 |
UVF46;UVF45..RHD |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-50070 |
UVF4# |
1 | ||
| 87030-50151 |
UVF46;UVF45..RHD |
1 | ||
| 87030-50050 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER) |
1 | ||
| 87030-50150 |
UVF46;UVF45..RHD |
1 | ||
| 87030-50050 |
UVF46 WITH(REAR COOLER) |
1 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-50520 |
UVF46;UVF45..RHD |
1 | ||
| 87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2 | ||||
| 87106-50530 |
UVF4# |
1 | ||
| 87030G - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.3 | ||||
| 87106-50540 |
UVF46;UVF45..RHD |
2 | ||
| 87030G - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.3 | ||||
| 87106-50540 |
UVF46;UVF45..RHD |
2 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-50120 |
UVF4# |
1 | ||
| 87103-50131 |
UVF4# |
1 | ||
| 87103-50130 |
UVF4# |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-50300 |
UVF4# |
1 | ||
| 88501-50270 |
UVF4# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-30740 |
UVF4# |
1 | ||
| 88515-30740 |
UVF4# |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-50130 |
UVF4# |
1 | ||
| 88539-50170 |
UVF4# |
1 | ||
| 88539-50160 |
UVF4# |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-50270 |
UVF4# NO.1 |
1 | ||
| 88578-50300 |
UVF4# NO.3 |
1 | ||
| 88578-50270 |
UVF4# NO.2 |
1 | ||
| 88578-50310 |
UVF4# NO.4 |
1 | ||
| 88578-30840 |
UVF4# NO.2 |
2 | ||
| 88578-50290 |
UVF4# NO.1 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-50270 |
UVF4# NO.1 |
1 | ||
| 88578-50300 |
UVF4# NO.3 |
1 | ||
| 88578-50270 |
UVF4# NO.2 |
1 | ||
| 88578-50310 |
UVF4# NO.4 |
1 | ||
| 88578-30840 |
UVF4# NO.2 |
2 | ||
| 88578-50290 |
UVF4# NO.1 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-50270 |
UVF4# NO.1 |
1 | ||
| 88578-50300 |
UVF4# NO.3 |
1 | ||
| 88578-50270 |
UVF4# NO.2 |
1 | ||
| 88578-50310 |
UVF4# NO.4 |
1 | ||
| 88578-30840 |
UVF4# NO.2 |
2 | ||
| 88578-50290 |
UVF4# NO.1 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-50270 |
UVF4# NO.1 |
1 | ||
| 88578-50300 |
UVF4# NO.3 |
1 | ||
| 88578-50270 |
UVF4# NO.2 |
1 | ||
| 88578-50310 |
UVF4# NO.4 |
1 | ||
| 88578-30840 |
UVF4# NO.2 |
2 | ||
| 88578-50290 |
UVF4# NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88620-50010 |
UVF4# |
1 | ||
| 88625-60190 |
UVF4# |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50870 |
UVF4# |
1 | ||
| 88710-50A30 |
UVF4# |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-50850 |
UVF4# |
1 | ||
| 88710-50A20 |
UVF4# |
1 | ||
| 88710L - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-50A10 |
UVF4# |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50080 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER) |
1 | ||
| 88891-50080 |
UVF46 WITH(REAR COOLER) |
1 | ||
| 88891-50110 |
UVF46;UVF45..RHD |
1 | ||
| 88926F - FILTER, REAR COOLER | ||||
| 87139-50050 |
UVF46 WITH(REAR COOLER) |
1 | ||
| 87139-50050 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER) |
1 | ||
| 87139-50090 |
UVF46;UVF45..RHD |
1 | ||
| 88931A - SENSOR, SMOKE | ||||
| 88931-50040 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER) |
1 | ||
| 88931-50040 |
UVF46;UVF45..RHD |
1 | ||
| 88931-50040 |
UVF46 WITH(REAR COOLER) |
1 | ||
| Common parts | ||||
| 88569-21010 | ||||
| 88718-50650 | ||||
| 88718-50660 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-04542 | ||||
| 90119-06833 | ||||
| 90179-06274 | ||||
| 90468-04177 | ||||
| 90480-26030 | ||||
| 91551-A0625 | ||||
ILLUST NO. 3 OF 3(1209- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 3(1209- )LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-21010 | ||||
| 88899-44050 | ||||
| 90099-00149 | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
ILLUST NO. 2 OF 3(1209- )UVF46 ; (1209- )UVF45..EUR
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-21010 | ||||
| 88718-50650 | ||||
| 88718-50660 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-04542 | ||||
| 90119-06833 | ||||
| 90179-06274 | ||||
| 90468-04177 | ||||
| 90480-26030 | ||||
| 91551-A0625 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
