UVF46L-AEXGHV (2009)
Toyota Lexus Ls600h/600hl
Production
Nov 2009
-
Sep 2012
Engine
2URFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0704- )LHD

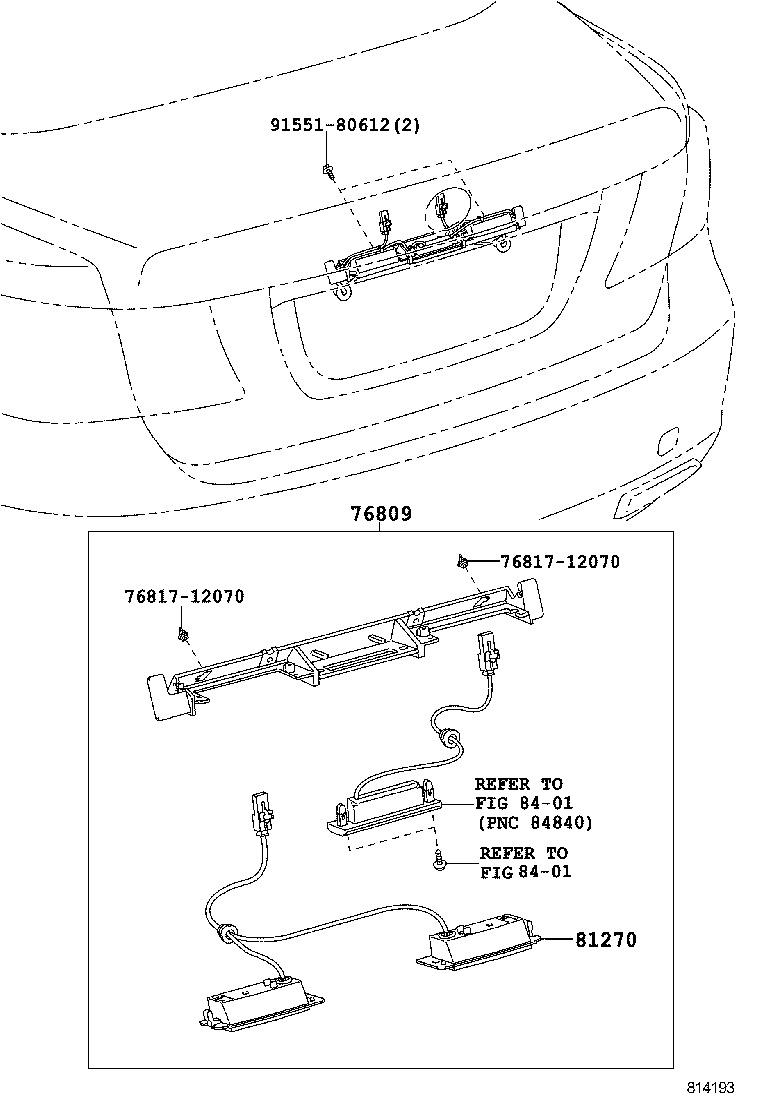

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76809 - RETAINER SUB-ASSY, BACK DOOR GARNISH | ||||
| 76809-50020 |
UVF4#..LHD |
1 | ||
| 76809-50020 |
UVF4#..LHD |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-30261 |
UVF4#..LHD |
1 | ||
| 81270-30261 |
UVF4#..LHD |
1 | ||
| Common parts | ||||
| 76817-12070 | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1209- )

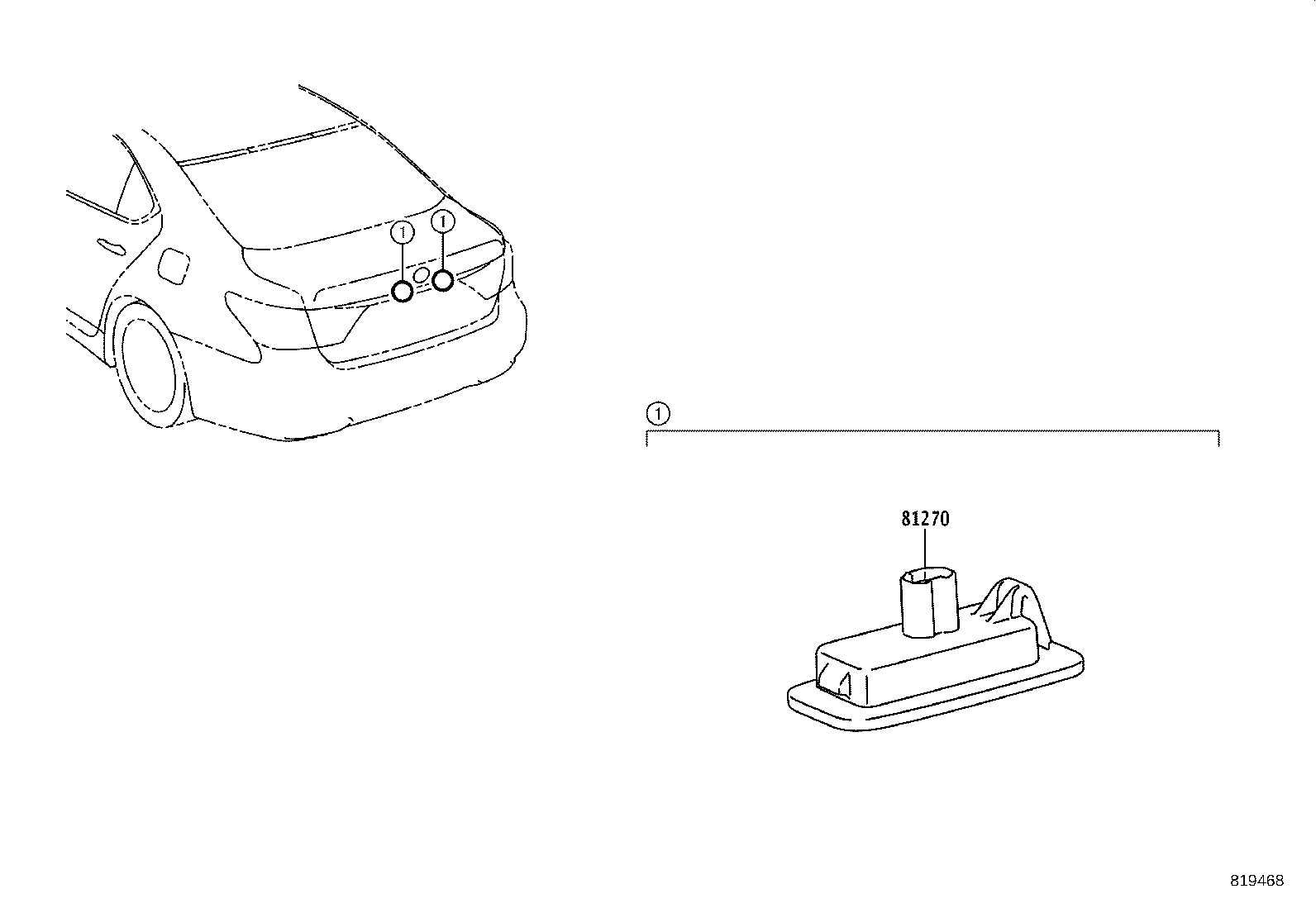

Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
