UVF46L-AEXGHV (2009)
Toyota Lexus Ls600h/600hl
Production
Nov 2009
-
Sep 2012
Engine
2URFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0911- )

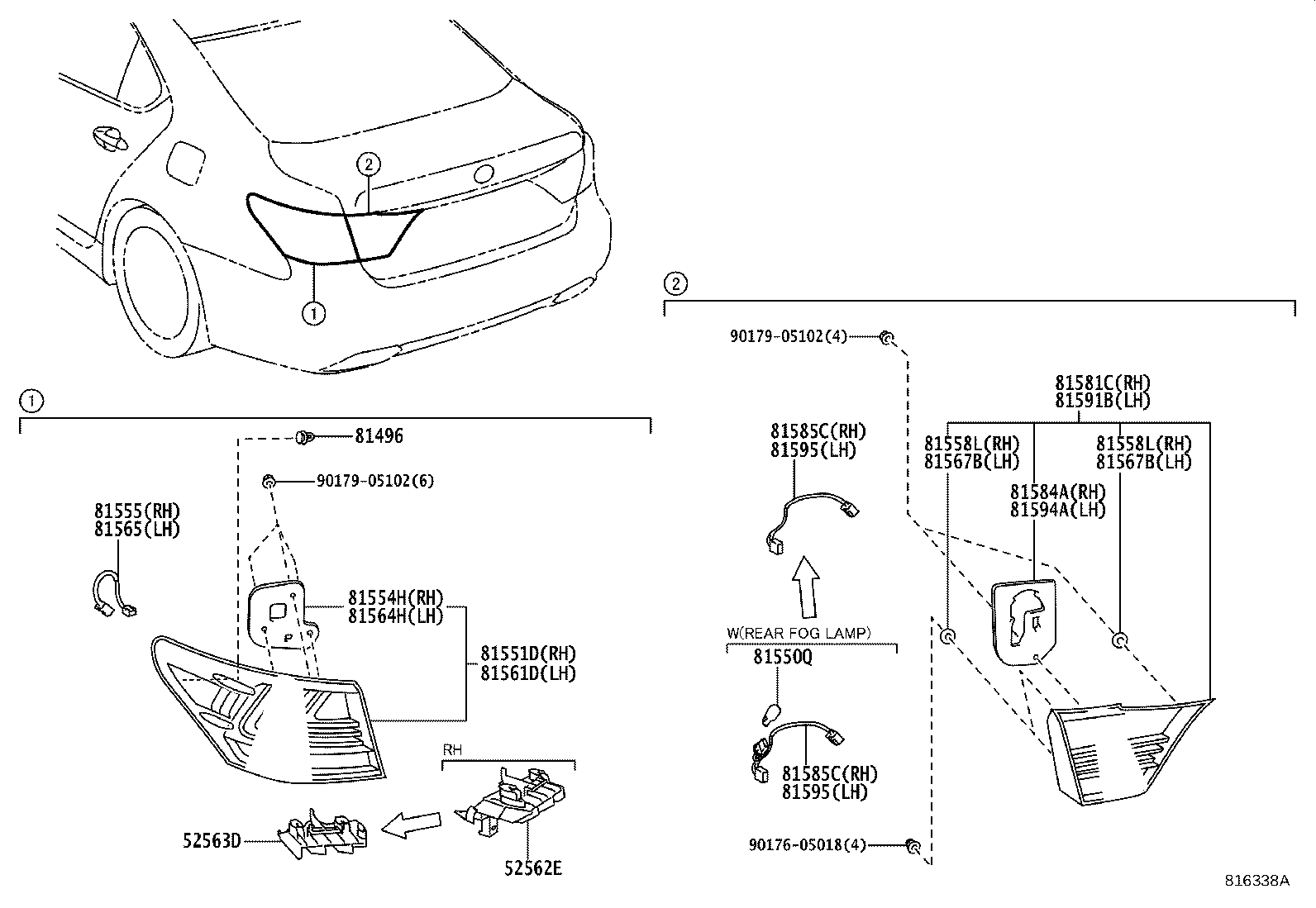

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562E - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-50010 |
UVF4# |
1 | ||
| 52562-50020 |
UVF4# |
1 | ||
| 52563D - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-50010 |
UVF4# |
1 | ||
| 52563-50020 |
UVF4# |
1 | ||
| 81277K - SHADE, LICENSE PLATE LAMP, RH | ||||
| 81277-20240 |
UVF4# |
2 | ||
| 81277-20240 |
UVF4# |
2 | ||
| 81278H - SHADE, LICENSE PLATE LAMP, LH | ||||
| 81277-20240 |
UVF4# |
2 | ||
| 81277-20240 |
UVF4# |
2 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-50010 |
UVF4# |
2 | ||
| 81496-50010 |
UVF4# |
2 | ||
| 81535 - SOCKET & WIRE, REAR TURN SIGNAL LAMP, RH | ||||
| 81555-50210 |
UVF4# |
1 | ||
| 81555-50170 |
UVF4# |
1 | ||
| 81545 - SOCKET & WIRE, REAR TURN SIGNAL LAMP, LH | ||||
| 81555-50170 |
UVF4# |
1 | ||
| 81555-50210 |
UVF4# |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-13043 |
UVF4# |
2 | ||
| 90981-11059 |
UVF4# |
4 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
UVF4# |
2 | ||
| 90981-11059 |
UVF4# |
2 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 90981-13043 |
UVF4# |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-50230 |
UVF4# |
1 | ||
| 81551-50190 |
UVF4# |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81552-50210 |
UVF4# |
1 | ||
| 81552-50170 |
UVF4# |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-50230 |
UVF4# |
1 | ||
| 81561-50190 |
UVF4# |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81562-50210 |
UVF4# |
1 | ||
| 81562-50170 |
UVF4# |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-50200 |
UVF4# |
1 | ||
| 81581-50260 |
UVF46..GCC |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-50230 |
UVF4# |
1 | ||
| 81582-50160 |
UVF4# |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-50170 |
UVF4# |
2 | ||
| 81585-50230 |
UVF46..GCC |
2 | ||
| 81591C - LENS, REAR LAMP, LH | ||||
| 81591-50200 |
UVF4# |
1 | ||
| 81591-50260 |
UVF46..GCC |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81592-50160 |
UVF4# |
1 | ||
| 81594-50230 |
UVF4# |
1 | ||
| Common parts | ||||
| 90176-05018 | ||||
| 90179-05102 | ||||
(1209- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90176-05018 | ||||
| 90179-05102 | ||||
