Toyota Lexus ls600h/600hl UVF46 FLOOR SIDE MEMBER

UVF46L-AEXGHV (2009)

Toyota Lexus Ls600h/600hl

Production Nov 2009 - Sep 2012

Engine 2URFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

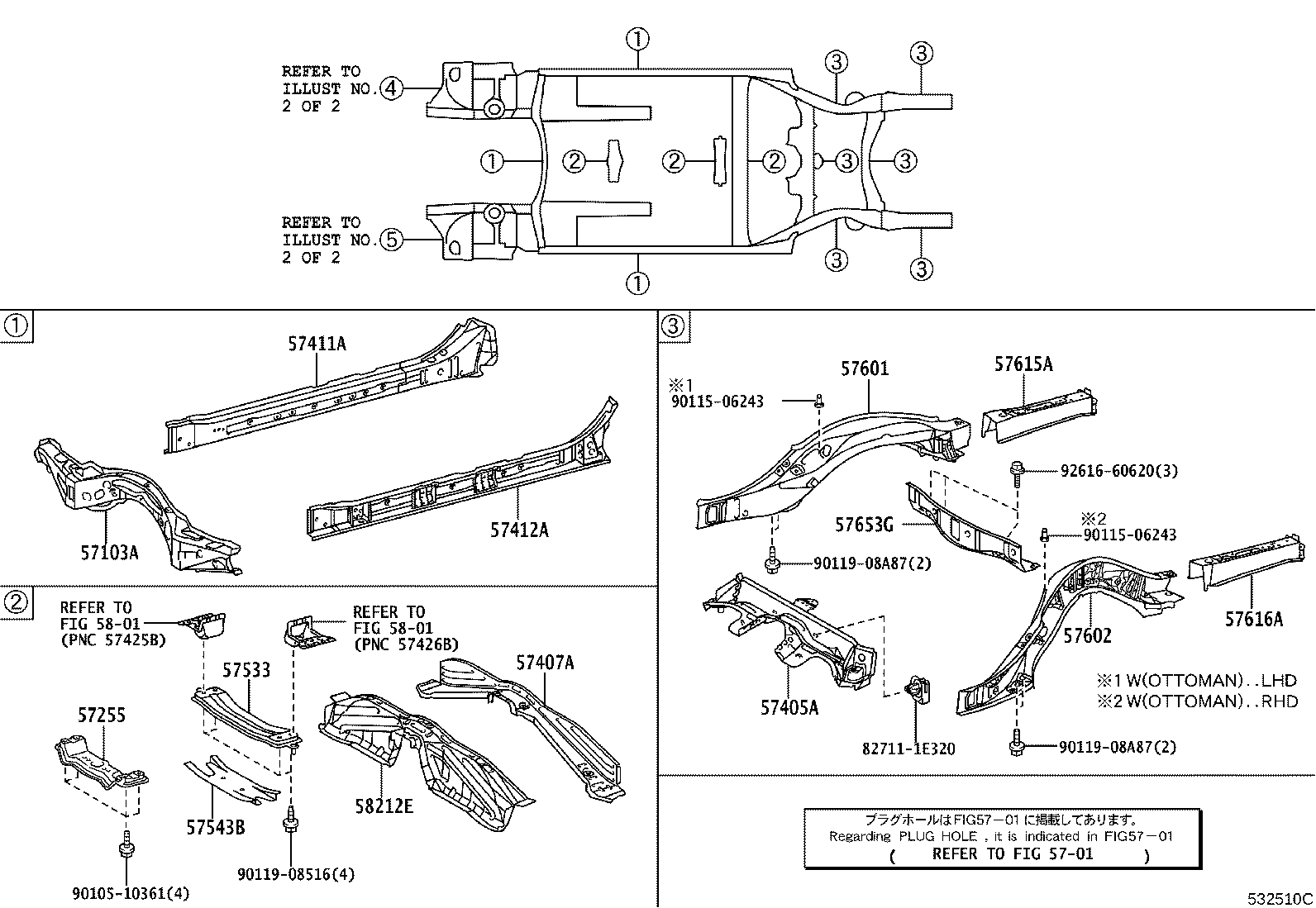

ILLUST NO. 1 OF 2(0704- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3
57103-50050	UVF4#..LHD	04/2007 - 09/2008	1
57103-50050	UVF4#..LHD	11/2009 - 12/2999	1
57255 - MEMBER, ENGINE REAR MOUNTING
57209-50010	UVF4#	11/2009 - 12/2999	1
57209-50010	UVF4#	04/2007 - 09/2008	1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-50020	UVF4#	04/2007 - 09/2008	1
57405-50020	UVF4#	11/2009 - 09/2012	1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-50060	UVF4#	04/2007 - 09/2008	1
57407-50060	UVF4#	11/2009 - 09/2012	1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-50071	UVF46	11/2009 - 12/2999	1
57401-50070	UVF46	04/2007 - 03/2008	1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-50060	UVF46	04/2007 - 03/2008	1
57402-50061	UVF46	11/2009 - 12/2999	1
57533 - BRACE, FRONT FLOOR, CENTER
57533-50020	UVF4#	04/2007 - 09/2008	1
57533-50020	UVF4#	11/2009 - 12/2999	1
57543B - BRACE, CENTER FLOOR, NO.1
57543-50010	UVF4#	04/2007 - 09/2008	1
57543-50010	UVF4#	11/2009 - 12/2999	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-50907	UVF4#	11/2009 - 03/2010	1
57601-50907	UVF4#	04/2007 - 09/2008	1
57601-50908	UVF4#	03/2010 - 12/2999	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-50907	UVF4#	04/2007 - 09/2008	1
57602-50907	UVF4#	11/2009 - 03/2010	1
57602-50908	UVF4#	03/2010 - 12/2999	1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-50906	UVF4#	11/2009 - 12/2999	1
57615-50906	UVF4#	04/2007 - 09/2008	1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-50906	UVF4#	04/2007 - 09/2008	1
57616-50906	UVF4#	11/2009 - 12/2999	1
57653G - MEMBER, REAR FLOOR CROSS, NO.2
57653-50901	UVF4#	04/2007 - 09/2008	1
57653-50901	UVF4#	11/2009 - 12/2999	1
58212E - PAN, CENTER FLOOR, FRONT
58202-50020	UVF46	04/2007 - 09/2008	1
58202-50020	UVF46;UVF45..RHD	11/2009 - 09/2012	1
Common parts
82711-1E320
90105-10361
90115-06243
90119-08516
90119-08A87
92616-60620
Linked diagrams
5701
5801

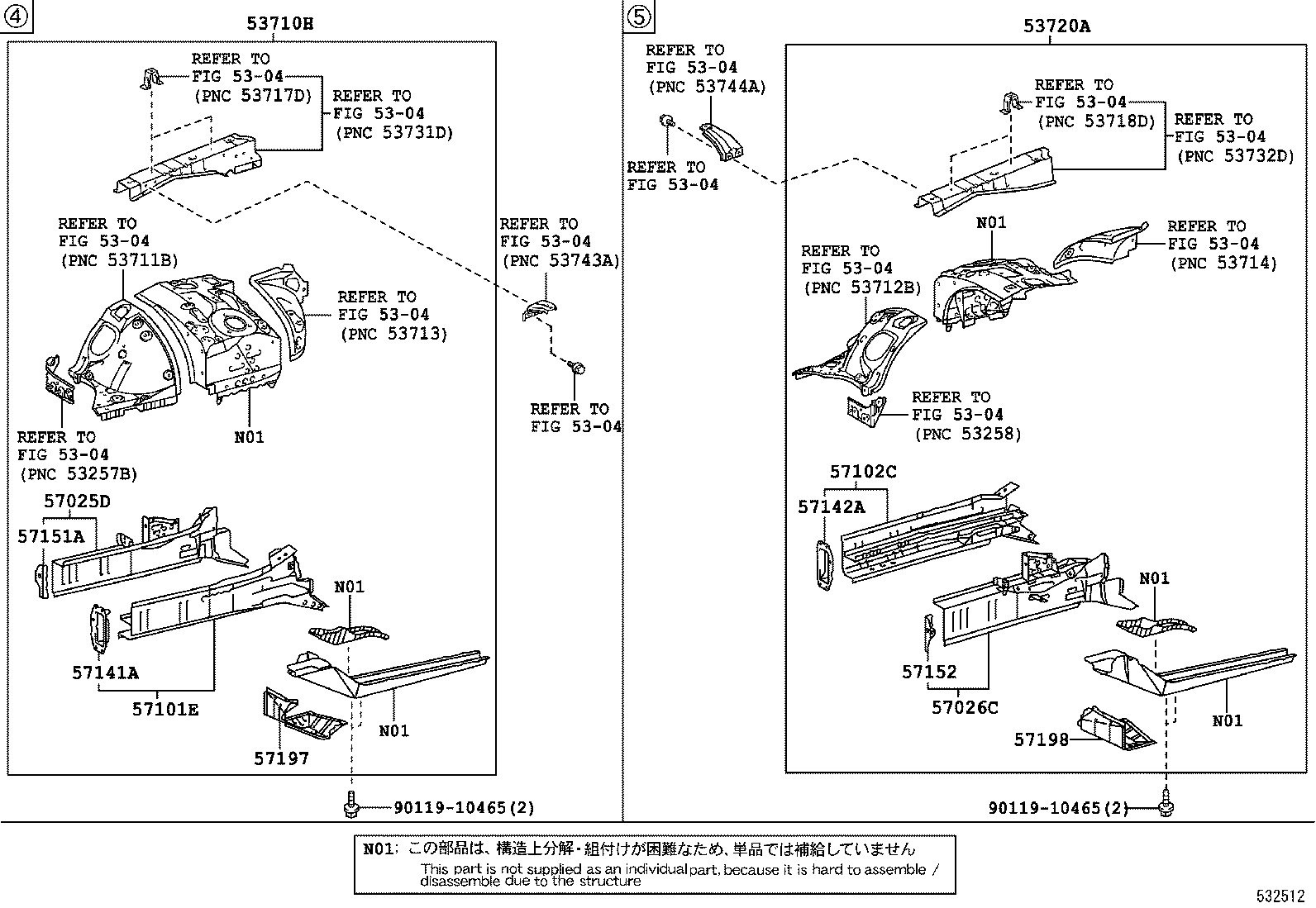

ILLUST NO. 2 OF 2(0704- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53710H - APRON ASSY, FRONT FENDER, RH
53710-50360	UVF4#	11/2009 - 12/2999	1
53710-50360	UVF4#	04/2007 - 09/2008	1
53720A - APRON ASSY, FRONT FENDER, LH
53720-50270	UVF4#	04/2007 - 09/2008	1
53720-50270	UVF4#	11/2009 - 12/2999	1
57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-50010	UVF4#	04/2007 - 09/2008	1
57025-50010	UVF4#	11/2009 - 12/2999	1
57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-50010	UVF4#	04/2007 - 09/2008	1
57026-50010	UVF4#	11/2009 - 12/2999	1
57101E - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57101-50190	UVF4#	11/2009 - 12/2999	1
57101-50190	UVF4#	04/2007 - 09/2008	1
57102C - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57102-50150	UVF4#	04/2007 - 09/2008	1
57102-50150	UVF4#	11/2009 - 12/2999	1
57141A - SUPPORT, FRONT BUMPER ARM, RH
57141-50040	UVF4#	04/2007 - 09/2008	1
57141-50040	UVF4#	11/2009 - 12/2999	1
57142A - SUPPORT, FRONT BUMPER ARM, LH
57142-50040	UVF4#	04/2007 - 09/2008	1
57142-50040	UVF4#	11/2009 - 12/2999	1
57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57151-50040	UVF4#	11/2009 - 12/2999	1
57151-50040	UVF4#	04/2007 - 09/2008	1
57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57152-50030	UVF4#	11/2009 - 12/2999	1
57152-50030	UVF4#	04/2007 - 09/2008	1
57197 - BOX, TORQUE, FRONT RH
57197-50070	UVF4#	04/2007 - 09/2008	1
57197-50070	UVF4#	11/2009 - 12/2999	1
57198 - BOX, TORQUE, FRONT LH
57198-50070	UVF4#	04/2007 - 09/2008	1
57198-50070	UVF4#	11/2009 - 12/2999	1
Common parts
90119-10465
Linked diagrams
5304

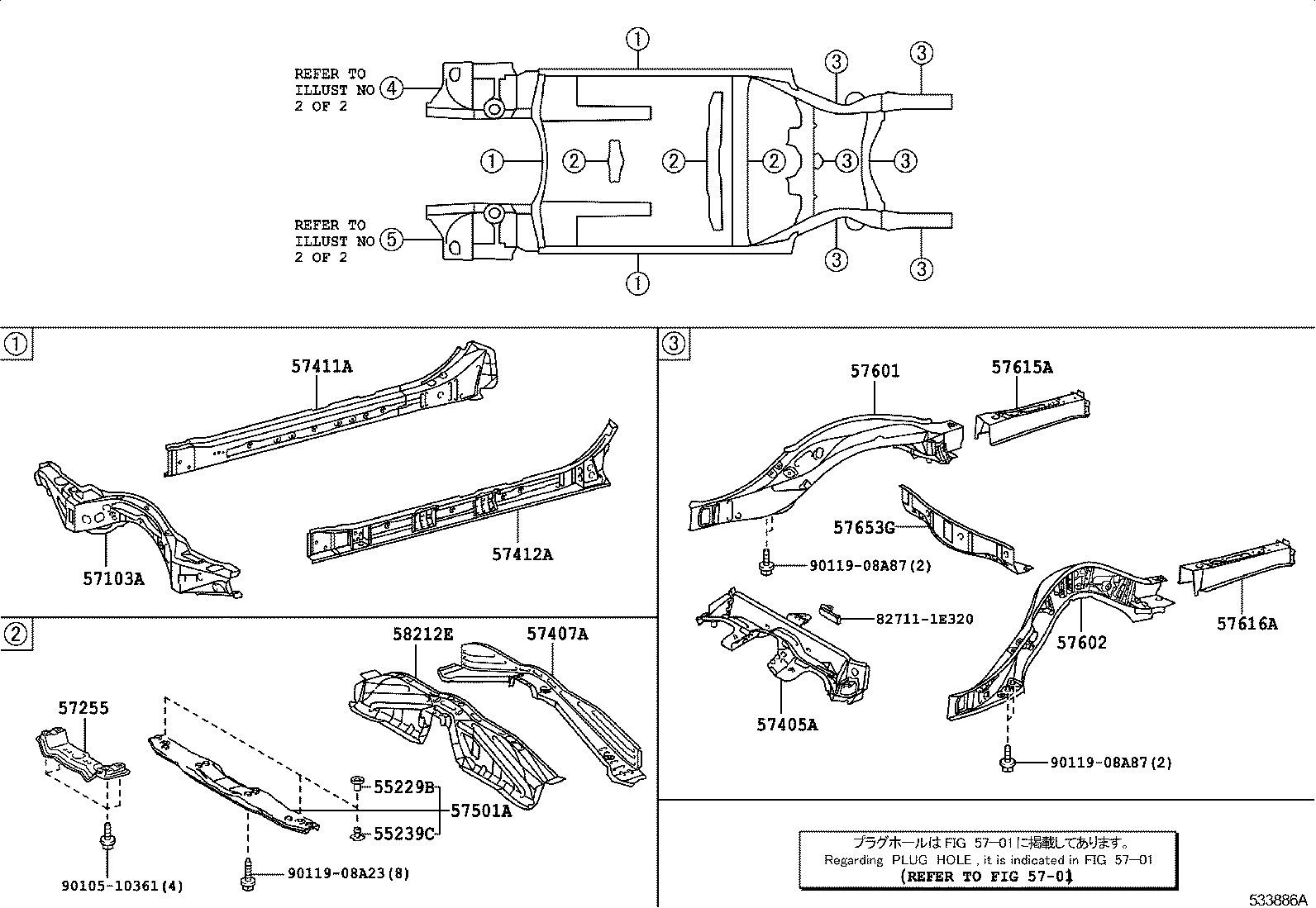

ILLUST NO. 1 OF 2(1209- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-1E320
90105-10361
90119-08A23
90119-08A87
Linked diagrams
5701

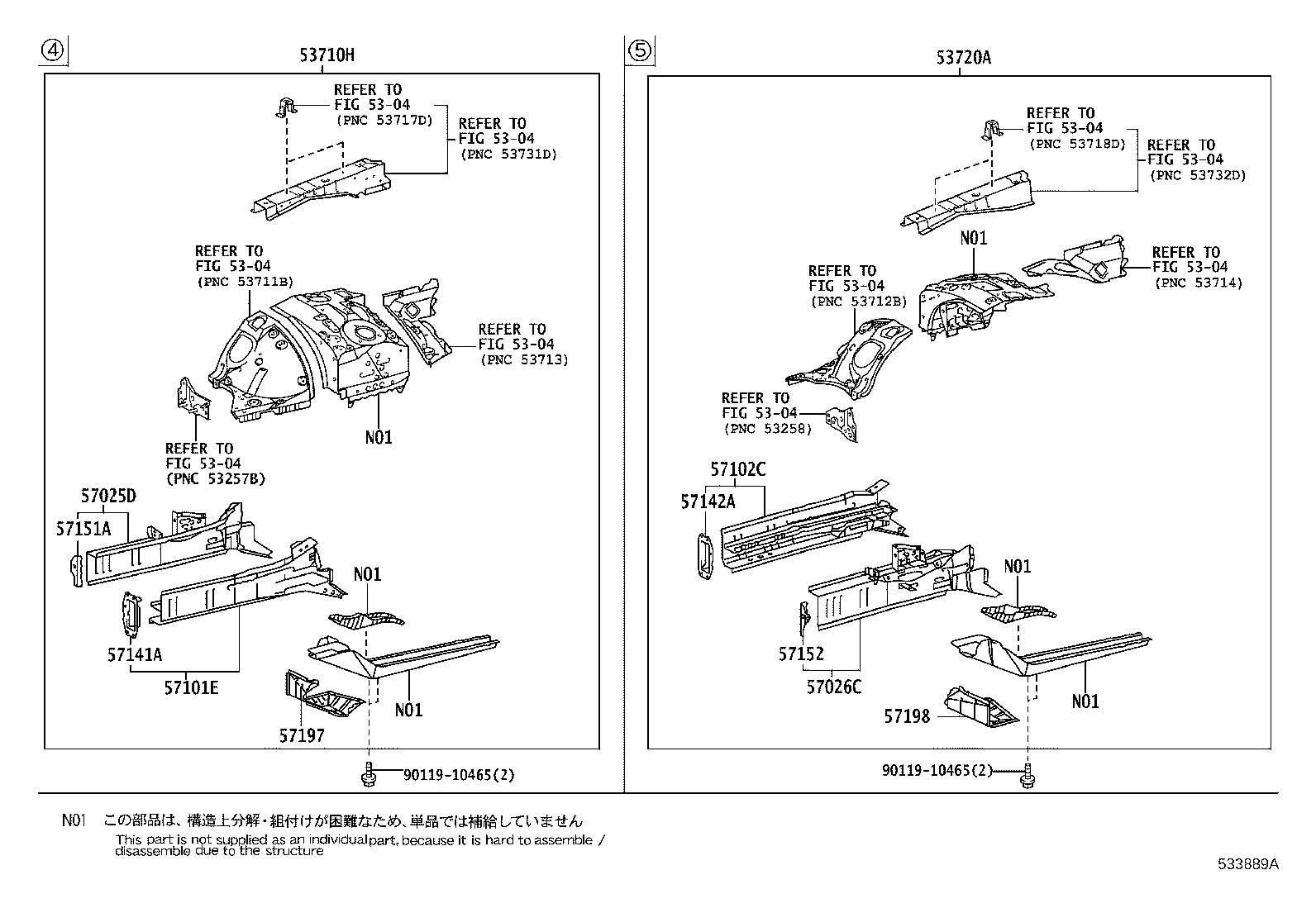

ILLUST NO. 2 OF 2(1209- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10465
Linked diagrams
5304
