UVF46L-AEXGHV (2009)

Toyota Lexus Ls600h/600hl

Production Nov 2009 - Sep 2012
Engine 2URFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0911- )

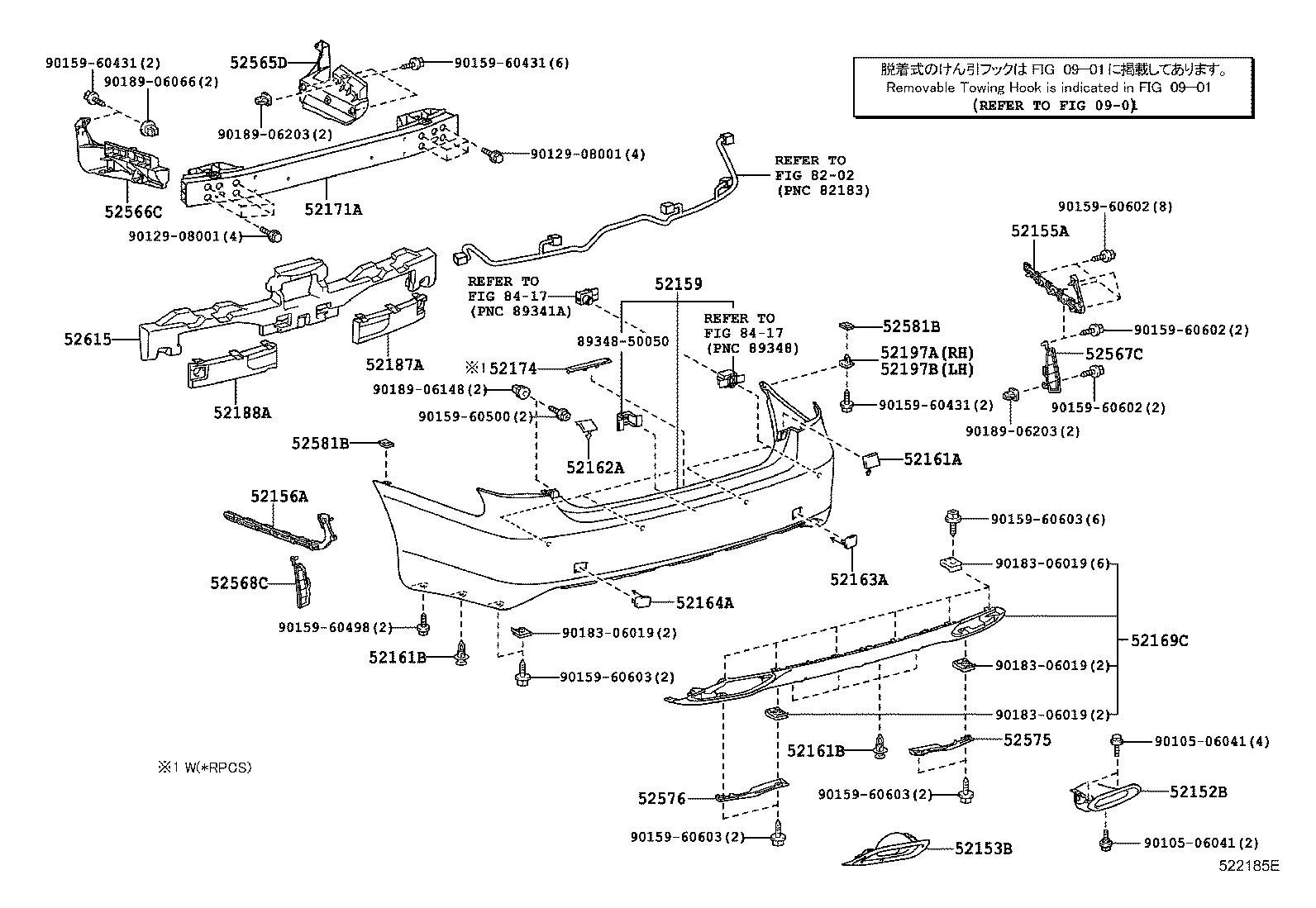

Click highlighted areas on diagram

diagram 0901 52152B 52153B 52155A 52156A 52159 52161A 52161B 52161B 52162A 52163A 52164A 52169C 52171A 52174 52187A 52188A 52197A 52197B 52565D 52566C 52567C 52568C 52575 52576 52581B 52581B 52615 8202 8417 8417 8934850050 9010506041 9010506041 9012908001 9012908001 9015960431 9015960431 9015960431 9015960498 9015960500 9015960602 9015960602 9015960602 9015960603 9015960603 9015960603 9015960603 9018306019 9018306019 9018306019 9018306019 9018906066 9018906148 9018906203 9018906203
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52106-50010

UVF4#

 1
52106-50030

UVF4#

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-50010

UVF4#

 1
52107-50030

UVF4#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-50050

UVF4#

 1
52155-50030

UVF4#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-50040

UVF4#

 1
52156-50020

UVF4#

 1
52159 - COVER, REAR BUMPER
52159-50919

UVF4#

PAINT REQ.

 1
52159-50914

UVF4#

PAINT REQ.,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)

 1
52159-50912

UVF4#

PAINT REQ.

 1
52161A - PIECE, REAR BUMPER, RH
52161-50901

UVF4#

 1
52161-50901

UVF4#

 1
52161B - PIECE, REAR BUMPER
52161-16010

UVF4#

 6
52161-16010

UVF4#

 6
52161B - PIECE, REAR BUMPER
52161-16010

UVF4#

 6
52161-16010

UVF4#

 6
52162A - PIECE, REAR BUMPER, LH
52162-50901

UVF4#

 1
52162-50901

UVF4#

 1
52163A - PLATE, REAR BUMPER, RH
52161-50902

UVF4#

 1
52161-50903

UVF4#

 1
52164A - PLATE, REAR BUMPER, LH
52162-50903

UVF4#

 1
52162-50902

UVF4#

 1
52169C - COVER, REAR BUMPER, LOWER
52169-50040B1

UVF4#

DK.GRAY MC.,1G0

 1
52169-50040E0

UVF4#

SABLE M.M.,4T5

 1
52169-50040B0

UVF4#

PREMIUM SILVER,1F2

 1
52169-50040A0

UVF4#

WHITE PEARL CS.,077

 1
52169-50040C2

UVF4#

STARLIGHT BLACK GF.,217

 1
52169-50040C1

UVF4#

BLACK OPAL MC.,214

 1
52169-50040D0

UVF4#

RED MC.CS.,3R1

 1
52169-50040E1

UVF4#

SLEEK ECRU ME.,4U7

 1
52169-50040C0

UVF4#

BLACK,212

 1
52169-50040J1

UVF4#

SHADOW SAPPHIRE ME.,8V4

 1
52169-50040G0

UVF4#

DEEP PERIDOT MC.,6V6

 1
52169-50040B2

UVF4#

MERCURY GRAY MC.,1H9

 1
52169-50040J0

UVF4#

LAPIS LAZULI MC.,8V3

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-50070

UVF46..GCC

 1
52023-50090

UVF4#

 1
52174 - PLATE, REAR BUMPER, CENTER
52198-50010B1

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),DK.GRAY MC.,1G0

 1
52198-50010A1

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),BLUISH PEARL CS.,074

 1
52198-50010E0

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),BEIGE ME.,4T1

 1
52198-50010B0

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),PREMIUM SILVER,1F2

 1
52198-50010A2

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),WHITE PEARL CS.,077

 1
52198-50010C1

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),BLACK OPAL MC.,214

 1
52198-50010G0

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),JADE GREEN ME.,6V0

 1
52198-50010C0

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),BLACK,212

 1
52198-50010E1

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),SABLE M.M.,1G5 ,4T5

 1
52198-50010D1

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),DK.RED MC.CS.,3R7

 1
52198-50010J0

UVF4#

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),DK.BLUE MC. CC.,8U0

 1
52187A - REINFORCEMENT, REAR BUMPER ARM, RH
52187-50030

UVF4#

 1
52187-50030

UVF4#

 1
52188A - REINFORCEMENT, REAR BUMPER ARM, LH
52188-50040

UVF4#

 1
52188-50040

UVF4#

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-30040

UVF4#

 1
52197-30040

UVF4#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-30040

UVF4#

 1
52197-30040

UVF4#

 1
52565D - RETAINER, REAR BUMPER, LOWER RH
52565-50060

UVF4#

 1
52565-50050

UVF4#

 1
52566C - RETAINER, REAR BUMPER, LOWER LH
52566-50030

UVF4#

 1
52566-50040

UVF4#

 1
52567C - RETAINER, REAR BUMPER LOWER SIDE, RH
52567-50030

UVF4#

 1
52568C - RETAINER, REAR BUMPER LOWER SIDE, LH
52568-50030

UVF4#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52577-50030

UVF4#

 1
52577-50030

UVF4#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52578-50030

UVF4#

 1
52578-50030

UVF4#

 1
52581B - PROTECTOR, REAR BUMPER
52581-30060

UVF4#

 2
52581-30060

UVF4#

 2
52581B - PROTECTOR, REAR BUMPER
52581-30060

UVF4#

 2
52581-30060

UVF4#

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-50070

UVF4#

 1
52615-50060

UVF4#

 1
Common parts
89348-50050
90105-06041
90129-08001
90159-60431
90159-60498
90159-60500
90159-60602
90159-60603
90183-06019
90189-06066
90189-06148
90189-06203
Linked diagrams
0901
8202
8417

(1209- )

Click highlighted areas on diagram

diagram 52152B 52153B 52155A 52156A 52159 52161B 52163A 52164A 52165A 52166A 52169C 52169C 52171A 52174 52195A 52195A 52197A 52197B 52565D 52566C 52567A 52567C 52568C 52581B 52615 52751 8115 8115 8202 8417 8417 8417 8417 9010906334 9010906334 9010906334 9012908001 9012908001 9015960431 9015960431 9015960431 9015960431 9015960431 9015960498 9015960500 9015960602 9017906127 9018906066 9018906066 9018906148 9018906203 9018906203 9046707201 91673A0616
Part # Description Qty Price
Common parts
90109-06334
90129-08001
90159-60431
90159-60498
90159-60500
90159-60602
90179-06127
90189-06066
90189-06148
90189-06203
90467-07201
91673-A0616
Linked diagrams
8115
8202
8417
