Toyota Lexus ls600h/600hl UVF45 FRONT BUMPER & BUMPER STAY

UVF45L-AEXGHV (2012)

Toyota Lexus Ls600h/600hl

Production Oct 2012 - Aug 2017

Engine 2URFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

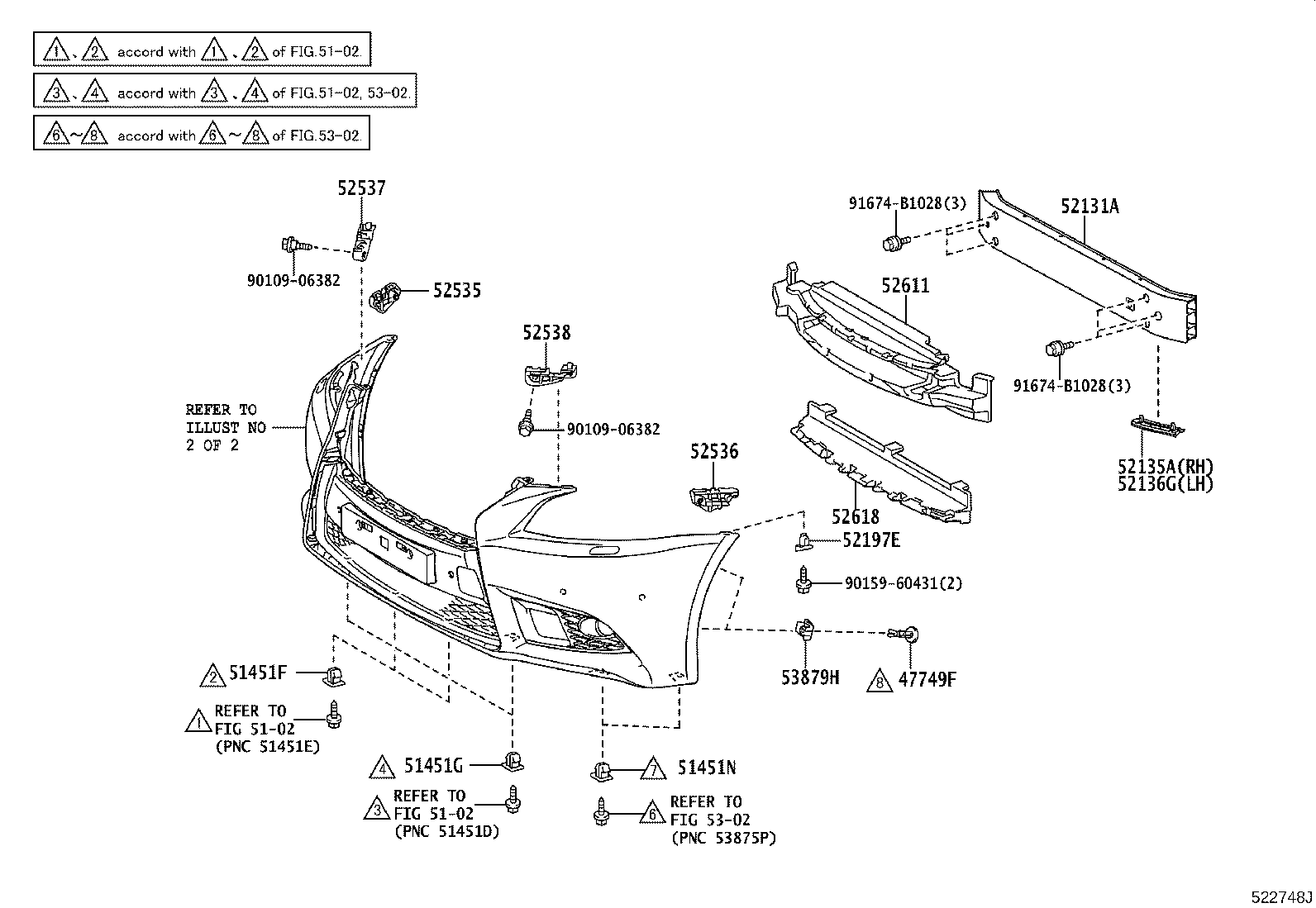

Click highlighted areas on diagram

F SPORT

Part #	Description	Period	Qty
47749F - CLIP, PIN HOLD
47749-50090	UVF4#	09/2012 - 08/2017	4
51451F - GROMMET, NO.1
90189-06193	UVF4#	09/2012 - 08/2017	2
51451G - GROMMET, NO.2
90189-06193	UVF4#	09/2012 - 08/2017	2
51451N - GROMMET, NO.3
90189-06193	UVF4#	09/2012 - 08/2017	4
52131A - REINFORCEMENT, FRONT BUMPER
52131-50102	UVF4#	09/2012 - 12/2999	1
52135A - REINFORCEMENT, EXTENSION FRONT BUMPER, RH
52135-50050	UVF4#	09/2012 - 08/2017	1
52136G - REINFORCEMENT, EXTENSION FRONT BUMPER, LH
52136-50020	UVF4#	09/2012 - 08/2017	1
52197E - BRACKET, FRONT BUMPER SEAL
52197-30040	UVF4#	09/2012 - 12/2999	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-50090	UVF4#	09/2012 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-50080	UVF4#	09/2012 - 12/2999	1
52537 - RETAINER, FRONT BUMPER END, RH
52537-50040	UVF4#	09/2012 - 12/2999	1
52538 - RETAINER, FRONT BUMPER END, LH
52538-50030	UVF4#	09/2012 - 12/2999	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-50180	UVF45..GCC	10/2012 - 12/2999	1
52618 - ABSORBER, FRONT BUMPER, LOWER
52614-50050	UVF45..GCC	10/2012 - 12/2999	1
53879H - RETAINER, FRONT FENDER LINER
53879-50020	UVF4#	09/2012 - 12/2999	4
Common parts
90109-06382
90159-60431
91674-B1028
Linked diagrams
5102
5302

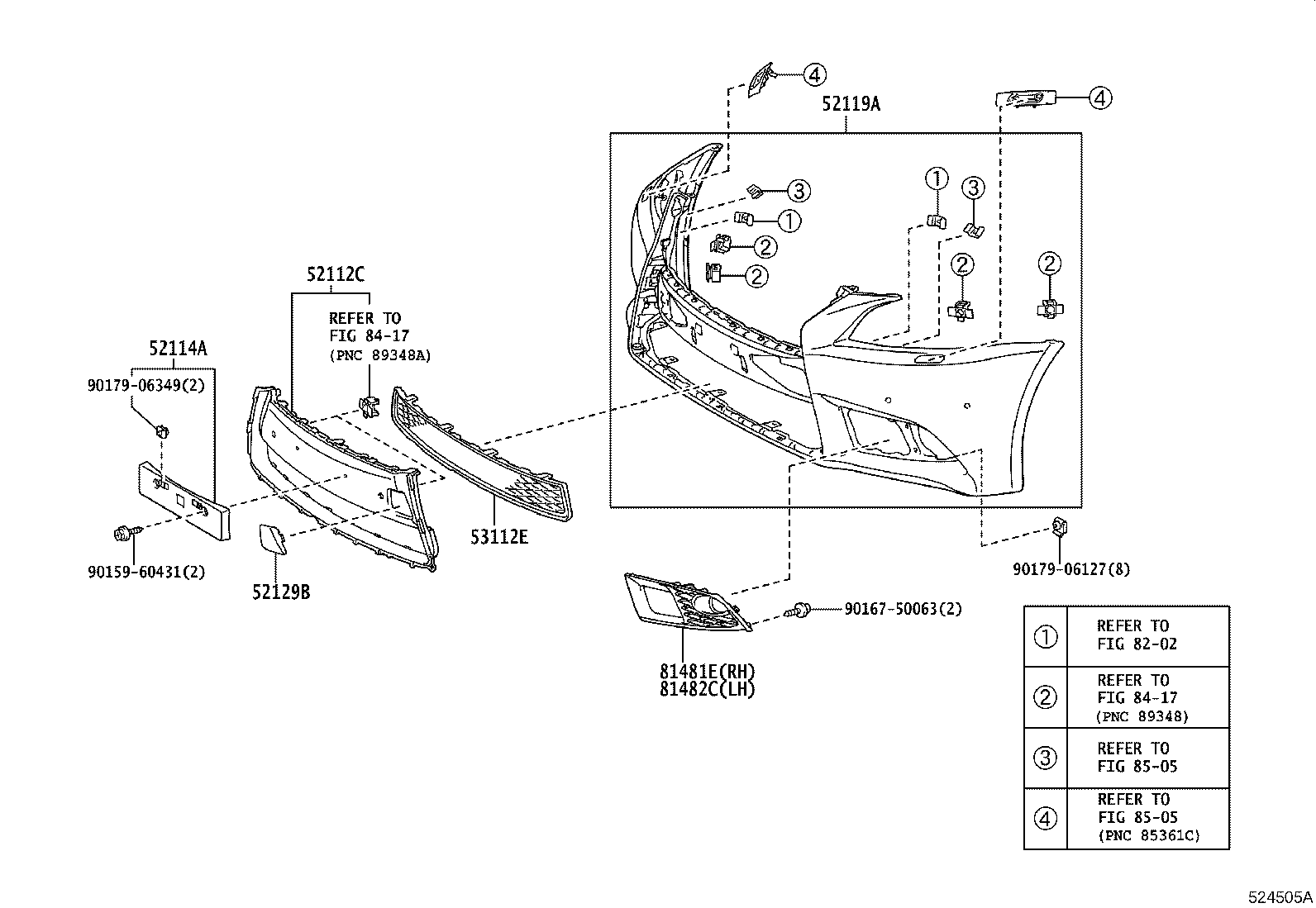

Click highlighted areas on diagram

F SPORT

Part #	Description	Period	Qty
52112C - EXTENSION, FRONT BUMPER
52112-50906	UVF45..GCC	10/2012 - 12/2999	1
52112-50913	UVF45..GCC THE CRAFTED LINE	10/2014 - 09/2015	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-50320	UVF45..GCC	10/2012 - 08/2017	1
52114-50370	UVF45..GCC THE CRAFTED LINE	10/2014 - 09/2015	1
52119A - COVER, FRONT BUMPER
52119-5C907	UVF45..GCC PAINT REQ.	10/2012 - 08/2017	1
52129B - COVER, FRONT BUMPER, LOWER
52128-50090	UVF45..GCC THE CRAFTED LINE	10/2014 - 09/2015	1
52128-50080	UVF45..GCC	10/2012 - 12/2999	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-50310	UVF45..GCC PLATED	10/2012 - 08/2017	1
53112-50280	UVF45..GCC PLATED,THE CRAFTED LINE	10/2014 - 09/2015	1
81481E - COVER, FOG LAMP, RH
81481-50080	UVF45..GCC THE CRAFTED LINE	10/2014 - 09/2015	1
81481-50060	UVF45..GCC	10/2012 - 12/2999	1
81482C - COVER, FOG LAMP, LH
81482-50080	UVF45..GCC THE CRAFTED LINE	10/2014 - 09/2015	1
81482-50060	UVF45..GCC	10/2012 - 12/2999	1
Common parts
90159-60431
90167-50063
90179-06127
90179-06349
Linked diagrams
8202
8417
8505
