UVF45L-AEXGHV (2012)

Toyota Lexus Ls600h/600hl

Production Oct 2012 - Aug 2017
Engine 2URFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )UVF45 ; (1210- )UVF46..EUR

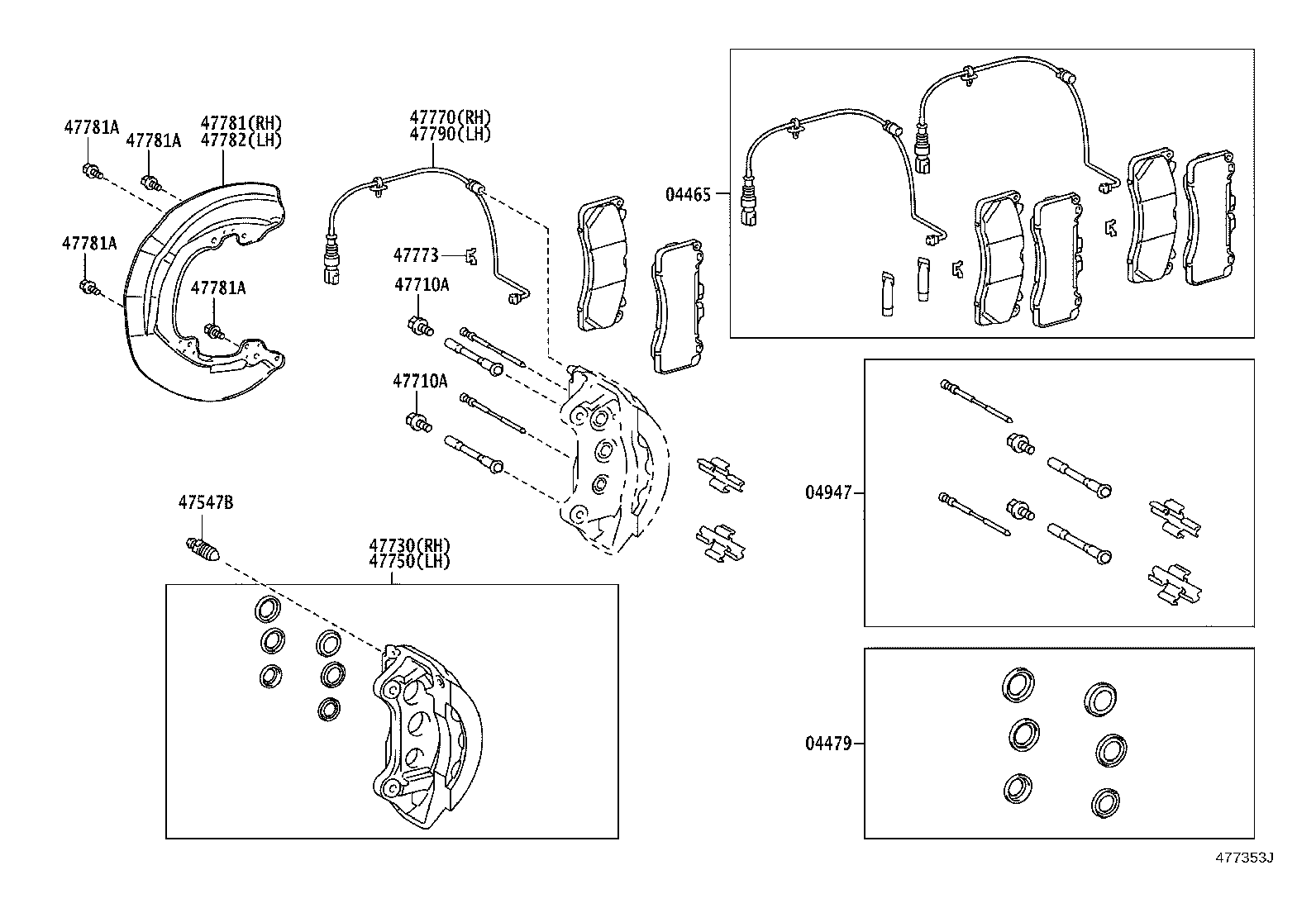

Click highlighted areas on diagram

MARK PAGID 4668

diagram 04465 04479 04947 47547B 47710A 47710A 47730 47750 47770 47773 47781 47781A 47781A 47781A 47781A 47782 47790
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0W151

UVF45;UVF46..EUR

MARK PAGID 4668

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0W020

UVF45;UVF46..EUR

 2
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0W020

UVF45;UVF46..EUR

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
90069-39012

UVF45;UVF46..EUR

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-14180

UVF4#

*14-1.5PX40-35.5

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-14180

UVF4#

*14-1.5PX40-35.5

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0W110

UVF45;UVF46..EUR

 1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0W110

UVF45;UVF46..EUR

 1
47770 - WIRE ASSY, PAD WEAR INDICATOR, FRONT RH
47770-50110

UVF45;UVF46..EUR

 1
47773 - RETAINER, PAD WEAR INDICATOR
47773-50030

UVF45;UVF46..EUR

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-50070

UVF45;UVF46..EUR

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06508

UVF4#

 8
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06508

UVF4#

 8
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06508

UVF4#

 8
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06508

UVF4#

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-50070

UVF45;UVF46..EUR

 1
47790 - WIRE ASSY, PAD WEAR INDICATOR, FRONT LH
47790-50070

UVF45;UVF46..EUR

 1
