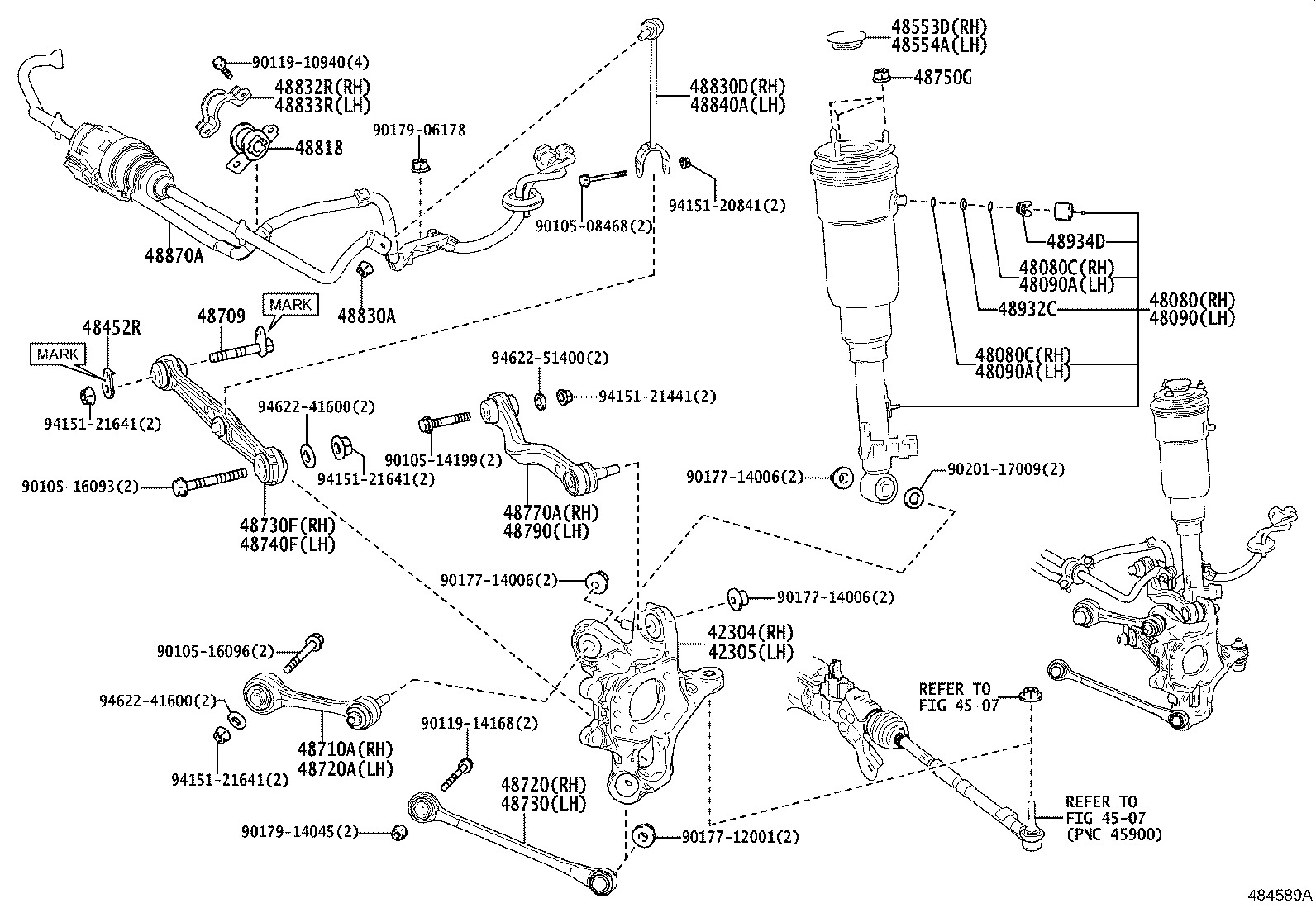

VXFA50R-AEUGT (2017)
Toyota Lexus Ls500/500h/350
(1712- )VXFA50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48080 - CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER | ||||
| 48080-50430 |
VXFA50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 48080-50430 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 48080-50430 |
VXFA50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 48080-50431 |
GSF50..RHD;GVF50,VXFA50 |
1 | ||
| 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-05012 |
VXFA50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
VXFA50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
GSF50..RHD;GVF50,VXFA50..GCC,GEN |
2 | ||
| 90301-05012 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-05012 |
VXFA50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
VXFA50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
GSF50..RHD;GVF50,VXFA50..GCC,GEN |
2 | ||
| 90301-05012 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48090 - CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER | ||||
| 48090-50430 |
VXFA50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 48090-50431 |
GSF50..RHD;GVF50,VXFA50 |
1 | ||
| 48090-50430 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 48090-50430 |
VXFA50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-05012 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
VXFA50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
VXFA50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
GSF50..RHD;GVF50,VXFA50..GCC,GEN |
2 | ||
| 48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-05012 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
VXFA50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
VXFA50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 90301-05012 |
GSF50..RHD;GVF50,VXFA50..GCC,GEN |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-11010 |
GSF50,GVF50,VXFA50 MARK A****,NO.1 |
2 | ||
| 48452-11030 |
GSF50,GVF50,VXFA50 MARK C,NO.1 |
2 | ||
| 48452-50040 |
GSF50,GVF50,VXFA50 NO.2 |
2 | ||
| 48452-11020 |
GSF50,GVF50,VXFA50 MARK B,NO.1 |
2 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-50160 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-50160 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48709 - ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM | ||||
| 48709-11030 |
GSF50,GVF50,VXFA50 MARK B |
2 | ||
| 48709-11040 |
GSF50,GVF50,VXFA50 MARK C |
2 | ||
| 48709-11020 |
GSF50,GVF50,VXFA50 MARK A |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-50120 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-50040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-50120 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-50040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90178-10033 |
GSF50,GVF50,VXFA50 |
6 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-11020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-50060 |
GSF50..RHD;GVF50,VXFA50..GCC,GEN |
2 | ||
| 48818-50080 |
VXFA50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48818-50080 |
VXFA50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48818-50050 |
VXFA50 "F SPORT"*(F) |
2 | ||
| 48818-50080 |
GSF50..RHD;GVF50,VXFA50..GCC,GEN |
2 | ||
| 48818-50050 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48818-50081 |
GSF50..RHD;GVF50,VXFA50 |
2 | ||
| 48818-50051 |
VXFA50 "F SPORT"*(F) |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GSF50,GVF50,VXFA50 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-50020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48832-50020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 48870A - ACUTUATOR ASSY, REAR ACTIVE STABILIZER CONTROL | ||||
| 48870-50020 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 48870-50020 |
VXFA50 "F SPORT"*(F) |
1 | ||
| 48932C - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-50010 |
VXFA50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48932-50010 |
VXFA50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48932-50010 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48932-50010 |
GSF50..RHD;GVF50,VXFA50..GCC,GEN |
2 | ||
| 48934D - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-50020 |
VXFA50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48934-50020 |
VXFA50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48934-50020 |
VXFA50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 48934-50020 |
GSF50..RHD;GVF50,VXFA50..GCC,GEN |
2 | ||
| Common parts | ||||
| 90105-08468 | ||||
| 90105-14199 | ||||
| 90105-16093 | ||||
| 90105-16096 | ||||
| 90119-10940 | ||||
| 90119-14168 | ||||
| 90177-12001 | ||||
| 90177-14006 | ||||
| 90179-06178 | ||||
| 90179-14045 | ||||
| 90201-17009 | ||||
| 94151-20841 | ||||
| 94151-21441 | ||||
| 94151-21641 | ||||
| 94622-41600 | ||||
| 94622-51400 | ||||
| Linked diagrams | ||||
| 4507 | ||||
