VXFA50R-AEUGT (2017)

Toyota Lexus Ls500/500h/350

Production Dec 2017 - Oct 2020
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )V35AFTS

Click highlighted areas on diagram

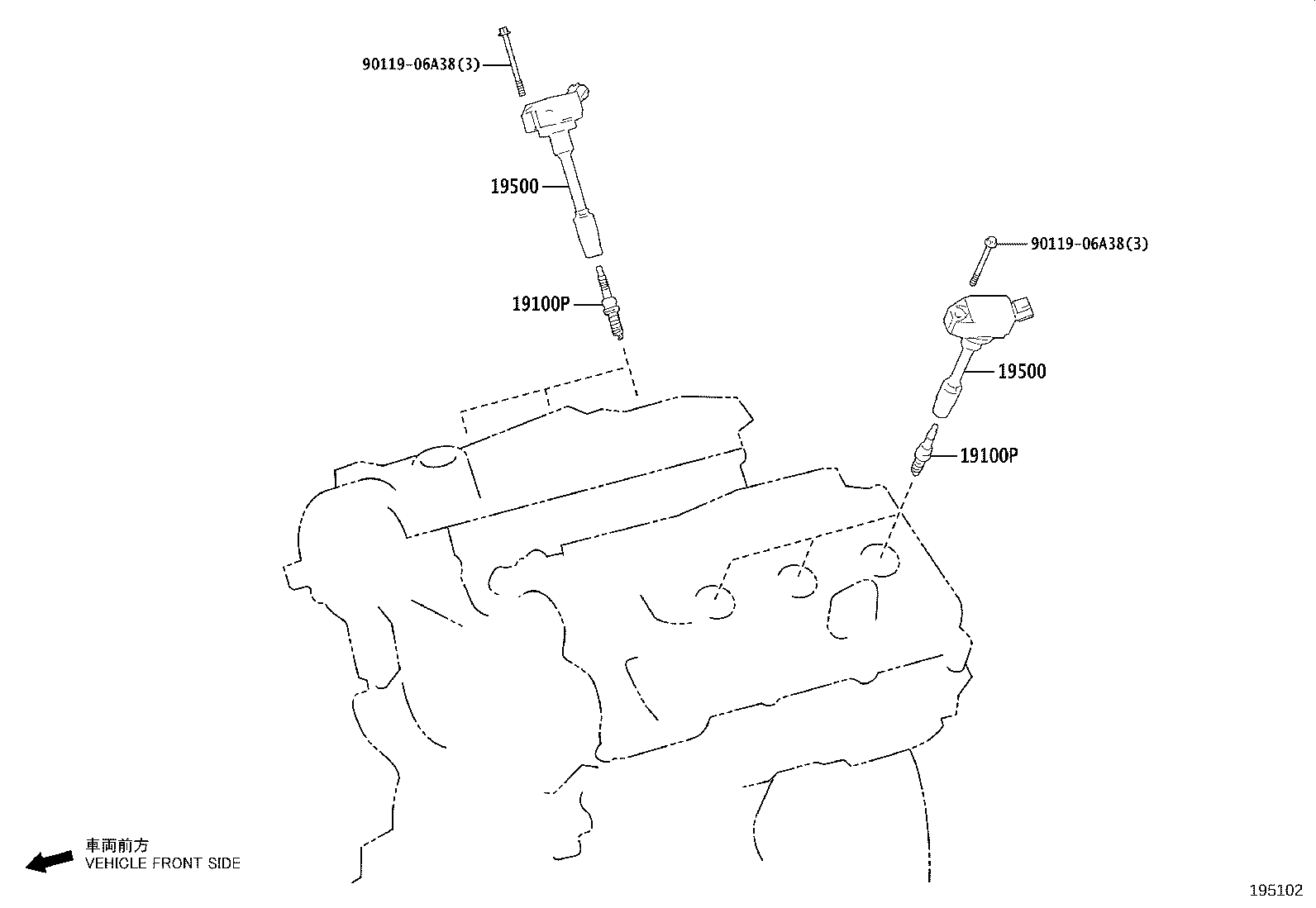

diagram 19100P 19100P 19500 19500 9011906A38 9011906A38
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01295

V35AFTS..VXFA50

EC22HPR-D7

 6
19100P - PLUG, SPARK
90919-01295

V35AFTS..VXFA50

EC22HPR-D7

 6
19500 - COIL ASSY, IGNITION
90919-02277

V35AFTS..VXFA50

 6
19500 - COIL ASSY, IGNITION
90919-02277

V35AFTS..VXFA50

 6
Common parts
90119-06A38
