VXFA50L-AEUGTV (2017)
Toyota Lexus Ls500/500h/350
Production
Dec 2017
-
Oct 2020
Engine
V35AFTS
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1712-2010)VXFA50..LHD ; (2010- )VXFA50..LHD

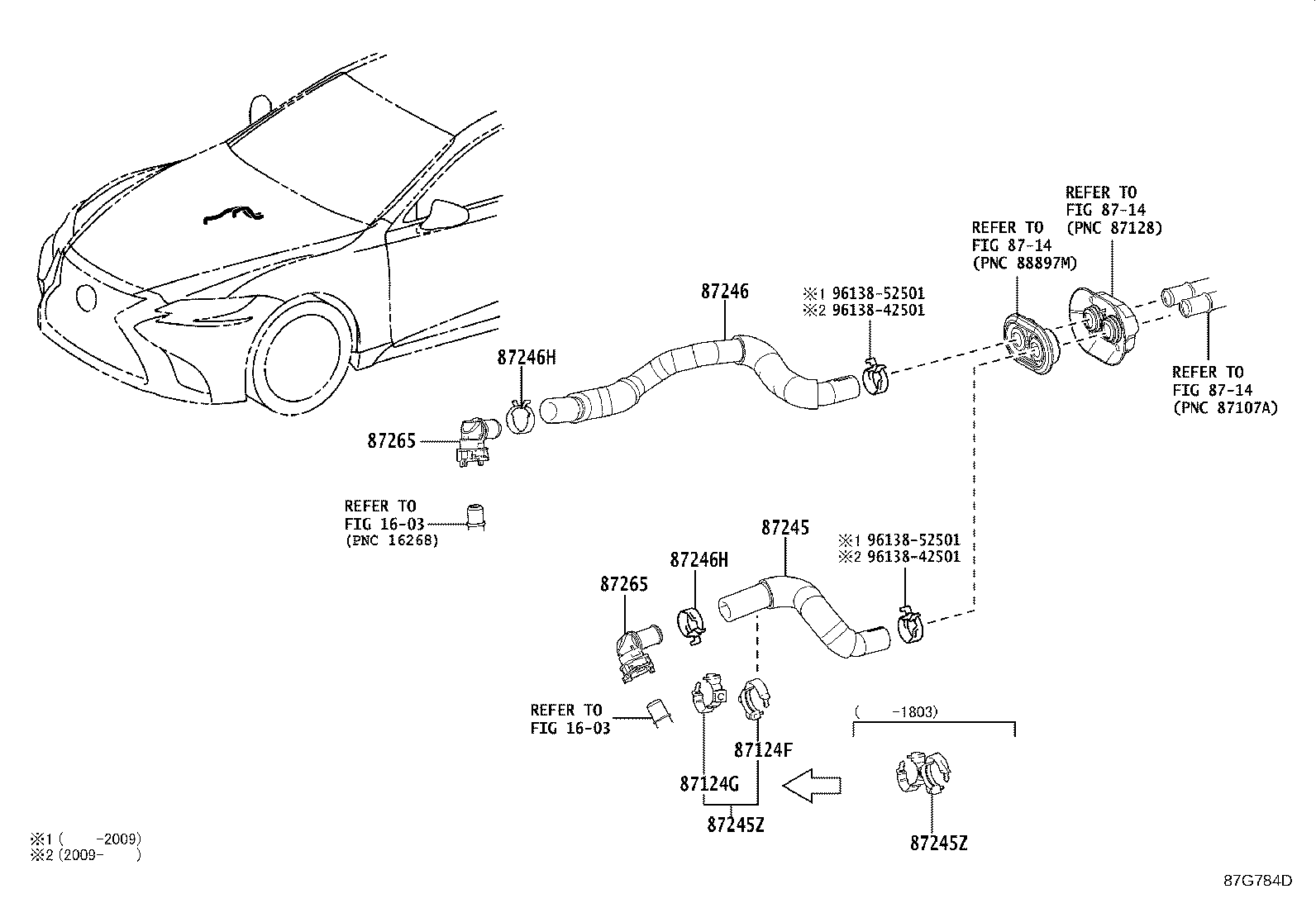

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87124F - CLAMP, HEATER HOSE, NO.1 | ||||
| 87124-50050 |
VXFA50 |
1 | ||
| 87124G - CLAMP, HEATER HOSE, NO.2 | ||||
| 87124-50060 |
VXFA50 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-50470 |
VXFA50..LHD |
1 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 16581-21100 |
VXFA50 |
1 | ||
| 16581-70050 |
VXFA50 |
1 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 16581-21100 |
VXFA50 |
1 | ||
| 16581-70050 |
VXFA50 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-50460 |
VXFA50..LHD |
1 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 96138-52701 |
VXFA50 |
2 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 96138-52701 |
VXFA50 |
2 | ||
| 87265 - CONNECTOR, HEATER WATER HOSE | ||||
| 87265-50010 |
VXFA50 |
2 | ||
| 87265 - CONNECTOR, HEATER WATER HOSE | ||||
| 87265-50010 |
VXFA50 |
2 | ||
| Common parts | ||||
| 96138-42501 | ||||
| 96138-52501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
