VXFA50L-AEUGT (2017)

Toyota Lexus Ls500/500h/350

Production Dec 2017 - Oct 2020
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )V35AFTS

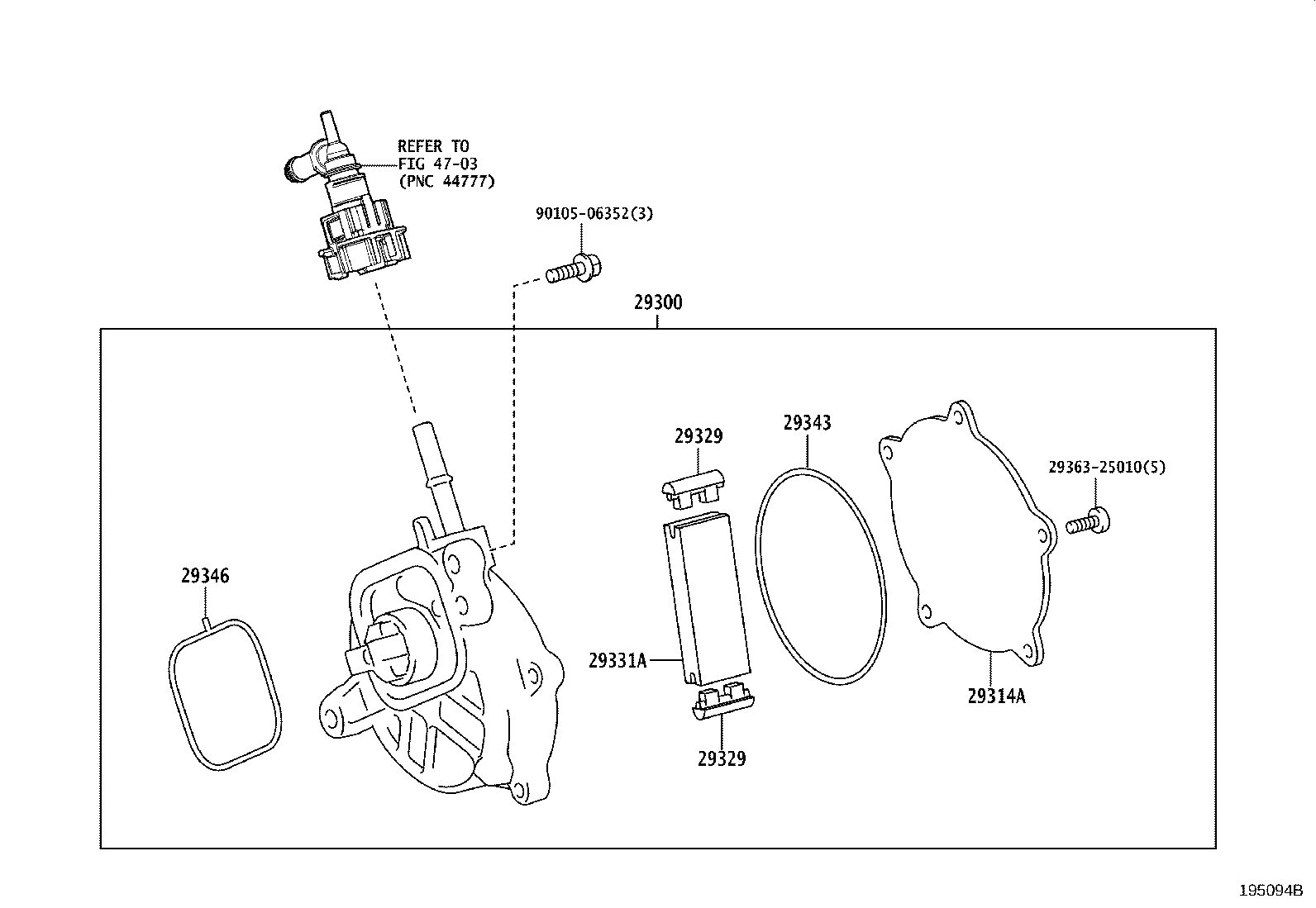

Click highlighted areas on diagram

diagram 29300 29314A 29329 29329 29331A 29343 29346 2936325010 4703 9010506352
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-25011

V35AFTS..VXFA50

 1
29314A - COVER, END
29314-25010

V35AFTS..VXFA50

 1
29329 - CAP, VACUUM PUMP VANE
29329-25011

V35AFTS..VXFA50

 2
29329 - CAP, VACUUM PUMP VANE
29329-25011

V35AFTS..VXFA50

 2
29331A - VANE, VACUUM PUMP
29331-25010

V35AFTS..VXFA50

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-25010

V35AFTS..VXFA50

 1
29346 - RING, O VACUUM PUMP COVER
29346-25010

V35AFTS..VXFA50

 1
Common parts
29363-25010
90105-06352
Linked diagrams
4703
