GVF50L-AEVGH (2017)

Toyota Lexus Ls500/500h/350

Production Oct 2017 - Oct 2020
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710-2010)LHD ; (2010- )LHD

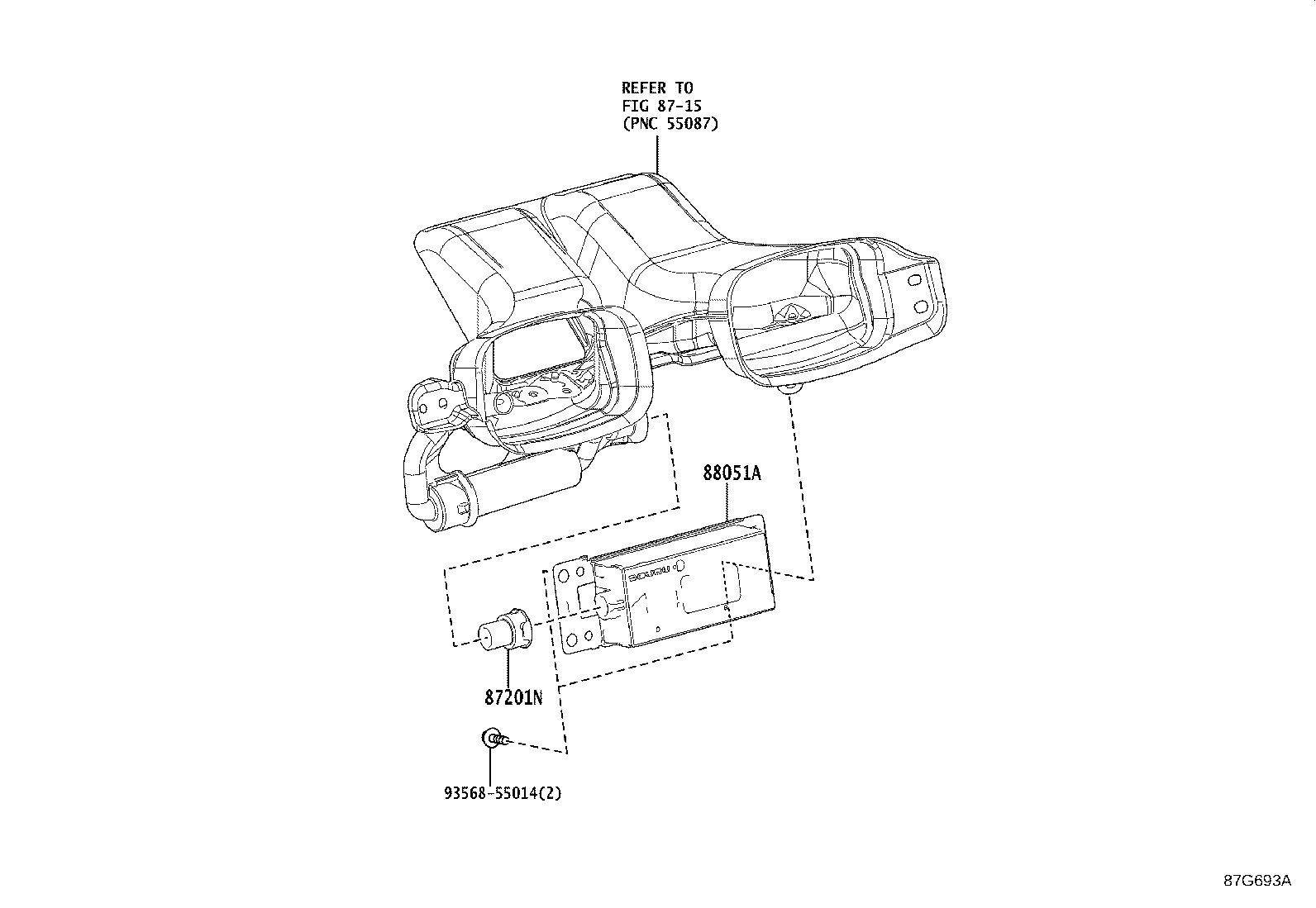

Click highlighted areas on diagram

diagram 8715 87201N 88051A 9356855014
Part # Description Qty Price
87201N - DUCT SUB-ASSY, AIR
55848-50010

GSF50,GVF50,VXFA50

 1
88051A - GENERATOR SUB-ASSY,ION
88051-28060

GSF50,GVF50,VXFA50

 1
Common parts
93568-55014
Linked diagrams
8715
