GVF50L-AEVGH (2017)

Toyota Lexus Ls500/500h/350

Production Oct 2017 - Oct 2020
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710-2010)GVF50 ; (2010- )GVF50

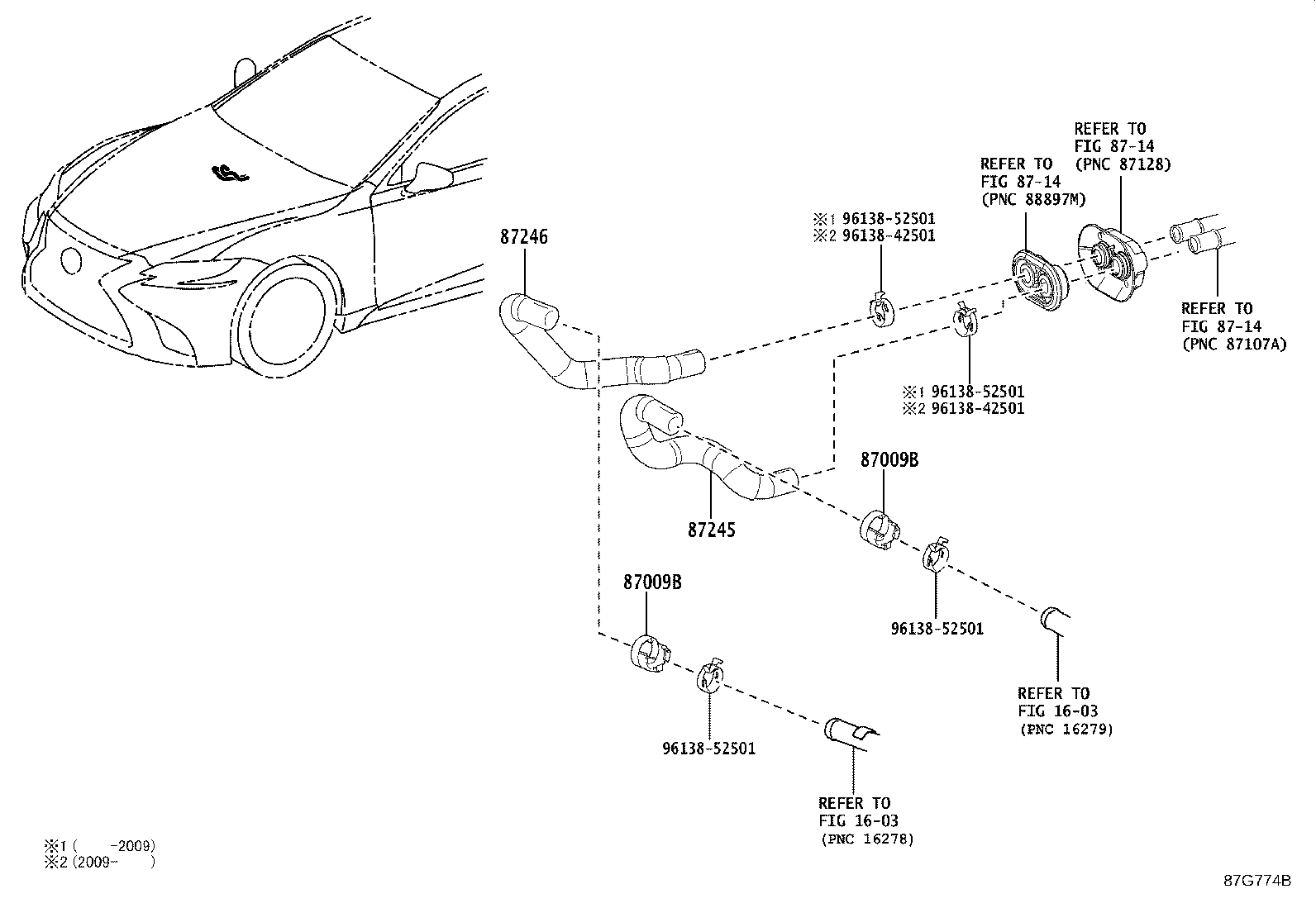

Click highlighted areas on diagram

diagram 1603 1603 87009B 87009B 8714 8714 8714 87245 87246 9613842501 9613842501 9613852501 9613852501 9613852501 9613852501
Part # Description Qty Price
87009B - HOSE SET, WATER
87009-11010

GSF50,GVF50

 2
87009B - HOSE SET, WATER
87009-11010

GSF50,GVF50

 2
87245 - HOSE, HEATER WATER, INLET
87245-11030

GVF50

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-11040

GVF50

 1
Common parts
96138-42501
96138-52501
Linked diagrams
1603
8714
