GVF50L-AEVGH (2017)

Toyota Lexus Ls500/500h/350

Production Oct 2017 - Oct 2020
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )LHD

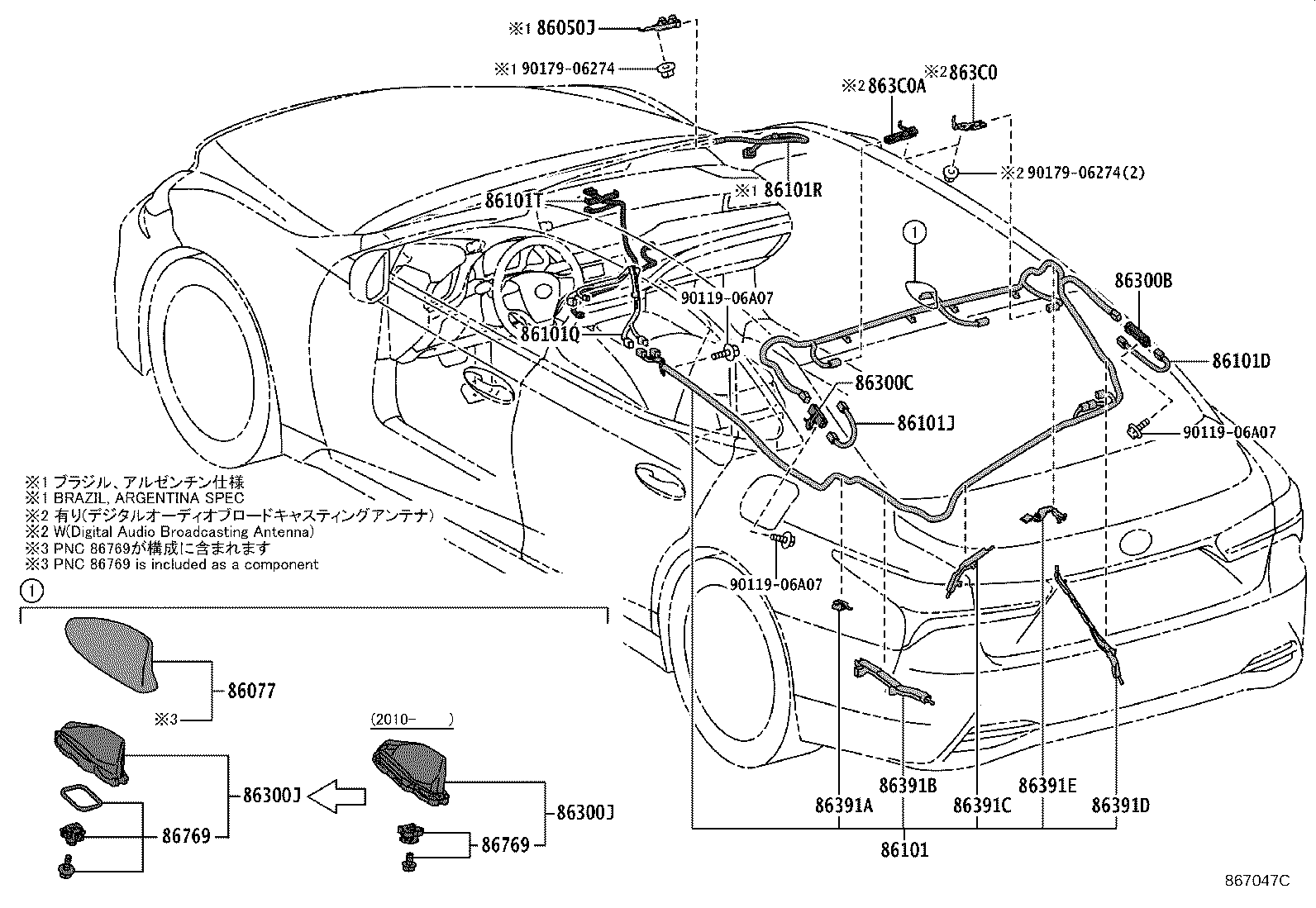

Click highlighted areas on diagram

diagram 86050J 86077 86101 86101D 86101J 86101Q 86101R 86101T 86300B 86300C 86300J 86300J 86391A 86391B 86391C 86391D 86391E 863C0 863C0A 86769 86769 9011906A07 9011906A07 9011906A07 9017906274 9017906274
Part # Description Qty Price
86050J - ANTENNA ASSY, TELEVISION, NO.2 RH
86050-53190

GVF50..LHD..GEN

BRAZIL SPEC

 1
86050-53190

GVF50..LHD..GEN

ARGENTINA SPEC

 1
86077 - COVER KIT, ANTENNA
86077-53010A1

GVF50..CHI,GEN;GSF50,VXFA50..GEN

MOON ROOF-WITH(PANORAMA ROOF),WHITE NOVA GF.,083

 1
86077-53010A2

GSF50,GVF50,VXFA50

SONIC QUARTZ,085

 1
86077-53010A1

GVF50;GSF50,VXFA50..GCC,GEN

WHITE NOVA GF.,083

 1
86077-53010B2

GSF50,GVF50,VXFA50

SONIC TITANIUM,1J7

 1
86077-53010A2

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),SONIC QUARTZ,085

 1
86077-53010B3

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),SONIC SILVER,1J2

 1
86077-53010E3

GSF50,GVF50,VXFA50

AMBER CS.,4X2

 1
86077-53010E3

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),AMBER CS.,4X2

 1
86077-53010B2

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),SONIC TITANIUM,1J7

 1
86077-53010B6

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),MANGANESE LUSTER,1K2

 1
86077-53010B6

GSF50,GVF50,VXFA50

MANGANESE LUSTER,1K2

 1
86077-53010B3

GSF50,GVF50,VXFA50

SONIC SILVER,1J2

 1
86077-53010C0

GSF50,GVF50,VXFA50

BLACK,212

 1
86077-53010C3

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),GRAPHITE BLACK GF.,223

 1
86077-53010D4

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),SONIC AGATE,3U3

 1
86077-53010E0

GSF50,GVF50,VXFA50

SLEEK ECRU ME.,4U7

 1
86077-53010C0

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),BLACK,212

 1
86077-53010D0

GSF50,GVF50,VXFA50

RED MC.CS.,3R1

 1
86077-53010C3

GSF50,GVF50,VXFA50

GRAPHITE BLACK GF.,223

 1
86077-53010D4

GSF50,GVF50,VXFA50

SONIC AGATE,3U3

 1
86077-53010J2

GVF50;GSF50,VXFA50..GCC,GEN

BLUE,8X1

 1
86077-53010E0

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),SLEEK ECRU ME.,4U7

 1
86077-53010J4

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),DEEP BLUE MC.,8X5

 1
86077-53010J4

GSF50,GVF50,VXFA50

DEEP BLUE MC.,8X5

 1
86077-53010G1

GVF50,VXFA50..GCC,GEN

TERRANE KHAKI M.M.,6X4

 1
86077-53010D0

GSF50,GVF50,VXFA50..CHI,GEN

MOON ROOF-WITH(PANORAMA ROOF),RED MC.CS.,3R1

 1
86077-53010J2

GVF50..CHI,GEN;GSF50,VXFA50..GEN

MOON ROOF-WITH(PANORAMA ROOF),BLUE,8X1

 1
86077-53010G1

GVF50,VXFA50..GEN

MOON ROOF-WITH(PANORAMA ROOF),TERRANE KHAKI M.M.,6X4

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-50L80

GSF50,GVF50,VXFA50..LHD..(GCC,GEN)

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-50B50

GSF50,GVF50,VXFA50

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-50K10

GSF50,GVF50,VXFA50

 1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-50L70

GSF50,GVF50,VXFA50..LHD

 1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-50N10

GVF50..LHD..GEN

BRAZIL SPEC

 1
86101-50N10

GVF50..LHD..GEN

ARGENTINA SPEC

 1
86101T - CORD SUB-ASSY, ANTENNA
86101-50C00

GVF50..LHD..GEN

BRAZIL SPEC

 1
86101-50C00

GSF50,GVF50,VXFA50..LHD..(GCC,GEN)

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-33370

GSF50,GVF50,VXFA50

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-33380

GSF50,GVF50,VXFA50

 1
86300J - ANTENNA ASSY, ROOF
86760-48070

GSF50,GVF50,VXFA50

 1
86300J - ANTENNA ASSY, ROOF
86760-48070

GSF50,GVF50,VXFA50

 1
86391A - PROTECTOR, ANTENNA CORD
87268-50030

GSF50,GVF50,VXFA50

 1
86391B - PROTECTOR, ANTENNA CORD
87268-50040

GSF50,GVF50,VXFA50

 1
86391C - PROTECTOR, ANTENNA CORD
87268-50050

GSF50,GVF50,VXFA50

 1
86391D - PROTECTOR, ANTENNA CORD
87268-50080

GSF50,GVF50,VXFA50

 1
86391E - PROTECTOR, ANTENNA CORD
87268-50090

GSF50,GVF50,VXFA50

 1
86769 - HOUSING, ROOF ANTENNA
86769-53010

GSF50,GVF50,VXFA50

 1
86769 - HOUSING, ROOF ANTENNA
86769-53010

GSF50,GVF50,VXFA50

 1
Common parts
90119-06A07
90179-06274
