GVF50L-AEVGH (2017)
Toyota Lexus Ls500/500h/350

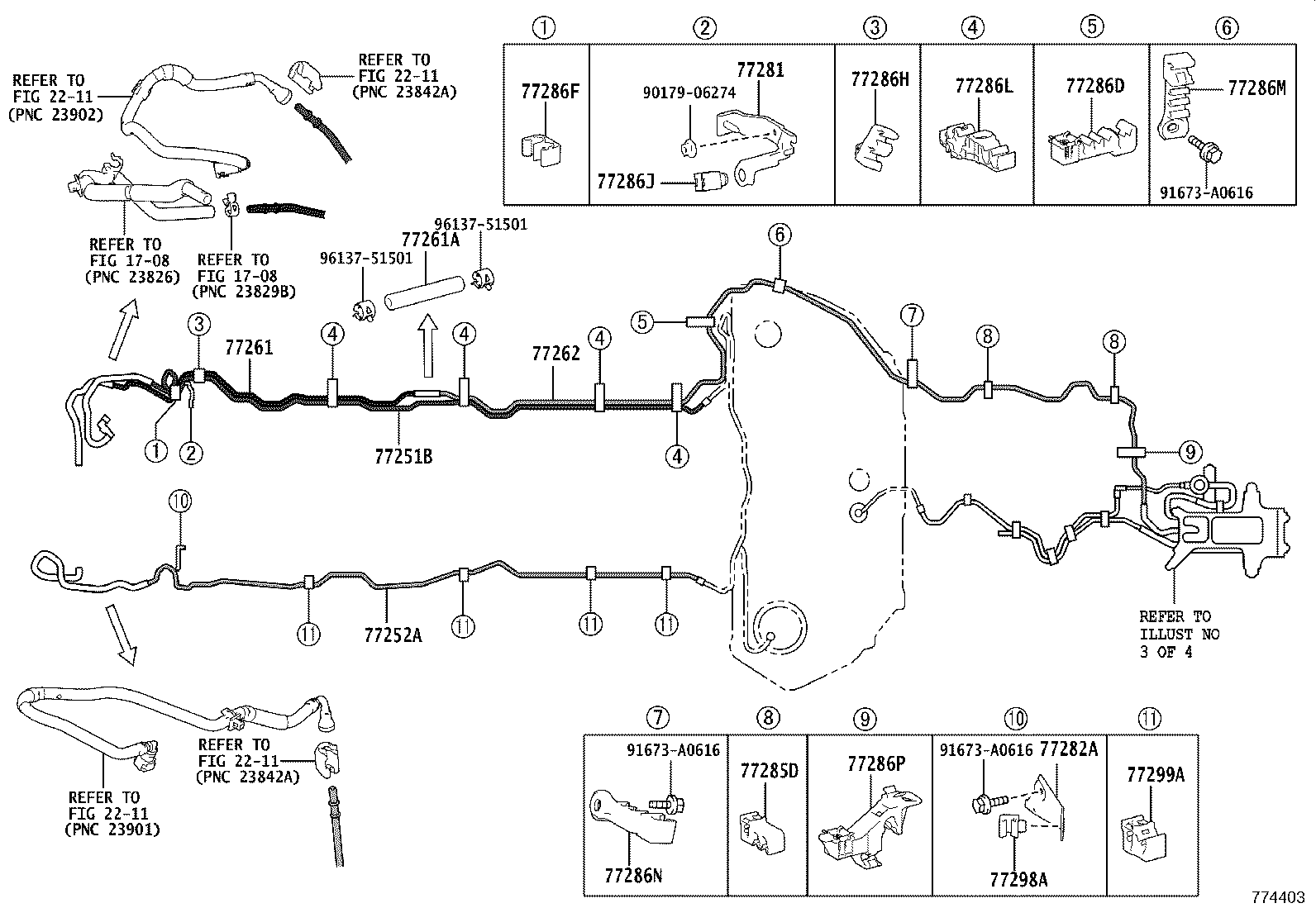

ILLUST NO. 2 OF 4(1710- )GVF50..LHD..GCC,GEN
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-50150 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77251-50150 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77251-50150 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77251-50150 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77251-50150 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-50070 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77252-50070 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77252-50070 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77252-50070 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77252-50070 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-50190 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77261-50190 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77261-50190 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77261-50190 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77261-50190 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77261A - HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE) | ||||
| 95333-08010 |
GSF50..RHD;GVF50..GCC,GEN *H,L=80,"EXECUTIVE"*(E) |
1 | ||
| 95333-08010 |
GSF50,GVF50..GCC,GEN *H,L=80,"F SPORT"*(F) |
1 | ||
| 95333-08010 |
GVF50..LHD..(GCC,GEN) *H,L=80 |
1 | ||
| 95333-08010 |
GSF50..RHD;GVF50..GCC,GEN *H,L=80,"VERSION L"*(L) |
1 | ||
| 95333-08010 |
GVF50..LHD..(GCC,GEN) *H,L=80 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-50100 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77262-50100 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77262-50100 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77262-50100 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77262-50100 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-11050 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77281-11050 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77281-11050 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77281-11050 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77281-11050 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77282A - BRACKET, FUEL MAIN TUBE, NO.2 | ||||
| 77281-11070 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77281-11070 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77281-11070 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77281-11070 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77281-11070 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50040 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
2 | ||
| 77285-50040 |
GVF50..LHD..(GCC,GEN) |
2 | ||
| 77285-50040 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
2 | ||
| 77285-50040 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
2 | ||
| 77285-50040 |
GVF50..LHD..(GCC,GEN) |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-11010 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77286-11010 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77286-11010 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77286-11010 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77286-11010 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52100 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77286-52100 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77286-52100 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77286-52100 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77286-52100 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-50060 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77286-50060 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77286-50060 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77286-50060 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77286-50060 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-11061 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77286-11061 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77286-11061 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77286-11061 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77286-11061 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77289-11010 |
GVF50..LHD..(GCC,GEN) |
4 | ||
| 77289-11010 |
GVF50..LHD..(GCC,GEN) |
4 | ||
| 77289-11010 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
4 | ||
| 77289-11010 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
4 | ||
| 77289-11010 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
4 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77298-11010 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77298-11010 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77298-11010 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77298-11010 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77298-11010 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77298-11020 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77298-11020 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77298-11020 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77298-11020 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77298-11020 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77299-50080 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77299-50080 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77299-50080 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77299-50080 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77299-50080 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-11030 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 77298-11030 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 77298-11030 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77298-11030 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 77298-11030 |
GVF50..LHD..(GCC,GEN) |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
GVF50..LHD..(GCC,GEN) "F SPORT"*(F) |
4 | ||
| 77299-48020 |
GVF50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
4 | ||
| 77299-48020 |
GVF50..LHD..(GCC,GEN) |
4 | ||
| 77299-48020 |
GVF50..LHD..(GCC,GEN) "VERSION L"*(L) |
4 | ||
| 77299-48020 |
GVF50..LHD..(GCC,GEN) |
4 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91673-A0616 | ||||
| 96137-51501 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 4 OF 4(1710- )
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-50090 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77283C - BRACKET, FUEL TANK PROTECTOR | ||||
| 77283-50030 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-50040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-50011 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77305-50010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77333 - CLIP, FUEL LID SWITCH | ||||
| 77333-50010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-50060 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GSF50,GVF50,VXFA50 |
1 | ||
| Common parts | ||||
| 90159-50269 | ||||
| 90189-05137 | ||||
ILLUST NO. 1 OF 4(1710- )GSF50,GVF50
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 MARK 23070-31030 |
1 | ||
| 23070-36010 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 MARK 23070-36010 |
1 | ||
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 MARK 23070-31030 |
1 | ||
| 23070-36010 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 MARK 23070-36010 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31080 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31130 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
2 | ||
| 23280P - RING, O(FOR FUEL PRESSURE REGULATOR), NO.3 | ||||
| 90301-11025 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
V35AFTS,8GR#..GSF50,GVF50,VXFA50 |
2 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-11040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-50030 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-11020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-11110 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-48040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-52010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-50220 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-11050 |
GSF50,GVF50 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-11070 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-50070 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-50110 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-50010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77221 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77227-50030 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77221B - CLAMP, BREATHR TUBE | ||||
| 77229-11110 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-50070 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-11080 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-11120 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90959-04001 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-50020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
GSF50,GVF50,VXFA50 |
4 | ||
| 77288 - CLAMP, BREATHER HOSE | ||||
| 77229-50080 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-11030 |
GSF50,GVF50 |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-11040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77295-35260 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-11020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77607C - PROTECTOR SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77607-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-11050 |
GSF50,GVF50,VXFA50 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-11050 |
GSF50,GVF50,VXFA50 |
2 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
GSF50,GVF50,VXFA50 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
GSF50,GVF50,VXFA50 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
GSF50,GVF50,VXFA50 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
GSF50,GVF50,VXFA50 |
4 | ||
| 77621 - BRACKET, FUEL TANK PROTECTOR | ||||
| 77621-50040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-50040 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
GSF50,GVF50,VXFA50 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-36130 |
GSF50,GVF50,VXFA50 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-35050 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77652-22090 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
GSF50,GVF50,VXFA50 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
GSF50,GVF50,VXFA50 |
2 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-11050 |
GSF50,GVF50,VXFA50 L=80 |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-11060 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77778-50020 |
GSF50,GVF50,VXFA50 |
2 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77778-50020 |
GSF50,GVF50,VXFA50 |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-30050 |
GSF50,GVF50,VXFA50 |
1 | ||
| Common parts | ||||
| 90119-06A14 | ||||
| 90119-08D17 | ||||
| 90159-50343 | ||||
| 90301-08019 | ||||
| 90460-22002 | ||||
| 90460-37003 | ||||
| 90460-40007 | ||||
| 90466-17002 | ||||
| 90467-15018 | ||||
| 91626-B0614 | ||||
| 96132-51300 | ||||
| 96137-41901 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(1710- )
CHARCOAL CANISTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77203D - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77203-50070 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-50030 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77285P - CLAMP, NO.1(FOR CHARCOAL CANISTER PIPE) | ||||
| 77285-11020 |
GSF50,GVF50,VXFA50 |
3 | ||
| 77285P - CLAMP, NO.1(FOR CHARCOAL CANISTER PIPE) | ||||
| 77285-11020 |
GSF50,GVF50,VXFA50 |
3 | ||
| 77285P - CLAMP, NO.1(FOR CHARCOAL CANISTER PIPE) | ||||
| 77285-11020 |
GSF50,GVF50,VXFA50 |
3 | ||
| 77285Q - CLAMP, NO.2(FOR CHARCOAL CANISTER PIPE) | ||||
| 77285-50030 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77286U - CLAMP(FOR CHARCOAL CANISTER PIPE) | ||||
| 77286-50050 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77299E - CLAMP (FOR CHARCOAL CANISTER PIPE) | ||||
| 77299-50070 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77720H - VALVE ASSY, FUEL OUTLET | ||||
| 77720-50020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-50170 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-50030 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-50030 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-50050 |
GSF50,GVF50,VXFA50 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-50070 |
GSF50,GVF50,VXFA50 |
1 | ||
| Common parts | ||||
| 90178-06025 | ||||
| 90467-14053 | ||||
| 90467-17021 | ||||
| 90561-13003 | ||||
| 91671-A0620 | ||||
| 96133-41301 | ||||
| 96133-41501 | ||||
| 96137-41901 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
