GSF50R-AEUGH (2017)

Toyota Lexus Ls500/500h/350

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1710-1903)RHD

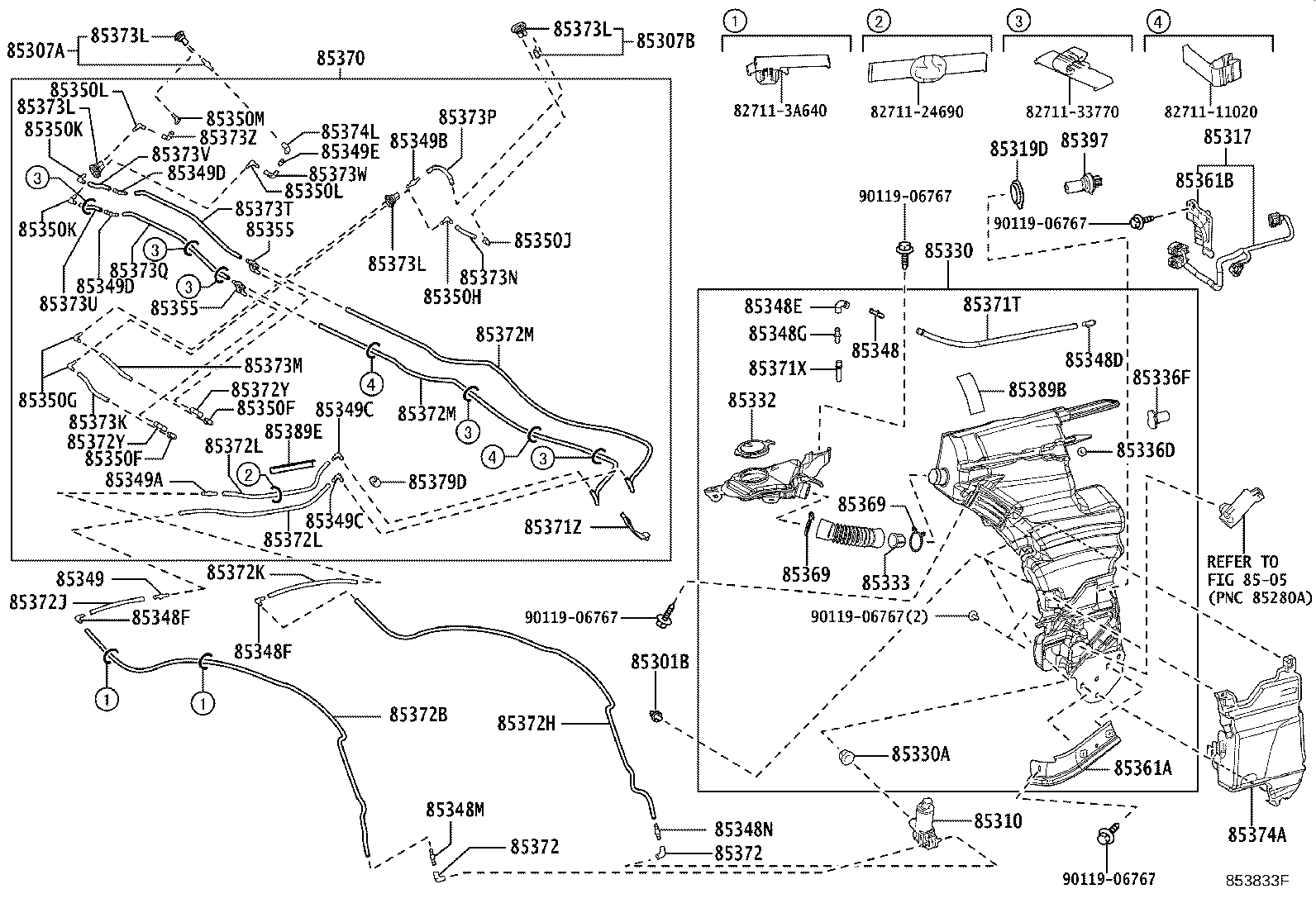

Click highlighted areas on diagram

diagram 8271111020 8271124690 8271133770 827113A640 8505 85301B 85307A 85307B 85310 85317 85319D 85330 85330A 85332 85333 85336D 85336F 85348 85348D 85348E 85348F 85348F 85348G 85348M 85348N 85349 85349A 85349B 85349C 85349C 85349D 85349D 85349E 85350F 85350F 85350G 85350H 85350J 85350K 85350K 85350L 85350L 85350M 85355 85355 85361A 85361B 85369 85369 85370 85371T 85371X 85371Z 85372 85372 85372B 85372H 85372J 85372K 85372L 85372L 85372M 85372M 85372Y 85372Y 85373K 85373L 85373L 85373L 85373L 85373M 85373N 85373P 85373Q 85373T 85373U 85373V 85373W 85373Z 85374A 85374L 85379D 85389B 85389E 85397 9011906767 9011906767 9011906767 9011906767 9011906767
Part # Description Qty Price
85301B - CLIP, WASHER
90467-07220

GSF50,GVF50,VXFA50

 3
85307A - GROMMET SUB-ASSY, WASHER, NO.1
85307-50010

GSF50,GVF50,VXFA50

 1
85307B - GROMMET SUB-ASSY, WASHER, NO.2
85307-50020

GSF50,GVF50,VXFA50

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-11030

GSF50,GVF50,VXFA50

 1
85330-11040

GSF50,GVF50,VXFA50

 1
85317 - WIRING ASSY, WASHER
85317-50221

GSF50,GVF50,VXFA50

 1
85319D - PACKING, FRONT WASHER
85319-33230

GSF50,GVF50,VXFA50

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-50101

GSF50,GVF50,VXFA50

 1
85355-50102

GSF50,GVF50,VXFA50

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GSF50,GVF50,VXFA50

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-50220

GSF50,GVF50,VXFA50

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-50010

GSF50,GVF50,VXFA50

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-50200

GSF50,GVF50,VXFA50

 1
85336F - PACKING, WINDSHIELD WASHER JAR
85336-50220

GSF50,GVF50,VXFA50

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85376-50170

GSF50,GVF50,VXFA50

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85375-14560

GSF50,GVF50,VXFA50

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85375-50180

GSF50,GVF50,VXFA50

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

GSF50,GVF50,VXFA50

 2
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

GSF50,GVF50,VXFA50

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-50170

GSF50,GVF50,VXFA50

 2
85375-50170

GSF50,GVF50,VXFA50

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

GSF50,GVF50,VXFA50

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260

GSF50,GVF50,VXFA50

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

GSF50,GVF50,VXFA50

 1
85375-10260

GSF50,GVF50,VXFA50

 1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

GSF50,GVF50,VXFA50

 1
85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

GSF50,GVF50,VXFA50

 1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

GSF50,GVF50,VXFA50

 2
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

GSF50,GVF50,VXFA50

 2
85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-14560

GSF50,GVF50,VXFA50

 2
85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-14560

GSF50,GVF50,VXFA50

 2
85349E - JOINT, WINDSHIELD WASHER HOSE, NO.5
85375-10260

GSF50,GVF50,VXFA50

 1
85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5
85355-20200

GSF50,GVF50,VXFA50

 2
85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5
85355-20200

GSF50,GVF50,VXFA50

 2
85350G - JOINT, WINDSHIELD WASHER ELBOW, NO.6
85377-50170

GSF50,GVF50,VXFA50

 2
85350H - JOINT, WINDSHIELD WASHER ELBOW, NO.7
85355-20200

GSF50,GVF50,VXFA50..RHD

 1
85350J - JOINT, WINDSHIELD WASHER ELBOW, NO.8
85355-20200

GSF50,GVF50,VXFA50

 1
85350K - JOINT, WINDSHIELD WASHER ELBOW, NO.9
85377-50170

GSF50,GVF50,VXFA50

 2
85350K - JOINT, WINDSHIELD WASHER ELBOW, NO.9
85377-50170

GSF50,GVF50,VXFA50

 2
85350L - JOINT, WINDSHIELD WASHER ELBOW, NO.10
85355-20200

GSF50,GVF50,VXFA50..RHD

 2
85350L - JOINT, WINDSHIELD WASHER ELBOW, NO.10
85355-20200

GSF50,GVF50,VXFA50..RHD

 2
85350M - JOINT, WINDSHIELD WASHER ELBOW, NO.11
85355-20200

GSF50,GVF50,VXFA50

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GSF50,GVF50,VXFA50

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GSF50,GVF50,VXFA50

 2
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85337-50220

GSF50,GVF50,VXFA50

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-50081

GSF50,GVF50,VXFA50

 2
85369 - CLAMP
90099-35033

GSF50,GVF50,VXFA50

 2
85369 - CLAMP
90099-35033

GSF50,GVF50,VXFA50

 2
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-50170

GSF50,GVF50,VXFA50..RHD

 1
85370-50171

GSF50,GVF50,VXFA50..RHD

 1
85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
90099-59398

GSF50,GVF50,VXFA50

 1
85371X - HOSE, WINDSHIELD WASHER(FROM JOINT TO TOINT)
90099-62168

GSF50,GVF50,VXFA50

 1
90099-33080

GSF50,GVF50,VXFA50

 1
85371Z - CLAMP, WASHER HOSE
85371-50030

GSF50,GVF50,VXFA50..RHD

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85336-12230

GSF50,GVF50,VXFA50

L=15

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85336-12230

GSF50,GVF50,VXFA50

L=15

 2
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GSF50,GVF50,VXFA50

*H,L=990

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GSF50,GVF50,VXFA50

*H,L=1000

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GSF50,GVF50,VXFA50

*H,L=180

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

GSF50,GVF50,VXFA50

*H,L=180

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=230

 2
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=230

 2
85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=1050

 2
85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=1050

 2
85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
85336-12230

GSF50,GVF50,VXFA50..RHD

 2
85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
85336-12230

GSF50,GVF50,VXFA50..RHD

 2
85373K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=120

 1
85373L - GROMMET, WASHER
85373-11020

GSF50,GVF50,VXFA50

 4
85373L - GROMMET, WASHER
85373-11020

GSF50,GVF50,VXFA50

 4
85373L - GROMMET, WASHER
85373-11020

GSF50,GVF50,VXFA50

 4
85373L - GROMMET, WASHER
85373-11020

GSF50,GVF50,VXFA50

 4
85373M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=100

 1
85373N - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=60

 1
85373P - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=90

 1
85373Q - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=340

 1
85373T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=320

 1
85373U - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=135

 1
85373V - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=125

 1
85373W - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.17
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=50

 1
85373Z - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.18
90099-33080

GSF50,GVF50,VXFA50

*H,L=1450

 1
85374A - PROTECTOR, WASHER HOSE
85372-50020

GSF50,GVF50,VXFA50

 1
85374L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.19
85336-12230

GSF50,GVF50,VXFA50..RHD

L=15

 1
85379D - GROMMET, WASHER, A
85379-50170

GSF50,GVF50,VXFA50..RHD

 1
85389B - PROTECTOR, WINDSHIELD WASHER
85389-50180

GSF50,GVF50,VXFA50

 1
85389E - PROTECTOR, WINDSHIELD WASHER, NO.2
85389-12880

GSF50,GVF50,VXFA50

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-52100

GSF50,GVF50,VXFA50

 1
Common parts
82711-11020
82711-24690
82711-33770
82711-3A640
90119-06767
Linked diagrams
8505

(1903-2010)RHD

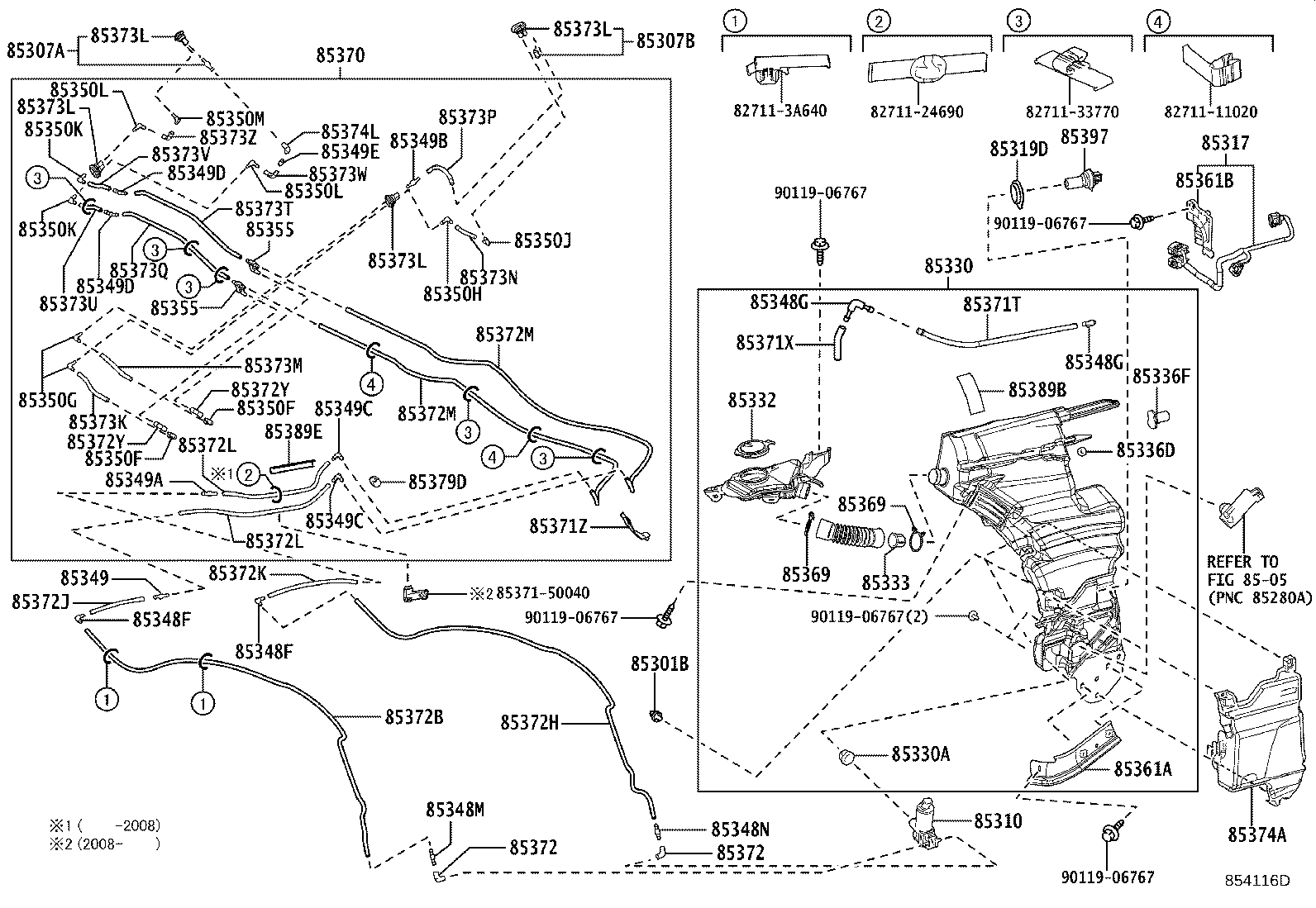

Click highlighted areas on diagram

diagram 8271111020 8271124690 8271133770 827113A640 8505 85301B 85307A 85307B 85310 85317 85319D 85330 85330A 85332 85333 85336D 85336F 85348F 85348F 85348G 85348G 85348M 85348N 85349 85349A 85349B 85349C 85349C 85349D 85349D 85349E 85350F 85350F 85350G 85350H 85350J 85350K 85350K 85350L 85350L 85350M 85355 85355 85361A 85361B 85369 85369 85370 8537150040 85371T 85371X 85371Z 85372 85372 85372B 85372H 85372J 85372K 85372L 85372L 85372M 85372M 85372Y 85372Y 85373K 85373L 85373L 85373L 85373L 85373M 85373N 85373P 85373Q 85373T 85373U 85373V 85373W 85373Z 85374A 85374L 85379D 85389B 85389E 85397 9011906767 9011906767 9011906767 9011906767 9011906767
Part # Description Qty Price
85301B - CLIP, WASHER
90467-07220

GSF50,GVF50,VXFA50

 3
85307A - GROMMET SUB-ASSY, WASHER, NO.1
85307-50010

GSF50,GVF50,VXFA50

 1
85307B - GROMMET SUB-ASSY, WASHER, NO.2
85307-50020

GSF50,GVF50,VXFA50

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-11030

GSF50,GVF50,VXFA50

 1
85330-11040

GSF50,GVF50,VXFA50

 1
85317 - WIRING ASSY, WASHER
85317-50221

GSF50,GVF50,VXFA50

 1
85319D - PACKING, FRONT WASHER
85319-33230

GSF50,GVF50,VXFA50

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-50101

GSF50,GVF50,VXFA50

 1
85355-50102

GSF50,GVF50,VXFA50

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GSF50,GVF50,VXFA50

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-50220

GSF50,GVF50,VXFA50

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-50010

GSF50,GVF50,VXFA50

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-50200

GSF50,GVF50,VXFA50

 1
85336F - PACKING, WINDSHIELD WASHER JAR
85336-50220

GSF50,GVF50,VXFA50

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

GSF50,GVF50,VXFA50

 2
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

GSF50,GVF50,VXFA50

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-50170

GSF50,GVF50,VXFA50

 2
85375-50170

GSF50,GVF50,VXFA50

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-50170

GSF50,GVF50,VXFA50

 2
85375-50170

GSF50,GVF50,VXFA50

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

GSF50,GVF50,VXFA50

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260

GSF50,GVF50,VXFA50

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

GSF50,GVF50,VXFA50

 1
85375-10260

GSF50,GVF50,VXFA50

 1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

GSF50,GVF50,VXFA50

 1
85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

GSF50,GVF50,VXFA50

 1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

GSF50,GVF50,VXFA50

 2
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

GSF50,GVF50,VXFA50

 2
85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-14560

GSF50,GVF50,VXFA50

 2
85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-14560

GSF50,GVF50,VXFA50

 2
85349E - JOINT, WINDSHIELD WASHER HOSE, NO.5
85375-10260

GSF50,GVF50,VXFA50

 1
85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5
85355-20200

GSF50,GVF50,VXFA50

 2
85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5
85355-20200

GSF50,GVF50,VXFA50

 2
85350G - JOINT, WINDSHIELD WASHER ELBOW, NO.6
85377-50170

GSF50,GVF50,VXFA50

 2
85350H - JOINT, WINDSHIELD WASHER ELBOW, NO.7
85355-20200

GSF50,GVF50,VXFA50..RHD

 1
85350J - JOINT, WINDSHIELD WASHER ELBOW, NO.8
85355-20200

GSF50,GVF50,VXFA50

 1
85350K - JOINT, WINDSHIELD WASHER ELBOW, NO.9
85377-50170

GSF50,GVF50,VXFA50

 2
85350K - JOINT, WINDSHIELD WASHER ELBOW, NO.9
85377-50170

GSF50,GVF50,VXFA50

 2
85350L - JOINT, WINDSHIELD WASHER ELBOW, NO.10
85355-20200

GSF50,GVF50,VXFA50..RHD

 2
85350L - JOINT, WINDSHIELD WASHER ELBOW, NO.10
85355-20200

GSF50,GVF50,VXFA50..RHD

 2
85350M - JOINT, WINDSHIELD WASHER ELBOW, NO.11
85355-20200

GSF50,GVF50,VXFA50

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GSF50,GVF50,VXFA50

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GSF50,GVF50,VXFA50

 2
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85337-50220

GSF50,GVF50,VXFA50

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-50081

GSF50,GVF50,VXFA50

 2
85369 - CLAMP
90099-35033

GSF50,GVF50,VXFA50

 2
85369 - CLAMP
90099-35033

GSF50,GVF50,VXFA50

 2
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-50170

GSF50,GVF50,VXFA50..RHD

 1
85370-50171

GSF50,GVF50,VXFA50..RHD

 1
85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
90099-59398

GSF50,GVF50,VXFA50

 1
85371X - HOSE, WINDSHIELD WASHER(FROM JOINT TO TOINT)
90099-62168

GSF50,GVF50,VXFA50

 1
90099-33080

GSF50,GVF50,VXFA50

 1
85371Z - CLAMP, WASHER HOSE
85371-50030

GSF50,GVF50,VXFA50..RHD

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85336-12230

GSF50,GVF50,VXFA50

L=15

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85336-12230

GSF50,GVF50,VXFA50

L=15

 2
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GSF50,GVF50,VXFA50

*H,L=990

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GSF50,GVF50,VXFA50

*H,L=1000

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GSF50,GVF50,VXFA50

*H,L=180

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

GSF50,GVF50,VXFA50

*H,L=180

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=230

 2
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=230

 2
85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=1050

 2
85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=1050

 2
85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
85336-12230

GSF50,GVF50,VXFA50..RHD

 2
85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
85336-12230

GSF50,GVF50,VXFA50..RHD

 2
85373K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=120

 1
85373L - GROMMET, WASHER
85373-11020

GSF50,GVF50,VXFA50

 4
85373L - GROMMET, WASHER
85373-11020

GSF50,GVF50,VXFA50

 4
85373L - GROMMET, WASHER
85373-11020

GSF50,GVF50,VXFA50

 4
85373L - GROMMET, WASHER
85373-11020

GSF50,GVF50,VXFA50

 4
85373M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=100

 1
85373N - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=60

 1
85373P - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=90

 1
85373Q - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=340

 1
85373T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=320

 1
85373U - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=135

 1
85373V - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=125

 1
85373W - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.17
90099-33080

GSF50,GVF50,VXFA50..RHD

*H,L=50

 1
85373Z - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.18
90099-33080

GSF50,GVF50,VXFA50

*H,L=1450

 1
85374A - PROTECTOR, WASHER HOSE
85372-50020

GSF50,GVF50,VXFA50

 1
85374L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.19
85336-12230

GSF50,GVF50,VXFA50..RHD

L=15

 1
85379D - GROMMET, WASHER, A
85379-50170

GSF50,GVF50,VXFA50..RHD

 1
85389B - PROTECTOR, WINDSHIELD WASHER
85389-50180

GSF50,GVF50,VXFA50

 1
85389E - PROTECTOR, WINDSHIELD WASHER, NO.2
85389-12880

GSF50,GVF50,VXFA50

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-52100

GSF50,GVF50,VXFA50

 1
Common parts
82711-11020
82711-24690
82711-33770
82711-3A640
85371-50040
90119-06767
Linked diagrams
8505
