GSF50R-AEUGH (2017)
Toyota Lexus Ls500/500h/350
(1710- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-58010E2 |
GSF50;GVF50..CHI NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 73023-58010C1 |
GVF50..CHI,GEN;GSF50,VXFA50..GEN BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 73023-58010A2 |
GSF50,GVF50,VXFA50..GEN L WHITE,TRIM04,05,45,59 |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-58010C1 |
GVF50..CHI,GEN;GSF50,VXFA50..GEN BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 73024-58010A2 |
GSF50,GVF50,VXFA50..GEN L WHITE,TRIM04,05,45,59 |
1 | ||
| 73024-58010E2 |
GSF50;GVF50..CHI NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 73173 - COVER, FRONT SEAT BELT HOLE, RH | ||||
| 73173-50010D0 |
GVF50;GSF50,VXFA50..GCC,GEN CRIMSON,TRIM30,32,33 |
1 | ||
| 73173-50010E4 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN,TRIM04,05,4#,59,9# |
1 | ||
| 73173-50010C4 |
GVF50..CHI,GEN;GSF50,VXFA50..GEN BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 73174 - COVER, FRONT SEAT BELT HOLE, LH | ||||
| 73174-50010D0 |
GVF50;GSF50,VXFA50..GCC,GEN CRIMSON,TRIM30,32,33 |
1 | ||
| 73174-50010E4 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN,TRIM04,05,4#,59,9# |
1 | ||
| 73174-50010C4 |
GVF50..CHI,GEN;GSF50,VXFA50..GEN BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 73187 - GUIDE, FRONT SEAT SHOULDER BELT | ||||
| 73187-50020 |
GSF50,GVF50,VXFA50 RH |
1 | ||
| 73187-50030 |
GSF50,GVF50,VXFA50 LH |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-12070 |
GSF50,GVF50,VXFA50 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-50610E2 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN/L WHITE,TRIM04,05,45,59 |
1 | ||
| 73210-50610E1 |
GSF50..GCC,GEN NOBLE BROWN/NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 73210-50610C1 |
GSF50,GVF50,VXFA50..GEN BLACK/BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 73210-50610E6 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN/L WHITE,TRIM04,05,45,59 |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
GSF50,GVF50,VXFA50 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
GSF50,GVF50,VXFA50 BLACK |
1 | ||
| 73219-33020 |
GSF50,GVF50,VXFA50 GRAY |
1 | ||
| 73219-33030 |
GSF50,GVF50,VXFA50 BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-50500E2 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN/L WHITE,TRIM04,05,45,59 |
1 | ||
| 73220-50500C1 |
GSF50,GVF50,VXFA50..GEN BLACK/BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 73220-50500E1 |
GSF50..GCC,GEN NOBLE BROWN/NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 73220-50500E7 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN/L WHITE,TRIM04,05,45,59 |
1 | ||
| 73223D - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-50070 |
GSF50,GVF50,VXFA50 |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-50050 |
GSF50,GVF50,VXFA50 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-50240C0 |
GSF50,GVF50,VXFA50..RHD BLACK,TRIM0#,2#,3# |
1 | ||
| 73230-50250C0 |
GSF50,GVF50,VXFA50..RHD "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73230-50250E0 |
GSF50,GVF50,VXFA50..RHD "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73230-50250E0 |
GSF50,GVF50,VXFA50..RHD "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73230-50250C0 |
GSF50,GVF50,VXFA50..RHD "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-50220C0 |
GSF50,GVF50,VXFA50..RHD BLACK,TRIM0#,2#,3# |
1 | ||
| 73230-50270E0 |
GSF50,GVF50,VXFA50..RHD "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73230-50270C0 |
GSF50,GVF50,VXFA50..RHD "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73230-50270C0 |
GSF50,GVF50,VXFA50..RHD "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73230-50270E0 |
GSF50,GVF50,VXFA50..RHD "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90167-50063 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 90189-05183 | ||||
| 91553-80612 | ||||

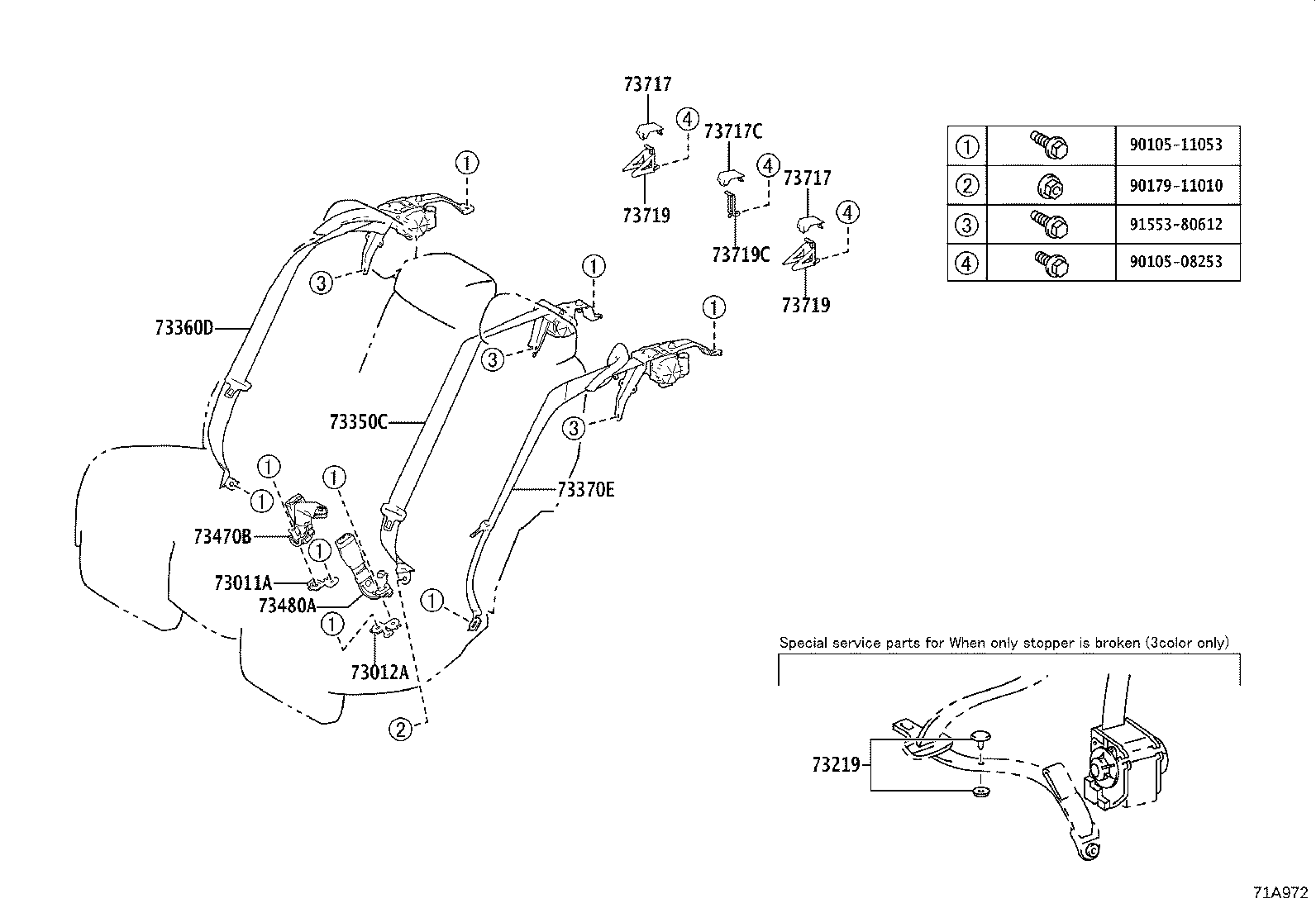

(1710- )RHD
REAR:FIX SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73011A - BRACKET SUB-ASSY, REAR SEAT BELT INNER ANCHOR, RH | ||||
| 73011-50020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 73012A - BRACKET SUB-ASSY, REAR SEAT BELT INNER ANCHOR, LH | ||||
| 73012-50020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
GSF50,GVF50,VXFA50 BLACK |
1 | ||
| 73219-33020 |
GSF50,GVF50,VXFA50 GRAY |
1 | ||
| 73219-33030 |
GSF50,GVF50,VXFA50 BEIGE |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-50320C0 |
GSF50,GVF50,VXFA50..GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73350-50290C1 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3# |
1 | ||
| 73350-50320E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73350-50320E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73350-50320C0 |
GSF50,GVF50,VXFA50..GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73360D - BELT ASSY, REAR SEAT, OUTER RH | ||||
| 73360-50390C0 |
GSF50,GVF50,VXFA50..GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73360-50390C0 |
GSF50,GVF50,VXFA50..GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73360-50390E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73360-50350C1 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3# |
1 | ||
| 73360-50390E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73370E - BELT ASSY, REAR SEAT, OUTER LH | ||||
| 73370-50350C1 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3# |
1 | ||
| 73370-50390E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73370-50390C0 |
GSF50,GVF50,VXFA50..GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73370-50390C0 |
GSF50,GVF50,VXFA50..GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73370-50390E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-50070C0 |
GSF50,GVF50,VXFA50..RHD BLACK,TRIM0#,2#,3# |
1 | ||
| 73480A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73480-50220C0 |
GSF50,GVF50,VXFA50..GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73480-50180C0 |
GSF50,GVF50,VXFA50..RHD BLACK,TRIM0#,2#,3# |
1 | ||
| 73480-50220C0 |
GSF50,GVF50,VXFA50..GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73480-50220E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73480-50220E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50040C0 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3#,4#,5#,9# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50040C0 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3#,4#,5#,9# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-50030 |
GSF50,GVF50,VXFA50 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-50030 |
GSF50,GVF50,VXFA50 |
2 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11053 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
(1712- )RHD
REAR:POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
GSF50,GVF50,VXFA50 BLACK |
1 | ||
| 73219-33020 |
GSF50,GVF50,VXFA50 GRAY |
1 | ||
| 73219-33030 |
GSF50,GVF50,VXFA50 BEIGE |
1 | ||
| 73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH | ||||
| 73330-50030E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73330-50030C0 |
GSF50,GVF50,VXFA50..CHI,GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73330-50030C0 |
GSF50,GVF50,VXFA50..CHI,GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73330-50030E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-50320C0 |
GSF50,GVF50,VXFA50..GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73350-50290C1 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3# |
1 | ||
| 73350-50320E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73350-50320E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73350-50320C0 |
GSF50,GVF50,VXFA50..GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73360D - BELT ASSY, REAR SEAT, OUTER RH | ||||
| 73360-50390C0 |
GSF50,GVF50,VXFA50..GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73360-50390C0 |
GSF50,GVF50,VXFA50..GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73360-50390E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73360-50350C1 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3# |
1 | ||
| 73360-50390E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73370E - BELT ASSY, REAR SEAT, OUTER LH | ||||
| 73370-50350C1 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3# |
1 | ||
| 73370-50390E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73370-50390C0 |
GSF50,GVF50,VXFA50..GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73370-50390C0 |
GSF50,GVF50,VXFA50..GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73370-50390E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-50330C0 |
GSF50,GVF50,VXFA50..CHI,GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73380-50330C0 |
GSF50,GVF50,VXFA50..CHI,GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73380-50330E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73380-50330E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73480A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73480-50220C0 |
GSF50,GVF50,VXFA50..GEN "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73480-50180C0 |
GSF50,GVF50,VXFA50..RHD BLACK,TRIM0#,2#,3# |
1 | ||
| 73480-50220C0 |
GSF50,GVF50,VXFA50..GEN "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73480-50220E0 |
GSF50,GVF50,VXFA50..GCC,GEN "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73480-50220E0 |
GSF50,GVF50,VXFA50..GCC,GEN "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50040C0 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3#,4#,5#,9# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50040C0 |
GSF50,GVF50,VXFA50..GCC,GEN BLACK,TRIM0#,2#,3#,4#,5#,9# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-50030 |
GSF50,GVF50,VXFA50 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-50030 |
GSF50,GVF50,VXFA50 |
2 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11053 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
(1710- )
FRONT:W(LIFT UP BUCKLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-58010E2 |
GSF50;GVF50..CHI NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 73023-58010C1 |
GVF50..CHI,GEN;GSF50,VXFA50..GEN BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 73023-58010A2 |
GSF50,GVF50,VXFA50..GEN L WHITE,TRIM04,05,45,59 |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-58010C1 |
GVF50..CHI,GEN;GSF50,VXFA50..GEN BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 73024-58010A2 |
GSF50,GVF50,VXFA50..GEN L WHITE,TRIM04,05,45,59 |
1 | ||
| 73024-58010E2 |
GSF50;GVF50..CHI NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 73173 - COVER, FRONT SEAT BELT HOLE, RH | ||||
| 73173-50010D0 |
GVF50;GSF50,VXFA50..GCC,GEN CRIMSON,TRIM30,32,33 |
1 | ||
| 73173-50010E4 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN,TRIM04,05,4#,59,9# |
1 | ||
| 73173-50010C4 |
GVF50..CHI,GEN;GSF50,VXFA50..GEN BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 73174 - COVER, FRONT SEAT BELT HOLE, LH | ||||
| 73174-50010D0 |
GVF50;GSF50,VXFA50..GCC,GEN CRIMSON,TRIM30,32,33 |
1 | ||
| 73174-50010E4 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN,TRIM04,05,4#,59,9# |
1 | ||
| 73174-50010C4 |
GVF50..CHI,GEN;GSF50,VXFA50..GEN BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 73187 - GUIDE, FRONT SEAT SHOULDER BELT | ||||
| 73187-50020 |
GSF50,GVF50,VXFA50 RH |
1 | ||
| 73187-50030 |
GSF50,GVF50,VXFA50 LH |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-12070 |
GSF50,GVF50,VXFA50 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-50610E2 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN/L WHITE,TRIM04,05,45,59 |
1 | ||
| 73210-50610E1 |
GSF50..GCC,GEN NOBLE BROWN/NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 73210-50610C1 |
GSF50,GVF50,VXFA50..GEN BLACK/BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 73210-50610E6 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN/L WHITE,TRIM04,05,45,59 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
GSF50,GVF50,VXFA50 BLACK |
1 | ||
| 73219-33020 |
GSF50,GVF50,VXFA50 GRAY |
1 | ||
| 73219-33030 |
GSF50,GVF50,VXFA50 BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-50500E2 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN/L WHITE,TRIM04,05,45,59 |
1 | ||
| 73220-50500C1 |
GSF50,GVF50,VXFA50..GEN BLACK/BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 73220-50500E1 |
GSF50..GCC,GEN NOBLE BROWN/NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 73220-50500E7 |
GSF50,GVF50,VXFA50..GEN NOBLE BROWN/L WHITE,TRIM04,05,45,59 |
1 | ||
| 73223D - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-50070 |
GSF50,GVF50,VXFA50 |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-50050 |
GSF50,GVF50,VXFA50 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-50240C0 |
GSF50,GVF50,VXFA50..RHD BLACK,TRIM0#,2#,3# |
1 | ||
| 73230-50250C0 |
GSF50,GVF50,VXFA50..RHD "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73230-50250E0 |
GSF50,GVF50,VXFA50..RHD "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73230-50250E0 |
GSF50,GVF50,VXFA50..RHD "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73230-50250C0 |
GSF50,GVF50,VXFA50..RHD "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-50220C0 |
GSF50,GVF50,VXFA50..RHD BLACK,TRIM0#,2#,3# |
1 | ||
| 73230-50270E0 |
GSF50,GVF50,VXFA50..RHD "VERSION L"*(L),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 73230-50270C0 |
GSF50,GVF50,VXFA50..RHD "EXECUTIVE"*(E),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73230-50270C0 |
GSF50,GVF50,VXFA50..RHD "VERSION L"*(L),BLACK,TRIM2#,3#,52,53 |
1 | ||
| 73230-50270E0 |
GSF50,GVF50,VXFA50..RHD "EXECUTIVE"*(E),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90167-50063 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 90189-05183 | ||||
| 91553-80612 | ||||
| 94151-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
