Toyota Lexus ls500/500h/350 GSF50 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
LEXUS LS500/500H/350
GSF50L-AEUGHC (2017)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

GSF50L-AEUGHC (2017)

Toyota Lexus Ls500/500h/350

Production Nov 2017 - Oct 2020

Engine 8GRFKS

Transmission 10FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

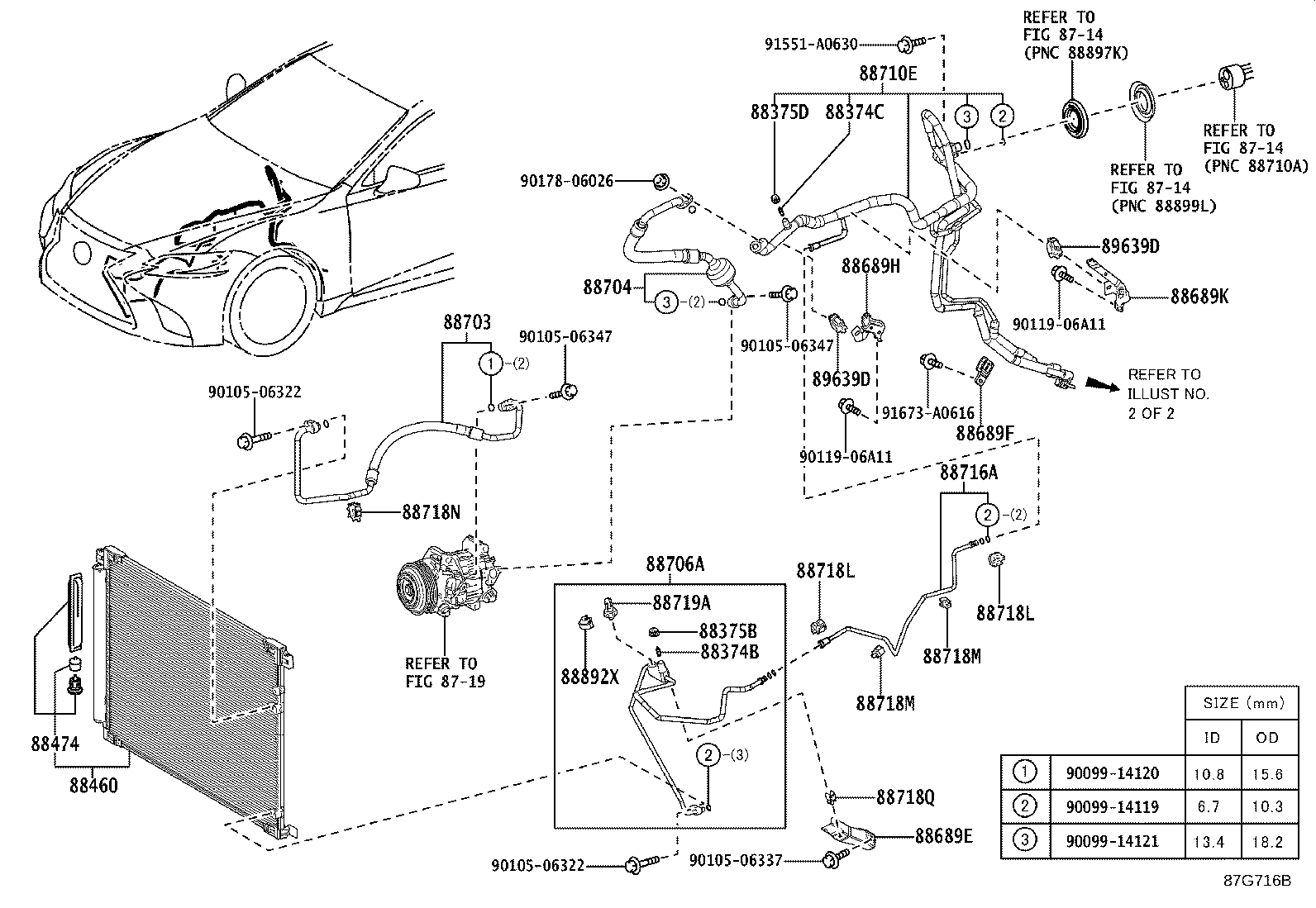

ILLUST NO. 1 OF 2(1710-2010)GSF50..LHD ; (2010- )GSF50..GCC

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88374C - VALVE, SERVICE, NO.2
88374-30010	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88460 - CONDENSER ASSY, COOLER
884A0-50020	GSF50,VXFA50..CHI,GEN	10/2017 - 10/2020	1
88474 - DRYER, COOLER
88474-12010	GSF50,VXFA50	10/2017 - 10/2020	1
88689E - BRACKET, COOLER, NO.1
88688-50380	GSF50	10/2017 - 10/2020	1
88689H - BRACKET, COOLER, NO.4
82715-50L00	GSF50	10/2017 - 10/2020	1
88689K - BRACKET, COOLER, NO.6
82715-50L40	GSF50..LHD	10/2017 - 10/2020	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-50100	GSF50	10/2017 - 10/2020	1
88704 - HOSE SUB-ASSY, SUCTION
88704-50080	GSF50	10/2017 - 10/2020	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-50080	GSF50	10/2017 - 10/2020	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-50C20	GSF50..LHD	10/2017 - 10/2020	1
88710-50C00	GSF50..LHD REAR AIR CONDITIONER-WITH(REAR COOLER)	10/2017 - 10/2020	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-50670	GSF50	10/2017 - 10/2020	1
88718L - CLAMP, PIPING
88718-2D150	GSF50,VXFA50	10/2017 - 10/2020	2
88718L - CLAMP, PIPING
88718-2D150	GSF50,VXFA50	10/2017 - 10/2020	2
88718M - CLAMP, PIPING
88718-50390	GSF50,VXFA50	10/2017 - 10/2020	2
88718M - CLAMP, PIPING
88718-50390	GSF50,VXFA50	10/2017 - 10/2020	2
88718N - CLAMP, PIPING
88718-47090	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88718Q - CLAMP, PIPING
88718-32220	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88892X - COVER, COOLER, NO.2
88892-50120	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
89639D - CLAMP, AIRCONDITIONER TUBE
89639-58020	GSF50,GVF50	10/2017 - 10/2020	2
89639D - CLAMP, AIRCONDITIONER TUBE
89639-58020	GSF50,GVF50	10/2017 - 10/2020	2
Common parts
90099-14119
90099-14120
90099-14121
90105-06322
90105-06337
90105-06347
90119-06A11
90178-06026
91551-A0630
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(1710-2010)GSF50..LHD ; (2010- )GSF50..GCC

Click highlighted areas on diagram

FRONT:W(REAR COOLER)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88374C - VALVE, SERVICE, NO.2
88374-30010	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88460 - CONDENSER ASSY, COOLER
884A0-50020	GSF50,VXFA50..CHI,GEN	10/2017 - 10/2020	1
88474 - DRYER, COOLER
88474-12010	GSF50,VXFA50	10/2017 - 10/2020	1
88689E - BRACKET, COOLER, NO.1
88688-50380	GSF50	10/2017 - 10/2020	1
88689F - BRACKET, COOLER, NO.2
88688-50360	GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER)	10/2017 - 10/2020	1
88689H - BRACKET, COOLER, NO.4
82715-50L00	GSF50	10/2017 - 10/2020	1
88689K - BRACKET, COOLER, NO.6
82715-50L40	GSF50..LHD	10/2017 - 10/2020	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-50100	GSF50	10/2017 - 10/2020	1
88704 - HOSE SUB-ASSY, SUCTION
88704-50080	GSF50	10/2017 - 10/2020	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-50080	GSF50	10/2017 - 10/2020	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-50C20	GSF50..LHD	10/2017 - 10/2020	1
88710-50C00	GSF50..LHD REAR AIR CONDITIONER-WITH(REAR COOLER)	10/2017 - 10/2020	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-50670	GSF50	10/2017 - 10/2020	1
88718L - CLAMP, PIPING
88718-2D150	GSF50,VXFA50	10/2017 - 10/2020	2
88718L - CLAMP, PIPING
88718-2D150	GSF50,VXFA50	10/2017 - 10/2020	2
88718M - CLAMP, PIPING
88718-50390	GSF50,VXFA50	10/2017 - 10/2020	2
88718M - CLAMP, PIPING
88718-50390	GSF50,VXFA50	10/2017 - 10/2020	2
88718N - CLAMP, PIPING
88718-47090	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88718Q - CLAMP, PIPING
88718-32220	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
88892X - COVER, COOLER, NO.2
88892-50120	GSF50,GVF50,VXFA50	10/2017 - 10/2020	1
89639D - CLAMP, AIRCONDITIONER TUBE
89639-58020	GSF50,GVF50	10/2017 - 10/2020	2
89639D - CLAMP, AIRCONDITIONER TUBE
89639-58020	GSF50,GVF50	10/2017 - 10/2020	2
Common parts
90099-14119
90099-14120
90099-14121
90105-06322
90105-06337
90105-06347
90119-06A11
90178-06026
91551-A0630
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 2(1710-2010) ; (2010- )

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-50A70	GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER)	10/2017 - 10/2020	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-50030	GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER)	10/2017 - 10/2020	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-50880	GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER)	10/2017 - 10/2020	1
88891H - COVER, COOLER, NO.1
88891-50090	GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER)	10/2017 - 10/2020	1
88893D - PIPE, DRAIN COOLER
88892-50150	GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER)	10/2017 - 10/2020	1
88899Q - PLATE, COVER
88899-3A060	GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER)	10/2017 - 10/2020	1
Common parts
88718-30090
88718-50510
88718-50530
90099-00259
90099-14119
90099-14120
90178-06026
91551-80625
91673-A0616
Linked diagrams
8714
