GSF50L-AEUGH (2017)
Toyota Lexus Ls500/500h/350
ILLUST NO. 3 OF 3(1710-1906)GSF50,VXFA50
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

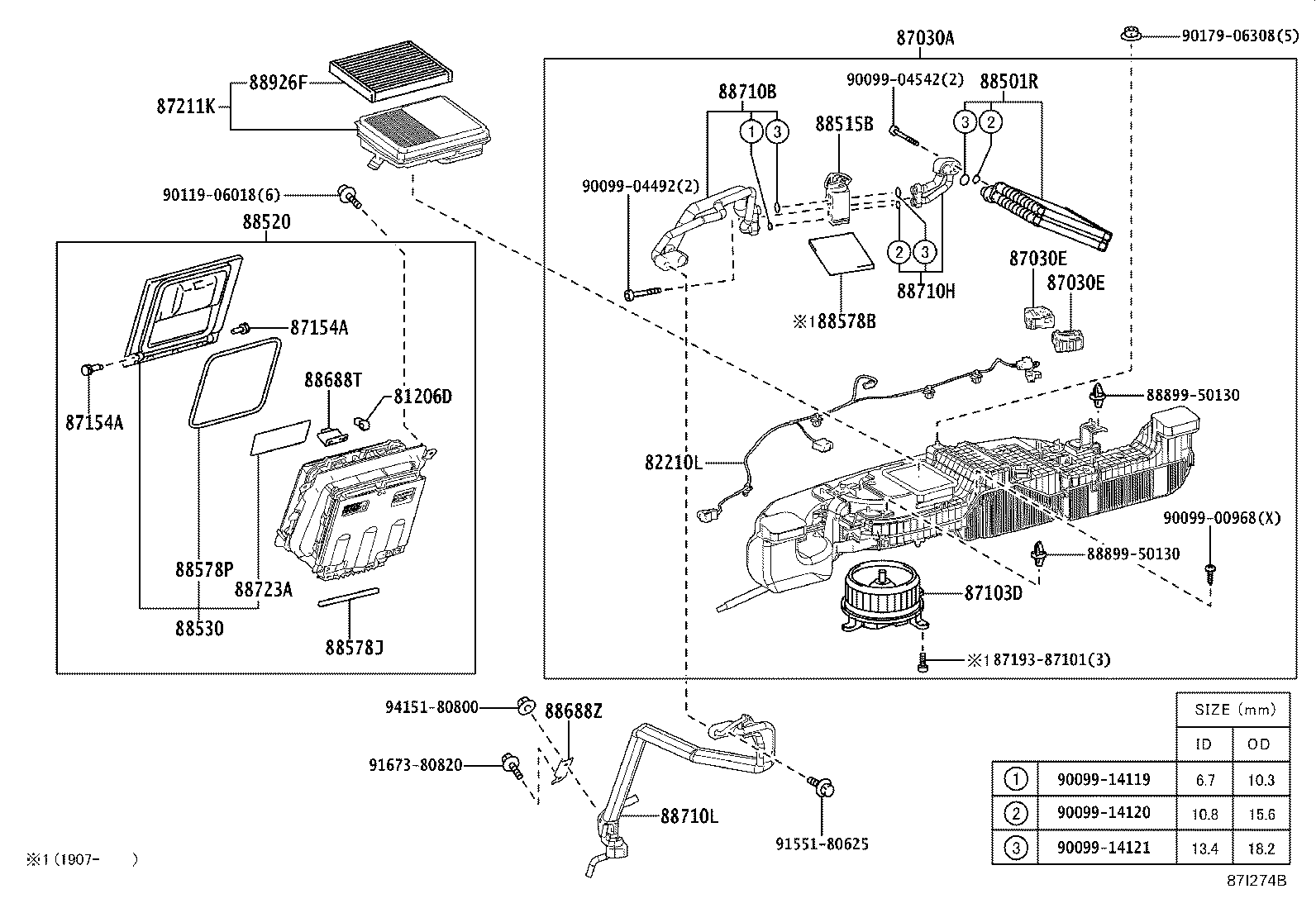

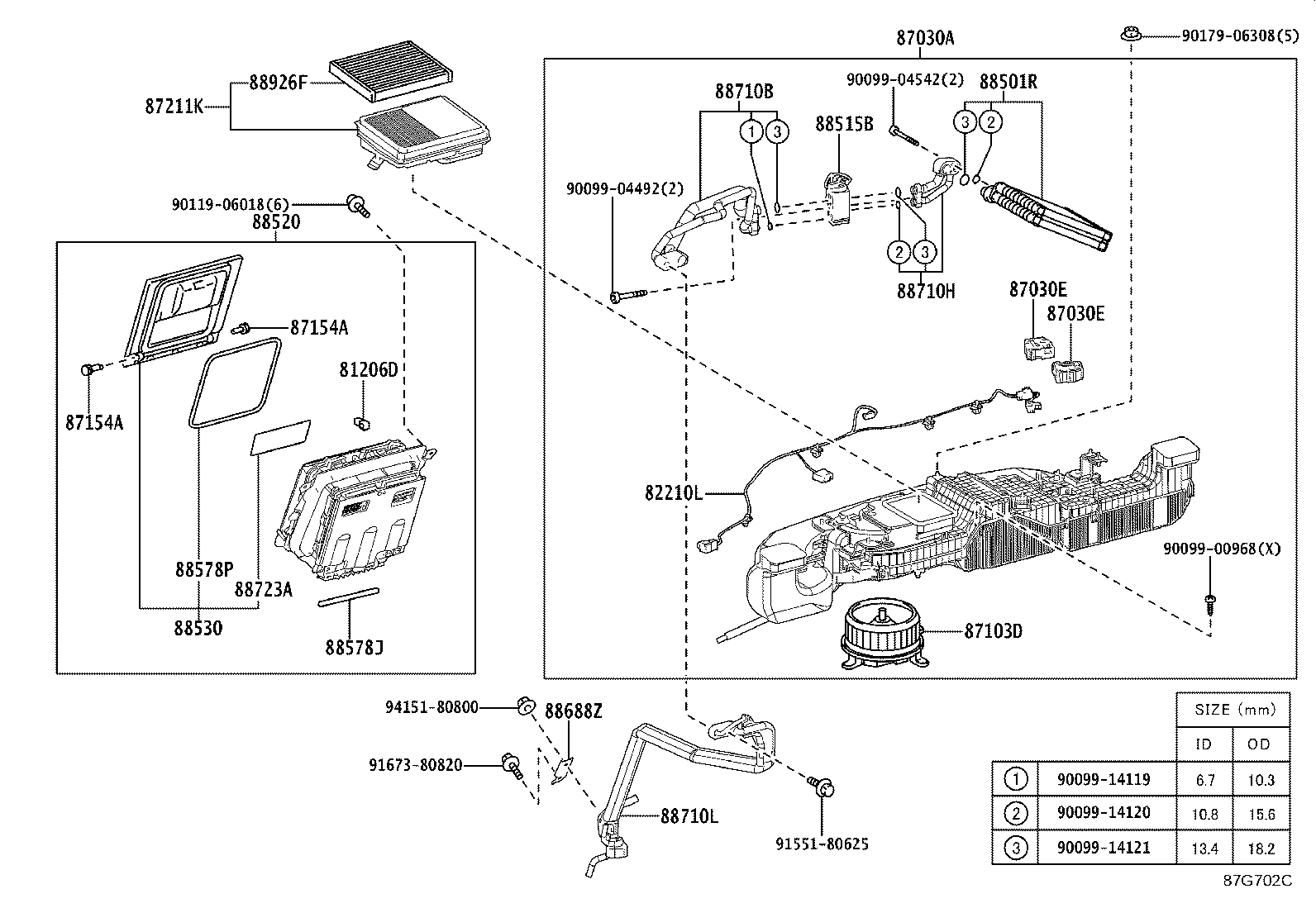

| 81206D - LAMP SUB-ASSY, COOLING BOX | ||||
| 81080-50110 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-50230 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-50110 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-50680 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
2 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-50680 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
2 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-50170 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 87154A - SHAFT, DAMPER, NO.1 | ||||
| 87318-50030 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
2 | ||
| 87154A - SHAFT, DAMPER, NO.1 | ||||
| 87318-50030 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
2 | ||
| 87211K - DUCT, AIR | ||||
| 87211-50290 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-50370 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-50170 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-50320E1 |
GSF50,VXFA50..GCC,GEN REAR AIR CONDITIONER-WITH(REAR COOLER),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 88520-50320D0 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER),CRIMSON,TRIM3# |
1 | ||
| 88520-50320C0 |
GSF50,VXFA50..CHI,GEN REAR AIR CONDITIONER-WITH(REAR COOLER),BLACK,TRIM2#,52,53 |
1 | ||
| 88530 - BOX ASSY, COOLING | ||||
| 88530-50010E1 |
GSF50,VXFA50..GCC,GEN REAR AIR CONDITIONER-WITH(REAR COOLER),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 88530-50010D0 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER),CRIMSON,TRIM3# |
1 | ||
| 88530-50010C0 |
GSF50,VXFA50..CHI,GEN REAR AIR CONDITIONER-WITH(REAR COOLER),BLACK,TRIM2#,52,53 |
1 | ||
| 88578J - PACKING, COOL BOX, NO.1 | ||||
| 81817-50080 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88578P - PACKING, COOL BOX, NO.2 | ||||
| 81817-50050 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-50410 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50B00 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-50A90 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88710L - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-50B10 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-50070 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88926F - FILTER, REAR COOLER | ||||
| 87139-50130 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-04542 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06018 | ||||
| 90179-06308 | ||||
| 91551-80625 | ||||
| 91673-80820 | ||||
| 94151-80800 | ||||
ILLUST NO. 1 OF 3(1710-2010)GSF50,VXFA50..LHD..GCC,GEN ; (2010-)GSF50,VXFA50..LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

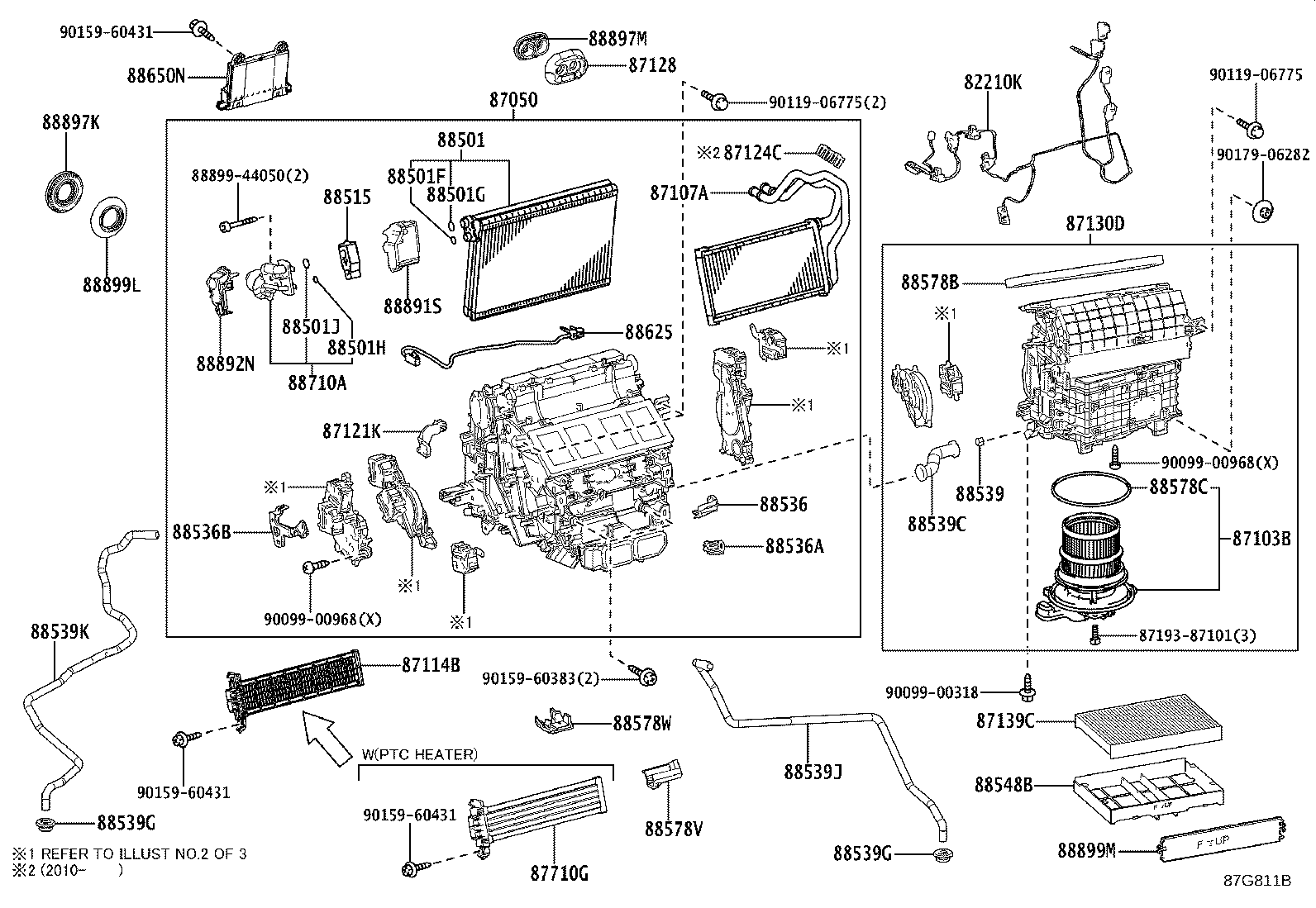

| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-50220 |
GSF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 82212-50210 |
GSF50,VXFA50..LHD..(GCC,GEN) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-50450 |
GSF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 87050-50400 |
GSF50,VXFA50..LHD..(GCC,GEN) |
1 | ||
| 87050-50450 |
GSF50,VXFA50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-11010 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-11010 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
GSF50,GVF50,VXFA50..GCC,GEN |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-11030 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-50150 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50110 |
GSF50,GVF50,VXFA50 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-30050 |
GSF50,GVF50,VXFA50..GEN COLD AREA SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-50340 |
GSF50,VXFA50 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GSF50,GVF50,VXFA50 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GSF50,GVF50,VXFA50 ID=13.4,OD=18.2 |
1 | ||
| 88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE) | ||||
| 90099-14119 |
GSF50,GVF50,VXFA50 ID=6.7,OD=10.3 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
GSF50,GVF50,VXFA50 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50250 |
GSF50,VXFA50 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 87241-11010 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 87241-11030 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 87241-11050 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30A00 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-11050 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GSF50,GVF50,VXFA50 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GSF50,GVF50,VXFA50 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-11020 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-50210 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-50140 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 87429-53010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88578-50270 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 87127-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-11020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-74010 |
GSF50,VXFA50..LHD |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-50S40 |
GSF50,VXFA50..GCC,GEN "I PACKAGE"*(I) |
1 | ||
| 88650-50S80 |
GSF50,GVF50,VXFA50..GCC,GEN "F SPORT"*(F) |
1 | ||
| 88650-50S31 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 88650-50S30 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 88650-50S90 |
GSF50,GVF50,VXFA50 "VERSION L"*(L) |
1 | ||
| 88650-50S91 |
GSF50,GVF50,VXFA50 "VERSION L"*(L) |
1 | ||
| 88650-50T40 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 88650-50S81 |
GSF50,GVF50,VXFA50..GCC,GEN "F SPORT"*(F) |
1 | ||
| 88650-50S41 |
GSF50,VXFA50..GCC,GEN "I PACKAGE"*(I) |
1 | ||
| 88650-50S90 |
GSF50,GVF50,VXFA50 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S32 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 88650-50S92 |
GSF50,GVF50,VXFA50 "VERSION L"*(L) |
1 | ||
| 88650-50S91 |
GSF50,GVF50,VXFA50 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S92 |
GSF50,GVF50,VXFA50 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S42 |
GSF50,VXFA50..GCC,GEN "I PACKAGE"*(I) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50D20 |
GSF50,VXFA50..LHD |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50120 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-50140 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-30060 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-11020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-50150 |
GSF50,GVF50,VXFA50 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-06775 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
ILLUST NO. 1 OF 3(1710-2010)GSF50,VXFA50..LHD..GCC,GEN ; (2010-)GSF50,VXFA50..LHD
FRONT:W(REAR SEAT HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

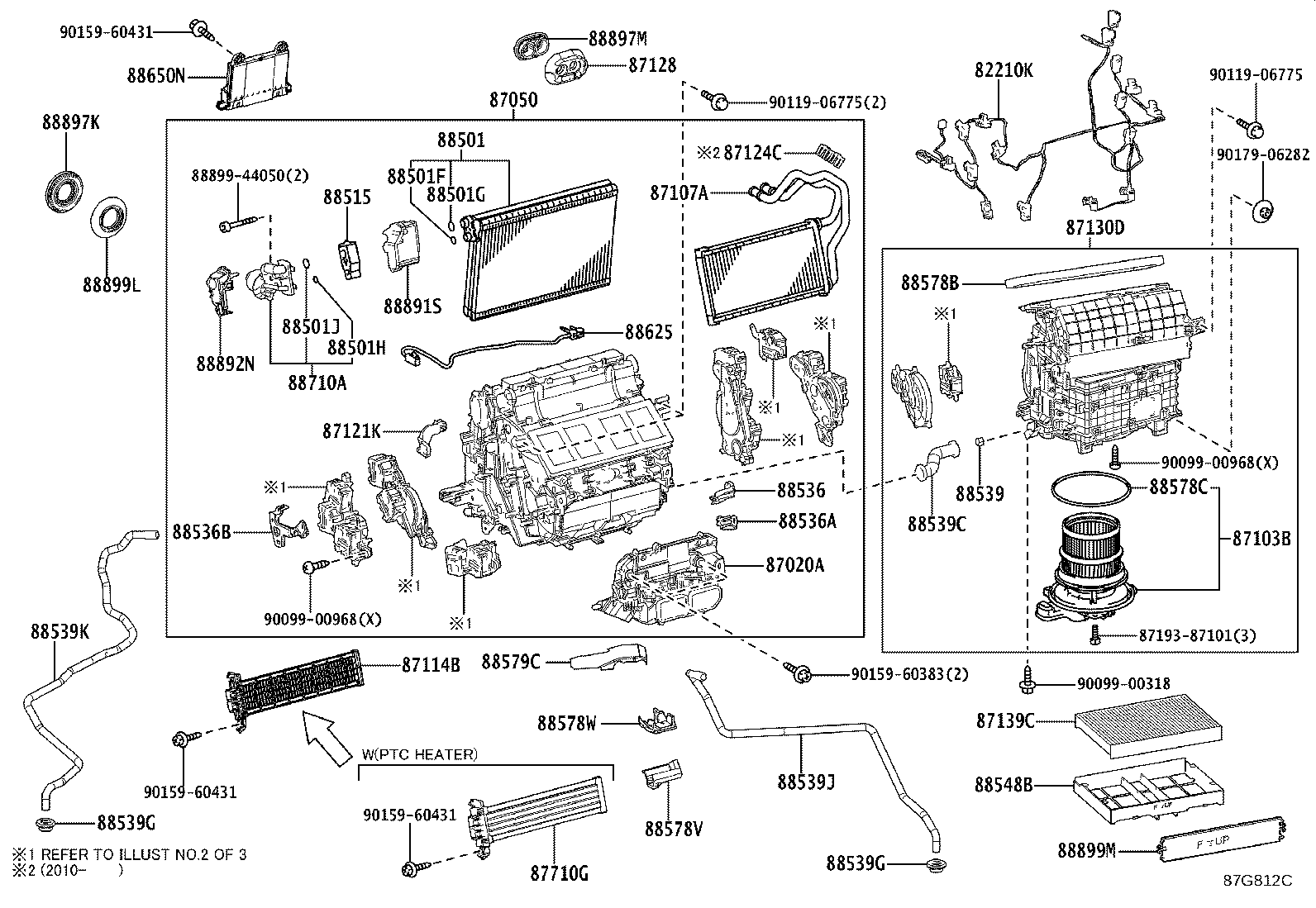

| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-50220 |
GSF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 82212-50210 |
GSF50,VXFA50..LHD..(GCC,GEN) |
1 | ||
| 87020A - DAMPER ASSY, HEATER AIR | ||||
| 87020-50040 |
GSF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 87020-50040 |
GSF50,VXFA50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 87020-50040 |
GSF50,VXFA50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-50450 |
GSF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 87050-50400 |
GSF50,VXFA50..LHD..(GCC,GEN) |
1 | ||
| 87050-50450 |
GSF50,VXFA50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-11010 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-11010 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
GSF50,GVF50,VXFA50..GCC,GEN |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-11030 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-50150 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50110 |
GSF50,GVF50,VXFA50 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-30050 |
GSF50,GVF50,VXFA50..GEN COLD AREA SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-50340 |
GSF50,VXFA50 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GSF50,GVF50,VXFA50 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GSF50,GVF50,VXFA50 ID=13.4,OD=18.2 |
1 | ||
| 88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE) | ||||
| 90099-14119 |
GSF50,GVF50,VXFA50 ID=6.7,OD=10.3 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
GSF50,GVF50,VXFA50 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50250 |
GSF50,VXFA50 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 87241-11010 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 87241-11030 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 87241-11050 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30A00 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-11050 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GSF50,GVF50,VXFA50 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GSF50,GVF50,VXFA50 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-11020 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-50210 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-50140 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 87429-53010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88578-50270 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 87127-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-11010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-11020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88579C - PACKING, COOLING UNIT, NO.5 | ||||
| 88578-50360 |
GSF50,VXFA50..GCC,GEN "VERSION L"*(L) |
1 | ||
| 88578-50360 |
GSF50..GCC,GEN "F SPORT"*(F) |
1 | ||
| 88578-50360 |
GSF50,VXFA50..GCC,GEN "EXECUTIVE"*(E) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-74010 |
GSF50,VXFA50..LHD |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-50S40 |
GSF50,VXFA50..GCC,GEN "I PACKAGE"*(I) |
1 | ||
| 88650-50S80 |
GSF50,GVF50,VXFA50..GCC,GEN "F SPORT"*(F) |
1 | ||
| 88650-50S31 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 88650-50S30 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 88650-50S90 |
GSF50,GVF50,VXFA50 "VERSION L"*(L) |
1 | ||
| 88650-50S91 |
GSF50,GVF50,VXFA50 "VERSION L"*(L) |
1 | ||
| 88650-50T40 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 88650-50S81 |
GSF50,GVF50,VXFA50..GCC,GEN "F SPORT"*(F) |
1 | ||
| 88650-50S41 |
GSF50,VXFA50..GCC,GEN "I PACKAGE"*(I) |
1 | ||
| 88650-50S90 |
GSF50,GVF50,VXFA50 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S32 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 88650-50S92 |
GSF50,GVF50,VXFA50 "VERSION L"*(L) |
1 | ||
| 88650-50S91 |
GSF50,GVF50,VXFA50 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S92 |
GSF50,GVF50,VXFA50 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S42 |
GSF50,VXFA50..GCC,GEN "I PACKAGE"*(I) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50D20 |
GSF50,VXFA50..LHD |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50120 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-50140 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-30060 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-11020 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-50150 |
GSF50,GVF50,VXFA50 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-06775 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

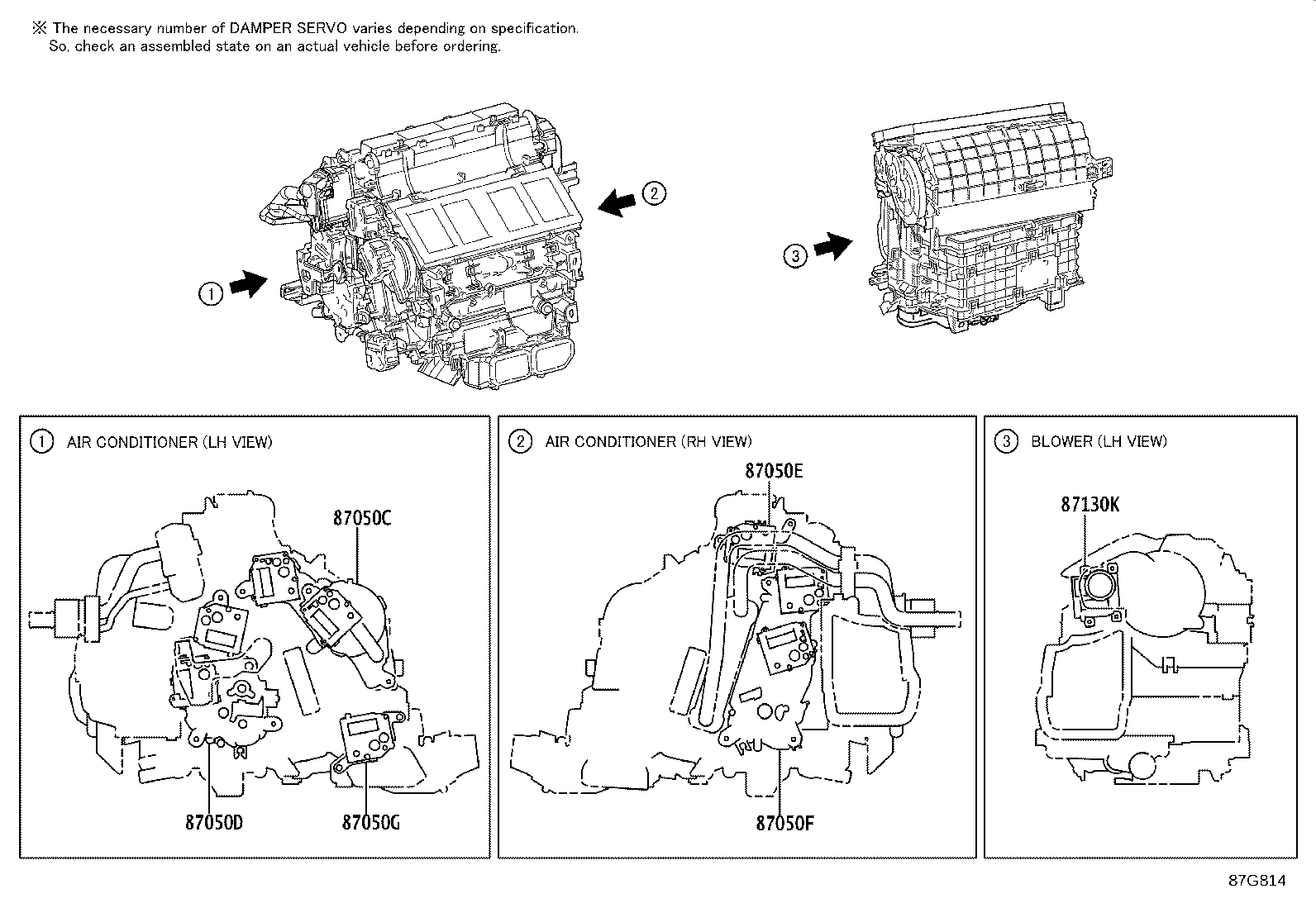

ILLUST NO. 2 OF 3(1710-2010)GSF50,VXFA50..LHD..GCC,GEN ; (2010-)GSF50,VXFA50..LHD
FRONT SERVO MOTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-11060 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-11010 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 87106-50710 |
GSF50..GCC,GEN "F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA50..GCC,GEN "VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA50..GCC,GEN "EXECUTIVE"*(E) |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-11090 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-50720 |
GSF50..GCC,GEN "F SPORT"*(F) |
1 | ||
| 87106-50700 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 87106-50720 |
GSF50,VXFA50..GCC,GEN "EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA50..GCC,GEN "VERSION L"*(L) |
1 | ||
| 87050G - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5 | ||||
| 87106-50670 |
GSF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50,VXFA50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 87106-50610 |
GSF50,VXFA50..LHD..(GCC,GEN) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50760 |
GSF50,GVF50,VXFA50..LHD |
1 | ||

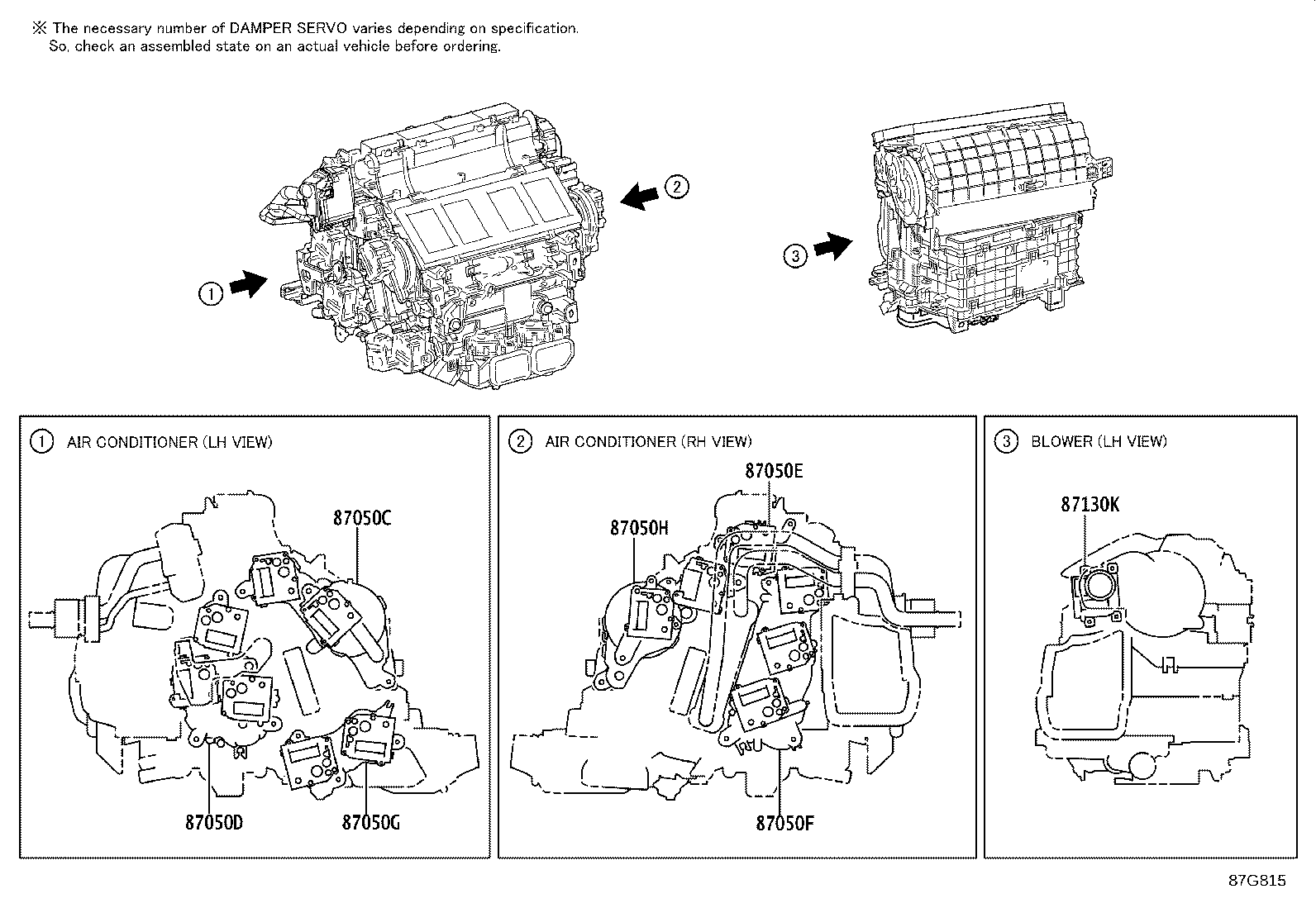

ILLUST NO. 2 OF 3(1710-2010)GSF50,VXFA50..LHD..GCC,GEN ; (2010-)GSF50,VXFA50..LHD
FRONT SERVO MOTOR:W(*RES=HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-11060 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-11010 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 87106-50710 |
GSF50..GCC,GEN "F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA50..GCC,GEN "VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA50..GCC,GEN "EXECUTIVE"*(E) |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-11090 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-50720 |
GSF50..GCC,GEN "F SPORT"*(F) |
1 | ||
| 87106-50700 |
GSF50,VXFA50..GCC,GEN |
1 | ||
| 87106-50720 |
GSF50,VXFA50..GCC,GEN "EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA50..GCC,GEN "VERSION L"*(L) |
1 | ||
| 87050G - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5 | ||||
| 87106-50670 |
GSF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50,VXFA50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 87106-50610 |
GSF50,VXFA50..LHD..(GCC,GEN) |
1 | ||
| 87050H - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.6 | ||||
| 87106-50730 |
GSF50..LHD..(GCC,GEN) "F SPORT"*(F) |
1 | ||
| 87106-50730 |
GSF50,VXFA50..LHD..(GCC,GEN) "EXECUTIVE"*(E) |
1 | ||
| 87106-50730 |
GSF50,VXFA50..LHD..(GCC,GEN) "VERSION L"*(L) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50760 |
GSF50,GVF50,VXFA50..LHD |
1 | ||
ILLUST NO. 3 OF 3(1906-2010)GSF50,VXFA50 ; (2010- )GSF50,VXFA50
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81206D - LAMP SUB-ASSY, COOLING BOX | ||||
| 81080-50110 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-50230 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-50110 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-50680 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
2 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-50680 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
2 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-50170 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 87154A - SHAFT, DAMPER, NO.1 | ||||
| 87318-50030 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
2 | ||
| 87154A - SHAFT, DAMPER, NO.1 | ||||
| 87318-50030 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
2 | ||
| 87211K - DUCT, AIR | ||||
| 87211-50290 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-50370 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-50170 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-50320E1 |
GSF50,VXFA50..GCC,GEN REAR AIR CONDITIONER-WITH(REAR COOLER),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 88520-50320D0 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER),CRIMSON,TRIM3# |
1 | ||
| 88520-50320C0 |
GSF50,VXFA50..CHI,GEN REAR AIR CONDITIONER-WITH(REAR COOLER),BLACK,TRIM2#,52,53 |
1 | ||
| 88530 - BOX ASSY, COOLING | ||||
| 88530-50010E1 |
GSF50,VXFA50..GCC,GEN REAR AIR CONDITIONER-WITH(REAR COOLER),NOBLE BROWN,TRIM0#,4#,59,9# |
1 | ||
| 88530-50010D0 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER),CRIMSON,TRIM3# |
1 | ||
| 88530-50010C0 |
GSF50,VXFA50..CHI,GEN REAR AIR CONDITIONER-WITH(REAR COOLER),BLACK,TRIM2#,52,53 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 87429-53010 |
GSF50,GVF50,VXFA50 |
1 | ||
| 88578-50270 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88578J - PACKING, COOL BOX, NO.1 | ||||
| 81817-50080 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88578P - PACKING, COOL BOX, NO.2 | ||||
| 81817-50050 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88688T - BRACKET (FOR COOL BOX) | ||||
| 88688-50430 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-50410 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50B00 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-50A90 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88710L - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-50B10 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-50070 |
GSF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| 88926F - FILTER, REAR COOLER | ||||
| 87139-50130 |
GSF50,GVF50,VXFA50 REAR AIR CONDITIONER-WITH(REAR COOLER) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-50130 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-04542 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06018 | ||||
| 90179-06308 | ||||
| 91551-80625 | ||||
| 91673-80820 | ||||
| 94151-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
