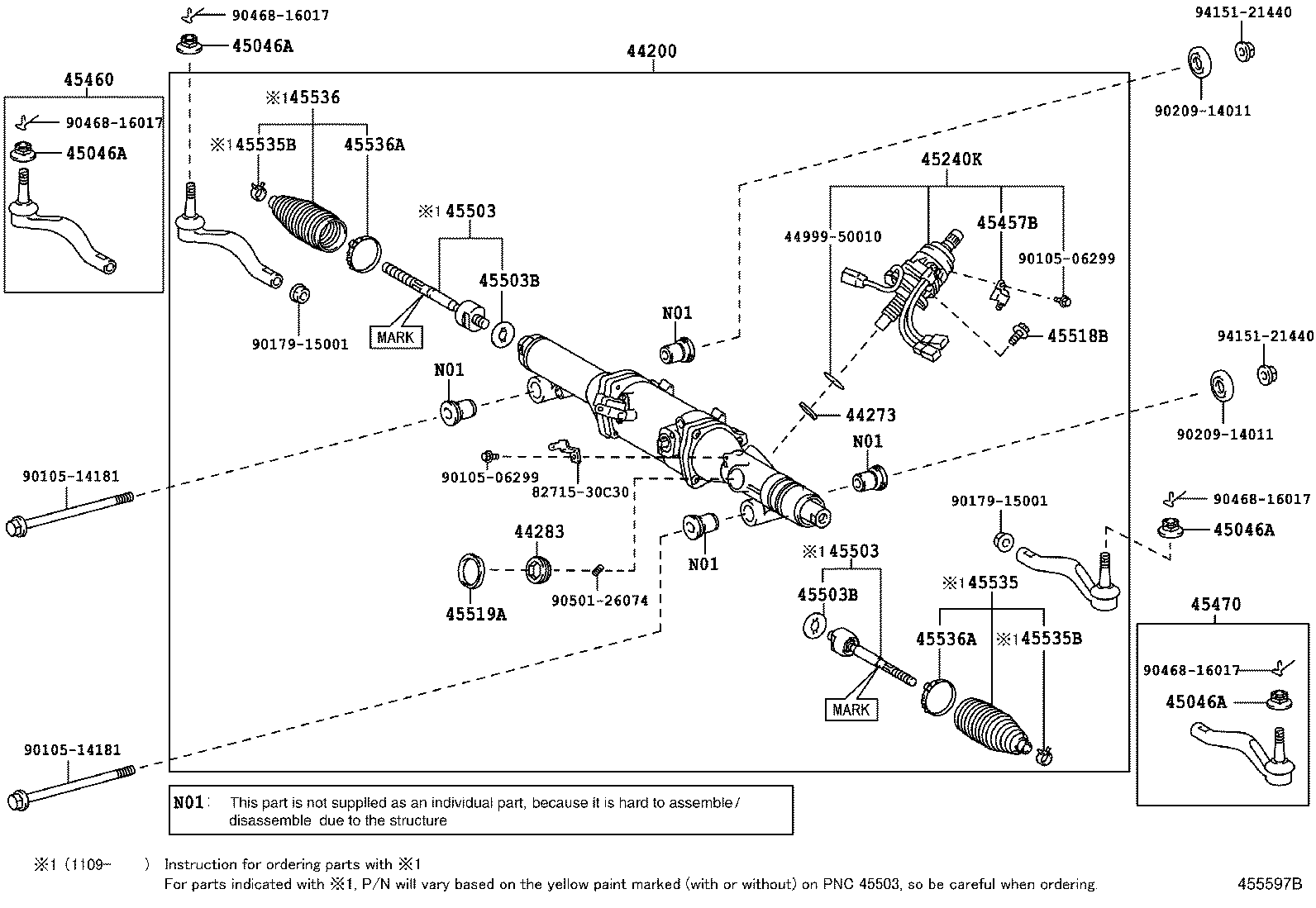

Toyota Lexus ls460/460l USF45 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
44200 - LINK ASSY, POWER STEERING
44200-50360	USF45,46..LHD	09/2009 - 08/2011	1
44200-50361	USF45,46..LHD	09/2011 - 12/2999	1
44273 - PLATE, STEERING SHAFT TORQUE SENSOR
44273-50010	USF41..LHD..D4..EUR;USF40,45,46..D4..EUR	09/2009 - 12/2999	1
44283 - CAP, RACK HOUSING
44283-50010	USF41..LHD..D4..EUR;USF40,45,46..D4..EUR	09/2009 - 12/2999	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12012	USF4#	09/2009 - 12/2999	2
90171-12012	USF4#	08/2006 - 09/2008	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12012	USF4#	09/2009 - 12/2999	2
90171-12012	USF4#	08/2006 - 09/2008	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12012	USF4#	09/2009 - 12/2999	2
90171-12012	USF4#	08/2006 - 09/2008	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12012	USF4#	09/2009 - 12/2999	2
90171-12012	USF4#	08/2006 - 09/2008	2
45240K - ACTUATOR ASSY, STEERING
45240-50081	USF45,46..LHD	09/2011 - 12/2999	1
45240-50080	USF45,46..LHD	09/2009 - 08/2011	1
45457B - PROTECTOR, STEERING LINK
45457-50030	USF45,46	09/2009 - 12/2999	1
45460 - ROD ASSY, TIE, RH
45460-59095	USF45,46	09/2009 - 12/2999	1
45460-59085	USF4#	08/2006 - 09/2008	1
45470 - ROD ASSY, TIE, LH
45470-59105	USF45,46	09/2009 - 12/2999	1
45470-59095	USF4#	08/2006 - 09/2008	1
45503 - END SUB-ASSY, STEERING RACK
45503-59145	USF4#	08/2006 - 09/2008	2
45503-59155	USF45,46 MARK=YELLOW	09/2009 - 09/2012	2
45503-59145	USF45,46 W/O MARK	09/2011 - 09/2012	2
45503 - END SUB-ASSY, STEERING RACK
45503-59145	USF45,46 W/O MARK	09/2011 - 09/2012	2
45503-59145	USF4#	08/2006 - 09/2008	2
45503-59155	USF45,46 MARK=YELLOW	09/2009 - 09/2012	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-16002	USF4# OD=42	09/2009 - 12/2999	2
90214-16002	USF4# OD=42	08/2006 - 09/2008	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-16002	USF4# OD=42	09/2009 - 12/2999	2
90214-16002	USF4# OD=42	08/2006 - 09/2008	2
45518B - BOLT, STEERING RACK HOUSING
45518-50010	USF41..LHD..D4..EUR;USF40,45,46..D4..EUR	09/2009 - 12/2999	2
45519A - NUT, STEERING RACK HOUSING BRACKET
45519-50010	USF41..LHD..D4..EUR;USF40,45,46..D4..EUR	09/2009 - 12/2999	1
45535 - BOOT, STEERING RACK, NO.1
45535-30030	USF4#	08/2006 - 09/2008	1
45535-29005	USF45,46 MARK=YELLOW	09/2009 - 09/2012	1
45535-59065	USF45,46 W/O MARK	09/2011 - 09/2012	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	USF45,46 W/O MARK	09/2011 - 09/2012	2
90467-19019	USF4#	08/2006 - 09/2008	2
90467-19021	USF45,46 MARK=YELLOW	09/2011 - 09/2012	2
90467-19021	USF45,46	09/2009 - 09/2011	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	USF45,46 W/O MARK	09/2011 - 09/2012	2
90467-19019	USF4#	08/2006 - 09/2008	2
90467-19021	USF45,46 MARK=YELLOW	09/2011 - 09/2012	2
90467-19021	USF45,46	09/2009 - 09/2011	2
45536 - BOOT, STEERING RACK, NO.2
45535-29005	USF45,46 MARK=YELLOW	09/2009 - 09/2012	1
45535-59065	USF45,46 W/O MARK	09/2011 - 09/2012	1
45535-30030	USF4#	08/2006 - 09/2008	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-55016	USF4#	08/2006 - 09/2008	2
90460-55016	USF4#	09/2009 - 12/2999	2
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-55016	USF4#	08/2006 - 09/2008	2
90460-55016	USF4#	09/2009 - 12/2999	2
Common parts
44999-50010
82715-30C30
90105-06299
90105-14181
90179-15001
90209-14011
90468-16017
90501-26074
94151-21440

USF45L-AEZGHW (2009)

(0909- )USF45,46..LHD
