USF41L-AEZGHW (2009)

Toyota Lexus Ls460/460l

Production Sep 2009 - Sep 2012
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )

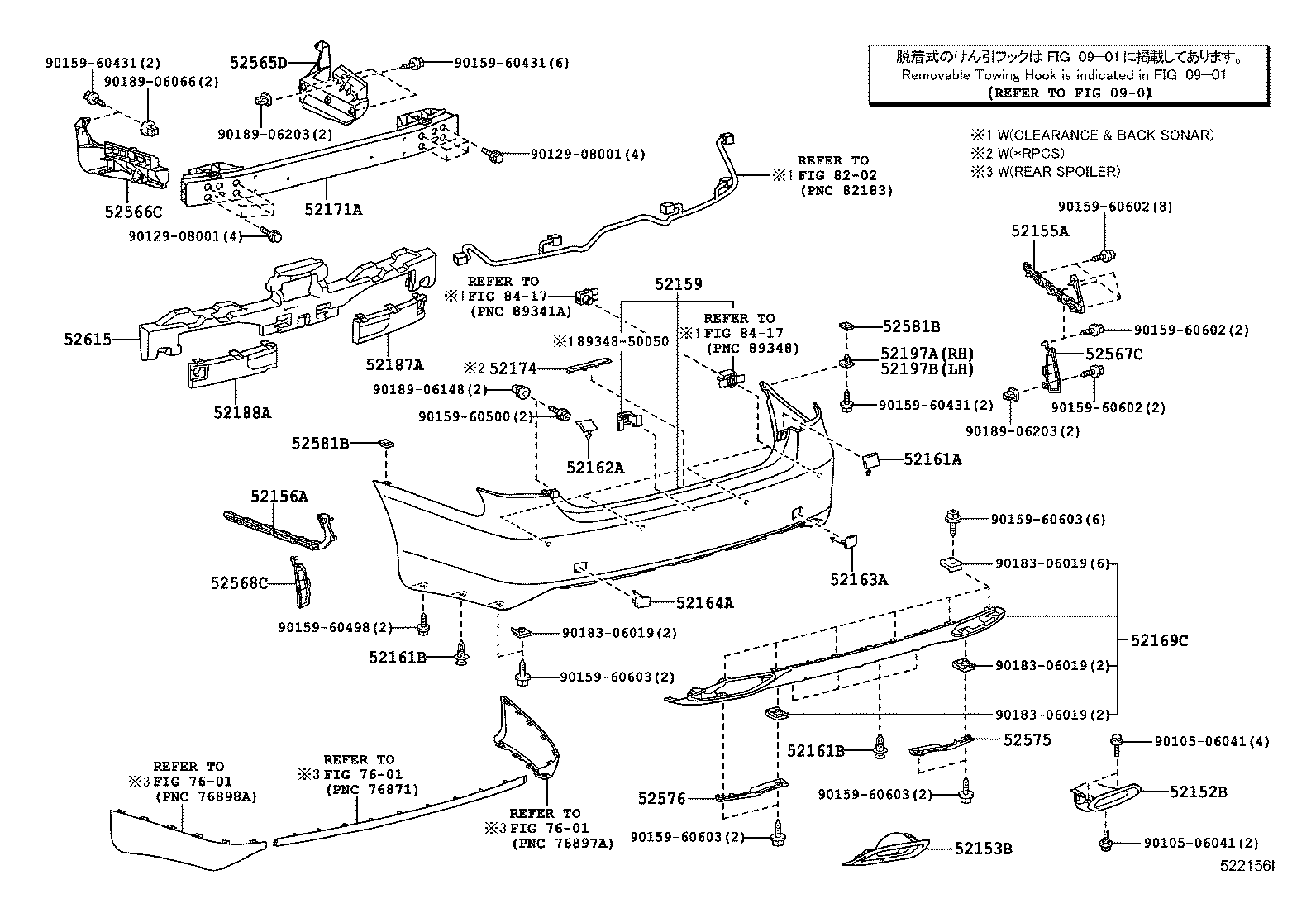

Click highlighted areas on diagram

diagram 0901 52152B 52153B 52155A 52156A 52159 52161A 52161B 52161B 52162A 52163A 52164A 52169C 52171A 52174 52187A 52188A 52197A 52197B 52565D 52566C 52567C 52568C 52575 52576 52581B 52581B 52615 7601 7601 7601 8202 8417 8417 8934850050 9010506041 9010506041 9012908001 9012908001 9015960431 9015960431 9015960431 9015960498 9015960500 9015960602 9015960602 9015960602 9015960603 9015960603 9015960603 9015960603 9018306019 9018306019 9018306019 9018306019 9018906066 9018906148 9018906203 9018906203
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52106-50010

USF4#

 1
52106-50030

USF4#

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-50010

USF4#

 1
52107-50030

USF4#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-50050

USF4#

 1
52155-50030

USF4#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-50020

USF4#

 1
52156-50040

USF4#

 1
52159 - COVER, REAR BUMPER
52159-50912

USF41;USF40..GCC

PAINT REQ.

 1
52159-50919

USF4#

PAINT REQ.

 1
52161A - PIECE, REAR BUMPER, RH
52161-50901

USF4#

 1
52161-50901

USF4#

 1
52161B - PIECE, REAR BUMPER
52161-16010

USF4#

 6
52161-16010

USF4#

 6
52161B - PIECE, REAR BUMPER
52161-16010

USF4#

 6
52161-16010

USF4#

 6
52162A - PIECE, REAR BUMPER, LH
52162-50901

USF4#

 1
52162-50901

USF4#

 1
52163A - PLATE, REAR BUMPER, RH
52161-50903

USF4#

 1
52161-50902

USF4#

 1
52164A - PLATE, REAR BUMPER, LH
52162-50902

USF4#

 1
52162-50903

USF4#

 1
52169C - COVER, REAR BUMPER, LOWER
52169-50020J1

USF4#

SHADOW SAPPHIRE ME.,8V4

 1
52169-50020E0

USF4#

SABLE M.M.,4T5

 1
52169-50020B1

USF4#

DK.GRAY MC.,1G0

 1
52169-50020C0

USF4#

BLACK,212

 1
52169-50020D0

USF4#

RED MC.CS.,3R1

 1
52169-50020B0

USF4#

PREMIUM SILVER,1F2

 1
52169-50020A0

USF4#

WHITE PEARL CS.,077

 1
52169-50020C1

USF4#

STARLIGHT BLACK GF.,217

 1
52169-50020B2

USF4#

FROSTY PEARL MC.,1G5

 1
52169-50020B3

USF4#

MERCURY GRAY MC.,1H9

 1
52169-50020G0

USF4#

DEEP PERIDOT MC.,6V6

 1
52169-50020J0

USF4#

LAPIS LAZULI MC.,8V3

 1
52169-50020E1

USF4#

SLEEK ECRU ME.,4U7

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-50090

USF4#..EUR

 1
52023-50090

USF4#..EUR

 1
52187A - REINFORCEMENT, REAR BUMPER ARM, RH
52187-50030

USF4#

 1
52187-50030

USF4#

 1
52188A - REINFORCEMENT, REAR BUMPER ARM, LH
52188-50040

USF4#

 1
52188-50040

USF4#

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-30040

USF4#

 1
52197-30040

USF4#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-30040

USF4#

 1
52197-30040

USF4#

 1
52565D - RETAINER, REAR BUMPER, LOWER RH
52565-50060

USF4#

 1
52565-50050

USF4#

 1
52566C - RETAINER, REAR BUMPER, LOWER LH
52566-50030

USF4#

 1
52566-50040

USF4#

 1
52567C - RETAINER, REAR BUMPER LOWER SIDE, RH
52567-50030

USF4#

 1
52568C - RETAINER, REAR BUMPER LOWER SIDE, LH
52568-50030

USF4#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52577-50030

USF4#

 1
52577-50030

USF4#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52578-50030

USF4#

 1
52578-50030

USF4#

 1
52581B - PROTECTOR, REAR BUMPER
52581-30060

USF4#

 2
52581-30060

USF4#

 2
52581B - PROTECTOR, REAR BUMPER
52581-30060

USF4#

 2
52581-30060

USF4#

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-50070

USF4#

 1
52615-50060

USF4#

 1
Common parts
89348-50050
90105-06041
90129-08001
90159-60431
90159-60498
90159-60500
90159-60602
90159-60603
90183-06019
90189-06066
90189-06148
90189-06203
