UCF30R-AETGKQ (2003)
Toyota Lexus Ls430

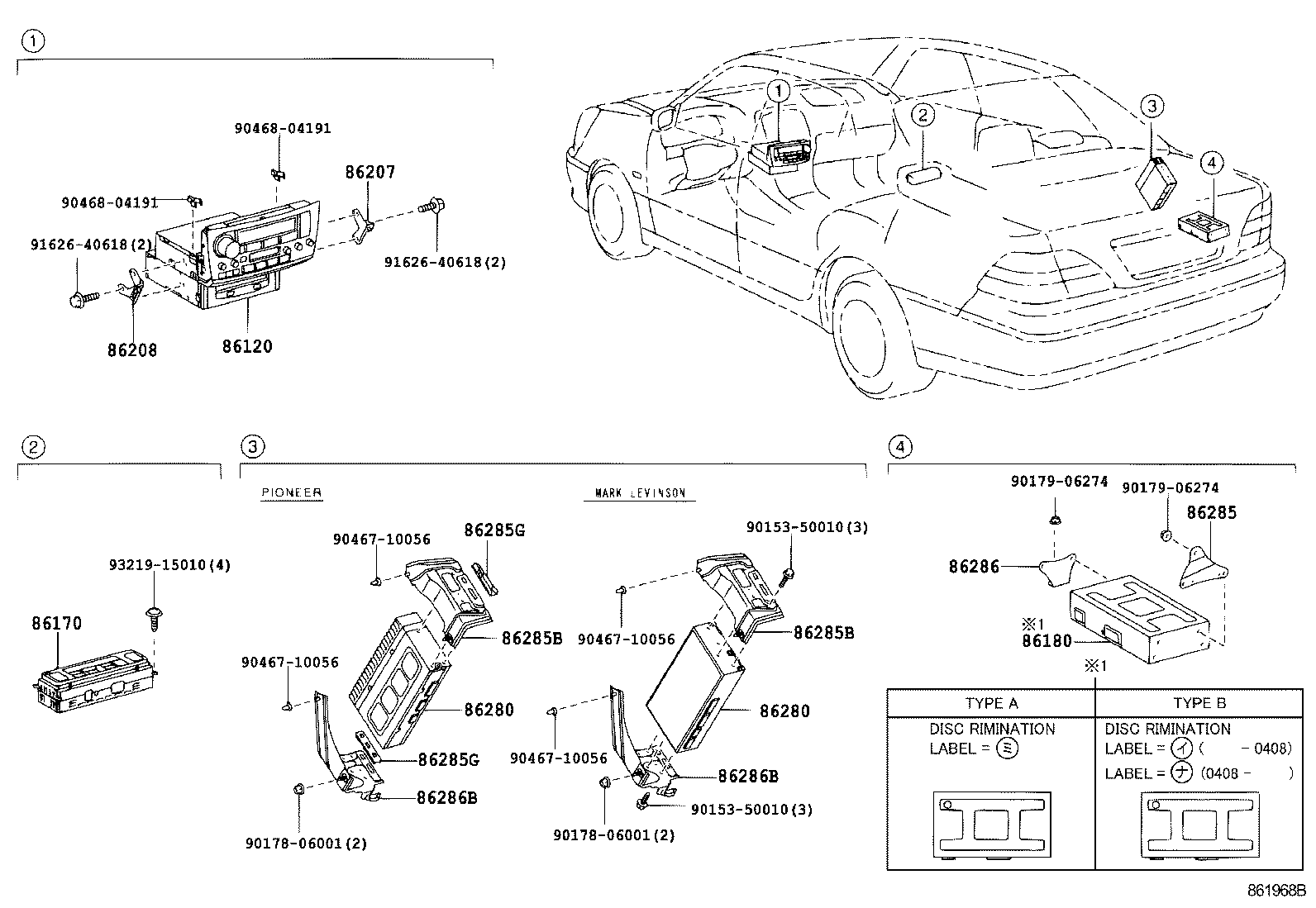

ILLUST NO. 1 OF 3(0307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-50880 |
UCF30..ARL,EUR PIONEER,ID=P7801,TYPE G:REFER TO ILLUSTRATION |
1 | ||
| 86120-50C10 |
UCF30..RHD PIONEER,ID=P7824,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-50D50 |
UCF30..RHD PIONEER,ID=P3925,TYPE L:REFER TO ILLUSTRATION |
1 | ||
| 86120-50D10 |
UCF30..ARL PIONEER,ID=P3924,TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 86170 - SWITCH AND VOLUME ASSY, RADIO | ||||
| 86170-50160 |
UCF30 |
1 | ||
| 86170-50110 |
UCF30 |
1 | ||
| 86180 - TUNER ASSY, STEREO COMPONENT | ||||
| 86180-50150 |
UCF30..ARL |
1 | ||
| 86180-50220 |
UCF30..RHD AM/FM & W(EMV) |
1 | ||
| 86180-50152 |
UCF30..ARL,EUR TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86180-50151 |
UCF30..ARL,EUR TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH | ||||
| 86207-50010 |
UCF30 |
1 | ||
| 86207-50010 |
UCF30 |
1 | ||
| 86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH | ||||
| 86208-50010 |
UCF30 |
1 | ||
| 86208-50010 |
UCF30 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-50260 |
UCF30 PIONEER |
1 | ||
| 86280-0W250 |
UCF30 MARK LEVINSON |
1 | ||
| 86280-50330 |
UCF30 PIONEER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-50260 |
UCF30 PIONEER |
1 | ||
| 86280-0W250 |
UCF30 MARK LEVINSON |
1 | ||
| 86280-50330 |
UCF30 PIONEER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-50100 |
UCF30 |
1 | ||
| 86285-50100 |
UCF30 |
1 | ||
| 86285B - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-50110 |
UCF30 MARK LEVINSON |
1 | ||
| 86285-50090 |
UCF30 PIONEER |
1 | ||
| 86285B - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-50110 |
UCF30 MARK LEVINSON |
1 | ||
| 86285-50090 |
UCF30 PIONEER |
1 | ||
| 86285G - GUIDE, AMPLIFIER BRACKET, NO.1 | ||||
| 82876-22010 |
UCF30 |
2 | ||
| 82876-22010 |
UCF30 |
1 | ||
| 86285G - GUIDE, AMPLIFIER BRACKET, NO.1 | ||||
| 82876-22010 |
UCF30 |
2 | ||
| 82876-22010 |
UCF30 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-50030 |
UCF30 |
1 | ||
| 86286-50030 |
UCF30 |
1 | ||
| 86286B - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-50020 |
UCF30 PIONEER |
1 | ||
| 86286-50040 |
UCF30 MARK LEVINSON |
1 | ||
| 86286B - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-50020 |
UCF30 PIONEER |
1 | ||
| 86286-50040 |
UCF30 MARK LEVINSON |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90178-06001 | ||||
| 90179-06274 | ||||
| 90467-10056 | ||||
| 90468-04191 | ||||
| 91626-40618 | ||||
| 93219-15010 | ||||

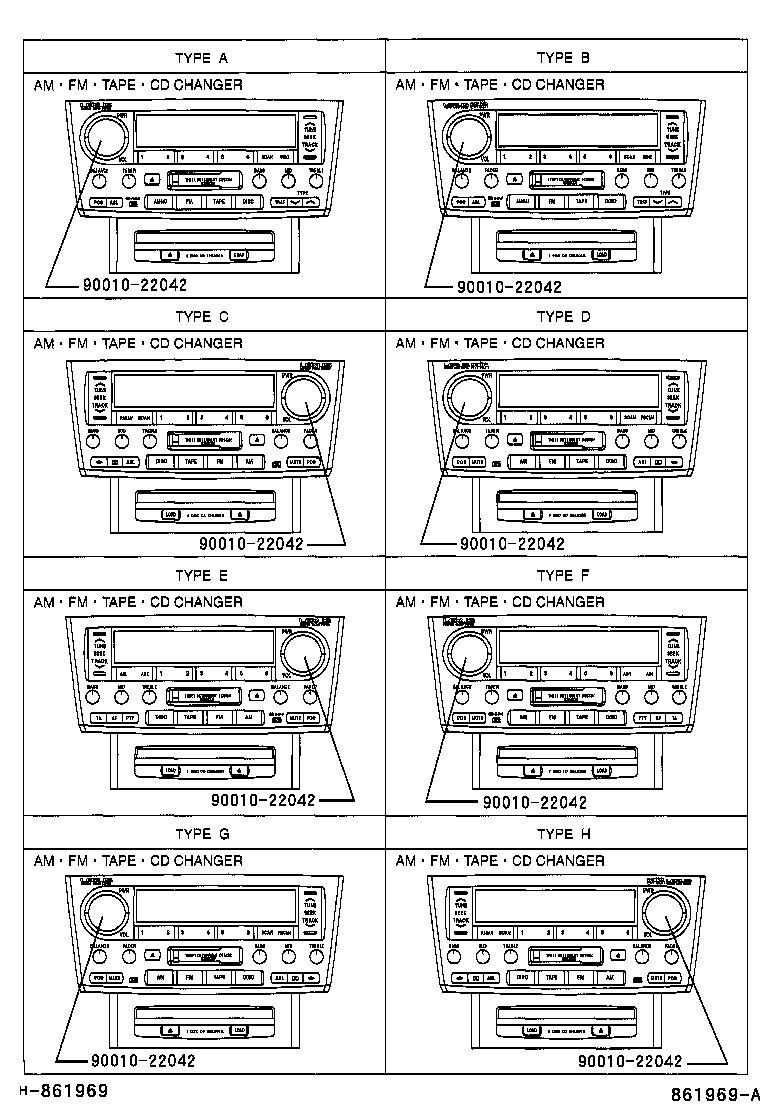

ILLUST NO. 2 OF 3(0307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90010-22042 | ||||

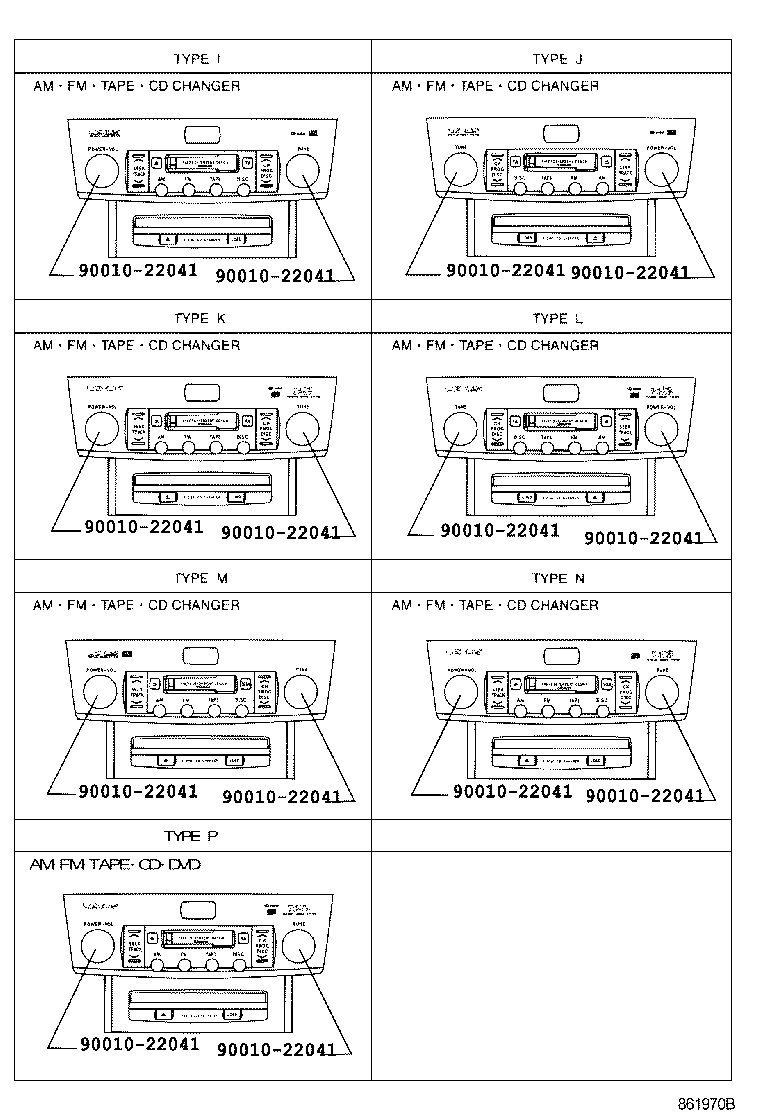

ILLUST NO. 2 OF 3(0307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90010-22041 | ||||
