UCF30R-AETGKQ (2003)
Toyota Lexus Ls430
Production
Jul 2003
-
Aug 2006
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307- )RHD

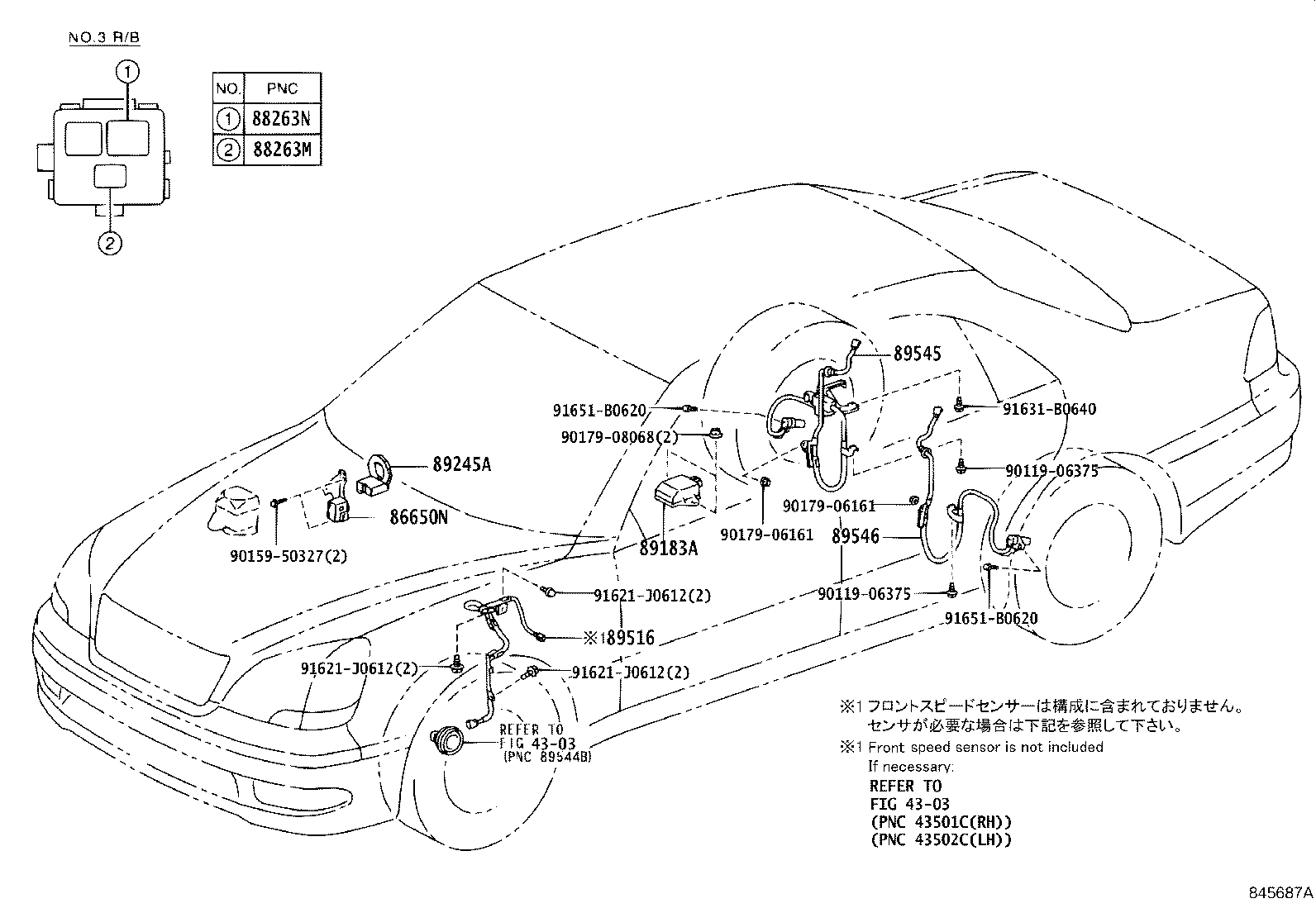

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86650N - BUZZER ASSY | ||||
| 86650-5A010 |
UCF30 |
1 | ||
| 86650-5A040 |
UCF30..RHD |
1 | ||
| 88263M - RELAY, ABS SOLENOID | ||||
| 88263-32070 |
UCF30 |
1 | ||
| 88263-32070 |
UCF30 |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-30150 |
UCF30 |
1 | ||
| 88263-21010 |
UCF30 |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-30060 |
UCF30 |
1 | ||
| 89183-50020 |
UCF30 |
1 | ||
| 89245A - SENSOR, STEERING | ||||
| 89245-12010 |
UCF30..ARL |
1 | ||
| 89245-48020 |
UCF30..ARL |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-50020 |
UCF30 LH |
1 | ||
| 89516-50020 |
UCF30 LH |
1 | ||
| 89516-50010 |
UCF30 RH |
1 | ||
| 89516-50010 |
UCF30 RH |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-50040 |
UCF30 |
1 | ||
| 89545-50050 |
UCF30 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-50040 |
UCF30 |
1 | ||
| 89546-50050 |
UCF30 |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 90159-50327 | ||||
| 90179-06161 | ||||
| 90179-08068 | ||||
| 91621-J0612 | ||||
| 91631-B0640 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 4303 | ||||
