UCF30R-AETGKQ (2003)
Toyota Lexus Ls430
Production
Jul 2003
-
Aug 2006
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307- )

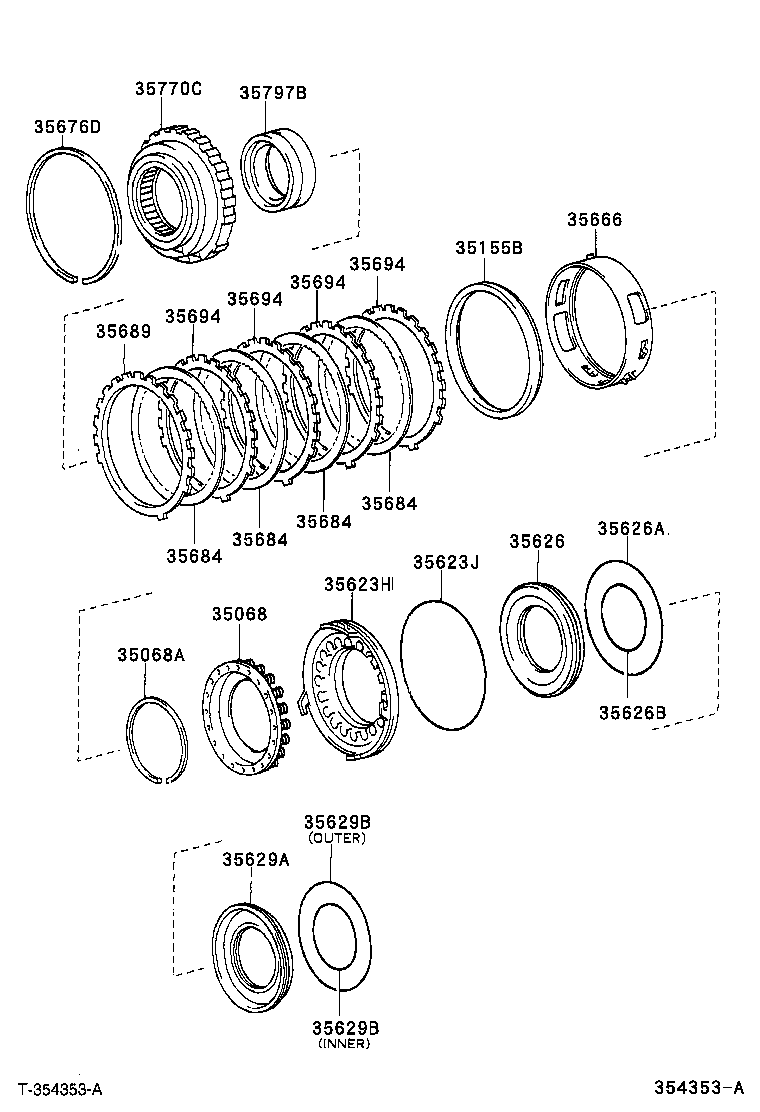

Click highlighted areas on diagram
A761E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-30020 |
UCF30 |
1 | ||
| 35068-60010 |
UCF30 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-61001 |
UCF30 |
1 | ||
| 90520-61001 |
UCF30 |
1 | ||
| 35155B - SLEEVE, REAR COVER | ||||
| 35155-50010 |
UCF30 |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-50030 |
UCF30 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99087 |
UCF30 |
1 | ||
| 90301-99100 |
UCF30 |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-50010 |
UCF30 |
1 | ||
| 35626-30040 |
UCF30 |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99144 |
UCF30 |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-79003 |
UCF30 |
1 | ||
| 90301-79003 |
UCF30 |
1 | ||
| 35629A - PISTON, BRAKE, NO.4 | ||||
| 35629-50020 |
UCF30 |
1 | ||
| 35629B - RING, O (FOR BRAKE PISTON NO.4) | ||||
| 90301-99084 |
UCF30 OUTER |
1 | ||
| 90301-67006 |
UCF30 INNER |
1 | ||
| 35629B - RING, O (FOR BRAKE PISTON NO.4) | ||||
| 90301-99084 |
UCF30 OUTER |
1 | ||
| 90301-67006 |
UCF30 INNER |
1 | ||
| 35666 - TUBE, BRAKE APPLY | ||||
| 35666-50010 |
UCF30 |
1 | ||
| 35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE) | ||||
| 90521-99131 |
UCF30 |
1 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-50010 |
UCF30 |
4 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-50010 |
UCF30 |
4 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-50010 |
UCF30 |
4 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-50010 |
UCF30 |
4 | ||
| 35689 - FLANGE, BRAKE, NO.4 | ||||
| 35689-60150 |
UCF30 T=2.8,MARK 10 |
1 | ||
| 35689-60110 |
UCF30 T=2.0,MARK 2 |
1 | ||
| 35689-60100 |
UCF30 T=1.8,MARK 0 |
1 | ||
| 35689-60130 |
UCF30 T=2.4,MARK 6 |
1 | ||
| 35689-60160 |
UCF30 T=3.0,MARK 12 |
1 | ||
| 35689-60170 |
UCF30 T=3.2,MARK 14 |
1 | ||
| 35689-60140 |
UCF30 T=2.6,MARK 8 |
1 | ||
| 35689-60120 |
UCF30 T=2.2,MARK 4 |
1 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-60010 |
UCF30 |
4 | ||
| 35694-60011 |
UCF30 |
4 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-60010 |
UCF30 |
4 | ||
| 35694-60011 |
UCF30 |
4 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-60010 |
UCF30 |
4 | ||
| 35694-60011 |
UCF30 |
4 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-60010 |
UCF30 |
4 | ||
| 35694-60011 |
UCF30 |
4 | ||
| 35770C - CLUTCH ASSY, 1WAY NO.3 | ||||
| 35770-50010 |
UCF30 |
1 | ||
| 35797B - RACE, 1 WAY CLUTCH, INNER | ||||
| 35797-50031 |
UCF30 |
1 | ||
| 35797-50030 |
UCF30 |
1 | ||
